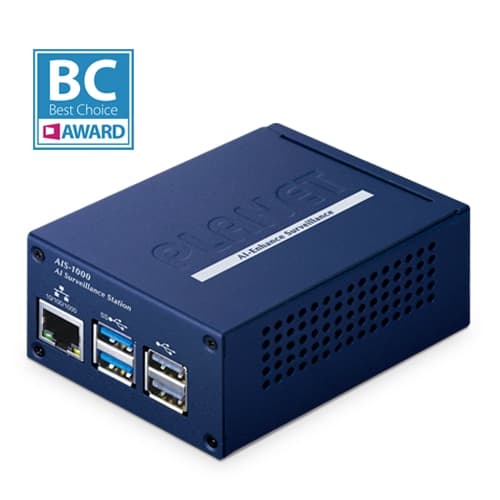

AIS-1000 — AI Surveillance Station

Descripción

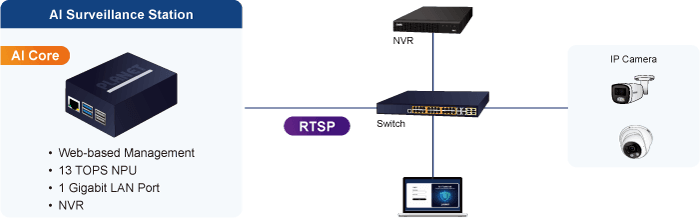

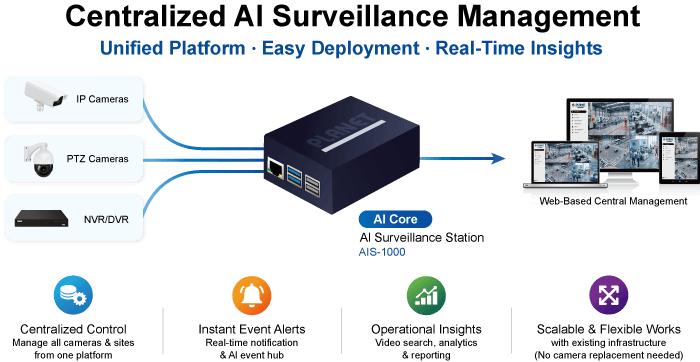

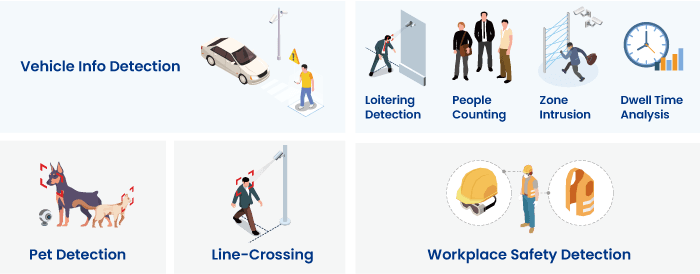

Empowering Existing Surveillance with AI Intelligence PLANET AI Surveillance Station is designed to seamlessly enhance existing surveillance infrastructures by introducing intelligent video analytics at the edge. While preserving existing surveillance infrastructure, it enables organizations to upgrade traditional surveillance into a smarter, more responsive security framework. By integrating directly into existing network environments, businesses can simplify deployment and improve operational efficiency. Real-Time AI Detection for Smarter Security Operations Equipped with advanced AI capabilities, the system delivers real-time detection across a wide range of scenarios, including: Illegal vehicle entry detection Vehicle timeout / stay detection Line-crossing detection Area intrusion detection Crowd counting detection Loitering time detection Cat and dog detection Whitelist/blacklist face recognition Helmet and safety vest detection Fire and smoke detection It enabling comprehensive situational awareness across diverse environments such as factories, campuses, and commercial spaces. These AI-driven insights help security teams respond faster and operate more efficiently. Centralized AI Event Hub for Efficient Management At the core of the system is a centralized management platform that consolidates all AI detection results into a unified event hub. Through an intuitive dashboard, users can monitor live video streams, review recent events, and manage alerts in real time. The platform enables efficient event handling, allowing operators to quickly identify critical incidents and take action with improved operational visibility. Streamlined Investigation with Intelligent Playback and Search The AI Surveillance Station enhances video investigation workflows by enabling event-based playback, object tracking, and attribute filtering. Users can quickly locate relevant footage through structured filtering methods such as human detection, region-based search, and feature matching. This significantly reduces the time required for incident investigation while improving search accuracy and usability. Flexible Deployment with Edge AI Architecture Built on an edge AI architecture, the system performs video analysis locally, reducing bandwidth consumption and alleviating the need for centralized computing resources. It can operate as a standalone AI node or be deployed across distributed environments, providing flexibility for different scales of surveillance applications. This modular approach allows organizations to expand their AI capabilities gradually as needs evolve. Advanced Automation and Integrated Security Applications Beyond detection and monitoring, the system supports advanced automation capabilities such as virtual patrol and intelligent video playback analysis. It can also be integrated with access control systems, enabling integration with external access control systems, to enhance overall security management. These capabilities extend the value of surveillance systems from passive monitoring to proactive security operations. Enhancing Legacy Systems with Future-Ready AI By bridging traditional surveillance systems with modern AI technologies, PLANET AI Surveillance Station transforms legacy infrastructure into an intelligent security solution. Organizations can extend system lifespan, improve operational efficiency, and gain deeper insights from video data—all while preparing for future smart security applications. Applications Smart Surveillance for Industrial and Workplace Safety In industrial environments, the AI Surveillance Station enhances workplace safety by continuously monitoring compliance with safety regulations. It enables detection of safety equipment such as helmets or vests, identifies unauthorized access to restricted areas, and helps prevent potential hazards before incidents occur. By providing real-time alerts and visual insights, it supports safer operations and reduces risks in factories and production facilities. Efficient Security Management for Commercial Spaces For retail stores, shopping malls, and commercial buildings, the system enhances both security management and operational efficiency through AI-driven video analytics. It supports people counting, loitering detection, and intrusion monitoring, allowing operators to better understand crowd flow and detect abnormal activities. These insights help businesses optimize space utilization, enhance customer experience, and maintain a secure environment. Campus and Facility Protection with Intelligent Monitoring In campuses, office buildings, and large facilities, the AI Surveillance Station delivers comprehensive protection through real-time detection and centralized event management. It enables monitoring of key areas, detection of unusual behaviors, and quick response to incidents. With its intuitive dashboard and event-based management, security teams can efficiently oversee large-scale environments with improved situational awareness. Transportation and Public Area Monitoring The solution is well-suited for transportation hubs and public spaces where continuous monitoring is essential. It can detect crowd density, identify abnormal behaviors such as loitering or intrusion, and supports real-time situational awareness in high-traffic environments. By enhancing visibility across large and dynamic environments, it helps ensure safety and operational continuity. Distributed Surveillance with Scalable AI Deployment For organizations managing multiple sites, the AI Surveillance Station supports flexible deployment as a standalone AI node or across distributed locations. This makes it ideal for chain businesses, multi-site enterprises, and large-scale infrastructures. With edge AI processing and centralized management, users can maintain consistent security standards while scaling operations efficiently. Key Features Hardware High-performance 64-bit quad-core CPU for real-time AI video analytics Built-in 13 TOPS AI acceleration engine for real-time edge AI inference 1TB NVMe SSD storage for high-speed storage of video metadata and event records 1 × Gigabit Ethernet interface for high-bandwidth video transmission Ultra-compact device size (88.7 × 68.2 × 41 mm) for flexible installation in limited spaces Operating temperature range 0 ~ 50°C suitable for various indoor monitoring environments Low-power edge AI device suitable for continuous surveillance operation AI Video Analytics Real-time object detection and behavior analysis through edge AI inference Supports intelligent event detection including intrusion detection, line-crossing detection and loitering detection AI visual recognition capabilities including helmet, reflective vest, mask detection Supports smoke and fire detection for early hazard identification Built-in pet recognition (cat and dog detection) for specialized monitoring scenarios Simultaneous analysis of multiple video streams for improved surveillance coverage Intelligent Video Search Supports efficient video search through structured filtering and event-based queries Enhances video investigation efficiency compared with manual timeline browsing Enables rapid retrieval of relevant video segments based on detected events and attributes System Integration Compatible with RTSP IP cameras from various manufacturers Supports integration with existing IP surveillance systems Enables cost-effective upgrade of conventional surveillance systems to AI-powered monitoring Management and Deployment Web-based management interface for system configuration and monitoring Designed for flexible edge deployment in distributed surveillance environments Supports centralized monitoring and intelligent event management (AI Event Hub) Compact edge AI platform suitable for industrial, retail, campus and smart city applications

Especificaciones técnicas

CPU

64-bit Quad-core ARM Cortex-A76 @ 2.4GHz

AI Accelerator

Hailo-8L (13 TOPS)

GPU

Broadcom VideoCore VII

Internal Storage

1TB NVMe SSD

Memory

8GB SDRAM

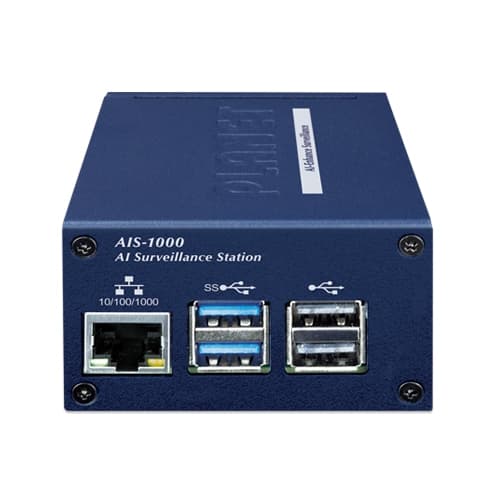

Networking Interface

1 × 10/100/1000T Gigabit Ethernet (RJ45)

Button

> 10 sec: system shutdown

USB Port

2 x USB 3.0 ports 2 x USB 2.0 ports

Operating Temperature

0 to 50 degrees C

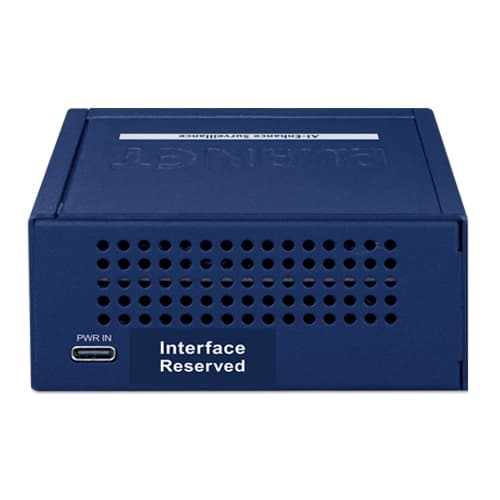

Power Interface

USB Type-C power input

Power Input

5V/5A DC via USB Type-C power connector

Power Consumption

Max. 27W

Enclosure

Metal enclosure

Installation

Desktop and wall-mount

Dimensions (W × D × H)

88.7 × 68.2 × 41 mm

Weight

0.287 kg

Camera Compatibility

RTSP IP camera support

Max. Channels

8-channel IP cameras

NVR

Built-in video recording capability

Parking Detection

Illegal Vehicle Intrusion / Idle Timeout Detection

Human Detection

Line Crossing / Area Intrusion / Crowd Counting

Pet Detection

Cats & Dogs

Face Recognition

Whitelist / Blacklist

Industrial Safety Detection

Helmet / Vest

Fire & Smoke Detection

Fire & Smoke

Smart Search System

Object Filtering / Area Detection / Feature Matching (Human / Vehicle / Pet) / Vehicle Attribute Search (e.g., color, type) / Interactive Search Enhancement (LLM-based concept)

Management Interface

HTTP

System Management

AI parameter configuration Camera IP/device name configuration Camera event parameter configuration Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP NTP System reboot

System Monitoring

CPU/RAM/GPU utilization monitoring Export logs and error reports

AI Model Management

AI model upload/update interface Model version rollback

Event Management

Event/alarm condition configuration Trigger actions (notification/recording)

Real-time Display

Homepage real-time event display Event details with live video stream Incident processing record window

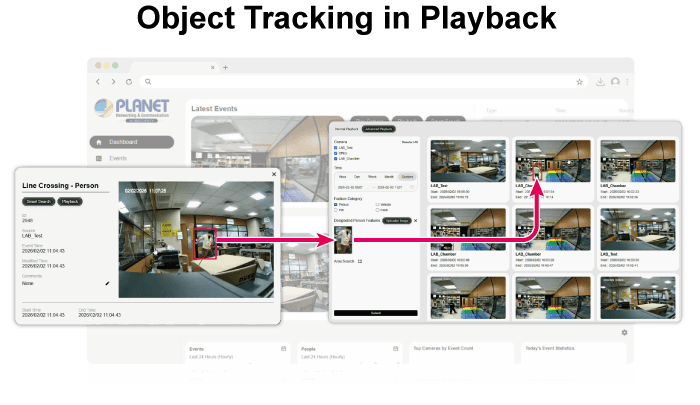

Playback

Event log playback Event replay

Monitoring View

Multi-camera NVR-style interface Multi-screen / single-screen switching Historical person-fragment search

Intelligent Platform

Search-based playback query interface Integrated homepage search optimization

Historical Data

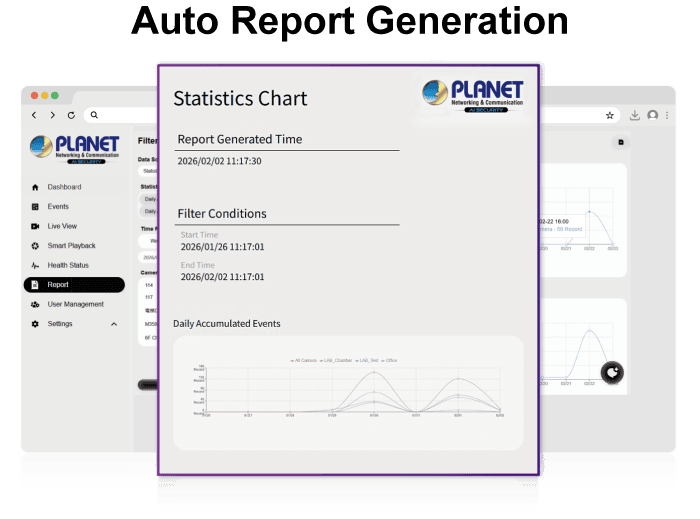

Historical event record query Report generation

User Management

Permission control

Video Compression

H.264 / H.265 H.264+ / H.265+

Video Streaming

RTSP (Sub-stream only)* Resolution: Up to 704 × 576 (D1) Frame Rate: Up to 10 fps Compression: H.264 / H.265 / H.265+ (H.265+ supported for optimized streaming)

Recording Performance

8-channel simultaneous recording Up to 1080P Full HD recording @ 25/30 fps (per channel) Supports 960P / 720P / D1
