ANT-FP14AD — 2x2 MIMO 5GHz 14dBi Flat-Panel Dual Polarization Direction Antenna

Descripción

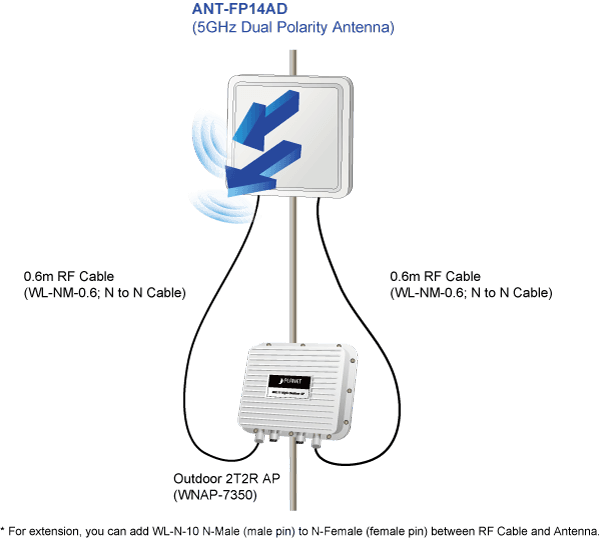

PLANET ANT-FP14AD is a 5GHz 14dBi Flat Panel Dual Polarization Directional Antenna equipped with two N-Type Female connectors. The ANT-FP14AD can increase wireless signal coverage and improve signal strength and quality for the current wireless environment. As the ANT-FP14AD can effectively enhance the performance and coverage of the 802.11a/n 5GHz facilities, it is quite suitable for outdoor wireless LAN applications, such as point-to-point connection between the warehouses. The ANT-FP14AD Dual Polarization Directional Antenna can operate in both vertical and horizontal polarization. The dual-polarized antennas are perfectly helpful for 802.11n devices in multithreaded communications. This enables the wireless device to transmit data on one polarization and receive data on the other polarization simultaneously. Obviously, all the networking equipment in the wireless network must be multithreading complaint. It thus brings users the advantage that multithreaded communications can be achieved with use of only one antenna instead of two independent (and opposite polarized) antennas. Applications PLANET ANT-FP14AD 5GHz 14dBi Flat Panel Dual Polarization Directional Antenna, with its compact housing and lightning protection system design, can be flexibly installed in any outdoor wireless environment to meet today’s wireless LAN requirements, such as wide wireless signal coverage and improved signal strength and quality. Key Features Designed to extend wireless coverage of 802.11a/n devices at frequency of 5GHz Intergrating two polarities into one antenna helps to reduce cost of deployment 14dBi high-gain antenna IP55-rated case Compact-sized housing and lightning protection system design Built-in two N-Type female connectors Easily-extended, point-to-point wireless coverage

Especificaciones técnicas

Frequency Range

5.15 ~ 5.85GHz

Max. Gain

14dBi

Antenna Type

Uni-directional, flat panel

V.S.W.R.

<1.5

Polarization

Horizontal and vertical (dual [polarization)

HPBW/Horizontal

30 degrees

HPBW/Vertical

30 degrees

Input Impedance

50Ω

Connector

N-Type (female) x 2

Survival Wind Speed

Greater than 150mph

Temperature

-40 ~ 70 degrees C

Humidity

95% @ 55 degrees C

Radome Color

Grayish-white

Radome Material

ABS, UV-resistant

Dimensions (W x D x H)

228 x 15 x 228 mm (connector excluded)

Weight

550g

Waterproof Rating

IP55

Mount Type

Pole Mount
