WirelessPLANETantenna-and-cable-accessories•Código/modelo: ANT-FP18

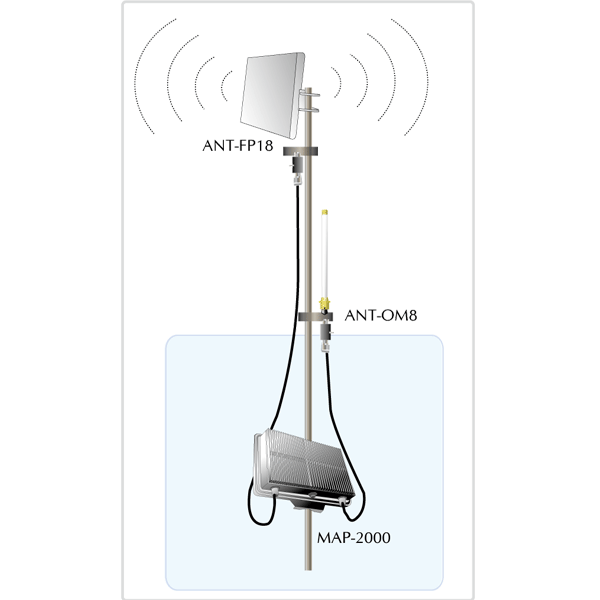

ANT-FP18 — 2.4GHz 18dBi Flat-Panel Direction Antenna
2.4GHz 18dBi Flat-Panel Direction Antenna
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state. Key Features 30 degree Horizontal Spread and 20 degrees Vertical Spread Connector: N-female Operating environment: outdoor
Especificaciones técnicas
- Frequency
- 2400-2485MHz
- Antenna Type
- Uni-directional, flat panel
- Gain (dBi)
- 18
- SWR
- <=1.5
- Beamwidth Degree
- Horizontal 30 Vertitcal 20
- Mounting Type
- Wall mount
- Operating Temperature
- -40 ∼ 70 degrees C
