WirelessPLANETantenna-and-cable-accessories•Código/modelo: ANT-FP18A

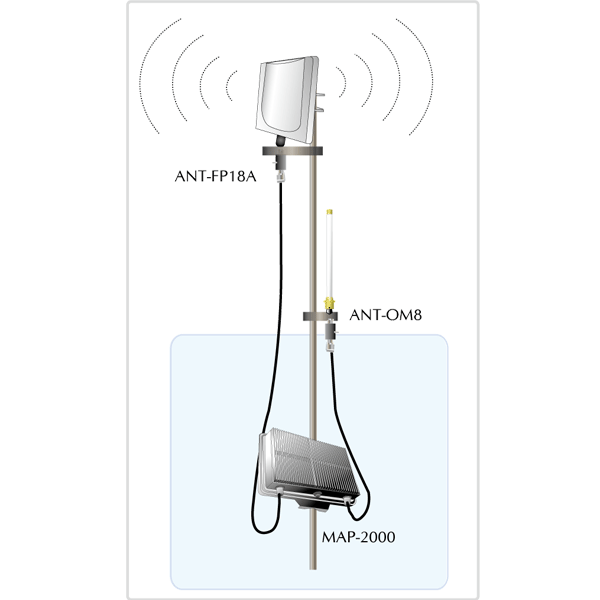

ANT-FP18A — 5GHz 18dBi Flat-Panel Direction Antenna
5GHz 18dBi Flat-Panel Direction Antenna
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state. Key Features 10 degrees Horizontal Spread and 10 degrees Vertical Spread Connector: N-female Operating environment: outdoor
Especificaciones técnicas
- Frequency
- 5100-5900MHz
- Antenna Type
- Uni-directional, flat panel
- Gain (dBi)
- 18
- SWR
- <=2.0
- Beamwidth Degree
- Horizontal 10 Vertitcal 10
- Mounting Type
- Pole or wall mount
- Operating Temperature
- -40 ∼ 70 degrees C
