ANT-OM5D-KIT — 2.4G/5GHz Dual Band Omni-directional Antenna

Descripción

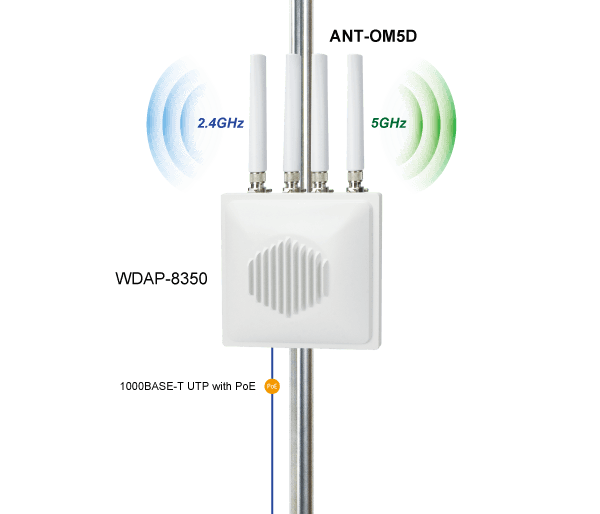

Full 360° Coverage with Greater Penetration PLANET ANT-OM5D-KIT is a 2.4/5GHz Dual Band Antenna equipped with N-type male connector. The antenna provides a 360-degree horizontal and wider vertical coverage which is quite suitable for outdoor short-range application, especially to provide the wireless access for laptops and smartphones. With its N-type male connector, it can be directly attached to the antenna connectors of the WNAP-6350, WNAP-7350 and WDAP-8350 without any cumbrous cabling, thus reducing the deployment cost and installer’s effort. Key Features Compatible with 2.4/5GHz 802.11n devices Optimal 4.5dBi high gain in 2.4GHz and 7dBi high gain in 5GHz Flexible N-type plug (male) connector fits all outdoor wireless equipment with an N-type jack (female) antenna connector IP67 case protection Compact-sized housing, lightning design 360 degrees of wireless network coverage, no aiming required No configuration or installation software required

Especificaciones técnicas

Frequency Range

2.4GHz and 5GHz

Antenna Gain

2.4GHz: 4.5dBi 5GHz: 7dBi

Antenna Radiation Type

Omni-directional

VSWR

≦2.0

HPBW/Horizontal

360 degrees

HPBW/Vertical

2.4GHz: 80 degrees 5GHz: 55 degrees

Polarization

Vertical

Impedance

50Ω

Radome Color

White

Radome Material

ABS

Connector Material

Brass

Connector

N -type male (N-type plug)

Dimensions (Φ x H)

23 x 180 mm

Weight

65g

Temperature

-20 ~ 65 degrees C

Humidity

95% @ 55 degrees C
