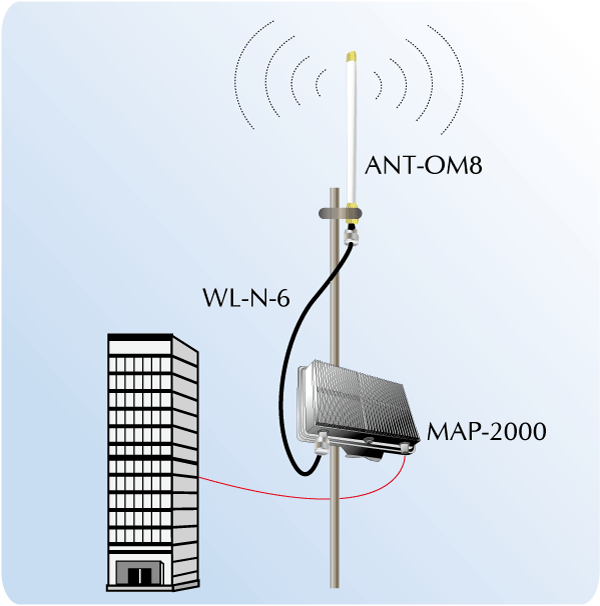

ANT-OM8 — 2.4GHz 8dBi Omni-directional Antenna

Descripción

To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state. Key Features 360 degrees Horizontal Spread & 10 degrees Vertical Spread Connector: N-female Operating environment: outdoor

Especificaciones técnicas

Frequency

2400-2485MHz

Antenna Type

Omni-directional, General purpose

Gain (dBi)

8

SWR

<=1.3

Beamwidth Degree

Horizontal 360 Vertical 10

Mounting Type

Mast mount

Operating Temperature

-40 ∼ 70 degrees C
