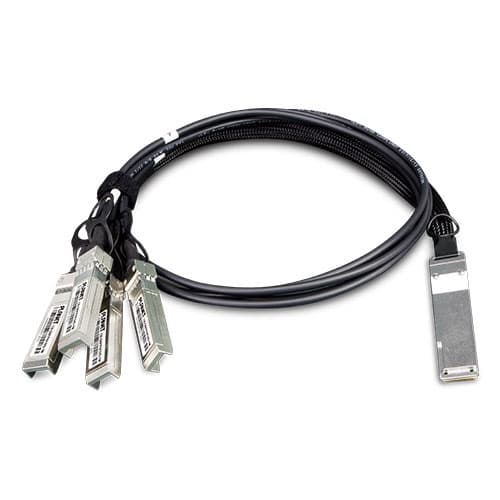

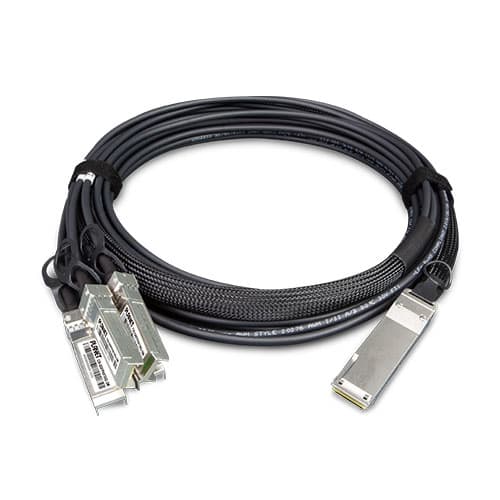

CB-QSFP4X10G-1M/3M/5M — 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable - 1M/3M/5M

Descripción

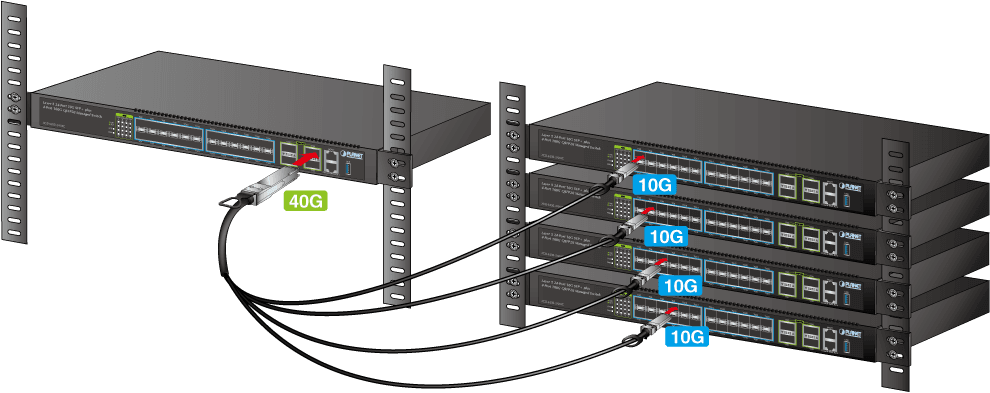

PLANET CB-QSFP4X10G-1/3/5M is a 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable (1/3/5M in length), which is designed to work with PLANET products with a 40G QSFP+ interface to provide a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers. Each QSFP-SFP+ splitter cable features a single QSFP connector (SFF-8436) with a data rate of 40Gbps on one end, and each of the four SFP+ connectors (SFF-8431) has a data rate of 10Gbps on the other. The CB-QSFP4X10G-1/3/5M can be inserted into PLANET switches with a 40G SFP+ interface, such as XGS-6350-24X4C. Applications Using 40G performance for in-rack connections between servers and switches Key Features Connector A: One QSFP 40Gbps Connector (SFF-8436 Compliant) Connector B: Four SFP+ 10Gbps Connectors (SFF-8431 Compliant) Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fiber Channel Robust zinc die-cast SFP+ & QSFP connectors with pull-to-release latching Bridge the gap between your 10G and 40G capable switches/host adapters Up to 10.3125Gbps transfer rate per SFP+ channel (40Gbps in total) Fully compliant with the latest SFP+ & QSFP MSA (Multi-Source Agreement) Designated form factor and electrical compliance for QDR InfiniBand

Especificaciones técnicas

Connector Type

QSFP+ and SFP+

Data Transfer Rate

40Gbps

Length

1 meter

Operating Temperature

-5 ~ 75 degrees C

Length

3 meters

Length

5 meters
