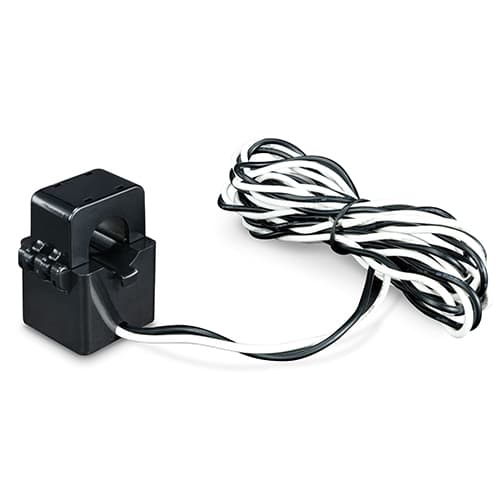

CT-60A-16/CT-100A-16/CT-200A-24/CT-400A-35/CT-600A-35 — Split-Core Current Transformer with 333mV Output

Descripción

Flexible Split-core Current Measurement The PLANET CT Series split-core current transformers are designed for fast and convenient AC current measurement without disconnecting existing conductors during installation. Available with rated current options from 60A to 600A and a standard 333mV AC output , the series provides 0.5% full-scale accuracy and is compatible with PLANET smart power meters featuring a 333mV CT input. Its split-core construction simplifies installation in existing electrical panels, making it suitable for energy monitoring, power management, building automation and electrical equipment applications. Applications Applying Split-core Current Transformers to Smart Power Meters The PLANET CT Series split-core current transformers can be connected to PLANET smart power meters with a 333mV CT input , including the SPM-D01-M and SPM-D05/D10 Series. Their split-core design allows the sensor to be installed around an existing conductor without disconnecting the cable, simplifying installation in electrical panels and retrofit projects. With rated current options of 60A , 100A , 200A , 400A and 600A , the series supports current measurement for various electrical loads in energy monitoring, power management and building automation applications. Key Features Split-core design for fast and convenient installation around existing conductors Standard 333mV AC output for compatible PLANET smart power meters Rated current options of 60A , 100A , 200A , 400A and 600A 0.5% full-scale accuracy for reliable AC current measurement Supports operating voltages of up to 720V AC Suitable for energy monitoring , power management and building automation

Especificaciones técnicas

Sensor Type

Split-core Current Transformer

Primary Rated Current

CT-60A-16: 60A CT-100A-16: 100A CT-200A-24: 200A CT-400A-35: 400A CT-600A-35: 600A

Secondary Rated Output

333mV AC

Accuracy

0.5% F.S.

Phase Linear Error

<=30 minutes

Operating Voltage

<=720V AC

Frequency Range

50Hz to 1kHz

Opening Diameter

CT-60A-16 / CT-100A-16: 16mm CT-200A-24: 24mm CT-400A-35 / CT-600A-35: 35mm

Lead Length

2m

Cable

AWM1015, 22AWG (0.34mm2), black-and-white twisted pair

Output Lead Wiring

S1 (white): K terminal; S2 (black): L terminal

Dimensions (W x D x H)

CT-60A-16 / CT-100A-16: 33.9 x 37.8 x 49.0mm CT-200A-24: 40.2 x 53.3 x 69.9mm CT-400A-35 / CT-600A-35: 42.8 x 67.0 x 83.1mm

Weight

CT-60A-16 / CT-100A-16: 100g CT-200A-24: 205g CT-400A-35 / CT-600A-35: 375g

Case Material

Nylon, Resin 94-V0

Operating Temperature

-15 to 50 degrees C

Insulation Resistance

100MOhm at 500V DC

Dielectric Strength

4000V AC for 10 seconds

Regulatory Compliance

CE
