ELA-100 — Ethernet Lightning Arrest Box

Descripción

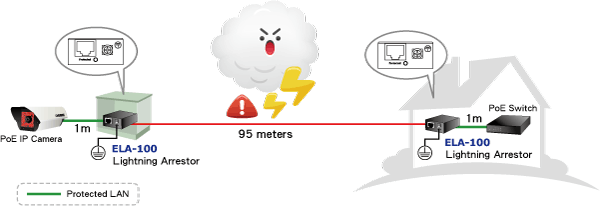

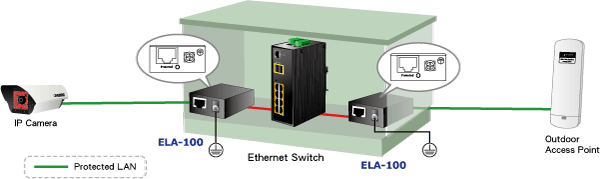

To prevent Ethernet devices from possible damage caused by surge voltages as a result of lightning strikes, PLANET has released a new Ethernet Lightning Arrest Box especially made in the current Ethernet environment. The ELA-100 Ethernet Lightning Arrest Box provides two passive 10 / 100 / 1000Base-T interfaces for connection of two Ethernet devices and one ground position for earth. The ELA-100 Ethernet Lightning Arrest Box is the ideal solution to preventing damages to Ethernet devices from surge voltages caused by lightning strikes. Applications Outdoor Installation of Ethernet Lightning Arrest Box When installing the ELA-100 in an outdoor place with shelter, the Ethernet Lightning Arrest Box must be earthed or else the Ethernet Lightning Arrest Box may get electric shock and damage. Then connect two Ethernet devices to the two passive 10/100/1000Base-T ports (protected port and un-protected port) of Ethernet Lightning Arrest Box for lightning strike prevention. Key Features 20 KA lightning surge protection Two passive 10 / 100 / 1000 Ethernet ports IEEE 802.3at PoE+/802.3bt PoE++ Passthrough One ground position Flexibly designed for various Ethernet devices including PoE

Especificaciones técnicas

Ethernet interface

2 passive 10/100/1000 Ethernet ports IEEE 802.3at PoE+/802.3bt PoE++ Passthrough

Ground

1 ground position

DC spark-over voltage

230V, ±20%

Nominal impulse discharge current (wave 8 / 20μs)

20KA

Arc Voltage at 1A

~35V

Glow to arc transition current

~1A

Glow voltage

~200V

Dimensions (W x D x H)

65 x 42 x 20mm

Weight

80g

Operating environment

0~60 degrees C, 5%~90%RH

Storage environment

-20~70 degrees C, 5%~90%RH
