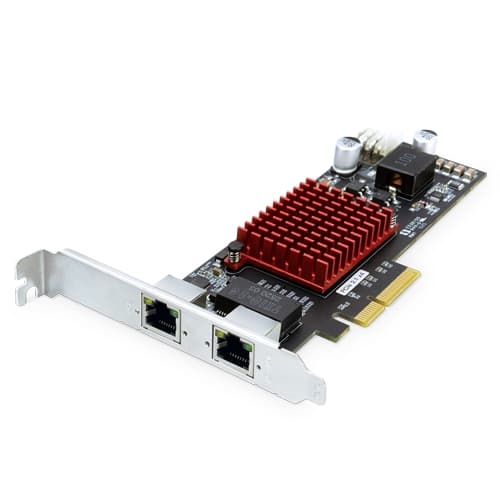

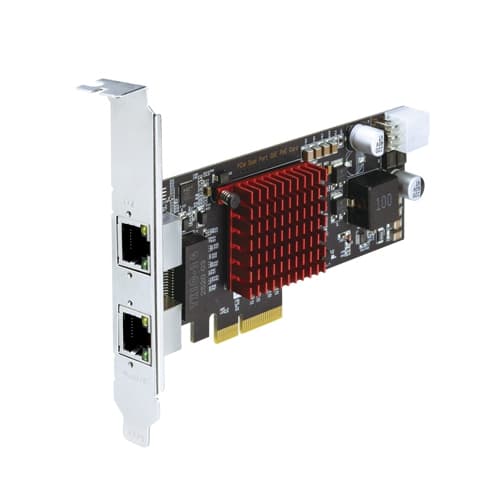

ENW-9720P — 2-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter

Descripción

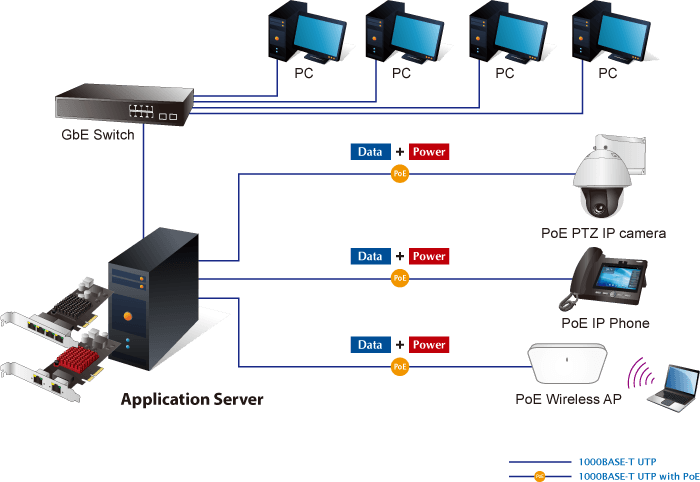

Simple Plug and Play PoE Solution for IPC System PLANET ENW-9720P is a 2-port 10/100/1000T 802.3at PoE+ PCI Express server adapter with a maximum of up to 60 watts of power output over Ethernet cables. Incorporated with Intel ® I350AM2 server-grade GbE Mac controller, the ENW-9720P provides superb performance to fulfill the requirements of Industrial networks . Compliant with PCIe Express x4 interface (PCIe 2.1) , the ENW-9720P can be easily installed into any IPC or server motherboard with a PCIe x4 slot, delivering reliable performance and compliance with industry standards. Each port of the ENW-9720P can deliver 30W of power and 1Gbps bandwidth over a networking cable of up to 100 meters . Its PoE+ capability can power not only PTZ (pan, tilt and zoom) surveillance cameras , but also the latest Wi-Fi 6/6E/7 wireless access points , enabling ultra-high-speed wireless connectivity for modern enterprise networks. Hassle-free Installation for PoE Deployment PLANET ENW-9720P is backward compatible with both IEEE 802.3af/at PoE standards which allow users to flexibly deploy standard and high-powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. In addition, the ENW-9720P is powered by the PCIe bus power and via a 12V Mini-Fit 6-Pin power connector, providing greater flexibility in installation. With PoE technology, the ENW-9720P frees IP cameras and wireless APs from power outlet and extra wiring limitations, reducing cabling, simplifying installation, and significantly saving deployment time. Standard 802.1Q VLAN and Jumbo Frame Support The ENW-9720P supports IEEE 802.1Q VLAN and 9.5K jumbo frame which allow it to operate in a flexible and secure network environment. With IEEE 802.3 flow control support, it further optimizes throughput and wire-speed packet transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments. Multiple OS Support The ENW-9720P operates completely well with most of the popular and latest operating systems including Microsoft Windows® 7/8/8.1/10/11(64-bit) Windows Server® 2008 R2/2012 / 2012 R2/2016/2019/2022/2025 and Linux Kernel 2.6.x to 6.x(RHEL / SLES supported, igb driver), enabling simple integration into network designs. Low Profile design The ENW-9720P supports both full-height and low-profile PCI Express slot. The ENW-9720P provides an accessory of low profile bracket to fulfill IPC with low profile slot. The flexibility of low profile design can help the ENW-9720P meet various applications of industrial networks. Applications Server-grade PoE NICs PLANET ENW-9720P is designed with Intel® I350AM2 server-grade GbE controller to provide dual-port Gigabit network connectivity. It supports 9.5K jumbo frame and IEEE 802.1Q VLAN for flexible network deployment, while its data acceleration features help reduce CPU utilization. In addition, the dual PoE ports deliver up to 30W per port with a total power budget of 60W. The ENW-9720P serves as a reliable server-grade PoE NIC, delivering up to 60W power budget for IP surveillance, IP phones and wireless LAN applications . With PCI Express compatibility, it ensures long-term integration with current and future industrial network systems. Key Features Intel® server-grade GbE Mac Controller (Intel I350AM2) PCI Express (PCIe) x4 interface, compliant with PCI Express 2.1 specification Supports 2 Gigabit Ethernet MAC Controller Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.3az Energy Efficient Ethernet (EEE) PXE network boot support IEEE 802.3at compliant with up to 30W power per port, maximum 60W power budget PCI Express 12V power supply and optional 12V Mini-Fit 6-Pin power connector input Powered device (PD) auto detection and classification IEEE 802.1Q VLAN tagging support 9.5K jumbo frame size Dual-profile design (low profile and full-height bracket) Compatible with Microsoft Windows 10/11 Windows Server 2016/2019/2022 and Linux 3.x to 6.x

Especificaciones técnicas

Controller

Intel I350AM2

Interface

2 x RJ45

LED Indicator

Link/ Act: Green PoE Link: Amber

Data Rate

10/100/1000 Mbps

Dimensions (W x D x H)

163 x 22 x 120 mm

Weight

100g

PCIe Bus Type

PCI Express x4, compliant with PCIe 2.1

Power Supply

PCIe 12V bus power and 12V Mini-Fit 6-Pin power connector

Typical Power Consumption

Max.3 watts/ 10.23BTU (No Loading) Max.63 watts/ 214.83BTU (Full loading)

PoE Standard

IEEE 802.3at Power over Ethernet (PSE)

PoE Power Supply Type

End-span

PoE Power Output

Per port up to 52 VDC, max. 30 watts

Power Pin Assignment

1/2(+), 3/6(-)

Single PoE Output

30 watts

PoE Power Budget

60-watt maximum

Layer 2 Features

IEEE 802.1Q VLAN support, IEEE 802.3az Energy Efficient Ethernet (EEE), PXE Network Boot

Operating System Support

Windows® 7/8/8.1/10/11(64-bit) Windows Server® 2008 R2/2012 / 2012 R2/2016/2019/2022/2025 Linux Kernel 2.6.x to 6.x(RHEL / SLES supported, igb driver)Windows Server® 2025

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.1Q VLANs IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE)

Regulatory Compliance

FCC Part 15 Class B, CE

Operating Temperature

-10 ~ 60 degrees C

Storage Temperature

-40 ~ 70 degrees C

Operating Humidity

5 ~ 90%, relative humidity, non-condensing

Storage Humidity

5 ~ 90%, relative humidity, non-condensing

Package Contents

ENW-9720P Server Adapter Low Profile Bracket 6-Pin Mini-Fit Power Cable
