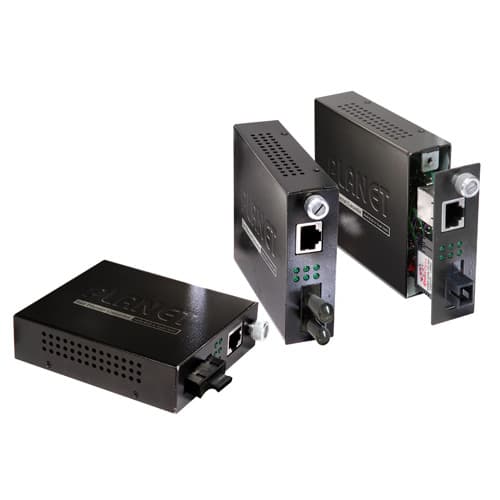

FST-80x Series — 10/100BASE-TX to 100BASE-FX Smart Media Converter

Descripción

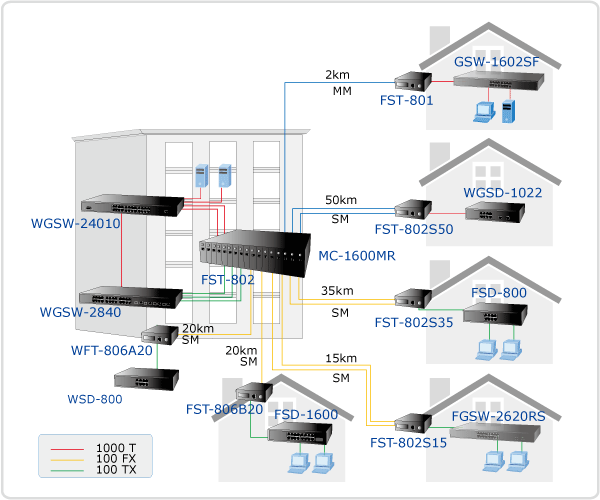

Distance Extended with Fiber Optic Cable PLANET FST-80x Smart Media Converter series provides media conversion between 10/100BASE-TX and 100BASE-FX interfaces, such as multi-mode ST/SC connectors (2km), single-mode SC connector (15/35/50km) and single fiber connector using the wavelength-division multiplexing (WDM) technology (20/60km) to enable to extend links over long distances using fiber optic cable. Enhanced Smart Management Features The FST-80x series provides auto MDI/MDI-X on their TP port and store-and-forward mechanism to eliminate faulty packets. Use the DIP switch from the FST-80x to configure the available smart functions, such as the half/full duplex, auto-negotiation / force and 10/100Mbps options for TP and fiber interfaces. Besides, the Link Loss Return (LLR) and Link Loss Carry Forward (LLCF) functions can immediately alarm network administrator once there is a media link issue, thus helping to monitor the status of the entire network. Easy Installation The FST-80x series can be connected easily and cost-effectively as these smart media converters can be used as a standalone unit when powered on by its DC adapter, or used as a slide-in module connected to PLANET 19-inch, 16-slot web smart/managed media converter chassis (MC-1600MR/MC-1600MR48 and MC-1610MR/MC-1610MR48). When working with the web smart/managed media converter chassis, the status of the FST-80x can be monitored via the local RS-232 console and remote web interface. Applications Standalone and Centrally-managed Media Converter Installation PLANET FST-80x adopts the advanced media conversion technology to meet the demand for today’s growing networking. It provides a diverse choice of fiber connecting types to meet different network applications. It is very flexible for the FST-80x to work as a standalone device or to be installed in the central web smart media converter chassis for centralized management, which supports hot swapping to avoid network downtime. The FST-80x is ideal for building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for ISPs, campuses and enterprises. Key Features Standards Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX and 100BASE-FX Ethernet standards Interface One 10/100BASE-TX port with RJ45 connector One 100BASE-FX port with ST/SC/WDM connector supporting multi-mode or single-mode fiber optic cable Auto-negotiation and auto-MDI / MDI-X for 10/100BASE-TX port Layer 2 Features Back-pressure and IEEE 802.3x compliant flow control and full wire-speed forwarding rate Link Loss Return ( LLR ) switch on each fiber optic is to aid in troubleshooting remote network connections Link Loss Carry Forward ( LLCF ) works with LLR in diagnosing network connections Smart Management Provides DIP switch for setting fiber ( HDX/FDX), UTP ( auto-negotiation / manual), speed (10/100Mbps), duplex mode (half/full), LLR ( disable/enable), LLCF ( disable/enable) Manageable through web smart/managed media converter chassis system (MC-1600MR/MC-1610MR series) Hardware Used as a stand-alone device or works with web smart/managed media converter chassis for up to 16 converters with redundant power supply for optional expanding use LED indicators for converter status Choice of fiber-connector from ST/SC/WDM, multi-mode/single-mode fiber EMI standards complies with FCC, CE class B

Especificaciones técnicas

Standards

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX and 100BASE-FX

Copper Port

1 x 10/100BASE-TX port, auto-negotiation, auto-MDI-MDI-X

Optical Port

1 x 100BASE-FX

Fiber Connector

FST-801: ST / Multi-mode -- 2km FST-802: SC / Multi-mode -- 2km FST-802S15: SC / Single Mode -- 15km FST-802S35: SC / Single Mode -- 35km FST-802S50: SC / Single Mode -- 50km FST-806A20: WDM SC / Single Mode -- 20km FST-806B20: WDM SC / Single Mode -- 20km FST-806A60: WDM SC / Single Mode -- 60km FST-806B60: WDM SC / Single Mode -- 60km

Optical Wavelength

FST-801: 1310nm FST-802: 1310nm FST-802S15: 1310nm FST-802S35: 1310nm FST-802S50: 1310nm FST-806A20: TX: 1310nm, RX: 1550nm FST-806B20: TX: 1550nm, RX: 1310nm FST-806A60: TX: 1310nm, RX: 1550nm FST-806B60: TX: 1550nm, RX: 1310nm

Maximum Launch Power (dBm)

FST-801: -14 FST-802: -14 FST-802S15:0 FST-802S35:-8 FST-802S50:0 FST-806A20:-8 FST-806B20:-8 FST-806A60:0 FST-806B60:0

Minimum Launch Power (dBm)

FST-801: -20 (62.5/125µm), -23.5 (50/125µm) FST-802: -20 (62.5/125µm), -23.5 (50/125µm) FST-802S15: −20 FST-802S35: -15 FST-802S50:-5 FST-806A20:-14 FST-806B20:-14 FST-806A60:-5 FST-806B60:-5

Receive Sensitivity (dBm)

FST-801: -31.8 FST-802: -31.8 FST-802S15: -32 FST-802S35:-34 FST-802S50: -35 FST-806A20:-31 FST-806B20:-31 FST-806A60:-34 FST-806B60:-34

Maximum Input Power (dBm)

FST-801: -14 FST-802: -14 FST-802S15:0 FST-802S35:0 FST-802S50:0 FST-806A20:0 FST-806B20:0 FST-806A60:0 FST-806B60:0

Speed

Ethernet: 10/20Mbps for half / full-duplex Fast Ethernet: 100/200Mbps for half / full-duplex

Maximum Forward Packet Size

1600Bytes

DIP Switch

DIP-1: Fiber full / half duplex mode DIP-2: Copper forced mode / auto-negotiation mode DIP-3: Copper speed 10Mbps / 100Mbps DIP-4: Copper full / half duplex mode DIP-5: Fiber LLR (Link Loss Return) enable / disable DIP-6: Fiber LLCF(Link Loss Carry Forward) enable / disable

LED Indicator

System: PWR TP: LNK/ ACT, FDX/ COL, 100 FX: LNK/ ACT, FDX/ COL

Power Input

DC 5V, 2A

Power Consumption

6.2 watts/ 21 BTU (maximum)

Dimensions (W x D x H)

94 x 81 x 26 mm

Weight

0.22kg

Cable

10BASE-T: 2-pair Cat3, 4, 5 UTP cable, up to 100 meters 100BASE-TX: 2-pair Cat5 UTP cable, up to 100 meters 100BASE-FX: -50/ 125μm or 62.5/ 125μm multi-mode fiber cable, up to 2km - 9/ 125μm single-mode cable, providing long distance of 15/20/35/50/60km

Operating Environment

0~50 degrees C, 5~90% RH

Storage Environment

-10~70 degrees C, 5~90% RH

Emission

FCC Class B, CE mark
