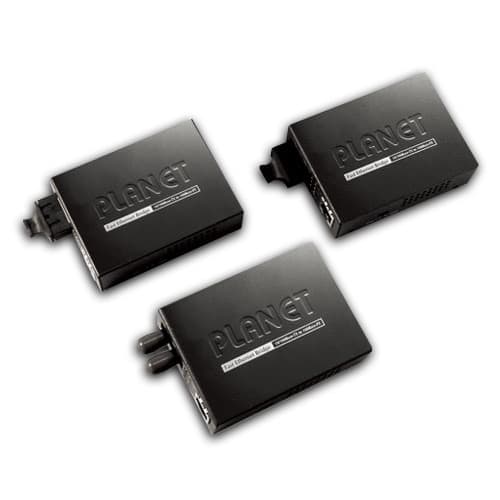

FT-80x Series — 10/100Base-TX to 100Base-FX Bridge Media Converters

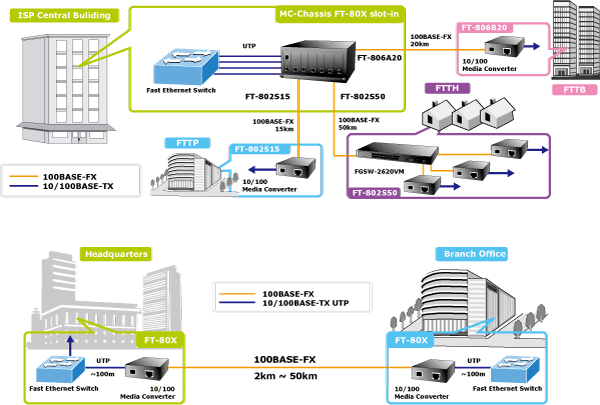

Descripción

PLANET FT-80x is a Fast Ethernet Bridge 100BASE-FX fiber to 10/100BASE-TX shielded twisted pair (STP) converter. It supports both half-duplex and full-duplex operations and a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation in fiber-optic interface. The fiber port of the converter operates at 1310 nm and uses ST, SC, MTRJ, VF45 or WDM connectors. Multi-mode models that support distances up to 2km and single-mode models that support distances up to 15/20/35/50/60km are available.media and provide efficient solution to monitoring the net. The FT-80x series is with LFP (Link Fault Pass-through function) (LLCF/LLR) and the DIP switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function LLCF (Link Loss Carry Forward) means when a device is connected to the converter and the TP line loses the link, the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device is connected to the converter and the fiber line loses the link, the converter's fiber will disconnect the transmit link. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. Applications Standalone and Centralized Management Media Converter Installation To meet the demand for the growing network, PLANET FT-80x has provided the advanced media conversion technology. The FT-80x media converter provides various fiber connecting types to meet different network applications. It is very flexible for the FT-80x to work as a standalone device or install into the central standard media converter chassis for providing centralized power. The FT-80x is an ideal solution to building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) and FTTB (Fiber to the Building) for ISPs, campuses and enterprises. Key Features • Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard • Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568 • One fiber-optic, 1310nm wavelength, connector type and distance vary with model - FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm - FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm • Data Transfer Rate: - TP: 10/100Mbps - FX: 100Mbps • Duplex mode support: - Full or half-duplex mode by auto-negotiation (TP) - Full or half-duplex mode by DIP switch (FX) • LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL • DIP switch: 2 DIP switches - Rear DIP switch: FX duplex mode selection - Side DIP switch: LFP (Link Fault Pass-through) mode selection • IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets

Especificaciones técnicas

Protocol

IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX IEEE 802.3u, 100BASE-FX IEEE 802.3x, Flow Control

Dimensions (W x D x H)

94 x 70 x 26 mm

Weight

0.2kg

Power Input

5V DC, 2A, max.

Power Supply

AC Adapter 100-240VAC Frequency: 50-60Hz

Enclosure

Compact-sized metal housing Case with anticorrosion treatment Electrostatic paint

Shielded Twisted-pair

RJ45, Category 5 (EIA/TIA 568)

Fiber-optic

FT-801 : ST / Multi-mode / 2km FT-802 : SC / Multi-mode / 2km FT-802S15 : SC / Single mode / 15km FT-802S35 : SC / Single mode / 35km FT-802S50 : SC / Single mode / 50km FT-806A20: WDM SC / Single mode / 20km FT-806B20: WDM SC / Single mode / 20km FT-806A60: WDM SC / Single mode / 60km FT-806B60: WDM SC / Single mode / 60km

Multi-mode Cable

50/125, 62.5/125 µm

Single-mode (SM) Cable

9/125 µm

Optic Wavelength

FT-801: 1310nm FT-802: 1310nm FT-802S15: 1310nm FT-802S35: 1310nm FT-802S50: 1310nm FT-806A20: TX: 1310nm; RX: 1550nm FT-806B20: TX: 1550nm; RX: 1310nm FT-806A60: TX: 1310nm; RX: 1550nm FT-806B60: TX: 1550nm; RX: 1310nm

Max. Launch Power (dBm)

FT-801: -14 FT-802: -14 FT-802S15:0 FT-802S35:-8 FT-802S50:0 FT-806A20:-8 FT-806B20:-8 FT-806A60:0 FT-806B60:0

Min. Launch Power (dBm)

FT-801: -20 (62.5/125µm), -23.5 (50/125µm) FT-802: -20 (62.5/125µm), -23.5 (50/125µm) FT-802S15: −20 FT-802S35: -15 FT-802S50:-5 FT-806A20:-14 FT-806B20:-14 FT-806A60:-5 FT-806B60:-5

Receive Sensitivity (dBm)

FT-801: -31.8 FT-802: -31.8 FT-802S15: -32 FT-802S35:-34 FT-802S50: -35 FT-806A20:-31 FT-806B20:-31 FT-806A60:-34 FT-806B60:-34

Maximum Input Power (dBm)

FT-801: -14 FT-802: -14 FT-802S15:0 FT-802S35:0 FT-802S50:0 FT-806A20:0 FT-806B20:0 FT-806A60:0 FT-806B60:0

Shielded Twisted-pair

100m (328 ft.)

Multi-mode Fiber Optic

412m (1,350 ft.) (half-duplex) 2km (1.2 miles) (full-duplex)

Single-mode (SM)

412m (1,350 ft.) (half-duplex) 15km (9 miles) (full-duplex) 20km (12 miles) (full-duplex) 35km (21 miles) (full-duplex) 50km (31 miles) (full-duplex) 60km (37 miles) (full-duplex)

Port Mode

TP: Half and full duplex, auto-negotiation FX: Half and full duplex via DIP switch

Operating Environment

Temperature: 0~50 degrees C Humidity: 5~90% non-condensing

Storage Environment

Temperature: -40~70 degrees C Humidity: 5~90% non-condensing

Emissions

FCC Class A, CE Class A
