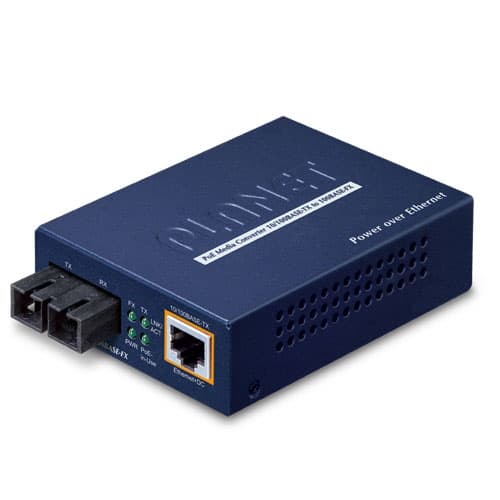

FTP-802 / FTP-802S15 — 100Base-FX to 10/100Base-TX PoE Media Converter

Descripción

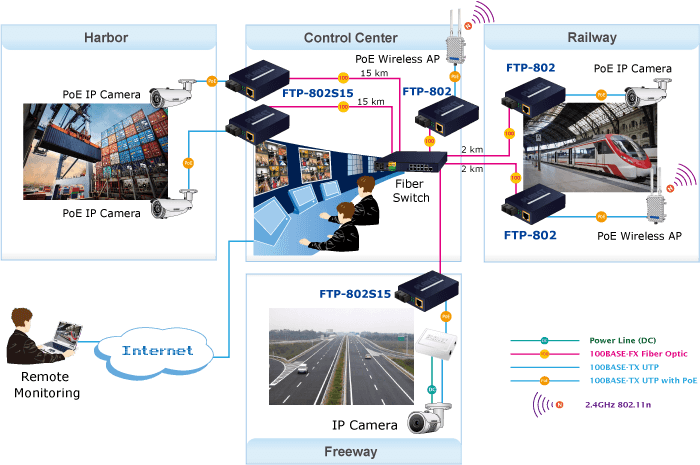

More than a Fiber Media Converter -- a Power over Ethernet Injector as well The best data link and power sourcing solution for long reach network equipment PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies: ■ Media Conversion : 100Base-FX to 10/100Base-TX ■ Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively. PoE Optimizes the Installation and Power Management of Network Devices The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously. Fiber-optic Link Capability Extends the Range of Network Deployments The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function. Advantage of Combined PoE and Media Conversion With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time. Applications The IEEE 802.3af Equipment Installation The FTP-80X provides the easiest way to power your Ethernet devices such as PLANET IEEE 802.3af Power over Ethernet Splitter (POE-151S / 152S) with non PoE Internet camera or wireless PoE access point (IAP-2000PE). For instance, security IP camera, wireless access point and other IEEE 802.3af compliant network equipment can be easily installed around corners in public areas such as stations or freeways for surveillance demands, or wireless roaming environment in campuses or airports can be set up. Key Features Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3afPower over Ethernet standards Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation 100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm) on FTP-802 100Base-FX interface for up to 15km (single-mode fiber 9µm/125µm) on FTP-802S15 DIP-switch: LFP (Link Fault Pass-through) mode selection Compact in size, easy to install LED indicators for easy network diagnostics

Especificaciones técnicas

Copper

1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function

Fiber

FTP-802 Multi-mode: 50/125µm or 62.5/125µm optical fiber FTP-802S15 Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber

Fiber Port Type (connector)

FTP-802 : SC FTP-802S15 : SC

Cable Distance

FTP-802 : 2km FTP-802S15 : 15km

Optical Frequency

FTP-802 : 1310nm FTP-802S15 : 1310nm

Launch Power(dBm)

FTP-802 : max.-14 min.-19.0 FTP-802S15 : max. -7 min.-20

Receive Sensitivity

FTP-802 : -34.5 FTP-802S15 : -28

Maximum Input Power

FTP-802 : -14 FTP-802S15 : -8

PoE Standard

IEEE 802.3af Power over Ethernet

Power Output

PoE 48V DC, max. 15.4 watts, 350mA

Power Pin Assignment

1/2(+) , 3/6(-)

Switch Architecture

Store-and-Forward

Flow Control

Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode

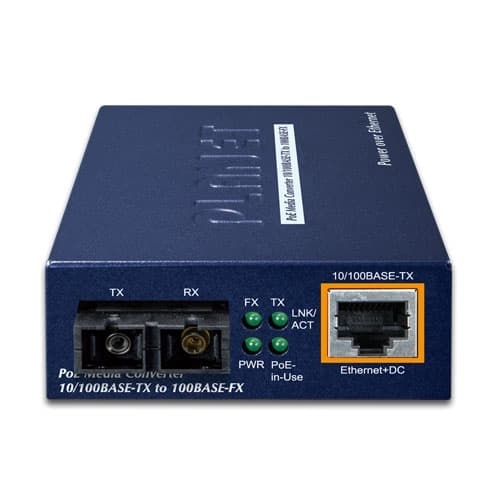

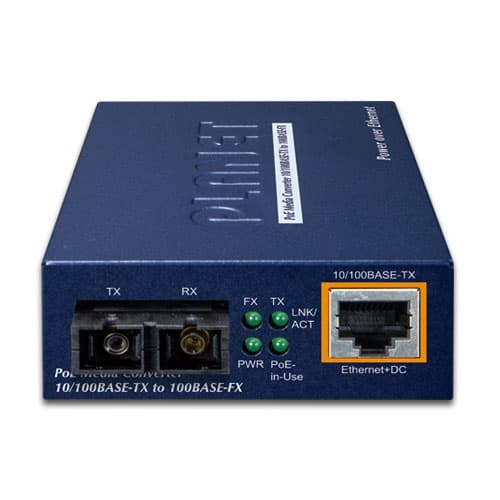

LED

System: Power, Status FX / LNK: Data Active, Fiber Link TX / LNK: 10/100 Link / Active PoE in Use: Detects PSE Device

Dimensions (H x W x D)

94 x 70.3 x 26.2 mm

Weight

0.2 kg

Power Supply

48V DC, 0.4A external AC-to-DC adapter

Operating Temperature

0~50 degrees C

Operating Humidity

5~90% (non-condensing)

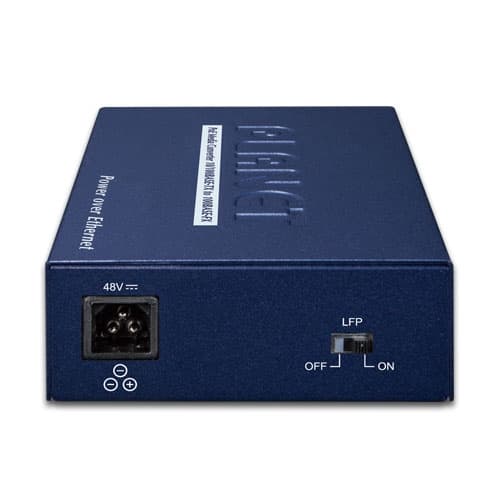

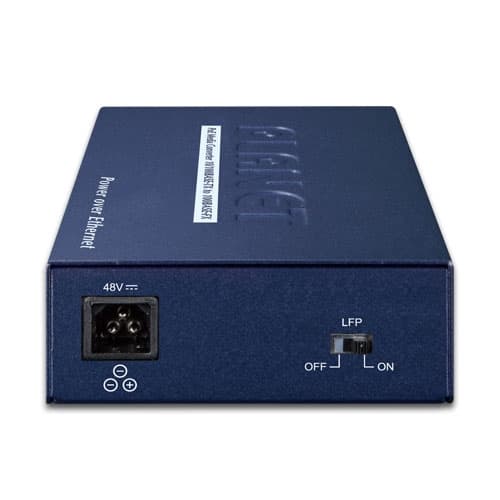

LFP Mode

Enable: when either TP port or FX port is broken, shut down the other port Disable: Link LED indicators is still on if connection of the other end is broken

Regulation Compliance

FCC Part 15 Class A, CE

Protocols and Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

Cables

TP: Cat 5/5e UTP cable Fiber: Multi-mode: 50/125µm or 62.5/125µm optical fiber Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
