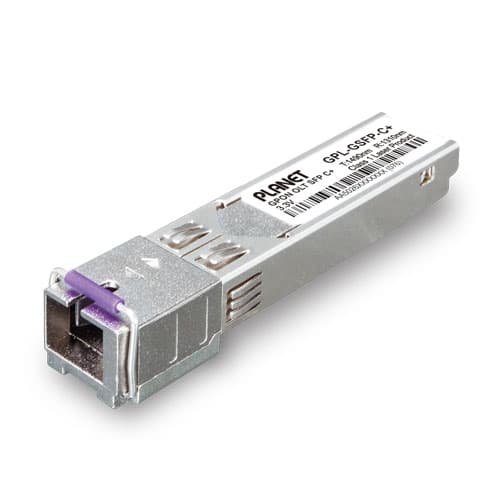

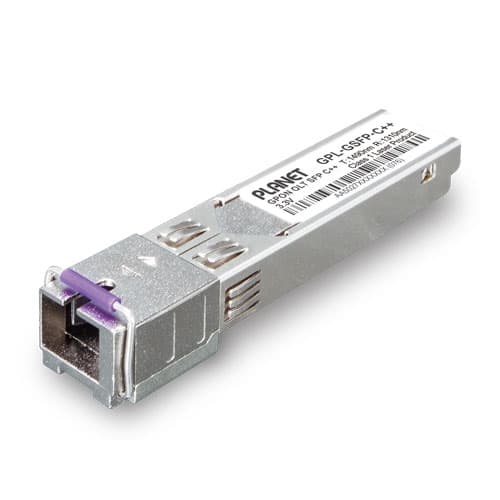

GPL-GSFP-C+/GPL-GSFP-C++ — GPON OLT SFP Transceiver

Descripción

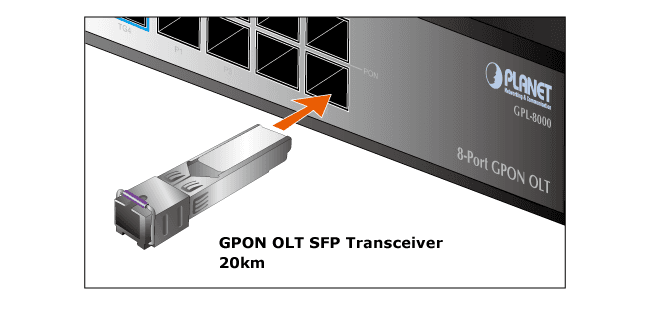

PLANET GPON OLT SFP Quad (small form factor pluggable) Transceiver (GPL-GSFP) is specifically designed for high-performance integrated duplex data link over single mode optical fiber, and its single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx. It is compliant with ITU-T G.984.2 and hot pluggable. The GPON OLT SFP Transceiver also supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrators to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Applications The GPL-GSFP can be connected to PLANET GPL-8000’s GPON SFP interface. With that, the deployment distance can be extended up to 20 kilometers (single-mode, SC). The GPL-GSFP is hot-pluggable and hot-swappable. You can plug in and pull out the transceiver to/from any GPON SFP port without having to power off the switch. Key Features Supports ITU-T G.984.2 GPON OLT C+/C++application TX:1490nm, RX:1310nm Single SC (WDM) interface connector Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx Distance up to 20km over 9/125µm fiber cable Plug and Play installation 2-wire interface for integrated digital diagnostic monitoring Receiver Reset, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI) SFP package with SC/UPC receptacle optical interface Single +3.3V power supply 0 to 70 degrees C operating temperature RoHS6 compliance

Especificaciones técnicas

Model

GPL-GSFP-C+ GPL-GSFP-C++

GPL-GSFP-C+

GPL-GSFP-C++

Fiber Type

Single-mode

Connector

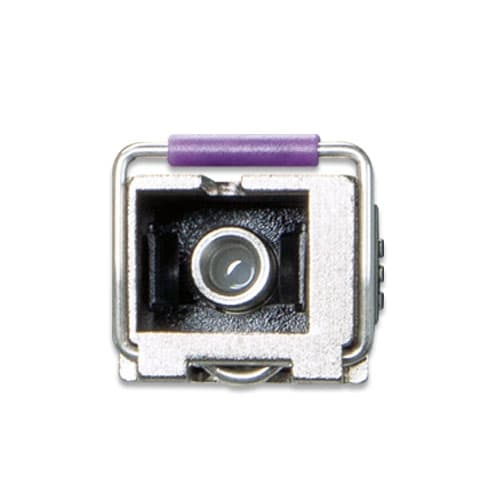

SC (WDM)

Optical Power

3dBm~7dBm 4.5dBm~10dBm

3dBm~7dBm

4.5dBm~10dBm

Wavelength

TX: 1490nm，RX: 1310nm

Maximum Distance

20km

Operating Temperature

0~70 degrees C
