GPN-100 — GPON SFU ONT with 1GbE Port

Descripción

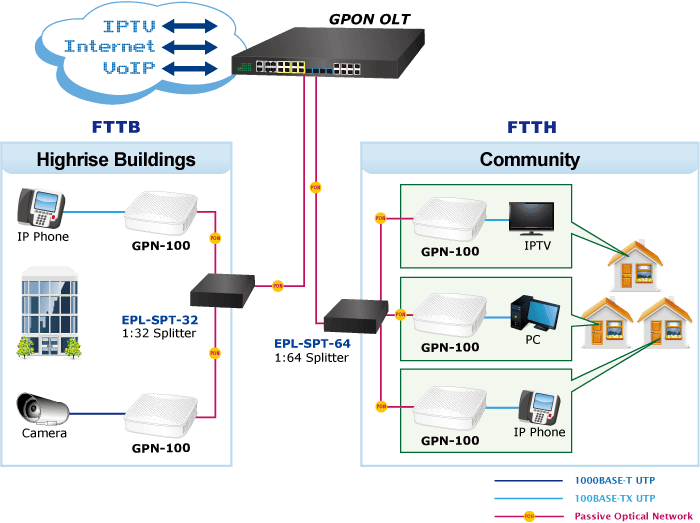

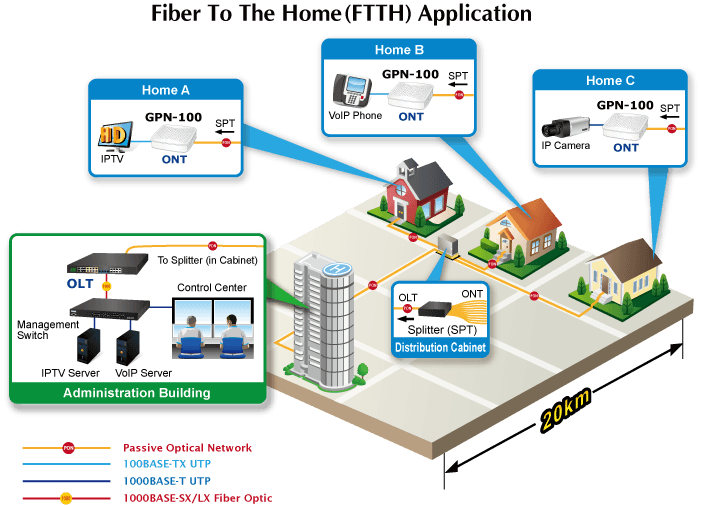

Perfectly Designed for FTTx Applications PLANET GPN-100 is a GPON Optical Network Terminal (ONT) equipped with one GPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GPON Optical line Terminal (OLT), the GPN-100 provides highly-effective GPON solutions for FTTx and multi-service networks. The GPN-100 complies with GPON ITU-T G.984/G.988 standards and PRC communications industrial standards for GPON Access technology requirements. With Plug and Play design, it’s easy for the installation and maintenance of GPON deployment. Excellent Access Capacity The GPN-100 supports PON downstream and upstream transmission rates of 2.5Gbps and 1.25Gbps , respectively. Connected with PLANET GPON OLT – GPL-8000, it can realize 1:128 split ratio . The covering radius of the network can reach up to 20km. High-service Control Capability The GPN-100 supports advanced DBA (dynamic bandwidth allocation), rate limit and accurate bandwidth limit, which enable users to share 2.5Gbps bandwidth resource appropriately. It also supports QoS function, which guarantees a reliable service quality and service priority. Advanced Energy-saving Technique PLANET GPN-100, adopting the advanced green networking technology, consumes very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently. Passive Optical Network Connection Solution With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand for broadband communication has grown quickly. PON is the most promising NGN (next generation networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, PON technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of long distance of up to 20km between equipment nodes, and most importantly, offer of much greater bandwidth Applications High Scalability and Flexibility in Multiple Applications PLANET GPN-100 provides ultra-high-speed Internet connection with PLANET OLT via the new GPON technology. The downstream transmission speed provided is up 2.5Gbps and upstream transmission speed provided is up to 1.25Gbps, and its maximum distance can be 20km. Through the PON technology, the GPN-100 can receive and deliver high-speed voice, and data and video services. It offers long-term service, lower operating costs, easy Installation and maintenance, and more stable bandwidth. The GPN-100 is the perfect solution when working with PLANET OLT that offers cost-effectiveness, scalability and flexibility for network deployments. Key Features GPON Port 1 SC type GPON port Up to 2.5Gbps downstream and 1.25Gbps upstream Maximum distance of up to 20km Compliant with ITU-T G.984/988 standards LED indicators for link status Physical Hardware One 10/100/1000Mbps Gigabit port GPN-100 Features AES128 algorithm encryption Dynamic bandwidth allocation (DBA) support Service level agreement (SLA) support Four priority queues WRR, strict priority and FIFO queue schedule algorithms Supports IEEE 802.3x flow control

Especificaciones técnicas

Transmission Speed

Downstream: 2.5 Gbps Upstream: 1.25 Gbps

Port

[PON Port] 1 x PON Port, SC/UPC [Ethernet Port] 1 x RJ45 (10/100/1000BASE-T)

Fiber Maximum Distance

20km

Optic Wavelength

TX: 1310mm RX: 1490mm

Optical Receive Sensitivity

-28 dBm

Optical TX Power

0.5~5 dBm

LED Indicators

1 Power LED 1 PON LED 1 LOS LED 1 LAN Link LED

ONT Features

MAC address learning Supports IGMP snooping 2K MAC addresses support Service level agreement (SLA) support Supports ACL and MAC filtering Remote loop-back test IEEE 802.3ah compliant forward error correction (FEC)

Dimensions (W x D x H)

79.95 x 74.86 x 25.19mm

Weight

100g

Power Input

12V DC, 0.5A

Temperature

Operating temperature: 0 ~ 50 degrees C Storage temperature: -40 ~ 85 degrees C

Humidity

Operating Humidity: 10 ~ 85% non-condensing Storage Humidity: 5 ~ 95% non-condensing

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control and back pressure ITU-T G.984/G.988 ITU-T Y.1291

Safety

CE
