GPN-400AXV — GPON HGU with 4-Port GbE, 3000Mbps 802.11AX Wireless

Descripción

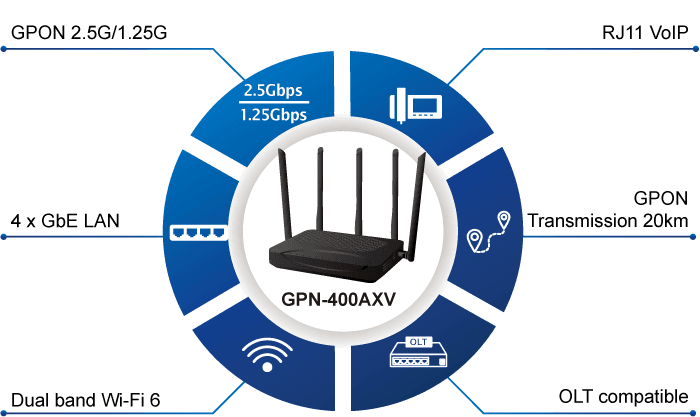

Delivering High-demanding Service Connectivity for ISP / Triple Play Devices PLANET GPN-400AXV is a high-performance GPON Wi-Fi ONU (optical network unit) equipped with one GPON port, four 10/100/1000Mbps RJ45 LAN ports, one FXS RJ11 voice port, and a USB interface. Featuring IEEE 802.11ax/ac/n Wi-Fi 6 dual-band technology, it delivers exceptional wireless performance up to 3000Mbps. Designed for residential and small business users, it offers an ideal solution for high-speed fiber broadband access and value-added services such as IPTV, VoIP, and ultra-fast Internet. When paired with PLANET GPL-8000 GPON OLT, the GPN-400AXV ensures a robust and scalable GPON solution for FTTH deployments. Wi-Fi 6 AX3000 Delivers Reliable Wireless Performance With built-in dual-band Wi-Fi 6 and five external antennas, the GPN-400AXV supports a total wireless speed of up to 3000Mbps. It supports MIMO technology, offering greater capacity and lower latency , ideal for modern smart home and office environments. Flexible Gigabit LAN and USB Connectivity Four Gigabit Ethernet ports and one USB interface ensure fast and stable wired connections for devices like desktops, NAS, and smart TVs. The USB port also supports additional use cases such as file sharing or storage applications. Built-in FXS Voice Port The GPN-400AXV includes one FXS port supporting SIP and H.248 protocols. This allows integration into IP voice systems and helps reduce call costs for long-distance and remote office communications . IPv4 and IPv6 Dual Stack Capability The device is fully compatible with both IPv4 and IPv6, making it a future-proof choice for ISPs planning IPv6 migration. Comprehensive Management and Security It supports Web GUI, Telnet, TR-069, OMCI, and OAM management methods, plus firmware upgrades via remote platforms. Integrated firewall and ACL features ensure network security and reliable operation . Applications Reliable GPON Connectivity for Residential Triple-Play and FTTH Services PLANET GPN-400AXV is a fully integrated GPON ONU that combines high-speed fiber access, Gigabit Ethernet, dual-band Wi-Fi 6, and voice functionality, making it ideal for smart homes, SOHO environments, and commercial spaces. Supporting both GPON technology with 2.5Gbps downstream and 1.25Gbps upstream transmission, it also features AX3000-class Wi-Fi 6, providing simultaneous 2.4GHz and 5GHz bands to ensure smooth and stable connections across multiple devices. Whether deployed in high-density residential communities, hotels, or small to medium-sized businesses, the GPN-400AXV delivers reliable network performance and flexible management. With advanced features such as VLAN, QoS, ACL, and firewall support, it secures internal networks and prioritizes critical services. It secures internal networks and prioritizes critical services while delivering reliable dual-band Wi-Fi 6 performance for modern home and business environments. In addition, the built-in FXS port supports SIP and H.248 protocols, allowing for easy integration with residential or enterprise VoIP systems, reducing deployment complexity and costs. When paired with PLANET OLT solutions, the GPN-400AXV enables rapid FTTH network deployment, making it the perfect choice for high-performance, intelligent networking. Key Features GPON 1 x SC/UPC type GPON port (compatible with EPON) Up to 2.5Gbps downstream and 1.25Gbps upstream Transmission distance up to 20km Optical transmit power: 0.5~5dBm, receive sensitivity: ≤ -28dBm Supports ITU-T G.984 / G.988, IEEE802.3ah standards Automatic switching between EPON and GPON for hybrid deployment Ethernet 802.1Q VLAN, and QoS for virtual LAN tagging and traffic prioritization Broadcast storm protection to prevent and limit broadcast traffic Bandwidth control to manage and allocate network bandwidth IGMP snooping/proxy for efficient multicast traffic management IPv4 and IPv6 protocols supported VoIP 1 FXS port, supporting SIP and H.248 protocols Compatible with voice codecs including G.711, G.729 and G.723 Supports T.38 and G.711 pass-through for fax Wireless Up to 3000Mbps bandwidth Compatible with 802.11ax Wi-Fi 6 Backward compatible with 802.11b/g/n/ac Compatible to equipment working on 2.4GHz and 5GHz QoS IEEE 802.3x flow control for full-duplex communication Queue scheduling algorithms including WRR, Strict Priority, and FIFO Multicast IGMP snooping v1/v2/v3 IGMP proxy function Security Firewall with MAC/IP/Port/URL/Domain filtering DDoS attack protection Physical Hardware 4 x 10/100/1000Mbps Gigabit Ethernet ports 1 x FXS voice port 1 x USB interface 5 x external antennas (for 2.4GHz and 5GHz) Dimensions: 185 x 135 x 36mm (excluding antennas) Power input: DC 12V / 1.5A, power consumption < 18W Features Dynamic Bandwidth Allocation (DBA) support IEEE 802.3x flow control WR, SP, and FIFO queue scheduling algorithms for traffic management Port-based VLAN and IEEE 802.1Q VLAN Firewall like MAC/IP/Port/URL/Domain filtering DDoS protection to safeguard against distributed denial-of-service attacks Loop detection to prevent network loops Dying-gasp mechanism for graceful device shutdown Type B dual-homing protection Management Web, Telnet, TR-069, OMCI, and OAM remote management Firmware upgrade via TFTP, Web, TR-069, and OLT

Especificaciones técnicas

UNI port

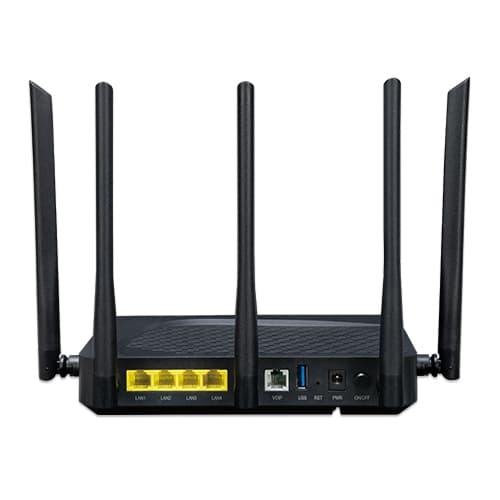

4 x 10/100/1000BASE-T RJ45 copper Wi-Fi 6 external 5 antennas (2.4GHz x 2, 5GHz x 3) 1 x USB 2.0 host port 1 x RJ11 FXS port

PON port

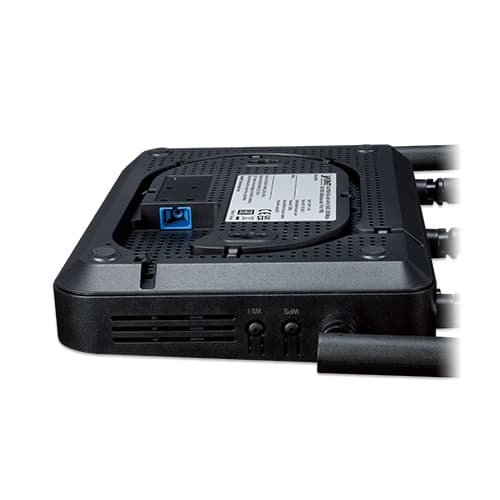

Transmission rate: 2.5Gbps downlink / 1.25Gbps uplink Network Coverage Radius: 20 kilometers Receiver Sensitivity: ≤-28dBm Transmit Optical Power: 0.5~5dBm Optical interface type: SC/UPC

Button

1 x power ON/OFF button 1 x reset button (Press for about 15 seconds to reset the device to factory default.) 1 x WLAN enable/disable button 1 x WPS enable/disable button 1 x LED on/off button

Thermal Fan

Fanless

LED Indicators

PWR ( Green ) LOS/PON ( Red )/( Green ) Internet ( Green ) LAN1-LAN4 ( Green ) VoIP ( Green ) Wi-Fi ( Green ) WPS ( Green ) USB ( Green )

Installation

Desktop installation or wall mounting

Power Requirements

12V DC, 1.5A max.

Power Consumption

18W max.

Weight

500g

Enclosure

Plastic

Wi-Fi

802.11b/g/n/ac/ax MIMO, with a maximum rate of 3000Mbps. multiple SSIDs and SSID encryption

Dimensions (WxDxH)

244.3 x 162.15 x 193 mm (including antennas)

Heat dissipation

Extended use (24 hours) does not result in performance degradation or damage due to device overheating or deformation.

Standard

IEEE 802.11ax 5GHz IEEE 802.11ax 2.4GHz IEEE 802.11a/b/g/n/ac compatible

Frequency Band

Simultaneous 2.4GHz and 5GHz

Modulation Type

802.11ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM / 1024QAM) 802.11n/g/a: OFDM 802.11b: DSSS (DBPSK / DQPSK / CCK)

Data Transmission Rates

2.4GHz up to 574Mbps 5GHz up to 2402Mbps @ 160MHz)

Channel

2.4GHz: FCC (America): 2.412–2.462GHz (11 Channels) ETSI (Europe): 2.4122.472GHz (13 Channels) 5.180~5.825GHz (up to 24 channels, depending on country)

Channel Width

802.11ax: 20/40/80/160MHz

Max. RF Power / EIRP

2.4GHz: < 20dBm 5GHz: < 23dBm (varies by region)

Encryption Security

64/128-bit WEP, WPA, WPA2-PSK, WPA3-SAE

Wireless Security

SSID broadcast enable/disable Wireless MAC address filtering WPS (Wi-Fi Protected Setup) support Client isolation

Wireless Advanced

Transmit power adjustment Beacon interval configuration WMM (Wi-Fi Multimedia) support Band steering (2.4GHz/5GHz auto-switch) Wi-Fi schedule

Max. Supported Clients

Up to 128 wireless clients

Data Forwarding

Routing Mode, Bridging Mode, and Routing + Bridging Hybrid Mode

DNS

DNS Relay

DHCP

DHCP server

VLAN

Port-based VLAN IEEE 802.1Q VLAN

Multicast

Supports IGMP Snooping Supports CTC-defined dynamic multicast Supports MLD Snooping Supports Full-Routing Multicast

QoS

Backpressure Flow Control (Half-Duplex) IEEE 802.3x Flow Control (Full-Duplex) Preventing Head-of-Line Blocking IEEE 802.1p, CoS 8 Priority Queues per Port WR, SP, and FIFO Port Rate Limiting

Reliability

Loop Detection Dying-Gasp Type B Dual Homing Protection

Security

Port MAC Address Limitation Port Protection Port Storm Suppression Supports firewall MAC/IP/Port/URL/Domain filtering Supports DDoS protection

Management Configuration

Web, TELNET, TR069, OMCI Software Upgrade through TFTP, WEB, TR069, and OLT

Standard

T.38 (G.711 Fax pass-through)

Voice Codec

G.711A/G.711U/G.723/G.729

Voice Standard

VAD (Voice Activity Detection)

Standards

ITU-T G.987.3, G.988 IEEE 802.1Q, VLAN

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
