GS-4210-16UP8T4X — 16-Port 10/100/1000T 802.3bt PoE + 8-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

Descripción

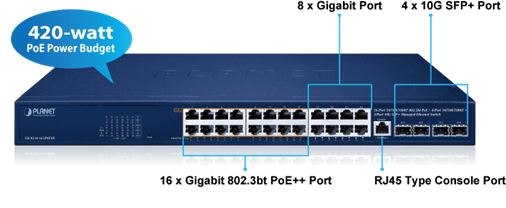

Perfect Managed PoE++ Switch with Advanced L2/L4 Switching and Security PLANET GS-4210-16UP8T4X Gigabit 802.3bt PoE++ Managed Switch features PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and a built-in L2/L4 Gigabit switching engine. The GS-4210-16UP8T4X comes with 16 10/100/1000BASE-T 802.3bt PoE++ ports, 8 additional Gigabit copper ports, and 4 10 Gigabit fiber ports, with a total power budget of 420 watts. The GS-4210-16UP8T4X offers a quick, safe, and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. Redundant Ring, Fast Recovery for Critical Network Applications The GS-4210-16UP8T4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. 802.3bt PoE++ 95-watt Power over 4-pair UTP Solution As the GS-4210-16UP8T4X adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as: PoE PTZ speed dome cameras Network devices Thin clients AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks Remote digital signage displays PoE lightings 802.3bt PoE++ and Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power, the GS-4210-16UP8T4X supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode and 4-pair legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. 95W 802.3bt PoE++ Power Output Mode 36W End-span 802.3at PoE+ Power Output Mode PoE Watts PoE Operation Mode Power Output Mode 95W 802.3bt PoE++ (Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8) 36W End-span 802.3at PoE (Pins 1, 2, 3, 6) Built-in Unique PoE Functions for Powered Devices Management As it is the managed PoE++ switch for surveillance, wireless and VoIP networks, the GS-4210-16UP8T4X features the following special PoE management functions: PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension Intelligent Powered Device Alive Check The GS-4210-16UP8T4X can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the GS-4210-16UP8T4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. Scheduled Power Recycling The GS-4210-16UP8T4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Savings Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-16UP8T4X can effectively control the power supply besides its capability of giving high watts power. The “ PoE schedule ” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or Enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours. PoE Usage Monitoring Via the power usage chart in the web management interface, the GS-4210-16UP8T4X enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. 802.3at PoE+ Power and Ethernet Data Transmission Distance Extension In the “ Extend ” operation mode, the GS-4210-16UP8T4X operates on a per-port basis at 10Mbps duplex operation but can support 50-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-16UP8T4X provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. Environment-friendly, Smart Fan Design for Silent Operation The GS-4210-16UP8T4X feature a rack-mount metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. They are able to operate reliably, stably and quietly in any environment without affecting their performance. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the GS-4210-16UP8T4X helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Robust Layer 2 Features The GS-4210-16UP8T4X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN , Multiple Spanning Tree Protocol (MSTP) , loop and BPDU guard , IGMP snooping , and MLD snooping . Via the link aggregation, the GS-4210-16UP8T4X allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic Control The GS-4210-16UP8T4X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control , per port bandwidth control , IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Powerful Security The GS-4210-16UP8T4X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based user authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Advanced IP Network Protection The GS-4210-16UP8T4X also provides DHCP Snooping , IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before. Efficient Management For efficient management, the GS-4210-16UP8T4X is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the GS-4210-16UP8T4X offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and CloudNMS apps support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudNMS app, all kinds of businesses can now be speedily and efficiently managed from one platform. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS, businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform. Flexibility and Long-distance Extension Solution The GS-4210-16UP8T4X provides 8 additional Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper for connecting surveillance network devices such as NVRs, Video Streaming Servers, or NAS systems to facilitate surveillance management. Alternatively, through its dual-speed fiber SFP slots, it features 100BASE-FX, 1000BASE-SX/LX, 2.5G, and 10G SFP (Small Form-factor Pluggable) fiber transceivers for uplinking to backbone switches and monitoring centers over long distances. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). These models are well suited for enterprise data centers and distribution applications. Intelligent SFP Diagnosis Mechanism The GS-4210-16UP8T4X supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage. Applications ITU-T G.8032 ERPS with PoE IP Surveillance System for SMBs/Workgroups The GS-4210-16UP8T4X features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the GS-4210-16UP8T4X can directly connect with any IEEE 802.3at end nodes like PTZ (pan, tilt, zoom) network cameras and speed dome cameras. The GS-4210-16UP8T4X can easily build a power that can centrally control a wireless AP, IP camera and VoIP system for SMBs and workgroups in the enterprises with high availability network infrastructure. Gigabit 802.3bt PoE++ and PoE+ Network Deployment Solution PLANET GS-4210-16UP8T4X can easily build an 802.3bt PoE++ networking solution on the cybersecurity system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GS-4210-16UP8T4X and 802.3bt PoE++ Splitter-POE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-4210-16UP8T4X, the POE-173S separates digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ (pan, tilt & zoom) network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters. Key Features Physical Port 16 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 16) 8 10/100/1000BASE-T ports (Ports 17 to 24) 4 10GBASE-SR/LR SFP+ slot s, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG4) RJ45 to DB9 console interface for switch basic management and setup Switching Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 16K MAC address table size 12K jumbo frame Automatic address learning and address aging Power over Ethernet Compliant with IEEE 802.3bt Power over Ethernet Plus Plus 16 ports supporting IEEE 802.3bt PoE++ with each offering up to 95 watts (ports 1-16) Total PoE power budget of 420 watts Automatic detection of powered devices (PD) Built-in circuit protection to prevent power interference between ports Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode Advanced PoE management capabilities: Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation Detection of PD classification Intelligent PoE features PD alive check PoE schedule Scheduled power recycling Layer 2 Features Supports VLAN IEEE 802.1Q tagged VLAN Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support Protocol VLAN Private VLAN (Protected port) Management VLAN GVRP Supports Spanning Tree Protocol STP (Spanning Tree Protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (Multiple Spanning Tree Protocol) STP BPDU Guard, BPDU Filtering and BPDU Forwarding Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 8 trunk groups, up to 8 ports per trunk group Supports port mirror (many-to-1) Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Link Layer Discovery Protocol (LLDP) Quality of Service Ingress and egress rate limit per port bandwidth control Storm control support Broadcast/Unknown unicast/Unknown multicast Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies Multicast Supports IPv4 IGMP snooping v2 and v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering Security Authentication Built-in RADIUS client to cooperate with the RADIUS servers RADIUS/TACACS+ login user access authentication DHCP Option 82 Access control list IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE MAC security Static MAC MAC filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks DoS attack prevention Management IPv4 and IPv6 dual stack management Switch management interface Web switch management Console and telnet command line interface SNMP v1 and v2c switch management SSHv2, TLSv1.2 and SNMP v3 secure access SNMP Management Four RMON groups (history, statistics, alarms and events) SNMP trap for interface link up and link down notification User privilege levels control Built-in Trivial File Transfer Protocol (TFTP) client Static and DHCP for IP address assignment System maintenance Firmware upload/download via HTTP/TFTP Configuration upload/download through HTTP/TFTP Dual images Hardware-based reset button for system reboot or reset to factory default SNTP Network Time Protocol Network Diagnostic SFP-DDM (digital diagnostic monitor) Cable diagnostics ICMPv4/ICMPv6 remote ping Link Layer Discovery Protocol (LLDP) and LLDP-MED Event message logging to remote syslog server PLANET Smart Discovery Utility for deployment management PLANET NMS, NMSViewerPro and CloudViewerPro for deployment management PLANET NMS and CloudNMS for deployment management

Especificaciones técnicas

Copper Ports

24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

PoE Injector Port

16 ports with 802.3bt PoE++ injector function (Ports 1 to 16)

SFP Ports

4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4) Backward compatible with 100/1G/2.5GBASE-X SFP transceivers

Console

1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Reset Button

< 5 sec.: System reboot > 5 sec.: Factory default

Power Requirements

AC 100~240V, 50/60Hz

Power Consumption/ Dissipation

Maximum 476 watts/1624.02 BTU (full loading)

Dimensions (W x D x H)

441.1 x 207.5 x 44.2mm

Weight

3182g

Installation

Rack mount

Surge Protection

Common mode 4KV, Differential mode 2KV

ESD Protection

Contact Discharge 6KV DC Air Discharge 8KV DC

Fan

2 smart fans

LED

System Power LED ( Green ) SYS LED ( Green ) Ports 10/100/1000 RJ45 Ports LNK/ACT ( Green ) 10G SFP+ Interface LNK/ACT ( Green ) PoE-in-Use ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

128Gbps/non-blocking

Switch Throughput@64Bytes

95.23Mpps @64 bytes

Address Table

16K entries

Shared Data Buffer

12Mbits

Flow Control

IEEE 802.3x pause frame for full duplex

Jumbo Frame

Back pressure for half duplex

PoE Standard

IEEE 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at/af PoE PSE

PoE Power Supply Type

802.3bt : End-span+Mid-span 802.3at : End-span

PoE Power Output

Port 1 to 16 – 95W (max.)

Power Pin Assignment

802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) 802.3at PoE: End-span: 1/2(-), 3/6(+)

PoE Power Budget

420 watts (max)

Number of 95W 802.3bt Type-4 PDs

4

Number of 60W 802.3bt Type-3 PDs

6

Number of 802.3at PDs

16

Enhanced PoE Mode

System PoE Admin Mode Consumption Mode/Allocation Mode Temperature Threshold

Enhanced PoE Mode

Standard/Legacy/UPoE

Active PoE Device Live Detection

Yes

PoE Power Recycling

Yes, daily or predefined schedule

PoE Schedule

4 schedule profiles

PoE Extended Mode

Yes, max. up to 250 meters

Port Mirroring

TX/RX/both Many-to-1 monitor Up to 4 sessions

VLAN

802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups

MLD Snooping

IPv6 MLD snooping v1, v2, up to 256 multicast groups

QoS

8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries

Port Security

Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries

Enhanced Security

DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard

Basic Management Interfaces

Console Web browser Telnet SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS / CloudNMS

Event Management

Remote/Local Syslog System log

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB LLDP MIB PLANET-Aggr-MIB PLANET-DDMI-MIB PLANET-Firmware-MIB PLANET-GVRP-MIB PLANET-LACP-MIB PLANET-SYSUTIL-MIB PLANET-CONFIG-VLANDATA-MIB PLANET-CONFIG-PORTDATA-MIB PLANET-CONFIG-QOSDATA-MIB PLANET-CONFIG-LACPPORTDATA-MIB PLANET-CONFIG-REMOTESYSLOG-MIB PLANET-CONFIG-SNTPDATA-MIB PLANET-CONFIG-UPGRADEDATA-MIB PLANET-CONFIG-BACKUPDATA-MIB PLANET-CONFIG-SYSTEM-MIB_v2 PLANET-CONFIG-LLDPDATA-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 60 degrees C

Humidity

5 ~ 95% (non-condensing)
