GS-4210-24P2S — 24-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP Managed Switch

Descripción

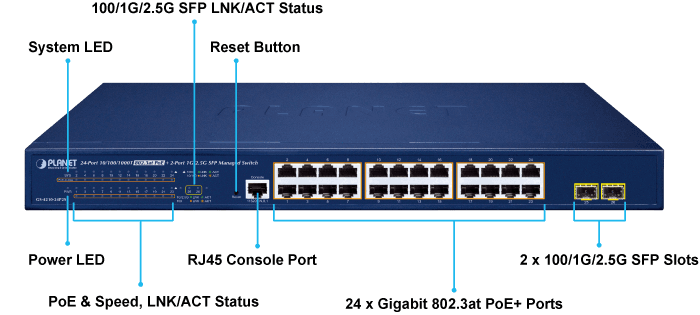

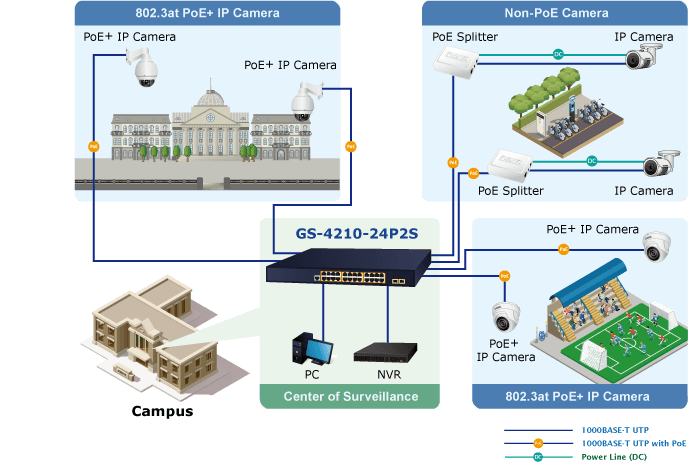

Cost-optimized Managed PoE+ Switch with Advanced L2/L4 Switching and Security PLANET GS-4210-24P2S is an ideal IEEE 802.3at Power over Ethernet Plus (PoE+) Gigabit Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation , also the popular IPv6/IPv4 management and abundant L2/L4 switching functions. The GS-4210-24P2S is equipped with 24 10/100/1000BASE-T 802.3at PoE+ Gigabit Ethernet ports and 2 additional 100/1G/2.5GBASE-X SFP interfaces with inner power system. It offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management. Cybersecurity Network Solution to Minimize Security Risks The GS-4210-24P2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. Redundant Ring, Fast Recovery for Critical Network Applications The GS-4210-24P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. Built-in Unique PoE Functions for Powered Devices Management As the PoE managed switch for surveillance, wireless and VoIP networks, the GS-4210-24P2S features special PoE management functions: PD alive check Scheduled power recycling PoE schedule PoE usage monitoring PoE Extension Intelligent Powered Device Alive Check The GS-4210-24P2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the GS-4210-24P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. Scheduled Power Recycling The GS-4210-24P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection, the GS-4210-24P2S can effectively control the power supply besides its capability of giving high watts power. The “ PoE schedule ” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours. PoE Usage Monitoring Via the power usage chart in the web management interface, the GS-4210-24P2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. 802.3at PoE+ Power and Ethernet Data Transmission Distance Extension In the “ Extend ” operation mode, the GS-4210-24P2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-24P2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the GS-4210-24P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Robust Layer 2 Features The GS-4210-24P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP) , loop and BPDU guard , IGMP snooping , and MLD snooping . Via the link aggregation, the GS-4210-24P2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic Control The GS-4210-24P2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control , per port bandwidth control , 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Powerful Security PLANET GS-4210-24P2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With th e protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. Friendly and Secure Management For efficient management, the GS-4210-24P2S is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the GS-4210-24P2S offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Moreover, the GS-4210-24P2S offers secure remote management by supporting SSHv2, TLSv1.2/TLSv1.3 and SNMP v3 connections which encrypt the packet content at each session. Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and NMSViewerPro/CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or NMSViewerPro/CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform. PLANET CloudNMS – Cloud-Based Universal Network Management PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts. With CloudNMS , businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform. Flexible Extension Solution The two SFP slots built in the GS-4210-24P2S are compatible with th e 100BASE-FX/1000/2500BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitor center in long distance. The distance can be extended from 100 meters (RJ45 to SFP) or 300m and 500m (Multi-mode, LC) to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism The GS-4210-16P2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Applications Perfectly-integrated Solution for PoE IP Surveillance The GS-4210-24P2S brings an ideal, secure surveillance system at a lower total cost. The GS-4210-24P2S provides 24 10/100/1000Mbps 802.3at PoE+ ports able to feed sufficient PoE power for 16 IEEE 802.3at/af PoE IP cameras at the same time. It is also able to connect with one 16-channel NVR or two 8-channel NVR systems, uplinked to the core switch and the control center. With such a high-performance switch architecture, the recorded video files from the PoE IP cameras can be saved in the NVR system to enable the administrators to control and monitor the surveillance images both in the local LAN and the remote sites. Department/Workgroup PoE Network Providing 24 PoE in-line power interfaces, the GS-4210-24P2S can easily build a power that can centrally control IP phone system, IP camera system and wireless AP group for enterprises. The GS-4210-24P2S delivers full ports of 802.3at/af compliant Gigabit Ethernet network connectivity with high-performance and cost-effective advantages for the increasing number of PoE IP telephones, PoE IP cameras, PoE wireless access points and other devices applied at the edge of the small or medium enterprise network. The GS-4210-24P2S improves the network efficiency and protects the network clients with the powerful features: Layer 2 to Layer 4 security QoS/802.1Q VLAN / static trunk / LACP 802.1x Port-based and MAC-based network access authentication security Multicast IGMP snooping Key Features Physical Port 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector 2 100/1000/2500BASE-X SFP slots RJ45 console interface for switch basic management and setup Reset button for system factory default Switching Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 12K jumbo frame Supports ESD protection Contact Discharge ±6KV DC Air Gap Discharge ±8KV DC Supports Surge Protection Network Common Mode ±6KV Power Common Mode ±4KV Power Differential Mode ±2KV Automatic address learning and address aging Supports CSMA/CD protocol Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 24 ports of IEEE 802.3af/802.3at devices powered Supports PoE Power up to 30.8 watts for each PoE port 370-watt PoE budget Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters in standard mode and 250m in extend mode PoE Management Total PoE power budget control Per port PoE function enable/disable PoE Port Power feeding priority Per PoE port power limitation PoE delay PD classification detection Intelligent PoE features PoE usage threshold control PD alive check PoE schedule Layer 2 Features Supports VLAN IEEE 802.1Q tagged VLAN Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Protocol VLAN Voice VLAN Private VLAN (Protected port) Management VLAN GVRP Supports Spanning Tree Protocol STP (Spanning Tree Protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (Multiple Spanning Tree Protocol) STP BPDU Guard, BPDU Filtering and BPDU Forwarding Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 8 trunk groups, up to 8 ports per trunk group Provides port mirror (many-to-1) Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Quality of Service Ingress/Egress Rate Limit per port bandwidth control Storm Control support Broadcast/unknown unicast/unknown multicast Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies Multicast Supports IPv4 IGMP snooping v2 and v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering Security Authentication IEEE 802.1X port-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers DHCP Option 82 RADIUS/TACACS+ login user access authentication Access Control List IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE MAC Security Static MAC MAC Filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks DoS attack prevention Management IPv4 and IPv6 dual stack management Switch management interface Web switch management Console/Telnet Command Line Interface SNMP v1 and v2c switch management SSHv2, TLSv1.2 /TLSv1.3 and SNMP v3 secure access User privilege levels control Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System maintenance Firmware upload/download via HTTP/TFTP Configuration upload/download through web interface Dual images Hardware reset button for system reboot or reset to factory default SNTP Network Time Protocol Cable diagnostics Link Layer Discovery Protocol (LLDP) and LLDP-MED SNMP trap for interface link up and link down notification Four RMON groups (history, statistics, alarms and events) Event message logging to remote Syslog server SMTP remote alarm PLANET Smart Discovery utility automatically finds PLANET devices on the network PLANET NMS system and NMSViewerPro/CloudViewerPro/CloudNMS App for deployment management

Especificaciones técnicas

Hardware Version

4

Copper Ports

24 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

PoE+ Injector Port

24 802.3af/802.3at PoE+ Injector Ports

SFP Slots

2 100/1000/2500BASE-X SFP interfaces, supporting 100/1000/2500Mbps triple mode

Console

1 x RS232-to-RJ45 serial port (115200, 8, N, 1)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Fan

2 fans

Dimensions (W x D x H)

440 x 207 x 44 mm (1U height)

Weight

2.6kg

ESD Protection

±8KV air gap discharge ±6KV contact discharge

Surge Protection

±6KV network common mode ±4KV power common mode ±2KV power differential mode

Enclosure

Metal

Power Requirements

100~240V AC, 50/60Hz, 6.5A (max.)

Power Consumption/Dissipation

Max. 10 watts / 34.1 BTU (Power on without any connection) Max. 425 watts / 1450 BTU (Full Loading)

LED

System: SYS ( Green ), Power ( Green ) 10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000 LNK/ACT ( Green ), 10/100 LNK/ACT ( Amber ), PoE-in-Use ( Amber ) 100/1000/2500BASE-X SFP Interfaces (Port 25 to Port 26): 1G/2.5G LNK/ACT ( Green ), 100 LNK/ACT ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

58Gbps/non-blocking

Switch Throughput@64 bytes

43.1Mpps @64 bytes

MAC Address Table

16K entries

Shared Data Buffer

4.1 megabits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

12K bytes

PoE Standard

IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Output

Per Port 54V DC, 300mA. Max. 15.4 watts (IEEE 802.3af) Per Port 54V DC, 600mA. Max. 30 watts (IEEE 802.3at)

PoE Power Budget

370 watts

Number of PDs, 7 watts

24 units

Number of PDs, 15.4 watts

24 units

Number of PDs, 30 watts

12 units

PoE Management

PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension

Port Mirroring

TX/RX/both Many-to-1 monitor Up to 4 sessions

VLAN

IEEE 802.1Q tagged-based VLAN IEEE 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP and static trunk Supports 8 groups of 8-port trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups

MLD Snooping

IPv6 MLD (v1/v2) snooping Up to 256 multicast groups

QoS

8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries

Port Security

IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries

Enhanced Security

DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard

Basic Management Interfaces

RS232 to RJ45 Console Web browser Telnet SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2/TLSv1.3, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS system PLANET NMSViewerPro/CloudViewerPro/CloudNMS

Event Management

Remote/Local Syslog System log SMTP remote alarm

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 3635 Ethernet-like MIB LLDP MIB PLANET-Aggr-MIB PLANET-DDMI-MIB PLANET-Firmware-MIB PLANET-GVRP-MIB PLANET-LACP-MIB PLANET-SYSUTIL-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU-T G.8032 ERPS Ring

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
