GS-6320-24UP2T2XV — L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with LCD Touch Screen and Redundant Power

Descripción

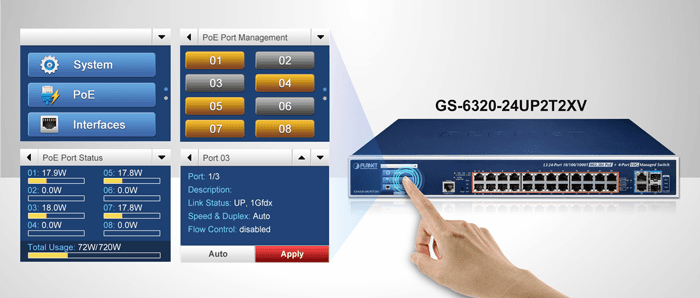

Powerful 802.3bt PoE Managed Switch with Advanced L2+/L4 Switching and Security PLANET GS-6320-24UP2T2XV is a cost-optimized, 1.25 U , Gigabit 802.3bt PoE Managed Switch with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with 24 10/100/1000BASE-T 802.3bt PoE++ ports , 2 10GBASE-T RJ45 ports and 2 additional 10Gigabit SFP+ ports . With a total power budget of up to 720 watts for different kinds of PoE applications, the GS-6320-24UP2T2XV provides a quick, safe and cost-effective 802.3bt PoE network solution for small businesses and enterprises IEEE 802.3bt PoE solutions The GS-6320-24UP2T2XV supports the 802.3bt standard, supplying up to 95 watts per port for increased requirements of devices. It can offer more PoE applications, such as: PoE PTZ speed dome cameras Any network device that needs higher PoE power to work normally Thin-client AIO (All-in-One) touch PC Remote digital signage display New Color LCD Touch Screen The unique Smart LCD PoE Switch provides an intuitive touch panel on its front panel that facilitates the Ethernet management and PoE PD management. It greatly promotes management efficiency in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas, and features the following special management and status functions: IP address, VLAN and QoS configuration PoE management and status Port management and status/SFP information Troubleshooting: cable diagnostic and remote IP ping Maintenance: reboot, factory default and save configuration High Performance 10Gbps Ethernet Capacity The GS-6320-24UP2T2XV offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric and auto negotiation support in its 10 Gigabit port, the GS-6320-24UP2T2XV can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure. Convenient and Smart ONVIF Devices with Detection Feature PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From the GS-6320-24UP2T2XV GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to a switch and it allows you to deploy any surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and also allows PoE reboot control from GUI. Built-in Unique PoE Functions for Powered Devices Management Being the managed PoE switches for surveillance, wireless and VoIP networks, the GS-6320-24UP2T2XV features the following special PoE management functions: PD alive check Scheduled power recycling PoE schedule PoE usage monitoring Intelligent Powered Device Alive Check The GS-6320-24UP2T2XV can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-6320-24UP2T2XV will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. Scheduled Power Recycling The GS-6320-24UP2T2XV allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection, the GS-6320-24UP2T2XV can effectively control the power supply besides their capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours. PoE Usage Monitoring Via the power usage chart in the web management interface, the GS-6320-24UP2T2XV enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. 10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Diversified Bandwidth Applications The GS-6320-24UP2T2XV has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, and 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling, meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy. The fiber-optic 10GBASE-X SFP+ interfaces support 3 speeds, 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. Redundant AC/DC Power Input for Continuous System Operation The GS-6320-24UP2T2XV is equipped with one 100–240 V AC power input and one 36–60 V DC power input, providing flexible installation and redundant power options to ensure continuous system operation. When powered by AC, the switch fully supports PoE for connected devices. When using DC power, the switch continues network operation but PoE output is disabled. If both AC and DC are connected, AC power takes priority for PoE. In case AC power fails, the switch stays online with DC power, ensuring data connectivity without PoE interruption. Environment-friendly, Smart Fan Design for Silent Operation The GS-6320-24UP2T2XV features a 19-inch metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-6320-24UP2T2XV is able to operate reliably, stably and quietly in any environment without affecting its performance. Solution for IPv6 Networking By supporting IPv6/IPv4 dual stack and plenty of management functions with easy and friendly-user interfaces, the GS-6320-24UP2T2XV is the best choice for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. It also helps the SMBs to step in the IPv6 era with the lowest investment but not necessary to replace the network facilities while the ISPs construct the IPv6 FTTx edge network. IPv4 and IPv6 VLAN Routing for Secure and Flexible Management To help customers stay on top of their businesses, the GS-6320-24UP2T2XV not only provides ultra high transmission performance and excellent Layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application. Robust Layer 2 Features The GS-6320-24UP2T2XV can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN , Multiple Spanning Tree Protocol (MSTP) , Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping . The GS-6320-24UP2T2XV allows the operation of a high-speed trunk combining multiple ports. It consists of a maximum of 14 trunk groups with 4 ports for each group, and supports connection fail-over as well. Powerful Security The GS-6320-24UP2T2XV offers a comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Enhanced Security and Traffic Control The GS-6320-24UP2T2XV also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. User-friendly Secure Management For efficient management, the GS-6320-24UP2T2XV is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and Cloud-based CloudNMS and app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudNMS, all kinds of businesses can now be speedily and efficiently managed from one platform. Intelligent SFP/SFP+ Diagnosis Mechanism The GS-6320-24UP2T2XV supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Applications IEEE 802.3bt PoE++ Networking Solution PLANET GS-6320-24UP2T2XV can easily build an 802.3bt PoE++ networking solution on the cyber security system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GS-6320-24UP2T2XV and POE-173S/IPOE-173S 802.3bt PoE++ Splitter operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-6320-24UP2T2XV, the POE-173S/IPOE-173S separates digital data and power into several optional outputs (12 V, 19 V or 24 V DC) to non-PoE devices such as laptops, thin client, POS system, PTZ (pan, tilt & zoom) network cameras, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters. Optimal Redundant Ring for Faster Recovery of Managed Network The GS-6320-24UP2T2XV supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 50ms to quickly bring the network back, thus enabling the management network to keep on operating. Key Features Physical Port 24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3bt PoE++ injector function 2 10GBASE-T RJ45 interfaces with auto MDI/MDI-X function 2 10GBASE-SR/LR SFP+ slots , compatible with 2500BASE-X and 1000BASE-SX/LX/BX SFP RJ45 console interface for switch basic management and setup 802.3bt Power over Ethernet Complies with IEEE 802.3bt Power over Ethernet Plus Plus Backward compatible with IEEE 802.3af /at Power over Ethernet Up to 24 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt PoE devices powered 24 PoE ports with built-in 802.3bt PoE++ Type-4 90 W injector function Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE management Total PoE power budget control Per port PoE function enable/disable PoE admin-mode control PoE port power feeding priority Per PoE port power limitation PD classification detection Temperature threshold control PD alive check PoE schedul PoE extend mode supports power feeding at a distance of up to 200 meters Intelligent PoE features Temperature threshold control PoE usage threshold control PD alive check PoE schedule Layer 3 Features IP dynamic routing protocol supports RIP, OSPFv2 and OSPFv3 IPv4/IPv6 hardware static routing Routing interface provides per VLAN routing mode IP interfaces (Max. 128 VLAN interfaces) Routing table (Max. 128 static routing entries) Layer 2 Features Storm Control support Broadcast/multicast/unknown unicast Supports VLAN IEEE 802.1Q tagged VLAN Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad) Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN Voice VLAN GVRP (GARP VLAN Registration Protocol) Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 26 trunk groups with 4 ports for each trunk group Up to 80Gbps bandwidth (full duplex mode) Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports G.8032 ERPS (Ethernet Ring Protection Switching) Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Link Layer Discovery Protocol (LLDP) Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD snooping v1 and v2 Querier mode support IPv4 IGMP snooping port filtering IPv6 MLD snooping port filtering Multicast VLAN Registration (MVR) support Security Authentication IEEE 802.1x port-based/MAC-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers TACACS+ login users access authentication RADIUS/TACACS+ users access authentication Access Control List IP-based Access Control List (ACL) MAC-based Access Control List Source MAC/IP address binding DHCP Snooping to filter untrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces Console/Telnet Command Line Interface Web switch management SNMP v1, v2c, and v3 switch management SSHv2, TLSv1.2 and SNMP v3 secure access SNMP Management Four RMON groups (history, statistics, alarms and events) SNMP trap for interface Link Up and Link Down notification IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Reset button for system reboot or reset to factory default Dual images DHCP Relay and DHCP Option 82 DHCP Server User Privilege levels control NTP (Network Time Protocol) Network Diagnostic ICMPv6/ICMPv4 remote ping Cable diagnostic technology provides the mechanism to detect and report potential cabling issues SMTP/Syslog remote alarm System Log PLANET Smart Discovery Utility for deployment management PLANET UNI-NMS (Universal Network Management), cloud-based CloudNMS and app for deployment management Provides ONVIF for cooperating with PLANET IP video surveillance Smart fan with speed control Redundant Power System Redundant 100~240V AC/36-60V DC dual power Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience

Especificaciones técnicas

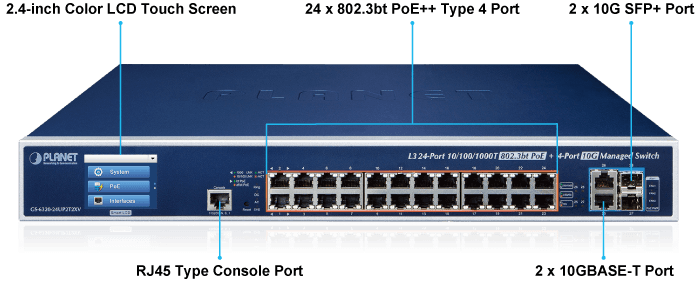

Copper Ports

24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 2 10GBASE-T RJ45 ports auto negotiation (Ports -25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate

SFP+ Slots

2 10GBASE-SR/LR SFP+ interfaces (Ports -27 to Port-28) Compatible with 1000BASE-SX/LX/BX SFP transceiver

Console

1 x RJ45 serial port (115200, 8, N, 1)

RING

Supports ERPS and, complies with ITU-T G.8032 Recovery time < 50 ms

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Dimensions (W x D x H)

444 x 301 x 56 mm, 1.25 U height

Weight

5417 g

Power Consumption

Max. 835 watts/ 2849.14 BTU

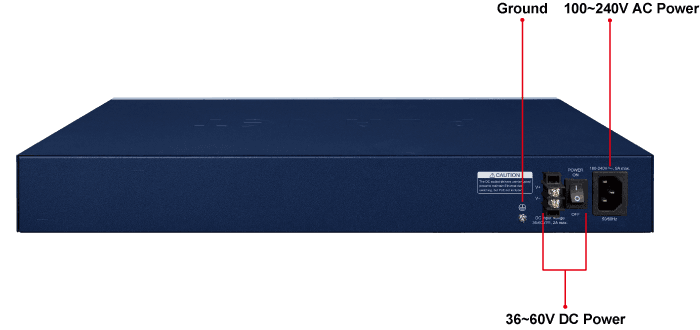

Power Requirements – AC

AC 100~240 V, 50/60 Hz, 8 A Both the system and PoE functions operate normally, supplying power to connected PD devices

Power Requirements – DC

DC 36~60 V, 2 A The switch remains operational for data transmission, but PoE output is disabled

ESD Protection

5K V DC

Fan

3 smart fans

LED

System: SYS ( Green ) AC ( Green ) DC ( Green ) Ring ( Green ) Fan1/2/3 Alert ( Red ) PoE PWR Alert ( Red ) PoE Ethernet Interfaces (Ports 1 to 24): af/at PoE ( Amber ) bt PoE/UPOE ( Green ) Ethernet Interfaces (Ports 1 to 24): 1000 LNK/ACT ( Green ), 10/100 LNK/ACT ( Amber ) 10GBASE-T Interfaces (Ports 25 to 26): 1G ( Green ), 2.5G/5G ( Green + Amber r ), 10G ( Amber ) 1/10G SFP+ Interfaces (Ports 27 to 28): 1G ( Green ) , 2.5G ( Green + Amber ), 10G ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

128 Gbps/non-blocking

Throughput

95.23 Mbps@64Bytes

Address Table

32K entries, automatic source address learning and aging

Shared Data Buffer

32 Mbits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

10K bytes

PoE Standard

802.3bt PoE++ PSE Backward compatible with IEEE 802.3af/802.3at PoE PSE

PoE Power Supply Type

802.3bt UPoE End-span Mid-span Force

PoE Power Output

Per port 52V DC 802.3bt Type-4 mode : Port-1 to Port-24: maximum 90 watts UPoE mode : Port-1 to Port-24: maximum 95 watts End-span mode : maximum 36 watts Mid-span mode : maximum 36 watts Force mode : maximum 90 watts

Power Pin Assignment

802.3bt : 1/2(-), 3/6(+), 4/5(+), 7/8(-) UPoE : 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span : 1/2(-), 3/6(+) Mid-span : 4/5(+), 7/8(-)

PoE Power Budget

720 watts (max.) @ < 40 degrees C operating temperature 660 watts (max.) @ 40 to 49 degrees C operating temperature 600 watts (max.) @ 50 degrees C operating temperature

Number of 90w 802.3bt Type-4 PDs

8 units

Number of 60w 802.3bt Type-3 PDs

12 units

Number of 30w 802.3at PDs

24 units

PoE System Management

PoE Port sStatus monitoring Total PoE power budget control Over tTemperature pProtection PoE usage threshold and temperature threshold

PoE Device Live Detection

Per port remote PD IP address 4 actions None PD reboot PR reboot and alarm Alarm

PoE Power Recycling

Daily or predefinedinded schedule

PoE Schedule

4 schedule profiles

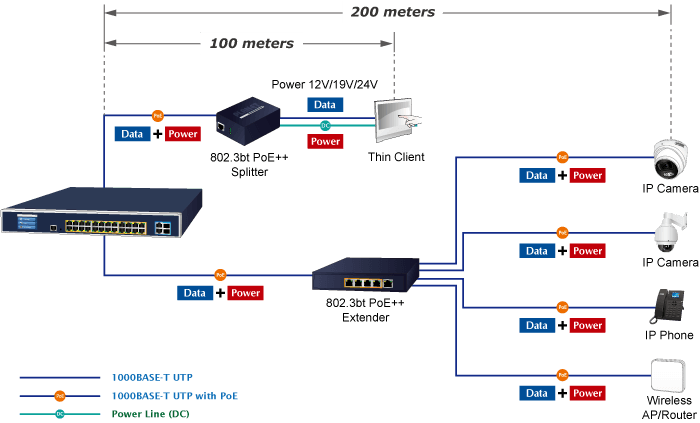

PoE Extend Mode

Max. 200 meters

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 128 routing entries Max. 4K H/W routing table entries

Routing Protocols

IPv4 RIPv1/v2 IPv4 OSPFv2 IPv4 hardware static routing IPv6 OSPFv3 IPv6 hardware static routing

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX/RX/Both Many-to-1 monitor

VLAN

802.1Q tagged VLAN 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) GVRP Up to 4K VLAN groups, out of 4095 VLAN IDs

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) BPDU Guard

Link Aggregation

IEEE 802.3ad LACP/static trunk 14 trunk groups with 4 ports per trunk

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support IPv4 IGMP Snooping port filtering Up to 255 multicast groups

MLD Snooping

IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Up to 255 multicast groups

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports major ring and sub-ring

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching: Port number 802.1p priority 802.1Q VLAN tag DSCP/ToS field in IP packet

Bandwidth Control

Per port bandwidth control Ingress: 10kbps~13000Mbps Egress: 10kbps~13000Mbps

Access Control List

IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries

Security

Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries

AAA

RADIUS client TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication

Basic Management Interfaces

Console; Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSHv1/SSHv2, TLSv1.2,SNMP v3

System Management

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app

Event Management

Remote syslog System log SMTP

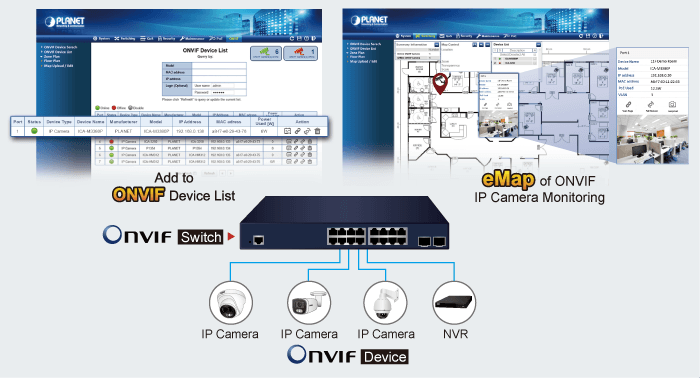

ONVIF

ONVIF device discovery ONVIF device monitoring Floor map

SNMP MIBs

RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt PoE++ RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1058 RIP v1 RFC 2453 RIP v2 RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 2740 OSPF v3 ITU-T G.8032 ERPS Ring

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
