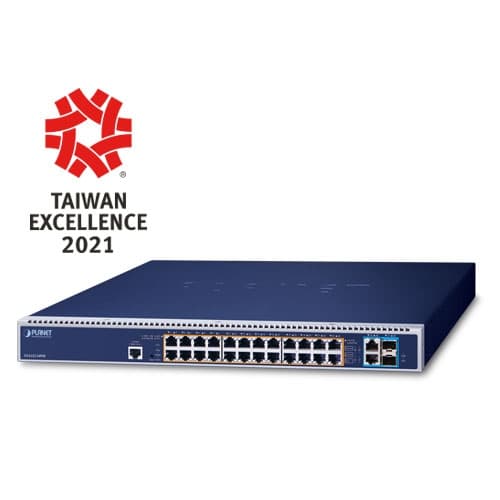

GS-6322-24P4X — L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with Dual Modular Power Supply Slots

Descripción

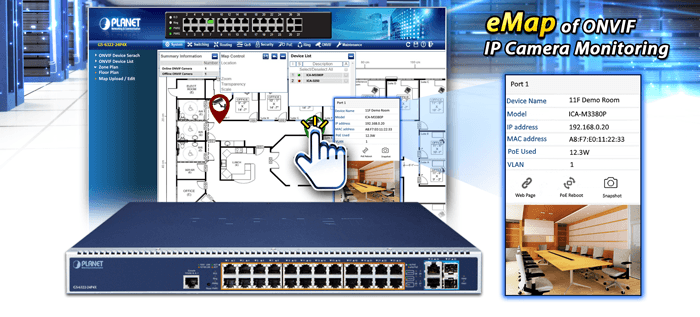

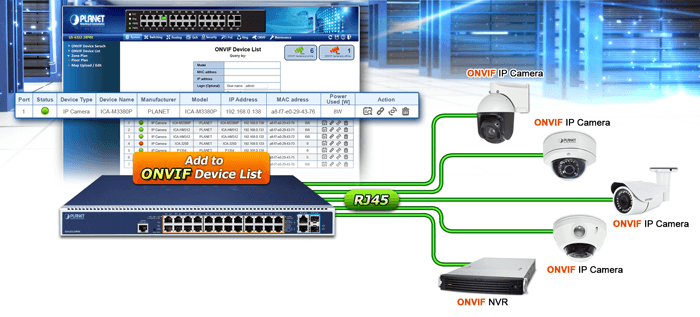

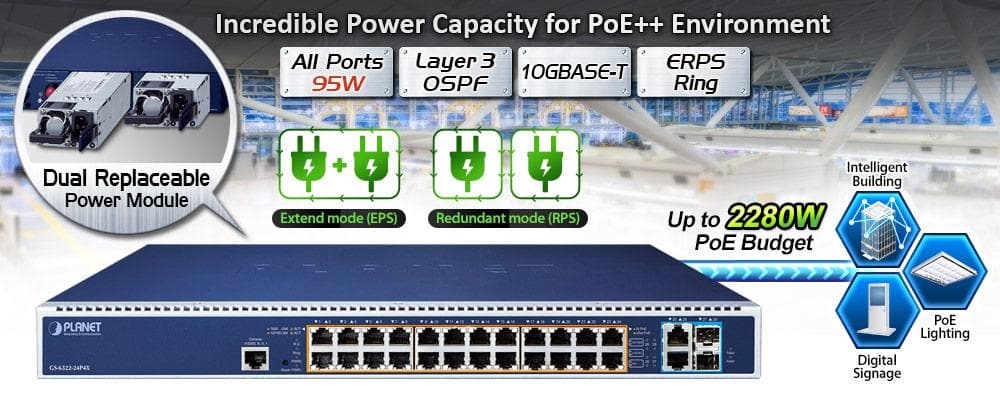

Powerful 802.3bt PoE++ Managed Switch with Extremely Large Power Capability PLANET GS-6322-24P4X Fully-managed 802.3bt PoE++ Switch with dual modular power supply slots expandability promotes power management efficiency and flexibility in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. It supports rich PoE operation modes including 24 90-watt 802.3bt type-4 PoE++ ports , 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. With a total power budget of up to 2,280 watts for different kinds of heavy PoE applications, the GS-6322-24P4X provides a quick, safe and cost-effective 802.3bt PoE network solution for small businesses and enterprises. Extractive Power Supply Design to Increase Flexibility The GS-6322-24P4X is designed with two extractive power module slots to support Redundant Power Supply ( RPS ) mode or Extended Power Supply ( EPS ) mode via software setting to handle the demands of power redundancy or additional power for PoE++ ports as needed. RPS (1+1) mode: Where critical services are supported by PoE application, the secondary PSU is needed to provide backup power in the event of a power outage. When two PSUs are installed, the power budget is the same as that of one PSU. EPS (2+0) mode: Where more PoE budget is required to support complete application, the secondary PSU can provide additional PoE power. The two PSUs combined are able to provide a maximum of total PoE power. The GS-6322-24P4X can work with three optional 920W/1200W/2000W AC power supplies. Users can flexibly use one or dual power supply according to their application. Its flexible redundant and extended power system is specifically designed for high-tech facilities requiring the highest power integrity. For example: PSU Operation mode Redundant Power Supply mode Extended Power System mode Power Redundancy ■ -- PoE budget with 1 1200W PSU 1000W 1000W PoE budget with 2 1200W PSUs 1000W 2200W 90~95-watt 802.3bt PoE++ and Advanced PoE Power Output Mode Management As the GS-6322-24P4X adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). To meet the demand of various powered devices consuming stable PoE power, the GS-6322-24P4X PoE++ Switch provides five different PoE power output modes for selection. 95W UPOE/PoH 90W 802.3bt PoE++ 60W Force 36W End-span PoE 36W Mid-span PoE 10GBASE-T and 10GBASE-X SFP Dual Media Interfaces The GS-6322-24P4X features built-in hardware-based L2 and L3 switching engine along with 24 10/100/1000BASE-T ports, 2 10GBASE-T RJ45 ports and 2 additional 10GBASE-X SFP+ ports. With two built-in 10GBASE-T copper interfaces with 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, the GS-6322-24P4X provides 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling, meaning the speed can be increased without costs. The additional two 10GBASE-X SFP+ interfaces with 3 speeds (10G/2.5G/1G) are provided for a long-distance transmission of up to 120km. Layer 3 Routing Support The GS-6322-24P4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, and the IPv4 OSPFv2 (Open Shortest Path First) settings automatically. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database. Redundant Ring, Fast Recovery for Critical Network Applications The GS-6322-24P4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms. Convenient and Smart ONVIF Devices with Detection Feature The GS-6322-24P4X supports an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with Video IP Surveillances. From its GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to a switch and it allows you to deploy any surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and also allows PoE reboot control from GUI. Built-in Unique PoE Functions for Powered Devices Management Being the managed PoE switch for surveillance, wireless and VoIP networks, the GS-6322-24P4X features the following special PoE management functions: PD alive check Scheduled power recycling PoE schedule PoE usage monitoring Intelligent Powered Device Alive Check The GS-6322-24P4X can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-6322-24P4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. Scheduled Power Recycling The GS-6322-24P4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, they will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Savings Under the trend of energy savings worldwide and contributing to environmental protection, the GS-6322-24P4X can effectively control the power supply besides their capability of giving high watts power. The “ PoE schedule ” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours. Robust Layer 2 Features The GS-6322-24P4X can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN , private VLAN, Multiple Spanning Tree Protocol ( MSTP ), Layer 2 to Layer 4 QoS, bandwidth control, IGMP s nooping and MLD snooping . Via the aggregation of supporting ports, the GS-6322-24P4X can operate at high speed as it comes with multiple ports and supports fail-over as well. Powerful Network Security The GS-6322-24P4X offers a comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Advanced IP Network Protection The GS-6322-24P4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. Efficient Management For efficient management, the GS-6322-24P4X is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. Intelligent SFP/SFP+ Diagnosis Mechanism The GS-6322-24P4X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Applications IEEE 802.3bt/ Ultra PoE Networking Solution PLANET GS-6322-24P4X can easily build an ultra PoE networking solution on the cyber security system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GS-6322-24P4X and POE-173S/IPOE-173S 802.3bt PoE++ Splitter operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-6322-24P4X, the POE-173S/IPOE-173S separates digital data and power into several optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, thin client, POS system, PTZ (pan, tilt & zoom) network cameras, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters. Optimal Redundant Ring for Faster Recovery of Managed Network The GS-6322-24P4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS ( Ethernet Ring Protection Switching ) technology, and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 10ms to quickly bring the network back, thus enabling the management network to keep on operating. Key Features Physical Port 24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3bt PoE++ injector function 2 10GBASE-T RJ45 interfaces with auto MDI/MDI-X function 2 10GBASE-SR/LR SFP+ slots , compatible with 1000BASE-SX/LX/BX SFP and 2.5G SFP transceiver RJ45 console interface for switch basic management and setup 802.3bt Power over Ethernet Complies with IEEE 802.3bt Power over Ethernet Plus Plus Backward compatible with IEEE 802.3at Power over Ethernet Plus Up to 24 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt PoE devices powered 24 PoE ports with built-in 802.3bt PoE++ Type-4 90W injector function Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters PoE management features Total PoE power budget control Per port PoE function enable/disable PoE admin-mode control PoE port power feeding priority Per PoE port power limit PD classification detection PoE extend mode control to support power feeding up to a distance of up to 200 meters Intelligent PoE features Temperature threshold control PoE usage threshold control PD alive check PoE schedule Layer 3 Features IP dynamic routing protocol supports OSPFv2 IPv4/IPv6 hardware static routing Routing interface provides per VLAN routing mode IP interfaces (Max. 128 VLAN interfaces) Routing table (Max. 128 routing entries) Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm Control support Broadcast/multicast/unknown unicast Supports VLAN Supports VLAN IEEE 802.1Q tagged VLAN Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad) Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN Voice VLAN GVRP (GARP VLAN Registration Protocol) Up to 4K VLANs groups, out of 4094 VLAN IDs Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 4 trunk groups with 4 ports for each trunk group Up to 80Gbps bandwidth (full duplex mode) Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Link Layer Discovery Protocol (LLDP) Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD snooping v1 and v2 Querier mode support IPv4 IGMP snooping port filtering IPv6 MLD snooping port filtering Multicast VLAN Registration (MVR) support Security Authentication IEEE 802.1x port-based/MAC-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers TACACS+ login users access authentication RADIUS/TACACS+ users access authentication Guest VLAN assigns clients to a restricted VLAN with limited services Access Control List IP-based Access Control List (ACL) MAC-based Access Control List Source MAC/IP address binding DHCP Snooping to filter untrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces Console/Telnet Command Line Interface Web switch management SNMP v1, v2c, and v3 switch management SSHv2, TLSv1.2, SSL and SNMP v3 secure access SNMP Management Four RMON groups (history, statistics, alarms and events) SNMP trap for interface Link Up and Link Down notification IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Reset button for system reboot or reset to factory default Dual images DHCP Relay and DHCP Option 82 DHCP Server User Privilege levels control NTP (Network Time Protocol) Network Diagnostic SFP-DDM (Digital Diagnostic Monitor) ICMPv6/ICMPv4 remote ping Cable diagnostic technology provides the mechanism to detect and report potential cabling issues SMTP/Syslog remote alarm System Log PLANET Smart Discovery Utility for deployment management Smart fan with speed control Power Management Dual redundant modular power supply slots Supports configurable power operation modes Redundant Power Supply (RPS, 1+1): Provides 1+1 power redundancy when two PSUs are installed. Extended Power Supply (EPS, 2+0): Provides more power budget by combining two PSUs to share the maximum power budget Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience

Especificaciones técnicas

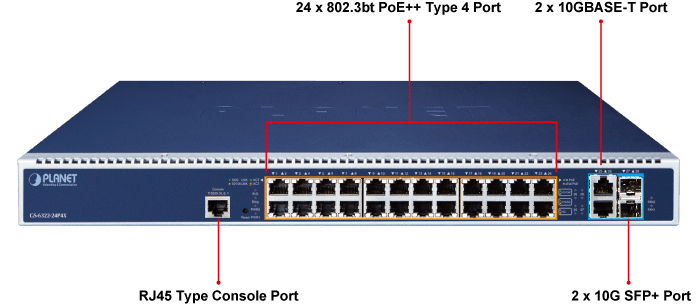

Copper Ports

24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 2-port 10GBASE-T RJ45 auto negotiation (Port-25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate

SFP+ Slots

2 10GBASE-SR/LR SFP+ interfaces (Port-27 to Port-28) Compatible with 1000BASE-SX/LX/BX SFP and 2.5G SFP transceiver

Console

1 x RS232-to-RJ45 serial port (115200, 8, N, 1)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Dimensions (W x D x H)

444 x 301 x 44mm, 1U height

Weight

5478g

Power Requirements

Single 920W PSU: AC 100~240V, 50/60Hz, 13A 1200W PSU: AC 100~240V, 50/60Hz, 13A 2000W PSU: AC 100~240V, 50/60Hz, 13A Dual 920W PSU: AC 100~240V, 50/60Hz, 26A 1200W PSU: AC 100~240V, 50/60Hz, 26A 2000W PSU: AC 100~240V, 50/60Hz, 26A

Power Consumption

Single PSU: Max. 2032 watts/ 6933 BTU Dual PSUs in EPS mode: Max. 2377 watts/ 8111 BTU

ESD Protection

6KV DC

Fan

2 smart fans

LED

System: SYS (Green) PWR1 (Green) PWR2 (Green) Ring (Green) Fan1/2/3 Alert (Red) PoE PWR Alert (Red) PoE Ethernet Interfaces (Port-1 to Port-24): af/at PoE (Orange) bt PoE/UPOE (Green) Ethernet Interfaces (Port-1 to Port-24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 1/10G SFP+ Interfaces (Port-27 to Port-28): 1G (Green), 10G (Orange)

Network Cables

10G/5G/2.5G/1G/100M BASE-T: -10G – Cat 6A/7 -5G – Cat 6/6A/7 -1G/2.5G – Cat 5e/6/6A/7 -100M – Cat 5/5e/6/6A/7 -Cat 5/5e/6/6A/7 UTP cable (maximum 100 meters) 10GBASE-LR/SR/BX: -50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m -9/125μm single-mode fiber optic cable, up to 60km

Switch Architecture

Store-and-Forward

Switch Fabric

128Gbps/non-blocking

Throughput

95.23Mpps@64Bytes

Address Table

16K entries, automatic source address learning and aging

Shared Data Buffer

32M bits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

10K bytes

PoE Standard

802.3bt PoE++ PSE Backward compatible with IEEE 802.3af/802.3at PoE PSE

PoE Power Supply Type

802.3bt UPoE End-span Mid-span Force

PoE Power Output

Per port 54V DC -802.3bt Type-4 mode, Port-1 to Port-24: maximum 90 watts -UPoE mode, Port-1 to Port-24: maximum 95 watts -End-span mode: maximum 36 watts -Mid-span mode: maximum 36 watts -Force mode: maximum 60 watts

Power Pin Assignment

802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-)

PoE Power Budget

up to 2280 watt

Active PoE device alive detects

Yes

PoE Power Recycle

Yes, daily or predeinded schedule

PoE Schedule

4 schedule profiles

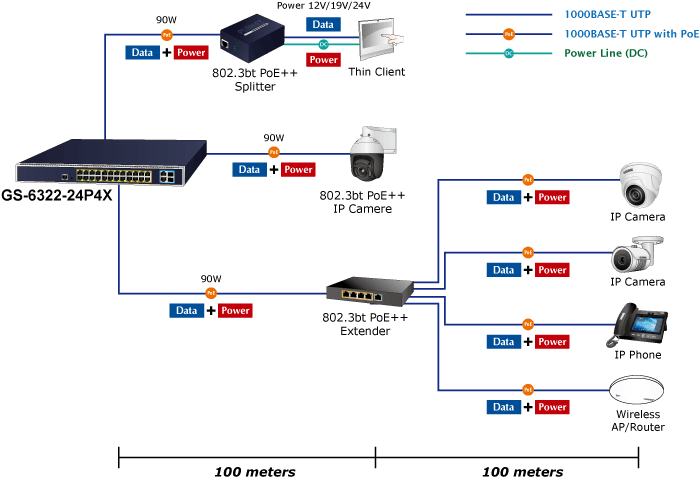

PoE Extend Mode

Yes, max. 160 to 200 meters

PoE System Management

System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-termperature threshold alarm PoE usage threshold alarm

PoE Port Management

Port Enable/Disable/Schedule PoE mode control - 802.3bt - UPoE - 802.3at End-span - 802.3at Mid-span Force mode Port Priority

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 128 routing entries

Routing Protocols

IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX/RX/Both Many-to-1 monitor

VLAN

802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk Supports 3 trunk groups with 4 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups

MLD Snooping

IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching: - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/ToS field in IP packet

Access Control List

IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries

Bandwidth Control

Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps

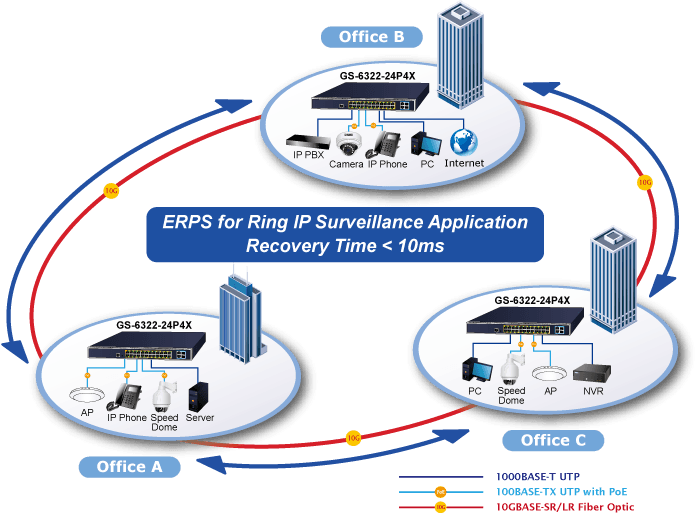

RING

Support ERPS, complies with ITU-T G.8032 Recovery time < 10ms with 3 units Recovery time < 50ms with 16 units

Basic Management Interfaces

Console Telnet Web browser SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.2, SSL, SNMP v3

SNMP MIBs

RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt PoE++ Power over Ethernet Plus Plus IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management (CFM) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
