GSD-805 — 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch

Descripción

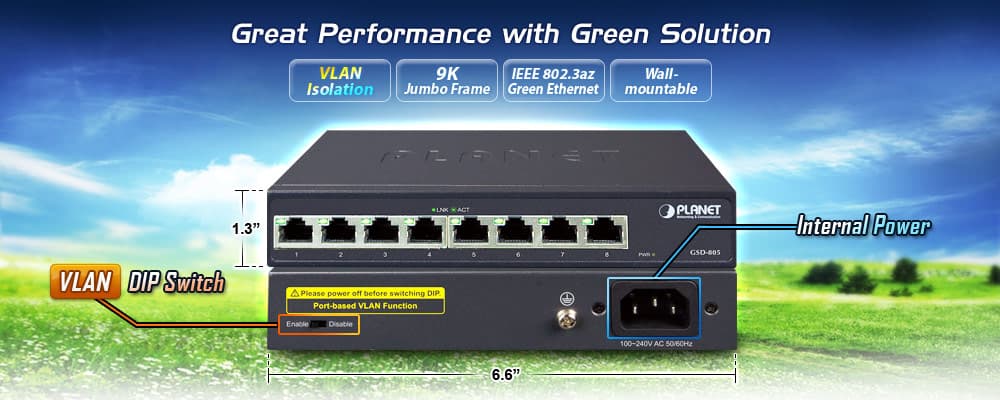

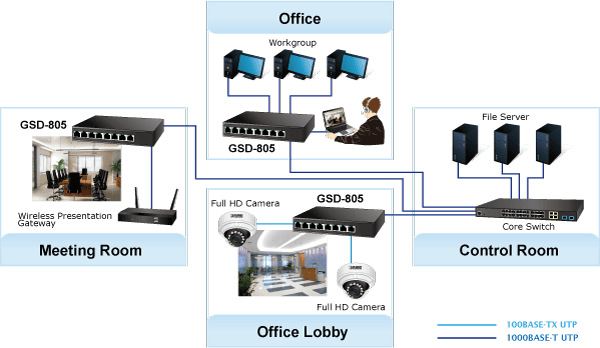

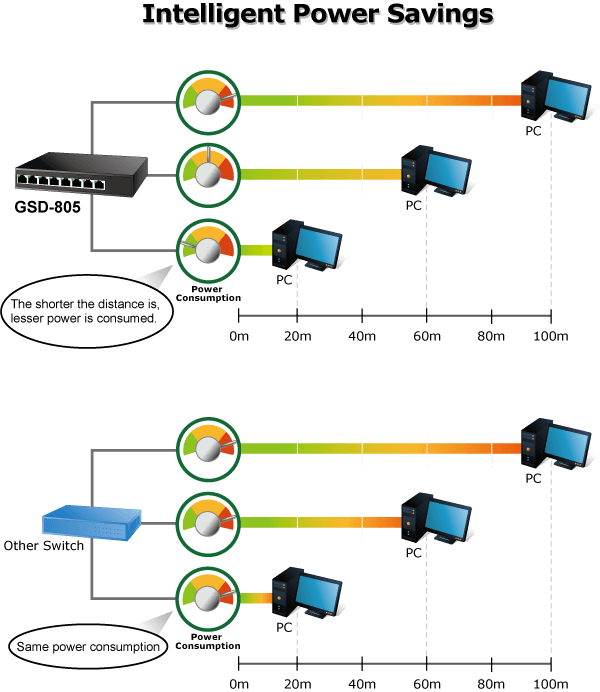

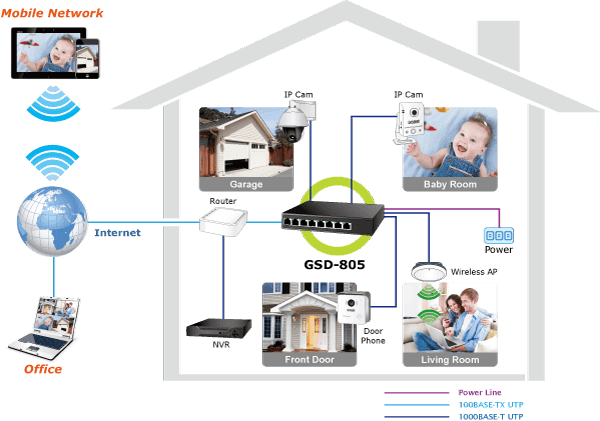

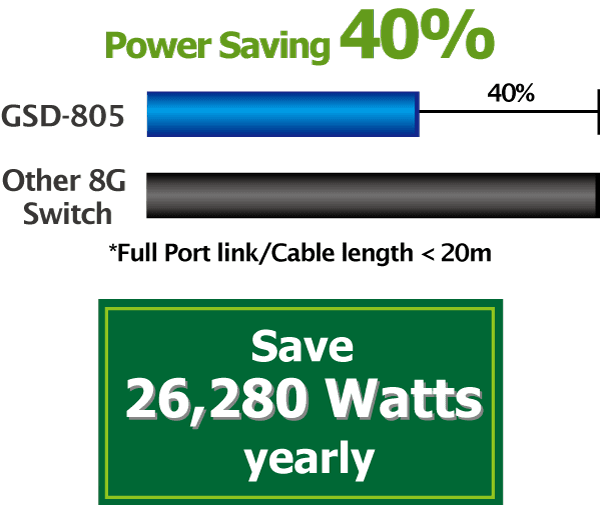

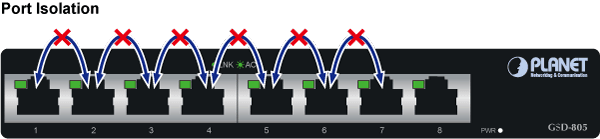

Energy-saving and Gigabit High-performance Networking Solution PLANET GSD-805 8-Port 10/100/1000BASE-T Gigabit Ethernet Switch is a green networking solution in line with the energy-saving trend worldwide, but it comes with Gigabit wire-speed performance. Its compact metal housing makes the deployment of Gigabit networks easy for homes, SOHOs and SMBs that are space limited. The operating switch is noiseless as it has a fanless feature. Its internal power supply can be directly plugged into an electrical outlet without having to use a power adapter. VLAN Isolation The GSD-805 is equipped with the VLAN Isolation feature. When switching the DIP to the “ Enable ” position, ports 1 to 7 are not able to communicate with one another. This helps to prevent the IP camera’s multicast or broadcast storm from influencing one another. Saving Power by 40% The GSD-805, incorporating two advanced Green Networking technologies, is able to save power by up to 40% but maintains high performance efficiently. (1) Hibernation Link Down Power Saving The Hibernation Link Down Power Saving goes beyond IEEE specifications to automatically lower the power supply for a given port when it is not linked. With the Hibernation Link Down Power Saving technology, the GSD-805 will automatically adjust power usage of the ports that are shut down or not connected to a network device. (2) Intelligent Scales Power based on cable length Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-805 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-805 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving. Robust Protection The GSD-805 protects against the ESD 4KV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Leading Home, SOHO and Workgroup Users to High-speed Networking Generation Providing 16Gbps internal switching fabric, the GSD-805 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-805 provides 8K MAC address table, and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for Gigabit environments, especially for the network upgraded to a Gigabit environment. Plug & Play All RJ45 copper interfaces of the GSD-805 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables. Applications Small-scale Backbone Switch The GSD-805 can directly connect to department switches or backbone servers. With up to 16 Gigabit per second of non-blocking switch fabric, the GSD-805 can be used to build a Gigabit high-bandwidth switched network quickly and easily. Home/SOHO High-speed Network Center The GSD-805 Gigabit Ethernet Switch provides the best solution of high-speed Internet environment demanded by SOHO / Home and Power users. The GSD-805 accelerates the speed of data transmission between devices without worrying about the delay of high-quality multimedia display. In the aspect of home use, the GSD-805 integrates the speeds of 10, 100 and 1000Mbps which can fulfill your demands of transmitting high-quality multimedia, games and other high-speed Internet applications. Key Features RJ45 Interface 8 10/100/1000Mbps Gigabit Ethernet ports Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Supports auto MDI/MDI-X function Switching Hardware-based 10/100Mbps in half / full duplex mode and 1000Mbps in full duplex mode, flow control, and auto-negotiation Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation Integrated address look-up engine, supporting 8K absolute MAC addresses 9K jumbo packet size Automatic address learning and address aging Supports VLAN isolation mode Supports CSMA/CD protocol Hardware Metal housing, desktop size and wall-mount design LED indicators for system power, Link / Act port Internal power adapter 100-240V AC, 50/60Hz, 0.2A FCC, CE Class B compliant

Especificaciones técnicas

Network Connector

8-Port RJ45 for 10/100/1000BASE-T, auto MDI/MDIX

LED Display

System : Power( Green ) Per port : 10/100/1000 LNK/ACT( Green )

Switch Architecture

Store and Forward switch architecture

MAC Address Table

8K MAC address table with auto learning function

Packet Buffer

1Mbit

Switch Fabric

16Gbps

Switch Throughput

11.9Mpps @64 bytes

Jumbo Packet

9216 bytes

Flow Control

Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex

Power Requirements

Internal power 100-240V AC, 50/60Hz, 0.2A

Power Consumption

Max. 2.4 watts/8.1 BTU

Dimensions (W x D x H)

168 x 94.1 x 32mm

ESD Protection

Contact Discharge 4KV DC Air Discharge 6KV DC

EFT Protection

ESD (Ethernet): 2KV Surge (EFT for power): 4KV

Surge Protection

Different module ±1.5KV Common mode ±2KV

Electrostatic Standard

±2KV

Weight

428g

EMI Safety

FCC Class B, CE

Standard Compliance

IEEE 802.3　　 Ethernet IEEE 802.3u　　Fast Ethernet IEEE 802.3ab　 Gigabit Ethernet IEEE 802.3az 　Energy-Efficient Ethernet IEEE 802.3x　　Flow Control

Operating Environment

0 ~ 50 degrees C

Storage Environment

-10 ~ 70 degrees C

Operating Humidity

5 ~ 95%, relative humidity, non-condensing

Storage Humidity

5 ~ 95%, relative humidity, non-condensing
