GSW-1601 — 16-Port 10/100/1000BASE-T Gigabit Ethernet Switch

Descripción

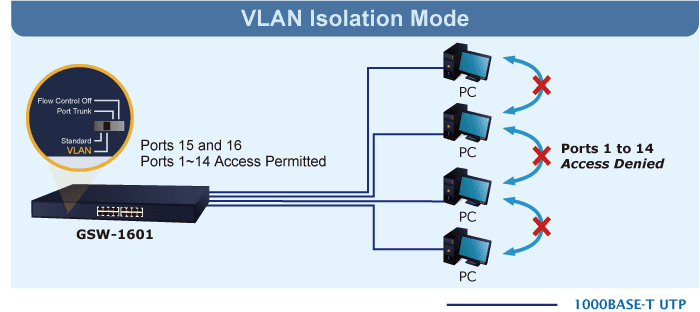

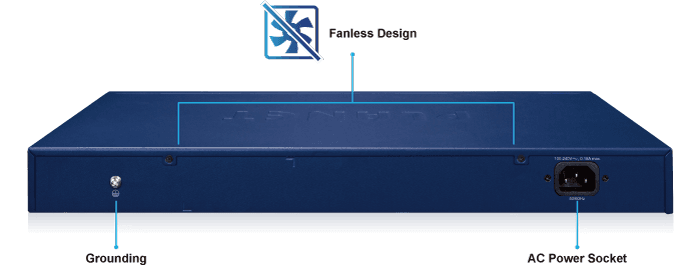

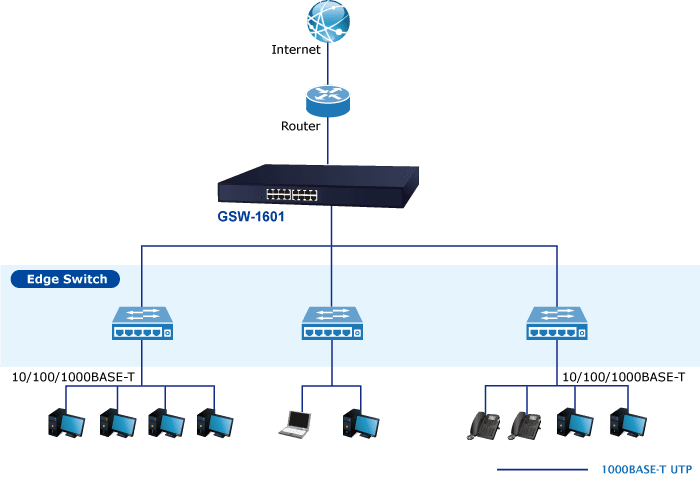

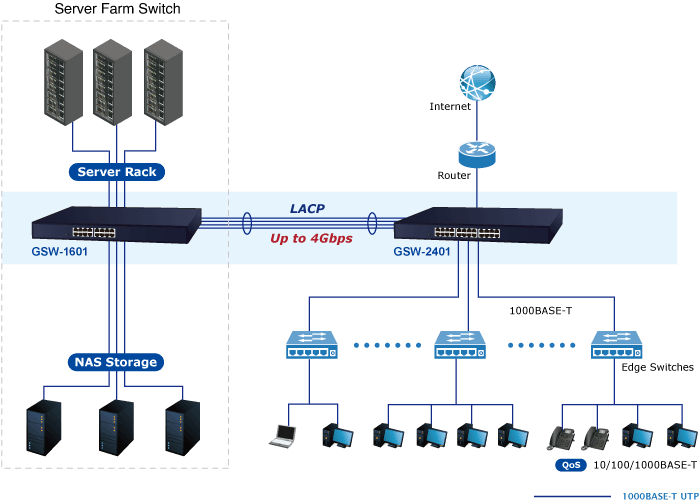

Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking PLANET GSW-1601 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers. Brand-new Hardware DIP Switch for Functional Operation Modes Selection The new hardware version of the GSW-1601 offers “ Standard ”, “ VLAN ”, “ Port Trunk ” and “ Flow Control Off ” modes. DIP Switch Mode Function Standard (default) This mode makes the Gigabit Ethernet Switch operate as a general switch and all ports operate at 10/100/1000Mbps auto-negotiation. VLAN This mode makes the GSW-1601 operate as a VLAN isolation switch and 1.Port 1 to port 14 will isolate respectively. 2.Port 1 to port 14 can only communicate with port 15 and port 16 (uplink port). Port Trunk This mode makes the GSW-1601 operate as a Trunk switch and port 15 to port 16 will act as Trunk ports. Flow Control Off This mode disables the Gigabit Ethernet Switch flow control function. The GSW-1601 operates as a normal Gigabit Ethernet Switch in the " Standard " operation mode. The " VLAN " operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other. In the " Port Trunk " operation mode, the GSW-1601 forces aggregated ports 15 and 16 to be a trunk group. High Performance The GSW-1601 provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-1601 enables routers and servers to directly connect to the Switch for fast and reliable data transfer. All the RJ45 copper interfaces of the GSW-1601 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Excellent Traffic Transmission The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 recognizes up to 8K different MAC addresses. The high data throughput and 32Gbps internal switching fabric make it ideal for most Gigabit environments, especially when network is upgraded to a Gigabit environment. Fanless Design With its good ventilation design, the GSW-1601 is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. The GSW-1601 is definitely the best choice for any working environment without affecting its performance. Applications Backbone Switch With up to 32 Gigabits per second of non-blocking switch fabric, the GSW-1601 can easily provide high bandwidth for both today’s and future requirements. Server Farm Switch Providing 16 Gigabit Ethernet ports, the GSW-1601 is ideal to be used as a server farm switch connecting to your servers and powerful desktops. Key Features Physical Port 16 10/100/1000BASE-T Gigabit Ethernet ports Supports auto MDI/MDI-X function Layer 2 Features Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards Features Store-and-Forward mode with wire-speed filtering and forwarding rates Integrated address look-up engine, supporting 8K absolute MAC addresses 9K jumbo packet support Power saving ability for Green networking IEEE 802.1Q VLAN packet transparency support IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation Hardware-based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation Automatic address learning and address aging Supports CSMA/CD protocol Hardware Features 100~240V AC, 0.15A, 50~60Hz universal power input DIP switch for standard/VLAN/Port Trunk/flow control off mode selection FCC, CE class A compliant

Especificaciones técnicas

Hardware Version

10

10/100/1000BASE-T MDI/MDIX Ports

16

Throughput (packet per second)

23.8Mpps

Switch Fabric

32Gbps

Weight

1.6kg

Power Consumption/Dissipation

7.6 watts/25 BTU

Power Requirements

100~240V AC, 0.15A, 50-60Hz

Dimensions (W x D x H)

440 x 180 x 44mm, 1U height

Switch Processing Scheme

Store-and-Forward

Address Table

8K entries

Jumbo Packet Size

9K

Flow Control

Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex

DIP Switch

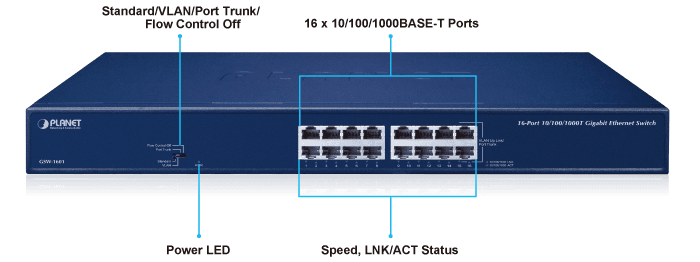

Operation mode selection Standard VLAN Port Trunk Flow control off

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full-Duplex Flow Control) IEEE 802.3az Energy Efficient Ethernet (EEE)

Operating

Operating Temperature: 0~50 degrees C Relative Humidity: 5% to 95% (non-condensing)

Storage

Temperature: -10~70 degrees C Relative Humidity: 5% to 95% (non-condensing)
