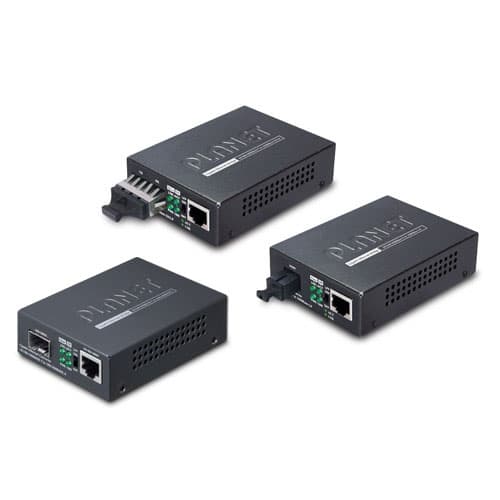

GT-80x Series — 10/100/1000BASE-T to 1000BASE-SX/LX Gigabit Media Converter

Descripción

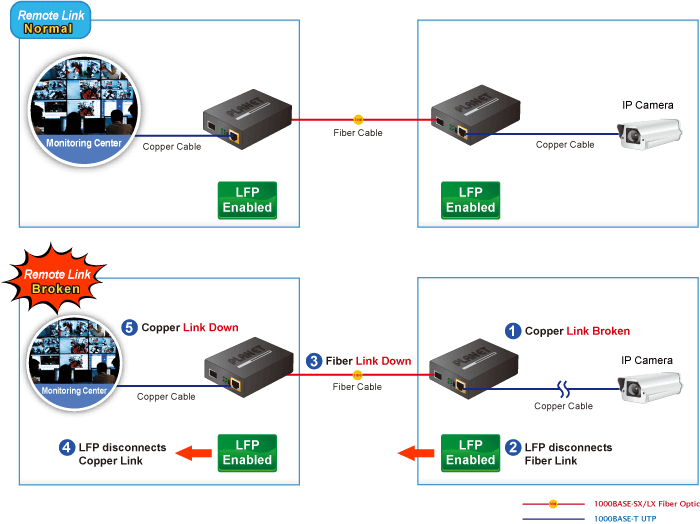

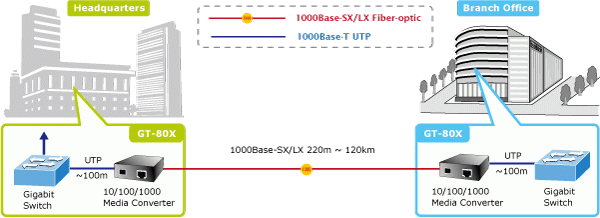

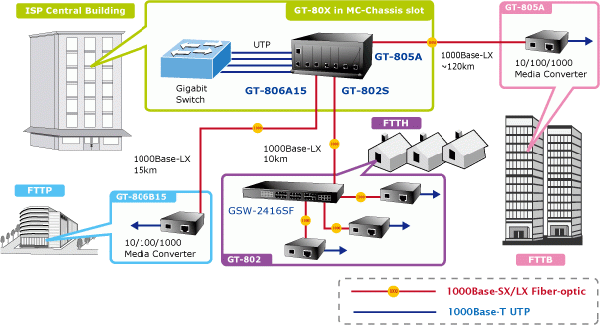

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fiber performance, PLANET GT-802 , GT-802S , GT-802S40 , GT-806S60 , GT-805A and GT-806A/B media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX networks. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively. Distance Extension with High Performance and Steady Network Communications PLANET GT-80x gigabit media converter series extends communication distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces for various fiber optic applications. The available fiber interfaces are shown below: Optic Mode Connector Type Distance Multi-mode Duplex LC/SC 220m /550m/2km Single mode Duplex LC/SC 20/40/60/80/120km Single mode WDM Simplex LC/SC 20/40/60/80km Enhanced Smart Management Features The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Passthrough function ( LFP ). The LFP function includes the Link Loss Carry Forward ( LLCF )/ Link Loss Return ( LLR ). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network. The DIP switch can disable or enable the LFP function. LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network. Easy Installation The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48). These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media conversion installation is quite quick and easy with its Plug and Play feature. The GT-80x also supports flow control and back pressure in half-duplex mode to eliminate packet loss. Applications Fiber-optic Networking for ISPs, Enterprises, and homes With high performance of data transmission and easy installation, the GT-80x can build the ISP network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTBs (Fiber to the Building) for small enterprise network environment. Key Features Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m (GT-802) 1000BASE-LX: 9/125μm single-mode cable provides a distance of 20km (GT-802S) 1000BASE-LX: 9/125μm single-mode cable provides a distance of 40km (GT-802S40) 1000BASE-LX: 9/125μm single-mode cable provides a distance of 60km (GT-802S60) 1000BASE-SX/LX: 50/125μm/62.5/125μm multi-mode fiber cable or 9/125μm single-mode cable provides a distance depending on SFP module (GT-805A) 1000BASE-LX WDM interface is for up to 20km (single-mode fiber 9μm/125μm) on GT-806A15/GT-806B15 1000BASE-LX WDM interface is for up to 40km (single-mode fiber 9μm/125μm) on GT-806A40/GT-806B40 1000BASE-LX WDM interface is for up to 60km (single-mode fiber 9μm/125μm) on GT-806A60/GT-806B60 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters Layer 2 key features IEEE 802.3x flow control for full duplex and back pressure for half duplex eliminate the loss of packets Supports auto MDI/MDI-X function Store-and-Forward mechanism Non-blocking full wire-speed forwarding rate Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX. Fiber media allows Multi-mode fiber using SC/LC/WDM connector Single-mode fiber using SC/LC/WDM connector Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48) Wall-mountable design LED indicators for easy network diagnostics Provides DIP switch for LFP function (Disable/Enable) setting 9K jumbo frame supported Choice of fiber connectors from SC, LC and WDM; multi-mode/single-mode fiber for 1000BASE SFP interface Compact in size, easy installation

Especificaciones técnicas

Hardware Version

6

Ports

1 x 10/100/1000BASE-T port: GT-802/GT-802S/GT-802S40/GT-802S60/GT-805A/GT-806A15/GT-806B15/GT-806A40/GT-806B40/ GT-806A60/GT-806B60 1 x 1000BASE-SX SC port: GT-802 1 x 1000BASE-LX SC port: GT-802S/GT-802S40/GT-802S60 1 x 100/1000BASE-X SFP port: GT-805A 1 x 1000BASE-BX SC port: GT-806A15/GT-806B15/GT-806A40/GT-806B40/GT-806A60/GT-806B60

Copper Interface

RJ45 port (auto-MDI/MDI-X) twisted pair

Optic Interface

GT-802/GT-802S/GT-802S40/GT-802S60: SC GT-805A: SFP GT-806A15/GT-806B15/GT-806A40/GT-806B40/GT-806A60/GT-806B60: WDM SC

Fiber Maximum Distance

GT-802: 220/550m GT-802S: 20km GT-802S40:40km GT-802S60:60km GT-805A: N/A GT-806A15: 20km GT-806B15: 20km GT-806A40: 40km GT-806B40: 40km GT-806A60: 60km GT-806B60: 60km

Optic Wavelength

GT-802: 850nm GT-802S: 1310nm GT-802S40:1310nm GT-802S60:1310nm GT-805A: N/A GT-806A15: TX:1310nm RX:1550nm GT-806B15: TX:1550nm RX:1310nm GT-806A40: TX:1310nm RX:1550nm GT-806B40: TX:1550nm RX:1310nm GT-806A60: TX:1310nm RX:1550nm GT-806B60: TX:1550nm RX:1310nm

Max. Optical Launch Power

GT-802: -4dBm GT-802S: -3dBm GT-802S40: -3dBm GT-802S60: -3dBm GT-805A: N/A GT-806A15: -3dBm GT-806B15: -3dBm GT-806A40: +5dBm GT-806B40: +4dBm GT-806A60: +5dBm GT-806B60: +4dBm

Min. Optical Launch Power

GT-802: -9.5dBm GT-802S: -9.5dBm GT-802S40: -9.5dBm GT-802S60: -9.5dBm GT-805A: N/A GT-806A15: -9dBm GT-806B15: -9dBm GT-806A40: 0dBm GT-806B40: -1dBm GT-806A60: 0dBm GT-806B60: -1dBm

Max. Input Power

GT-802: N/A GT-802S: -3 GT-802S40: -3 GT-802S60: -3 GT-805A: N/A GT-806A15: -3 GT-806B15: -3 GT-806A40: -2 GT-806B40: -2 GT-806A60: -2 GT-806B60: -2

Min. Input Power

GT-802: -18 GT-802S: -20 GT-802S40: -20 GT-802S60: -20 GT-805A: N/A GT-806A15: -21 GT-806B15: -21 GT-806A40: -25 GT-806B40: -25 GT-806A60: -25 GT-806B60: -25

Optical Link Budget

GT-802: 3dB(62.5/125μm) 4dB(50/125μm) GT-802S: 4.9dB GT-802S40: 4.9dB GT-802S60: 4.9dB GT-805A: N/A GT-806A15: 12dB GT-806B15: 12dB GT-806A40: 25dB GT-806B40: 24dB GT-806A60: 25dB GT-806B60: 24dB

LED Indicator

PWR TP LINK/ACT, 1000 LINK/ACT Fiber LINK/ACT

DIP Switch

LFP function (Disable / Enable) setting

Power Consumption

4.6 watts/15 BTU (maximum)

Power Input

DC 5V/2A

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

0.2kg

Installation

Wall mount and chassis installation DIN-rail installation with option DIN-rail Kit

Speed

Twisted-pair: 10/20Mbps for half/full duplex 100/200Mbps for half/full duplex 2000Mbps for full duplex Fiber-optic: 2000Mbps for full duplex 200Mbps for full duplex (GT-805A only)

Network Cables

Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/20/40/80/120km (vary on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (vary on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module)

Jumbo Packet Size

9K

Standards Compliance

IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX/100BASE-FX IEEE 802.3ab, 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control

Operating Environment

Operating temperature: 0 to 50 degrees C Humidity: 5~95% non-condensing

Storage Environment

Storage temperature: -10 to 70 degrees C Humidity: 5~95% non-condensing

Emissions

FCC Class A, CE Class A
