GT-915A — 10/100/1000BASE-T to 100/1000BASE-X SFP Managed Media Converter

Descripción

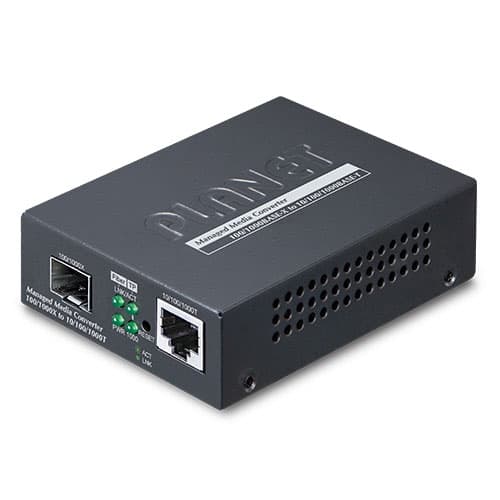

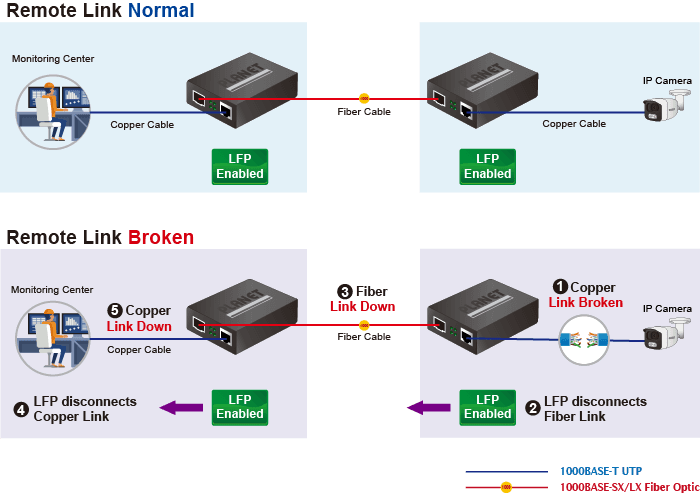

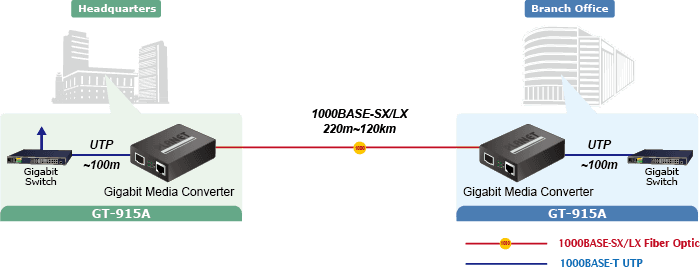

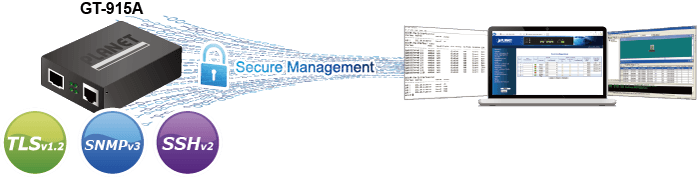

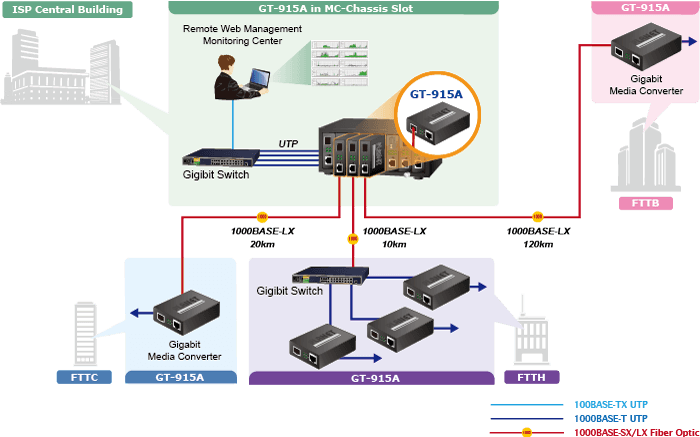

Remotely-managed Gigabit Converter PLANET GT-915A 10/100/1000BASE-T to 100/1000BASE-X Managed Media Converter is developed to meet the advanced demand of network applications but it comes with the easy Plug and Play feature. The GT-915A provides 10/100/1000Mbps Ethernet on RJ45 port and offers highly-stable Gigabit SFP fiber performance. It supports conversion between 10/100/1000BASE-T and 100/1000BASE-X Ethernet, which includes SFP slot with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively. Enhanced Smart Management Features The GT-915A provides auto MDI/MDI-X on its TP port and built-in Link Fault Pass-through function (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR) , both of which can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission. LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission. Therefore, the GT-915A greatly supports the administrators to manage the network efficiently. Network with Cybersecurity Helps Minimize Security Risks The GT-915A comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGT-900-Series protects the management and enhances the security of the mission-critical network without any extra deployment cost and effort. User-friendly and Centralized Web Management Interface For efficient management, the GT-915A is equipped with a remote Web/SNMP interface. With its built-in Web-based management, PLANET GT-915A acts as an easy-to-use, platform-independent management and configuration facility. The GT-915A also supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. OAM Management The TS-1000/802.3ah OAM (operation, administration, and maintenance) protocol supported enables remote OAM compliant device to be managed and monitored by the GT-915A. Remotely-managed Solution PLANET's Universal Network Management System ( UNI-NMS ) and CloudViewerPro App support IT staff to remotely manage all network devices and monitor the GT-915A operation statuses. Thus, they're designed for both the enterprises and industries where deployments of the GT-915A can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform. Enhanced Traffic Control The GT-915A can be programmed for advanced management functions such as IP address configuration, DHCP client function, port configuration, converter configuration, 802.1Q tag VLAN, Q-in-Q VLAN, ingress/egress bandwidth control, QoS and Layer protocol filter, and broadcast storm and bandwidth control to enhance bandwidth utilization. Intelligent SFP Diagnosis Mechanism The GT-915A supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Easy Chassis Installation The GT-915A Media Converter can be used as a stand-alone unit or as a slide-in module to PLANET Media Converter Chassis ( MC-700, MC-1500 or MC-1500R series ). The media chassis can assist in providing DC power to the GT-915A Media Converter to maintain the fiber-optic network at one centralized location. It can be DIN-rail or wall mounted for efficient use of cabinet space. Applications Fiber-optic Networking for ISPs, Enterprises and Homes With high-speed data transmission and easy installation, the GT-915A can build FTTH (Fiber to the Home) and FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises. The GT-915A enables network administrators to easily monitor operations via the Web management interface. Key Features Physical Port One 1G/100/10BASE-T RJ45 interface with auto MDI/MDI-X function One 1G/100BASE-X SFP interface Layer 2 Features Supports VLAN. IEEE 802.1Q tagged VLAN Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad). VLAN transparent Storm Control support Broadcast/Multicast/DLF (Destination Lookup Failure)/ARP/ICMP Store-and-Forward mechanism Non-blocking full wire-speed forwarding rate 16K jumbo frame size support Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex). Automatic address learning and address aging Supports port status/Ethernet statistics on both TP and fiber interfaces. Supports Link Fault Passthrough (LFP) and Link Layer Discovery Protocol (LLDP). OAM Compliant TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all converter ports Strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification IEEE 802.1p CoS IP DSCP IP Address Security IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE Management IPv4 and IPv6 dual stack management Management Interfaces Web HTTP management Telnet Command Line Interface SNMP v1, v2c monitoring SSHv2, TLSv1.2 and SNMP v3 secure access System Maintenance Firmware upload/download via HTTP Reset button for system reboot or reset to factory default Network Time Protocol (NTP) SNMP Management SNMP trap for interface link up and link down notification Four RMON groups (history, statistics, alarms and events) Network Diagnostic SFP-DDM (Digital Diagnostic Monitor) ICMPv6/ICMPv4 remote ping SMTP/Syslog remote alarm Local system Log PLANET Smart Discovery Utility for deploy management PLANET Remote Management PLANET NMS Controller and CloudViewerPro for deployment management Case and Installation External 5V DC, 2A power supply 0 to 50 degrees C operating temperature Supports 6000 VDC Ethernet ESD protection Wall mounting or DIN-rail installation Works with PLANET’s 10”/19” Media Converter Chassis(MC-700/MC-1500/MC-1500R/MC-1500R48) Plug and Play installation

Especificaciones técnicas

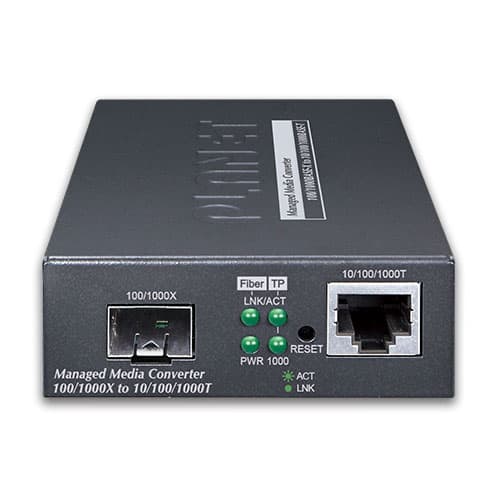

Copper Interface

1 x 10/100/1000BASE-T RJ45 port (Auto-MDI/MDI-X) twisted pair

Fiber Interface

1 x 100/1000BASE-X SFP Slot

Reset Button

< 10 sec.: System reboot > 10 sec.: Factory default

ESD Protection

6KV DC

Enclosure

Compact-sized metal case

Installation

Wall mountable Media convert Chassis installation Optional DIN-rail kit

Dimensions (W x D x H)

94 x 70.3 x 26.2mm

Weight

201g (device only)

Power Input

DC 5V, 2A

Power Consumption

3.4 watts/11.6 BTU (maximum)

LED Indicator

PWR, ( Green ) TP LINK/ACT, 1000 ( Green ) Fiber LINK/ACT ( Green )

Network Cables

10/100/1000BASE-T： 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100BASE-TX: 2-pair UTP Cat. 5, up to 100 m 1000BASE-T: 4-pair STP Cat 5 up to 100m 100/1000GBASE-SX/LX： 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. 9/125μm single-mode cable, extending long distance to 10/20/40/60/80/120km (vary on fiber transceiver or SFP module)

Switch Processing Scheme

Store and Forward

Fabric

4Gbps

Throughput (packet per second)

2.98Mpps@64bytes

Address Table

1K entries, automatic source address learning and aging

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Jumbo Frame

16K

Shared Buffer

512Kb

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable

Port Status

Display each port’s speed duplex mode, link status, flow control status,auto negotiation status

VLAN

IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Up to 16 VLAN groups, out of 4094 VLAN IDs Management VLAN

Bandwidth Control

Per port bandwidth control Ingress: 1~1000,000Kbps Egress: 1~1000,000Kbps

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching Traffic classification: 802.1p priority IP DSCP IP Address

Access Control list

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 32 ACL entries

Access Security

Remote management protocols control by SSH, Telnet, HTTP ans HTTPs

Basic Management Interfaces

Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewerPro app

Event Management

Remote syslog Local system log SNMP trap

SNMP MIBS

RFC-1213 MIB-II RFC-1213 EGP-MIB IF-MIB RFC-2863 Interface Group MIB RFC-3418 SNMPv2-MIB RFC-4022 TCP-MIB RFC-4113 UDP-MIB RFC-4292 IP-Forward-MIB RFC-4293 IP-MIB RFC-4293 ICMP-MIB RFC-4836 LLDP-MIB

Regulatory Compliance

FCC Class A, CE Class A

Standards Compliance

IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX/FX IEEE 802.3ab, 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x full-duplex flow control IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1ab LLDP IEEE 802.3ah OAM RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP

Operating

Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
