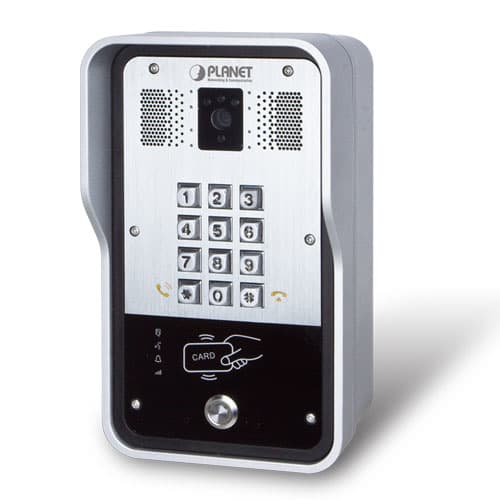

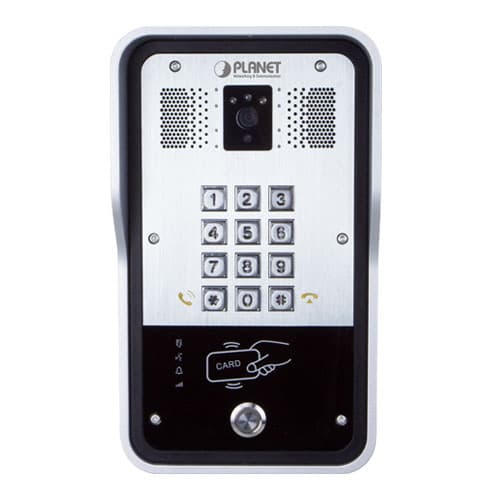

HDP-5260PT — 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID and PoE

Descripción

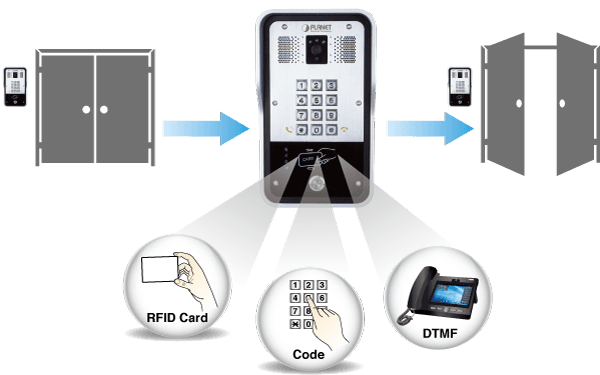

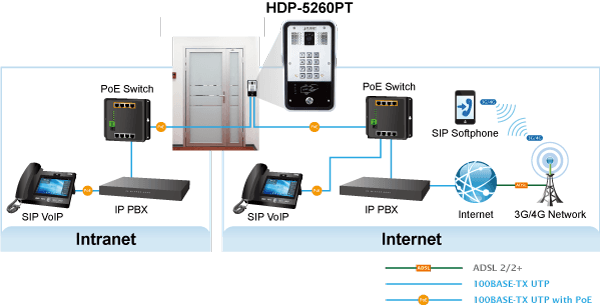

Security is Ensured with PLANET Video Security is Ensured with PLANET Video Door Phone PLANET HDP-5260PT is a SIP Door Phone with PoE feature. It supports H.264/H.263 compression format and delivers excellent picture quality in 720p HD (high definition) resolutions at 10~30 frames per second (fps). The door phone has night vision that can capture any unusual activity in low light. It also supports HD voice and G.722 codec that relax bandwidth limitation and provide clear communications. It provides the flexibility and control required for high-quality property complex visitor management, property protection, intercom, and message service. Keyless Control and Convenience PLANET HDP-5260PT advancements in residential door lock security have been enhanced with secure authentication technology which supports many ways of opening door without a key. The door not only can be open via an RFID card but also a password if it is an electronic door lock. Thus, you can enter your home without having to use a key. SIP 2.0 Standard Compliance The HDP-5260PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The IP phone is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multimedia exchange services. A Door Guard for Extreme Conditions The HDP-5260PT comes with a robust door intercom for apartment complexes to ensure maximum resilience and security. Its camera with night vision and resilience to dust, water (IP65) and vandalism (IK10) is watchful, making sure the area remains safe. AEC (Acoustic Echo Cancellation) Acoustic Echo Cancellation (AEC) technology is adopted in PLANET’s HDP-5260PT Door Phone and HTS-1000P Touch Screen Control Pad to enable users to minimize the voice/sound signal distortion shown in the diagram below, thus guaranteeing the best-in-class sound quality. Finding the Door Phone via Planet Search Tool PLANET Search Tool is a simple, freely-available application for locating intercoms from the IP family in the network. After searching the network, the application shows the device name, firmware version and IP address of all intercoms found on a chart. This simplifies the administration and installation of intercom systems. Simply run the easy-to-use software to get immediate results. Applications The specially-designed unit also features a 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID and PoE that enables users to take care of their homes, especially during their absence. This reliable and quality product has become a necessity of our life as our security is ensured. The HDP-5260PT supports 802.3af PoE interface without worrying the electric source. It supports two-way voice communication and remote door release function. Additionally, the HDP-5260PT has an excellent interoperability using SIP standard VoIP signaling feature by interworking with IP PBX services and video phone. Key Features Benefits Provides Anti-tamper and Advanced Protection See/Talk visitors with High Definition Video and Voice Unlock the door with an RFID , Remote DTMF or Local Password Control Communication and Security over Internet Hardware HD camera with infrared light and night vision Three IR LEDs provide clear image in low light condition IP65- and IK10-rated designed for rigorous environment Wall-mount design for outdoor unit Tamperproof protection - Alarm will sound when cover is removed from the housing Supports several ways of opening door Industrial design with -40 to 70 degrees C operating temperature Video and Audio Maximum resolution 1280 x 720 @ 30 fps Acoustic Echo Cancellation (AEC) is featured on speaker path Adjustable brightness, contrast and volume settings Full-duplex noise reduction and voice recognition are possible in distance of up to 5 meters HD voice using wideband G.722 coding produces clearer sound Barge-in and calls can be switched automatically Network and Configuration Standard IETF SIP protocol Compatible with the Asterisk IP PBX systems or various platforms Compliant with IEEE 802.3af PoE interface for flexible deployment VPN, VLAN, QoS, 802.1x, HTTPS, TR069 and auto-provisioning Easy Installation and Management Hands-free intercommunication Have peace of mind from being able to see, hear and speak to your visitors before opening the door Conveniently unlock the door for visitors without having to go to it

Especificaciones técnicas

Image Device

1280 x 760, CMOS

Monitoring Range

5 meters

LED

White LED x 3, effective up to 5 meters

Video Codec

H.264/H.263

Image Codec

JPEG/PNG/BMP/GIF

Video Format

MP4/3GP/FLV

Frame Rate

10~30fps

Audio Streaming

Two-way audio

Narrowband Codec

G.711a/u, G.723.1, G.726-32K, G.729AB, iLBC, AMR

Microphone

Built-in microphone and speaker input

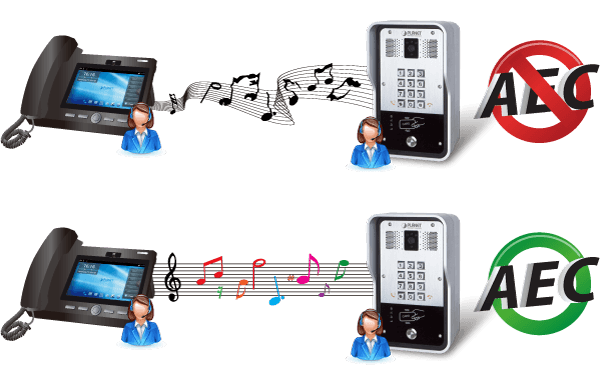

Audio Output

Acoustic Echo Cancellation

DTMF

In-band, Out-of-Band (RFC2833), SIP info

Omnidirectional Pickup

Pickup distance of 5m

Network Standard

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T

IP Configuration

Static/DHCP/PPPoE

Network Access Control

802.1x

VLAN

802.1p

QoS

DSCP

Protocol

IETF SIP 2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN SNTP FTP/TFTP HTTP/HTTPS TR069

Functions

Intercom, RFID card, call log, open door log, programmable DSS key, network time synchronization, speed dial, auto-answering, hotline * Supports 5000 RFID/IC cards; RFID/IC Card: ID (EM4100,125KHz) & IC (MIFARE ONE,13.56MHz)

Keypad

13 keys, including 12 standard phone digits keys 1 hands-free key or DSS keys (speed dial)

Power Requirements

802.3af, Class 3

Weight

1.52kg

Dimensions (W x D x H)

223 x 130 x 74 mm

Emission

CE, FCC

Connectors

10/100Mbps Ethernet, RJ45 Call Button Relay Output Port (control door lock or alarm) DI Port (for door sensor, PIR, emergency button)

Installation

Wall-mount type

External Power Supply

12V±15%/1A DC

Storage Temperature

-40~70°C

Operating Humidity

10~90%
