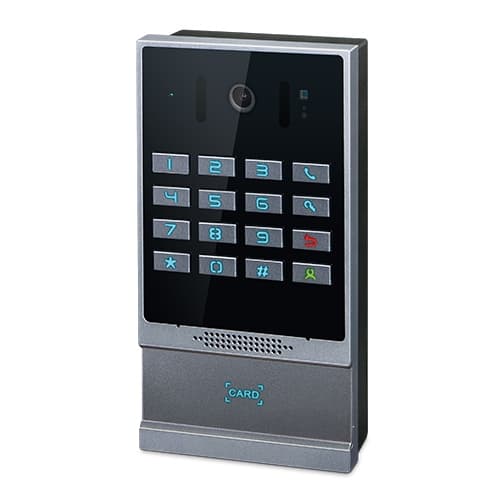

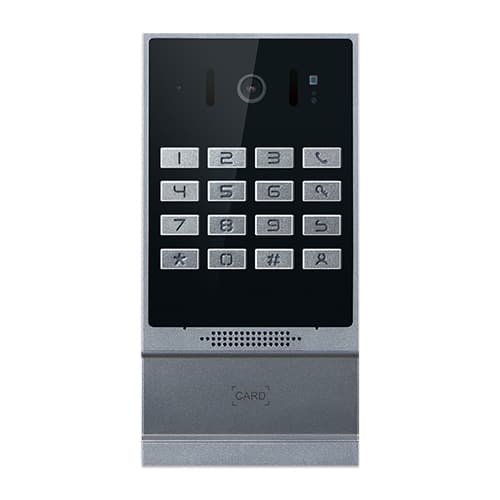

HDP-5261PT — 1080p SIP Multi-unit Vandalproof Door Phone with RFID and PoE

Descripción

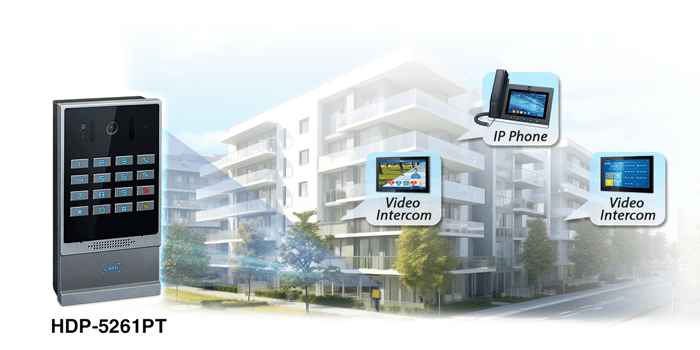

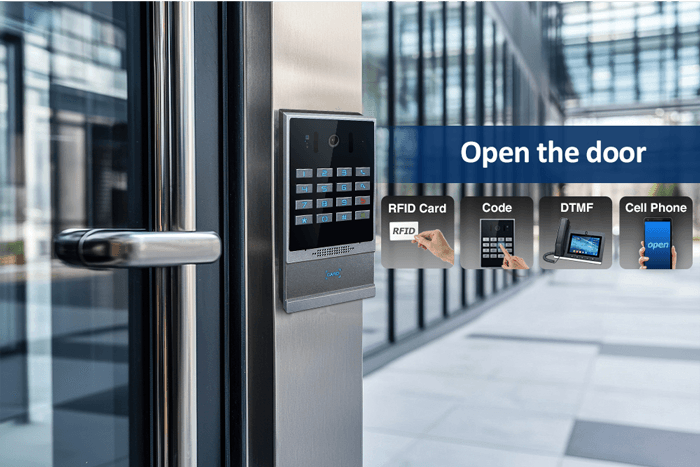

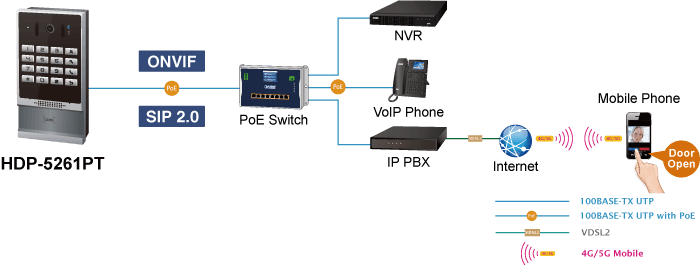

Security is Ensured with PLANET Video Door Phone PLANET HDP-5261PT Vandalproof Video Door Phone is designed for offices , residential buildings , and other facilities that require secure visitor access control . With its high-quality audio and 2MP HD video camera , the identification and voice of the visitor can be clearly seen and heard once the visitor presses the call button of the phone. The HDP-1261PT works like an intercom. As its name implies, it is vandalproof and has a video feature. It supports the standard IETF SIP and ONVIF protocols for easy operation and interfaces with the VoIP and IP surveillance world in an instant it connects you with. It delivers excellent picture quality in 1080p HD resolutions with a viewing angle of 120° (H), 60° (V). The door phone has infrared night vision that can capture any unusual activity in low light. It also supports HD voice and G.722 codec that relax bandwidth limitation and provide clear communications. With a backlit numeric keypad and built-in RFID system , users enjoy keyless and flexible access control. The door can be remotely unlocked via mobile phone , SIP video intercom , or a local IC/ID card , offering convenience and enhanced security. Easy Communication via Intercom The HDP-5261PT provides full-duplex two-way communication , letting you both see and talk to visitors. It includes 3 short-in detection and 2 short-out control ports for connection with external devices like electric locks or sensors . When the visitors press the call button at your door, you can press the unlock button on your mobile phone or SIP Indoor Intercom to open the door for them. A Door Guard for Extreme Conditions Engineered for outdoor deployment , the HDP-5261PT is built to endure harsh environments. It is IP66-rated for water and dust resistance, and IK07-rated for vandal protection. It operates in extreme temperatures from -40°C to 70°C , ensuring uninterrupted performance all year round. Acoustic Echo Cancellation To deliver exceptional sound quality, Acoustic Echo Cancellation (AEC) is integrated into the HDP-5261PT. This reduces echo and background noise , ensuring clear two-way communication during calls. Standard Protocol Compliance The HDP-5261PT supports SIP 2.0 (RFC 3261) and ONVIF protocols , making it interoperable with IP PBX systems and video management platforms . It integrates easily with VoIP services and IP surveillance infrastructure, providing flexible multimedia communication solutions. Applications Equipped with 1080p video, RFID authentication, and PoE support, the HDP-5261PT enhances building security and offers convenient access control . It’s ideal for residential security, office complexes, and high-traffic buildings . Compliant with IEEE 802.3at PoE, it allows for flexible deployment and remote operation, ensuring peace of mind even when you're away. Key Features Benefits Unlock the door via RFID or remote DTMF Viewing angle of 120° (H), and 60° (V) with infrared night vision HD voice with G.722 wideband codec Encrypted communication via TLS & SRTP Access control via built-in 3 short-in and 2 short-out ports IP66- and IK07-rated for rugged environments Compatible with Asterisk IP PBX, SIP and ONVIF platforms Seamless integration with P2P and surveillance applications Intercom Functions 2 SIP identities/accounts for Intercom Intelligent DSS Key for one-touch speed dial, hotline Full-duplex handsfree and auto answer Action URL/Active URI and dynamic multicast function Hardware HD voice speech quality with built-in 2.5W speaker and Acoustic Echo Canceller (AEC) High intensity IR LEDs for picture lighting during dark hours with internal light sensor Built-in 3 short-in detect port and 2 short-out control port Industrial design made to withstand -40 to 70 degrees C operating temperature Wall-mount design for outdoor unit Video and Audio Maximum resolution 1920 x 1080 @ 30 fps Acoustic Echo Cancellation (AEC) is featured on speaker path Through button or web page volume adjustment HD voice using wideband G.722 coding produces clearer sound Network and Configuration Standard IETF SIP protocol for VoIP services Compatible with the ONVIF for video surveillance Compliant with IEEE 802.3at PoE interface for flexible deployment HTTPS, TR069 and auto-provisioning PLANET DDNS and Easy DDNS PLANET Smart Discovery Utility for deployment management Easy Installation and Management Hands-free intercommunication Conveniently unlock the door for visitors without having to go to it Have peace of mind from being able to see, hear and speak to your visitors before opening the door

Especificaciones técnicas

Door Access

Dual SIP line, Dual SIP servers DTMF tones RFID / IC card: ID (EM4100,125KHz) & IC (MIFARE ONE,13.56MHz) RFID cards (support 10,000) Door open records (support 200,000)

Door Phone features

Full-duplex Default auto answer Action URL/Active URI remote control Speed Dial

Image Device

2M pixels color CMOS camera

Max. Image Transfer Rate

1080p @ 30fps (Main stream), VGA @ 30fps (Sub stream)

Video Codec

H.264

Resolution

Main stream 1080P@30fps Sub stream VGA@30fps

Viewing Angle

120° (H), 60° (V) , 141° (D)

Minimum illumination

0.1Lux, support for infrared illumination

IR Illuminations

IR LED x 4, effective up to 5 meters *The IR distance is based on the environment.

Audio Streaming

HD voice Two-way audio stream

Microphone

Built-in microphone and 2.5W speaker

Narrowband Codec

G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K Wideband Codec: G.722, Opus

DTMF

In-band, Out-of-Band (RFC2833/ SIP INFO)

Audio Output

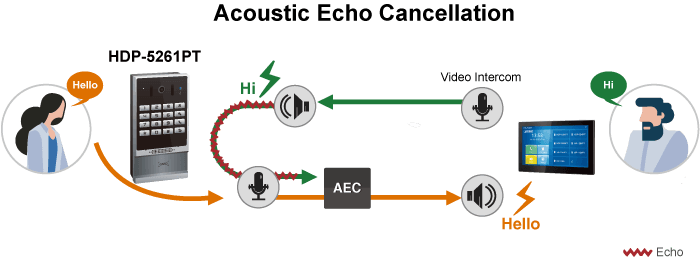

Acoustic Echo Cancellation (AEC) audio output

Protocols

SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP ONVIF STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP TR-069

Security

Web Filter, Transport Layer Security (TLS) Secure Real-time Transport Protocol (SRTP) NAT traversal: STUN mode HTTP/HTTPS web server, HTTPS certificate manager Firewall

Network Interface

1 x 10/100BASE-TX RJ45 Ethernet interface, auto-MDIX

IP Configuration

Static/DHCP/PPPoE

Deployment/Maintenance

Auto provisioning: FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 VLAN Web Management Web-based packet dump Configuration backup/restore Firmware Upgrade via Web Syslog PLANET DDNS and Easy DDNS PLANET Smart Discovery Utility

Keypad

1 DSS (speed dial) button with backlight

Power Requirements

Power over Ethernet (IEEE 802.3at), class 3 or DC12V

Net Weight

493g

Dimensions (W x D x H)

88 x 36.15 x 177.4 mm

Emission

CE, FCC

Connectors

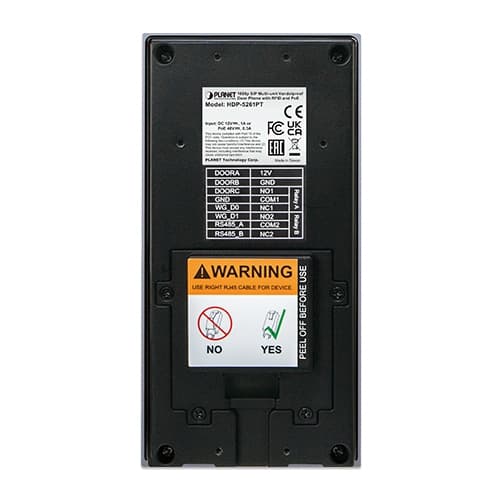

1 10/100BASE-TX RJ45 Ethernet Short-in detect port x 3 Port: Terminal socket Short-out control port x2 (built-in relay) Relay: Max. DC30V / 2A, AC125V / 0.5A Port: Terminal socket Tamper switch x1 TF card slot x1: connect TF card, up to 128GB RF Card Reader:125KHz&13.56MHz RS485: Support (Reserved for future use) Wiegand Port: In/Out configurable, Wiegand in by default Line-out port x1: for induction loop antenna loop DC port x1: DC power input DC power input: DC12V/1A Port: Terminal socket

Installation

Wall-mount type

External Power Supply

DC 12V, 1A

Operating Temperature

-40~70°C

Storage Temperature

-40~70°C

Operating Humidity

10~95% (non-condensing)
