HLB-100-EU868 — 802.11ah Halow Wi-Fi Bridge/Router(EU868 Sub-1G)

Descripción

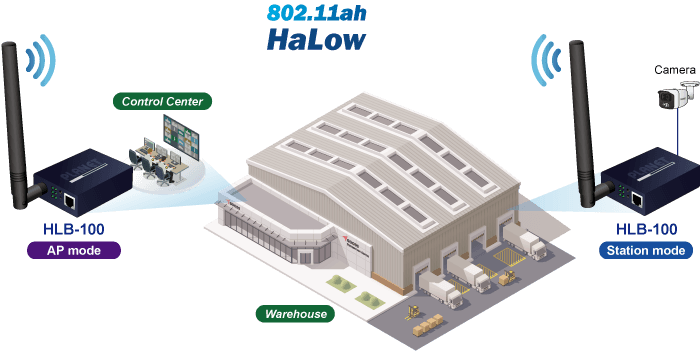

Outstanding Features of PLANET HaLow AP PLANET HaLow Wireless Access Point combines advanced technology with exceptional versatility, making it the ideal choice for demanding network applications. Its key features include: Flexible Deployment Options : Supports wireless AP , Station , and Gateway modes to meet various network demands. Extreme Environmental Adaptability : Operates reliably in temperatures ranging from -20°C to 60°C, ideal for industrial applications. Advanced Data Encryption : Equipped with WPA3 technology to ensure secure data transmission, suitable for enterprise and public networks. Powerful Centralized Management : Seamlessly integrates with PLANET NMS-AIoT platform, enabling centralized management for large-scale IoT deployments. Reliable IoT Solution : Delivers high stability and scalability for scenarios like smart cities and industrial automation. Benefits of HaLow Technology With its optimized transmission characteristics and stable connectivity, PLANET HaLow Wireless AP is well-suited for distributed IoT and outdoor deployment scenarios. Whether for smart city infrastructure, industrial automation, or remote monitoring applications, it provides reliable wireless communication even in challenging environments. Its WPA3 encryption further enhances security, protecting data transmissions from potential breaches and ensuring peace of mind for users. Long Range, Low Power Solution for IoT Connectivity PLANET HaLow Wireless AP redefines IoT connectivity with its sub-1 GHz wireless operation and energy-efficient design. Operating on low power, it supports extended device operation time, making it suitable for IoT applications in smart cities, agriculture, and industrial automation. With support for AP, Station, and Gateway modes, the HaLow AP offers versatile deployment options, while its advanced WPA3 encryption safeguards data transmission across networks. Designed to withstand demanding environments and equipped with wall-mount installation, it delivers reliable, secure, and flexible connectivity for a wide range of IoT use cases. Robust and Versatile Design PLANET HaLow Wireless AP supports wall-mount installation, making it suitable for indoor use. The device’s ability to adapt to diverse conditions and environments is further enhanced by its energy-efficient and low-power design, delivering long-lasting performance. Enhanced Security with WPA3 By adopting the advanced WPA3 encryption protocol, PLANET HaLow Wireless AP ensures that data remains secure and protected from unauthorized access. This makes it a perfect fit for enterprises and public deployments where security is paramount. Seamless Integration with NMS-AIoT for Enhanced IoT Management PLANET HaLow Wireless AP is fully compatible with PLANET NMS-AIoT platform, enabling centralized management of IoT networks. By integrating with NMS-AIoT, users can monitor and manage a large number of sensing devices across distributed deployment environments through an intuitive dashboard and map-based interface. The HaLow AP's stable wireless characteristics and energy-efficient design complement NMS-AIoT's AI edge computing, ESG energy management, and cybersecurity features, providing a scalable solution for enterprises seeking to optimize IoT operations with sustainability and security in mind. Applications Seamless Integration of HaLow AP with NMS-AIoT for Efficient IoT Management The HaLow AP (HLB-100-EU868) combined with the NMS-AIoT management platform offers a stable and regulation-compliant IoT deployment solution. Designed for distributed sub-1 GHz wireless connectivity, the HLB-100-EU868 connects various IoT devices to centralize data monitoring and management. By linking the HaLow AP to the NMS-AIoT platform through its Ethernet port, businesses can streamline real-time device status updates, alerts, and analytics within one comprehensive interface. This setup is well-suited for smart buildings, industrial automation, and energy management applications, providing consistent and efficient control over IoT deployments. Reliable Home Surveillance with Long-Range HaLow Connectivity The HaLow AP (HLB-100-US915) provides a practical solution for extending your home surveillance system’s coverage. With its long-range wireless capability of up to 1km, the HLB-100-US915 ensures stable connectivity to security cameras placed across large areas, such as backyards, garages, and driveways. By connecting IP cameras to the HLB-100-US915's Ethernet port, homeowners can enable real-time video monitoring and recording. It delivers reliable performance, ensuring continuous operation for enhanced safety and peace of mind. Key Features Hardware Supports IEEE 802.11ah wireless technology. 1 x 10/100 RJ45 port 1 x RS485 serial interface 1 x pair button 1 x reset Button 3 x LED indicators for the Strength Signal LED indicators for Station, Power and LNK/ACT statuses Multiple Operation Modes and Wireless Features Multiple operation modes: AP, gateway and station Low power wide area network (LPWAN) connectivity Supports WPA3 personal encryption. Router Features Bandwidth control per IP address to increase network stability Supports NAT Routing, IP Routing or Bridge mode. Supports routing / dynamic routing (RIPv1/v2) and VLAN tagging (802.1Q). Supports DHCPv6 and DHCP client/server. Easy Deployment and Management Supports management by using PLANET NMSViewerPro and CloudViewerPro app. Easy discovery by PLANET Smart Discovery Self-healing mechanism through system auto reboot setting System status monitoring through remote syslog server

Especificaciones técnicas

Interfaces

1 10/100BASE-TX RJ45 port including 1 LAN/WAN port Supports WAN mode and LAN mode, configurable via software.

Antenna Connector

1 × 50 Ω SMA Connector (Center Pin: SMA Female)

Serial Interface

1 x RS485 serial interface

Button

1 x reset button Press over 5 seconds to reset the device to factory default 1 x pair button

Dimensions (W x D x H)

94 x 70.3 x 26.2 mm

Weight

223g

Power Requirements

5V 2A

Power Consumption

2W

Installation

Wall-mount

LED Indicators

Power, station, strength signal

Standard

IEEE 802.11ah (Wi-Fi HaLow) Compliance with regional regulatory requirements (FCC, ETSI)

Band Mode

Sub-1 GHz frequency operation

Frequency Range

868 MHz: European Union

Operating Channels (EU)

Sub1G: 1MHz 1, 3, 5, 7, 9

Max. Transmit Power (dBm)

Bandwidth MCS 0 Typ. (dBm) MCS 7 Typ. (dBm) MCS 0 Range (dBm) MCS 7 Range (dBm) 1MHz 21 17 20~22 16~18

Bandwidth

MCS 0 Typ. (dBm) | MCS 7 Typ. (dBm) | MCS 0 Range (dBm) | MCS 7 Range (dBm)

1MHz

21 | 17 | 20~22 | 16~18

Receive Sensitivity

Bandwidth MCS 0 (dBm) MCS 1 (dBm) MCS 2 (dBm) MCS 3 dBm) MCS 4 (dBm) MCS 5 (dBm) MCS 6 (dBm) MCS 7 (dBm) 1MHz -105 -102 -99 -96 -93 -89 -88 -87

Bandwidth

MCS 0 (dBm) | MCS 1 (dBm) | MCS 2 (dBm) | MCS 3 dBm) | MCS 4 (dBm) | MCS 5 (dBm) | MCS 6 (dBm) | MCS 7 (dBm)

1MHz

-105 | -102 | -99 | -96 | -93 | -89 | -88 | -87

LAN

Static IP / Dynamic IP

Wireless Mode

Gateway Access Point Station

Channel Width

1MHz

Encryption Security

WPA3 Personal

Wireless Security

Enable/Disable SSID Broadcast

Status Monitoring

Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server

Basic Management Interfaces

Web browser SNMP v1/v2c PLANET Smart Discovery utility and NMS controller supported

Secure Management Interfaces

TLSv1.2, SNMP v3

System Log

System Event Log

Others

Setup wizard Dashboard System status/service Statistics Connection status Auto reboot/Diagnostics Remote management through PLANET DDNS/Easy DDNS Configuration backup and restore Supports IGMP Proxy Supports UPnP Diagnostics

Central Management

PLANET NMSViewerPro, PLANET CloudNMS

Temperature

Operating: -20~ 60 degrees C Storage: -40 ~ 70 degrees C

Humidity

Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 90% (non-condensing)

Regulatory

CE, ETSI, RoHS

Note

Wireless operation, including duty cycle behavior, is subject to applicable regional regulatory requirements.
