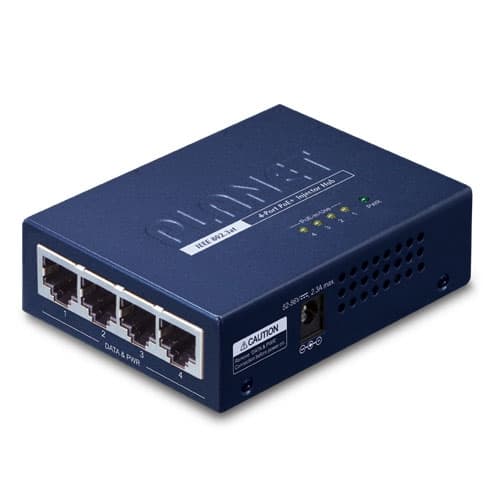

HPOE-460 — 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub

Descripción

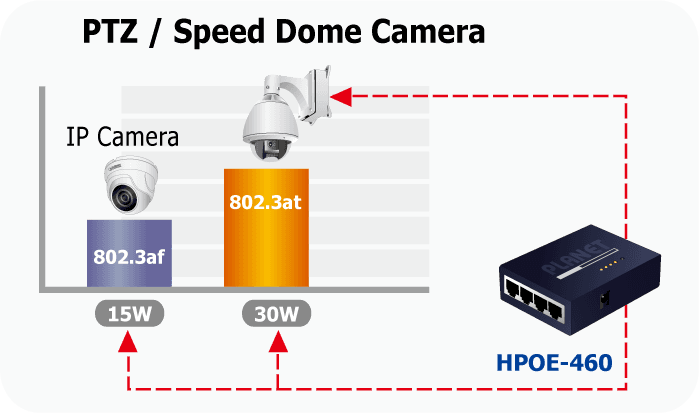

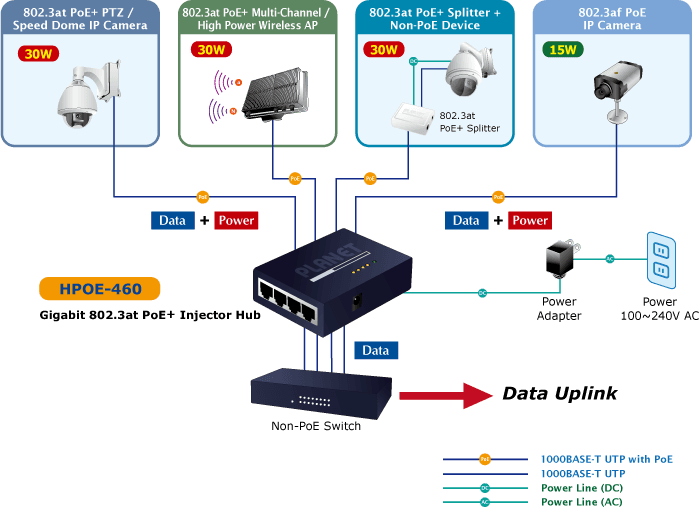

802.3af/at Power PoE for SOHO PoE Applications PLANET HPOE-460 is a 4-port Gigabit IEEE 802.3at PoE+ Injector Hub, featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that deliver up to 30-watt power output and data per port over one Cat 5e/6 Ethernet cable. It is designed specifically to satisfy the demand of higher power consuming network PDs (powered devices) such as PTZ (pan, tilt, zoom)/speed dome network cameras, multi-channel (802.11ac/b/g/n/a) wireless LAN access points and other network devices by providing the double amount of PoE power, more than the conventional 802.3af PoE PSE. The IEEE 802.3at Power over Ethernet Plus standard is defined to provide each PoE device with a maximum of up to 30 watts of input power, doubling the amount of PoE power of the conventional 802.3af PoE PSE. The IEEE 802.3at PoE+ standard is an ideal solution to meeting the high power requirements directly via the RJ45 port. Quick and Easy PoE Network Deployment With 4 10/100/1000BASE-T Gigabit Ethernet ports, the HPOE-460 supports full DC 52V~56V power for any remote 802.3af/ 802.3at powered device (PD) without affecting data transmission performance. Supporting PoE power budget of 120 watts , the HPOE-460 provides sufficient 15.4/30.8-watt PoE power to up to 4 remote PD devices. It offers a cost-effective and quick solution to upgrading network system to IEEE 802.3af/IEEE 802.3at Power over Ethernet system without replacing the existing Ethernet switch. There are 8 RJ45 STP ports on the front panel of the HPOE-460, of which half of the ports on the right panel function as " Data input " and the other half on the left panel function as "PoE (Data and Power) output" . The 4 "PoE (Data and Power) output” ports are also the power injectors that transmit DC voltage to the Cat 5/5e/6 cable and transfer data and power simultaneously between the injectors and splitters. For the places hard to find the power inlet, the HPOE-460 and IEEE 802.3at Power over Ethernet Splitter (POE-162S/IPOE-162S) provide the easiest way to power your Ethernet devices such as IP cameras on the ceiling and wireless access point installed on the top of the building. Applications SOHO Gigabit PoE Network Deployment The HPOE-460 provides the easiest way to power your Ethernet devices such as PTZ and speed dome IP cameras on the ceiling, the wireless access point installed on the roof of the building and the PoE IP phones in the office. With 4 10/100/1000BASE-T Gigabit Ethernet ports, the HPOE-460 supports full DC 52V~56V power for any remote 802.3af/ 802.3at PD. Furthermore, the HPOE-460 can be directly connected to any third-party IEEE 802.3af/802.3at compliant devices installed 100 meters away and allow the administrator to centrally control the power system of the network devices. Key Features 8-port RJ45 4-port 10/100/1000Mbps “ Data Input ” 4-port 10/100/1000Mbps “ Data + Power Output ” Power over Ethernet IEEE 802.3at and IEEE 802.3af Power over Ethernet mid-span PSE Up to 4 IEEE 802.3at /802.3af devices powered DC 52V~56V power over RJ45 Ethernet cable to devices with Ethernet port PoE power up to 30.8 watts (802.3at PoE+)/15.4 watts (802.3af PoE) for each PoE port Remote power feeding up to 100m Full power support for each PoE port Automatically detects PD Circuit protection prevents power interference between ports Hardware Desktop palm size, wall mountable Power input LED FCC Part 15 Class B, CE 100~240V AC, 50/60Hz, 2A universal power supply adapter with DC 52V~56Vpower output Plug and Play Standard Compliance IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus

Especificaciones técnicas

Interface

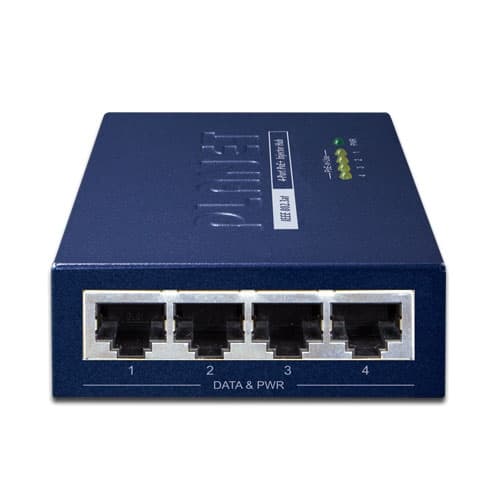

“Data” Input Ports：4 x RJ45 “Data + Power” Output Ports：4 x RJ45

Data Rate

10/100/1000Mbps

LED

System: Power x 1 ( Green ) Per PoE Port: PoE ready/in-use x 4 ( Amber )

Dimensions (W x H x D)

94 x 70.3 x 26.2mm

Weight

208g

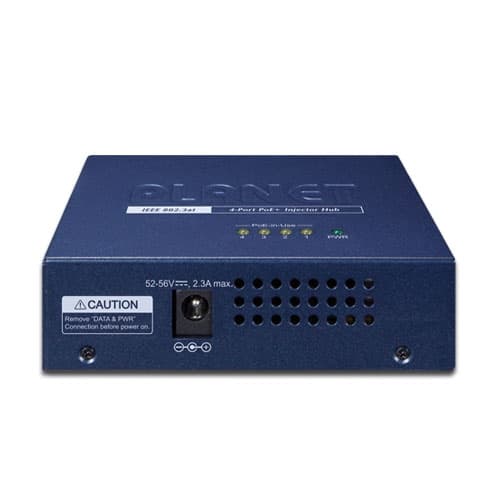

Power Requirements

DC 52V~56V

Network Cable

10BASE-T: 4-pair UTP Cat. 5, up to 100m (328ft) 100 BASE-TX: 4-pair UTP Cat. 5, up to 100m (328ft) 1000 BASE-T: 4-pair UTP Cat. 5e/6, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m or 328ft)

PoE Power Supply Type

Mid-span

PoE Power Output

IEEE 802.3af per port DC 52V~56V 15.4 watts IEEE 802.3at per port DC 52V~56V 30.8 watts

Power Pin Assignment

4/5(+), 7/8(-)

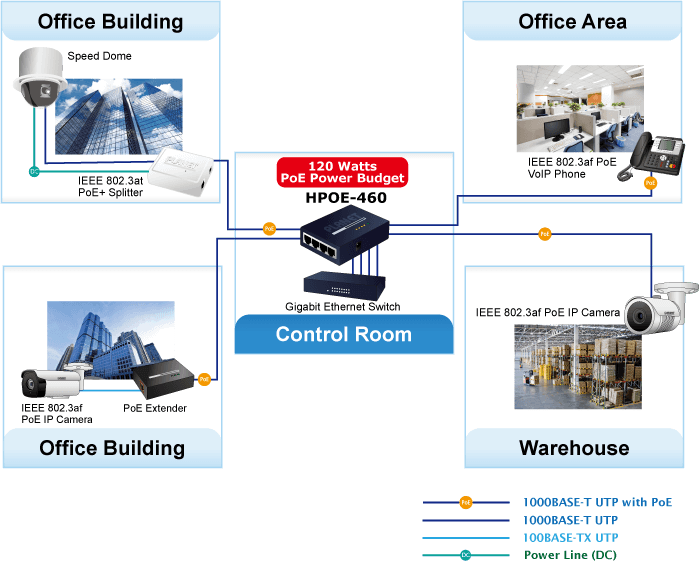

PoE Power Budget

120 watts

Standards Compliance

IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000 BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus

Regulatory Compliance

FCC Part 15 Class B, CE

Operating Temperature

0 ~ 50 degrees C

Storage Temperature

-10 ~ 70 degrees C

Humidity

5 ~ 95% (non-condensing)
