HZS-200 — Z-Wave Ceiling-mount Smoke Detector

Descripción

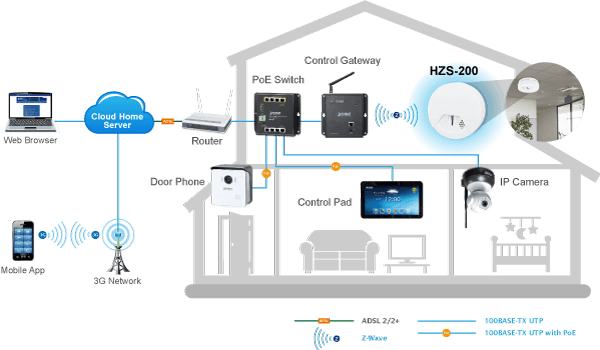

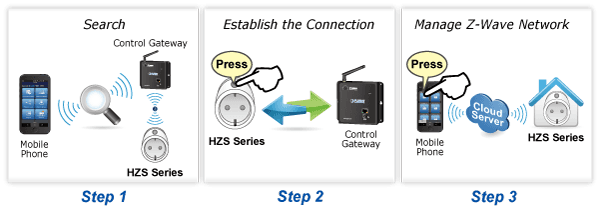

Home Automation and Smart Home Control The HZS (Z-Wave Sensing Device) series of PLANET Home Automation product family, based on Z-Wave technology, provides the advanced security system that protects your home and family 24/7. Easy operation and flexible configuration are the attractive features of our system; the simple one-touch button lets you program your regular settings according to your preference and operation mode. Worked with PLANET HAC-1000 Z-Wave Home Automation Control Gateway, you get the all-round and reliable home security services that we offer. Our full range of product lines ensure that you get all the devices you need for your home security system. Vocal Smoke Alarm Horn PLANET HZS-200 is a Photoelectric Smoke Detector whose alarm of 85dB will be triggered upon detection of smoke coming from a fire or other burning sources. The alarm signal is then picked up by PLANET HAC-1000 Control Gateway where you will be remotely alerted of the situation via mobile devices, such as smart phone and tablet. The quickness of the alert can certainly stop the situation from becoming worse, thereby protecting your home from the would-be tragedy. Getting Started is as Easy as 1-2-3 Via the Cloud Home App (including Home Automation Controller Pad and Control Gateway): Press Inclusion/Exclusion to include/exclude Z-Wave device. On the Z-Wave device: Press the Pair button to establish a connection with the control gateway. Users can enjoy and manage Z-Wave network right away. Easy Installation and Convenient Status Indicator The HZS-200 can be easily installed by ceiling mounted or wall mounted. It also provides various LED light signals for you to conveniently recognize its different statuses directly, such as standby mode, tamper switch alert, low battery warning and error detection, without logging in to its configuration interface. Applications With PLANET HAC-1000 Z-Wave Home Automation Control Gateway, your home is securely protected. It allows you to turn on/off the attached appliance or electronic device wirelessly by using Z-Wave protocol remote control. For example, PLANET HZS-200 Smoke Detector can be wirelessly activated or deactivated via mobile devices. Moreover, you can control this innovative automation system from wherever you are, at home or abroad, using the touch screen of your iOS or Android smart device, thus making your home a smart one. Key Features Z-Wave 500 series module inside Ceiling and wall mount mechanism Photoelectric sensor is particularly effective in detecting smoldering fires Built-in 85dB sounder and flashing red LED indicate presence of smoke Tamperproof protection Low-power consumption for long battery life Manual test button allows you to easily ensure functioning properly Mute mode allows you to silence the detector when there is a false alarm Battery capacity detection (with the HAC-1000 Control Gateway) Immediately send alert notifications to smart device (with the Cloud Home App)

Especificaciones técnicas

Z-Wave Frequency

America: 908.42MHz Europe: 868.42MHz

Sensor

Photoelectric

Buzzing Sound Level

85dB, 3m distance

LED Indicators

Red: Standby mode, low battery warning Yellow: Tamper switch alert, low battery warning, error detection

Operating Range

Up to 30 meters in open space

Installation

Wall mount, 4 to 6 inches from the ceiling suggested Ceiling mount Indoor use only

Power Requirements

CR123A 3V

Operating Temperature

0 ~ 49 degrees C

Operating Humidity

10 ~ 95% (non-condensing)

Weight

144g

Dimensions (Φ x L)

120 x 48.7 mm

Emission

CE, FCC
