ICA-W7100 — 720P Wireless IR PT IP Camera

Descripción

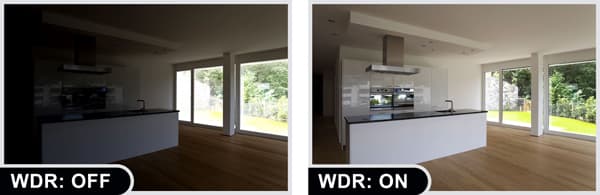

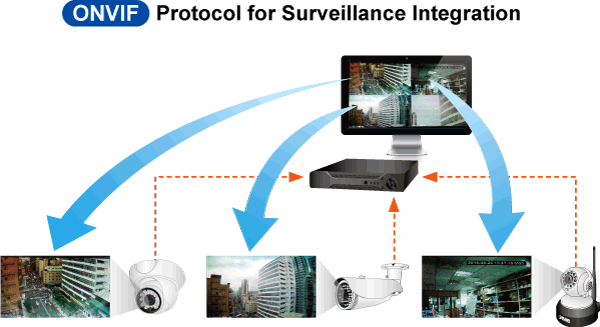

Compact and Cost-effective 720p HD Surveillance PLANET ICA-W7100 is easily and conveniently installed anywhere as it is compact in size. It Incorporates 1 megapixel resolution sensors, and supports H.264 compression format, thus delivering excellent picture quality in up to 1280 x 720 pixels (720p) at 30 frames per second. In addition, there is also a 10/100 Mbps network connection and an Micro SD slot for storage. Along with the motion detection function and the function of the pan-tilt camera, you can safely and reliably observe larger areas. Complying with ONVIF, the ICA-W7100 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network. Day & Night Surveillance The ICA-W7100 brings the clearest vision at night by featuring 0.1 lux illumination and the 11 IR LEDs built around the lens. It offers color pictures both in the day time and night time with the built-in CMOS sensor supporting up to 10 meters. The ICA-W7100 is able to maintain clear images 24 hours a day. Exceptional Image Quality Together with powerful image processing attributes like Wide Dynamic Range (WDR) and Dimensional Noise Reduction (DNR) technology, the ICA-W7100 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions. Advanced Event Management Users can save consecutive videos in local storage and events on memory card and thus you never have to miss an important moment. Users can set their area of interest to only detect motion in that area, thus greatly reduces the number of unnecessary alarms. The ICA-W7100 also offers 2-way audio surveillance; therefore, the administrator can speak to anyone at the ICA-W7100 remote site with a speaker connected. Flexible Installation with 11n Wireless Connectivity The ICA-W7100 adopts IEEE 802.11n wireless technology to communicate at up to 150Mbps wireless signal rate and ensures secure transmission with WEP and WPA encryptions. The wireless N functionality enables rapid integration into the wireless network and offers a flexible choice of the site. The ICA-W7100 is indisputably the ideal choice for reliable and high-performance surveillance. Applications PLANET ICA-W7100 is a highly cost-effective wireless IP camera designed for home monitoring. It provides clear identification of objects and people, so it perfectly satisfies surveillance needs from all aspects such as homes, small businesses, boutiques, restaurants, hotels and residences, etc. Key Features Camera 1/4" progressive CMOS sensor 3.6mm fixed lens 0.1 lux minimum illumination at F1.2 Maximum resolution 1280 x 720 Built-in 11 IR illuminators, effective up to 10 meters Video / Audio H.264 video compression Simultaneous multi-stream support Max. resolution 720p at 30fps 2DNR to improve picture quality at low lux 2-way audio support with enhanced audio quality Network and Configuration IEEE 802.11n wireless LAN capability WEP / WPA / WPA2-PSK wireless security Auto MDI/MDI-X supported RTSP / DDNS / FTP protocols selectable Easy Installation & Management ONVIF compliant for interoperability Intelligent motion detection alarm triggering Micro SD/SDHC card for event recording supported Digital input/output for integration with sensors and alarms Easy configuration and management via Windows-based utility or web interface

Especificaciones técnicas

Image Device

1/4" 1mega-pixel CMOS image sensor

Lens

Fixed lens 3.6mm, F1.4 Angle of view: Horizontal: 75 degrees Vertical: 55 degrees

Effective Pixels

1280 x 720

Min Illumination

Color: 0.1 lux @ F1.2 B/W: 0 lux (IR on)

LED

Built-in IR LED x 11, effective up to 10 meters *The IR distance is based on the environment

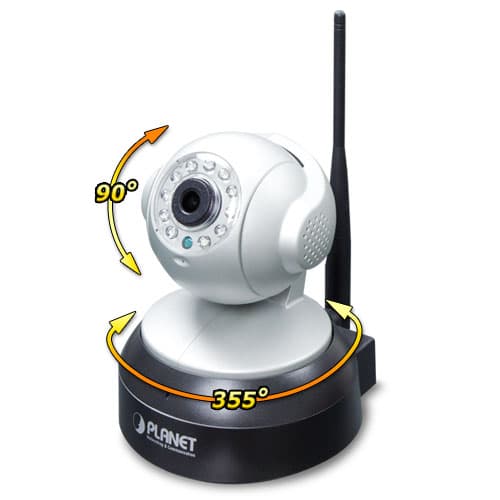

Angle of Pan

0~355 degrees

Angle of Tilt

0~90 degrees

Video Encoder

H.264

Video Resolution

Main Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480 Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144

Frame Rate

Up to 30fps for all resolutions

Image Setting

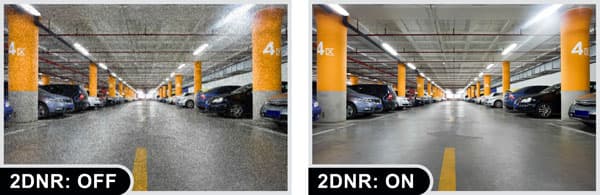

2D noise reduction Color, brightness, contrast Mirror / Rotate 4 privacy masks Text, time and date overlay

Streaming

Simultaneous multi-streaming Streaming over UDP, TCP, or HTTP Controllable frame rate and bandwidth Constant and variable bit rate

Audio Streaming

2-way audio

Audio Compression

PCM, G.711ALAW, G.711ULAW

Microphone

Internal microphone

Audio Output

Adjustable audio output gain

Network Standard

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.11 b/g/n

Network Protocol

IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X

Antenna Connector

RP-SMA Female

Frequency

2.4GHz

RF Transmit Power

802.11b mode: 20 dbm 802.11g mode: 17 dbm 802.11n mode: 17 dbm

RF Receiver Sensitivity

802.11b (11Mbps): -85dbm 802.11g (54Mbps): -68dbm 802.11n (20MHz): -68dbm 802.11n (40MHz): -68dbm

RF Data Rate

802.11b: 11Mbps 802.11g: 54Mbps 802.11n (20MHz): up to 72Mbps 802.11n (40MHz): up to 150Mbps

Security

Password protection; WEP, WPA-PSK and WPA2-PSK encryptions

Users

2 clients on-line monitoring at the same time

Application Programming Interface

ONVIF compliant

Alarm Triggering

Motion Detection External Input

Alarm Events

Event snapshot uploads via FTP Event recording uploads via SD card Notification via email, HTTP External output activation

Power Requirements

5V DC, 10W max.

Power Consumption

Up to 7.8W (IR & PT on)

Operating Temperature

-10 ~ 50 degrees C

Operating Humidity

20 ~ 85% (non-condensing)

Dimensions (W x D x H)

103 x 106 x 131mm

Weight

305g

Emission

CE, FCC

Connectors

10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio out MicroSD/SDHC card (max 32GB) Factory default reset
