ICA-W8100 — Wireless Cube Fish-Eye IP Camera

Descripción

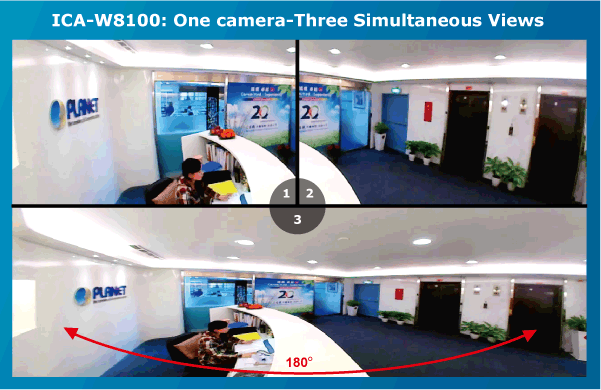

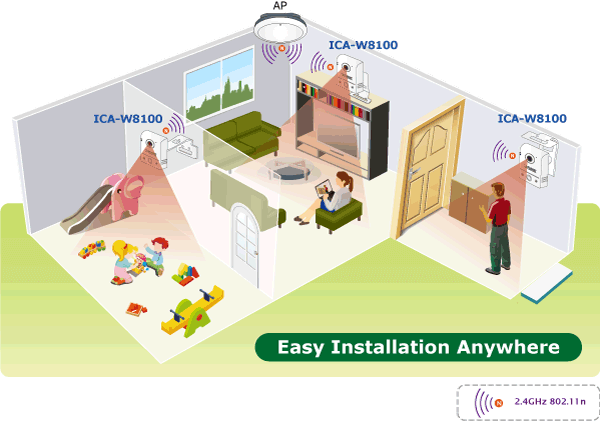

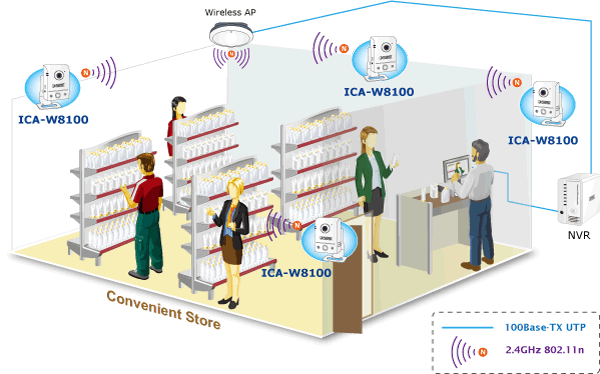

Compact Wireless Panoramic Camera for Wide View Surveillance The PLANET ICA-W8100 is a compact cube camera providing a 180 degree panoramic wide angle view, especially designed for indoor surveillance. Incorporating 1.3MP-resolution sensors, it supports H.264, MPEG-4, and M-JPEG compression formats and delivers excellent picture quality in up to 1280 x 720 pixels (720P) at 30 frames per second (fps). The unique design makes it the ideal solution to surveillance applications in homes, boutiques, stores or restaurants. Wider Monitoring with 180º Panoramic View The ICA-W8100 wireless fisheye camera allows you to monitor all angles of a location using just one camera, thus saving lots of traditional mechanical Pan/Tilt maintenance effort. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without the need of installing any other software, with the ICA-W8100, you can watch live view and utilize functions such as motion detection through the Web interface via an IE browser. Efficient Event Management The ICA-W8100 is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement far from 5 meters away. When people pass by or an emergency happens in the specified areas, the ICA-W8100 will “detect” and start recording automatically. Furthermore, it provides an additional function of alarm notification that can send the captured images to the micro SD/SDHC card slot for local storage. Enhanced Video Quality and 2-Way Audio Support The ICA-W8100 provides the industry a more comprehensive set of performance enhancing features including Auto Electronic Shutter (AES) and Auto White Balance (AWB). Besides, the ICA-W8100 supports 2-Way audio to strengthen the event management capabilities. High Quality Streaming via 11n Wireless Connectivity The ICA-W8100 adopts IEEE 802.11n wireless technology to communicate at maximum wireless signal rate and ensures secure transmission with WEP and WPA encryptions. It allows you to stream high quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. Complying with ONVIF, the ICA-W8100 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-W8100 is indisputably the top choice for reliable and high performance surveillance. Applications PLANET ICA-W8100 provides various surveillance applications to deliver clear images in 180 degree panoramic view. Thus, the ICA-W8100 can identify all objects and people in a wide range, instead of narrow view, if installed above the front door. It helps to identify objects and people. It is especially perfect for indoor surveillance in such places as homes, boutiques, department stores, restaurants, etc. Key Features Camera • Fish-Eye Lens to bring a 180 degree panoramic wide angle view • Unique Fish-Eye hardware correction technology • 1.3 mega-pixel CMOS sensor • Passive Infrared (PIR) Sensor for enhanced motion detection Video / Audio • H.264, MPEG-4 and M-JPEG video compression simultaneously • Simultaneous Multi-H.264 streams support • 2-Way audio support with enhanced audio quality Network and Configuration • Wireless 802.11n connectivity / Wi-Fi Protected Setup (WPS) • UPnP® support for network setup & configuration • Auto MDI/MDI-X supported • RTSP / UPnP / HTTPS protocols selectable Easy Installation & Management • ONVIF compliant for interoperability • Advanced e-PTZ, including preset point • Plug and Play Smart Access Technology without IP setting in router • Micro SD/SDHC card local video recording supported • Cam Viewer 3 central management software supported

Especificaciones técnicas

Image Device

1/4" progressive 1.3 Mega-Pixel scan CMOS sensor

Lens

Fish-Eye Lens, 185.5/145/>=200° (H/V/D), F= 2.0, f=0.89 mm

Min. Illumination

0.5 lux @ F2

Effective Pixels

1280 x 720 pixels (16:9)

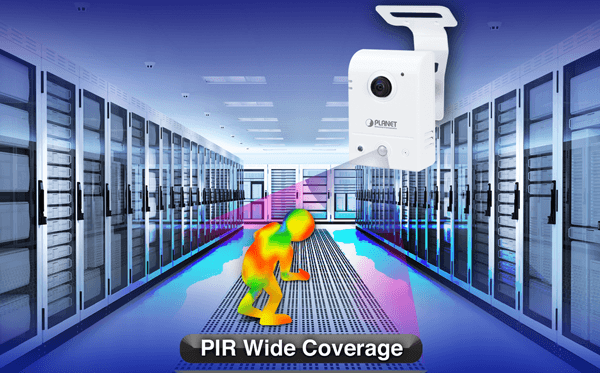

PIR Sensor

1 x Built-in sensor with adjustable 70 degrees direction Effective Distance: 5 meters Effective Coverage: 70 degrees

Video Encoder

H.264 / MPEG-4 / M-JPEG

Video Resolution

H.264: 1280 x 720 / 640 x 360 / 320 x 180 MPEG4: 1280 x 720 / 640 x 360 / 320 x 180 M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180

Frame Rate

Up to 30fps for all resolutions

Image Setting

AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW

Streaming

Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264)

Rate Control

CBR (Constant Bit Rate) VBR (Variable Bit Rate)

UI Layout

180 degree Single Broad View (1P) 2 PTZ Mode (2R) 180 degree Broad View + 2 PTZ Mode (1P2R)

Audio Streaming

2-Way Audio

Audio Compression

RTSP: G.711 64kbps

Microphone

Built-in Microphone

Audio Output

Line Out for extra speaker

Network Standard

IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11b/g/n

Network Protocol

IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba

Antenna connector

1 x 3dBi (Max)

Frequency

2.4GHz

RF Transmission Power

OFDM: 13dBm CCK: 17dBm

Output Power

802.11n: 13dBm(default) +/- 1dBm 802.11g: 13dBm(default) +/- 1dBm 802.11b: 17dBm(default) +/- 1dBm

Receiver Sensitivity

802.11b (11Mbps): CCK @ 8% PER = -88dBm 802.11g (54Mbps): OFDM @ 10% PER = -72dBm 802.11n Draft 6.0: HT20 @ 10% PER = -66 dBm HT40@ 10% PER= -61dBm

Data Rate

802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps

Security

Password protection / WEP and WPA Encryption

Users

Depends on streaming data rate used

Application Programming Interface

Open API for software integration ONVIF

Alarm Triggers

Intelligent video motion detection and PIR sensor

Alarm Events

File upload via FTP, e-mail or Micro SD/SDHC card Notification via e-mail, Mobile APP, and HTTP

Power Requirement

5V DC, 2A

Power Consumption

6W (5VDC)

Operating Temperature

0 ~ 45 Degrees C

Operating Humidity

20 ~ 80% (non-condensing)

Weight

134g

Dimensions (W x D x H)

70 x 39 x 99 mm

Emission

CE, FCC

Connectors

10/100 Mbps Ethernet, RJ-45 DC power jack Audio out Micro SD/SDHC card (Max 32GB, Class 6) WPS Button Factory default reset button
