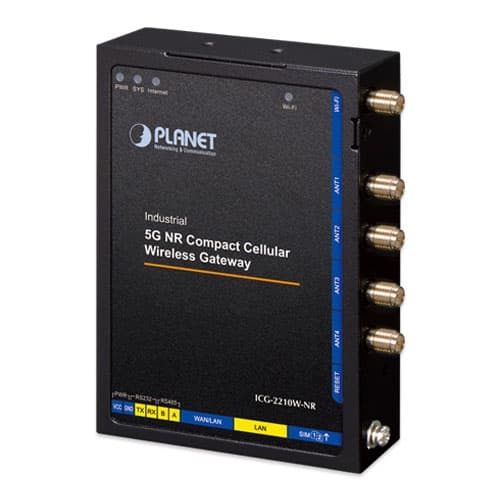

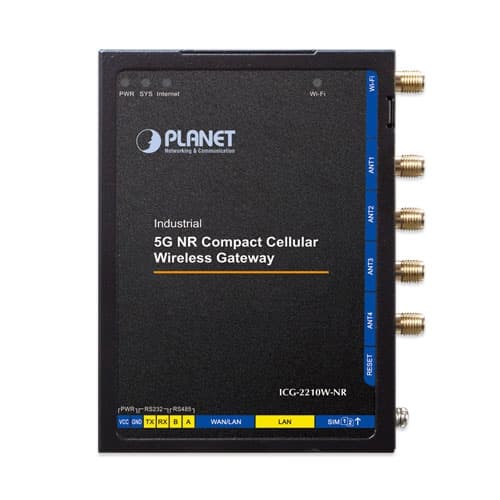

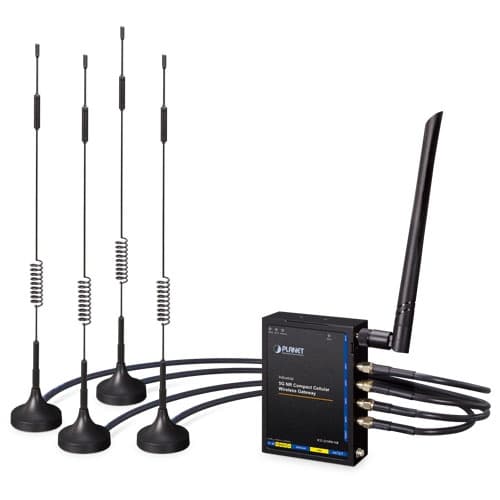

ICG-2210W-NR — Industrial 5G NR Compact Cellular Wireless Gateway with 2-Port 10/100/1000T

Descripción

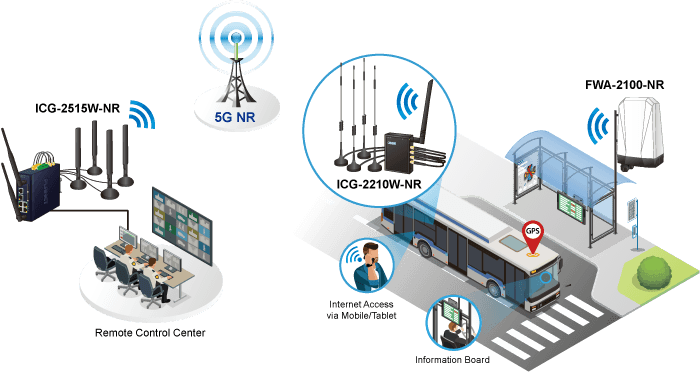

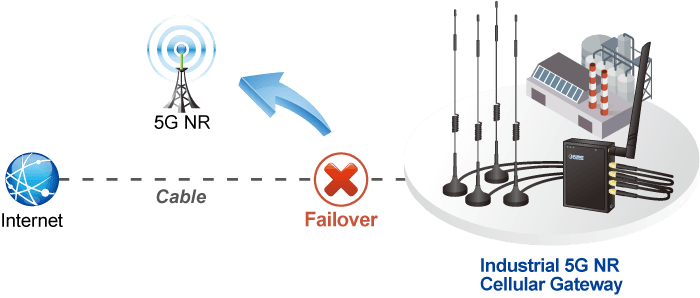

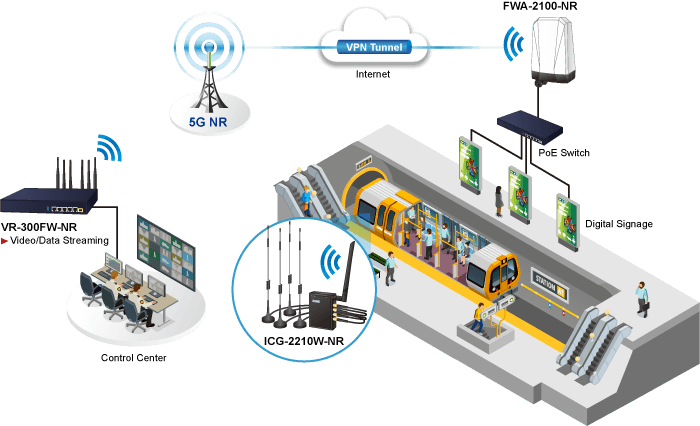

Powerful 5G NR and Wi-Fi 5 Industrial Network Solution PLANET ICG-2210W-NR is an industrial-grade wireless cellular gateway for demanding mobile applications. Packed with cutting-edge features, including 5G NR (New Radio) technology, dual WAN, and two micro SIM slots, it goes further with dual high-speed Gigabit Ethernet LAN ports and WAN/LAN ports, 802.11ac Wi-Fi capability, and serial RS232/RS485 communication interface. With a compact design, the ICG-2210W-NR is perfect for confined spaces or vehicular applications. The addition of ICG-2210W-NR failover ensures uninterrupted connectivity in dynamic environments. Tailored for versatility, it excels in harsh industrial environments and vehicular systems. Whether in tight quarters, mobile setups, or challenging industrial settings, the ICG-2210W-NR gateway ensures seamless and reliable connectivity. Its adaptability, coupled with advanced features, makes it the ideal solution for compact spaces and demanding applications. Automatic Failover between 5G NR and Wired WAN The ICG-2210W-NR boasts Gigabyte Ethernet wired WAN and 5G NR interfaces with seamless failover capabilities, ensuring continuous Internet access. It provides the flexibility to prioritize between 5G NR and wired WAN connections. In case of a primary WAN interface failure, the secondary interface swiftly restores the connection, ensuring uninterrupted connectivity at all times. Ultra-Fast 4G/5G Network* The ICG-2210W-NR supports 5G NR DL speed of 2.4 Gbps faster than 4G LTE DL speed of 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. The ICG-2210W-NR also supports multi-band connectivity including LTE FDD/TDD and WCDMA for a wide range of applications. * The real 5G NR/4G LTE data rate is dependent on local service provider. Dual SIM Design To enhance reliability, the ICG-2210W-NR is equipped with dual micro SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. It provides a more flexible and easier way for users to create an instant network sharing service via 5G-NR in public places like transportations, outdoor events, etc. Wireless 11ac Brings Excellent Data Link Speed PLANET ICG-2210W-NR, adopting the IEEE 802.11ac Wave 2 standard, provides a high-speed transmission of power and data, meaning two remote nodes in the 5GHz frequency band can be bridged. The 2.4GHz wireless connection can also be used simultaneously. Ideal High-Availability VPN Security Router Solution for Industrial Environment The ICG-2210W-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the ICG-2210W-NR makes the connection secure, more flexible, and more capable. Excellent Ability in Threat Defense The ICG-2210W-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the ICG-2210W-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the ICG-2210W-NR offers an easy-to-use, platform independent management and configuration facility. The ICG-2210W-NR supports SNMP and it can be managed via any management software based on the standard SNMP protocol. Applications 5G NR Cellular Communication Solution PLANET ICG-2210W-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the ICG-2210W-NR provides dual SIM card slots and failover functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications. Key Features Highlights 5G NR (NSA/SA)/4G LTE network with dual micro SIM design for cellular network redundancy Automatic failover between 5G NR and Gigabit WAN Complies with IEEE 802.11ac and IEEE 802.11a/b/g/n/ac standards 1 serial port (RS485) for Modbus applications and 1 serial port (RS232) SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec) Stateful packet inspection (SPI) firewall and content filtering Blocks DoS/DDOS attack, port range forwarding -40 to 75 degrees C operating temperature; DIN-rail and fanless designs Hardware 1 x 10/100/1000BASE-T RJ45 WAN/LAN port, auto-negotiation, auto MDI/MDI-X 1 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X 4 x 5G NR antennas 2 x micro SIM card slots 1 x 2dBi Wi-Fi antennas 1 x reset button Cellular Interface Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA Built-in SIM and broadband backup for network redundancy Four detachable antennas for 5G NR connection LED indicators for connection status RF Interface Characteristics Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) dual band for carrying high load traffic 1T1R MIMO technology for enhanced throughput and coverage Provides multiple adjustable transmit power control High-speed wireless data rate of up to 600Mbps (150Mbps for 2.4GHz or 433Mbps for 5GHz) IP Routing Feature Static Route Dynamic Route OSPF Firewall Security Cybersecurity Stateful Packet Inspection (SPI) firewall Blocks DoS/DDoS attack Content Filtering MAC Filtering and IP Filtering NAT ALGs (Application Layer Gateway) Blocks SYN/ICMP Flooding VPN Features IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN) Max. Connection Tunnel Entries: 30 VPN tunnels, Encryption methods: DES, 3DES, AES, AES-128/192/256 Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512 Networking Outbound load balancing for Ethernet WANs Auto-failover between Ethernet WANs and cellular network Static IP/PPPoE/DHCP client for WAN DHCP server/NTP client for LAN Protocols: TCP/IP, UDP, ARP, IPv4, IPv6 Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3 MAC address clone DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP Others Supported access by HTTP or HTTPS Auto reboot

Especificaciones técnicas

Ethernet

2 10/100/1000BASE-T RJ45 Ethernet ports including 1 LAN port 1 WAN/LAN port

Serial Interface

1 RS232 and 1 RS485

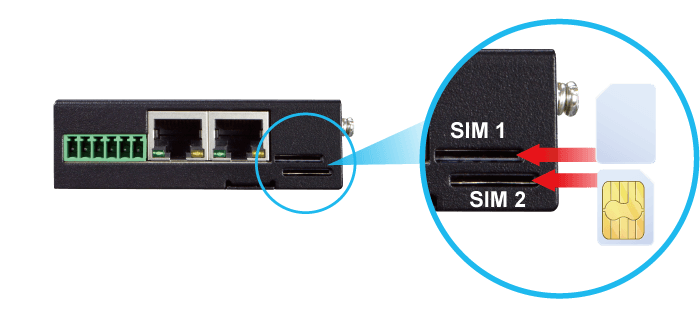

SIM Interface

2 micro SIM card slots

Cellular Antenna

5 dBi external antennas with SMA connectors for 5G-NR

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Enclosure

IP30 metal case

Installation

DIN rail, wall-mounting

LED Indicators

System: PWR ( Green ) SYS ( Green ) Internet LNK/ACK( Green ) Wi-Fi ( Green )

Dimensions (W x D x H)

76 x 23.5 x 106 mm

Weight

285 g

Power Requirements – DC

9~36V DC DC IN

Power Consumption

5.72 W / 19.51 BTU

5G NR Module

EAU: Sub-6: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78/n79 LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-FDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8 NA: Sub-6: n2/n5/n7/n12/n14/n25/n30/n48/n41/n70/n66/n71/n77/n78 LTE FDD: B2/B4/B5/B7/B12/B13/B29/B30/B66/B71 LTE TDD: B41/B46(LAA)/B48

Data Transmission Throughput

2.4Gbps (DL)/500Mbps (UL) for NR 1Gbps (DL)/200Mbps (UL) for LTE 42Mbps (DL)/5.76Mbps (UL) for HSPA+

Standard

IEEE 802.11a/n/ac 5GHz IEEE 802.11g/b/n 2.4GHz

Band Mode

2.4G & 5G concurrent mode

Frequency Range

2.4GHz America FCC: 2.412~2.462GHz Europe ETSI: 2.412GHz~2.472GHz 5GHz 5.15GHz ~5.875GHz

Operating Channels

2.4GHz America FCC: 1~11 Europe ETSI: 1~13 5GHz America FCC: Non-DFS: 36, 40, 44, 48, 149,153,157,161,165 Europe ETSI: Non-DFS: 36, 40, 44, 48 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 5GHz channel list may vary in different countries according to their regulations.

Channel Width

20MHz, 40MHz

Data Transmission Rates

Transmit: 150 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz Receive: 150 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz *The estimated transmission distance is based on the theory. The actual distance will vary in different environments.

Transmission Power

11b: 23dbm+/- 1.5dbm @11Mbps 11g: 20dbm+/- 1.5dbm @54Mbps 11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 17dBm@MCS7,HT40 11a: 19.5dBm +/- 1.5dbm @54Mbps 11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20+/-1.5dBm @MCS8 11ac HT40: 17+/-1.5dBm @MCS9 11ac HT80: 14.5+/-1.5dBm @MCS9

Encryption Security

WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) 802.1x Authenticator

Wireless Advanced

Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering

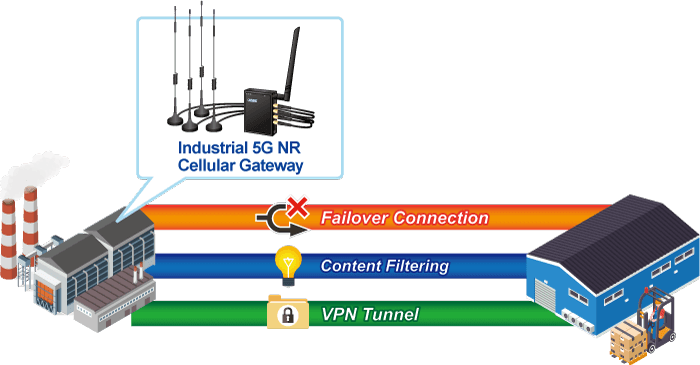

VPN

IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)

VPN Tunnels

Max. 30

VPN Throughput

Max. 50Mbps

Encryption Methods

DES, 3DES, AES or AES-128/192/256 encrypting

Authentication Methods

MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm

Basic Management Interfaces

Web browser SNMP v1, v2c PLANET Smart Discovery utility

Secure Management Interfaces

SSHv2, TLSv1.2, SNMP v3

System Log

System Event Log

Others

Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics

Regulatory Compliance

CE

Operating

Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
