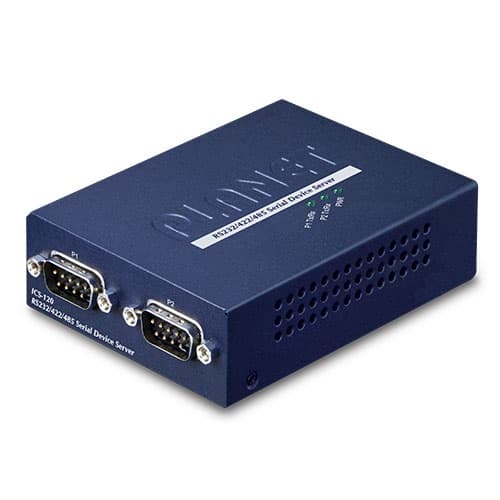

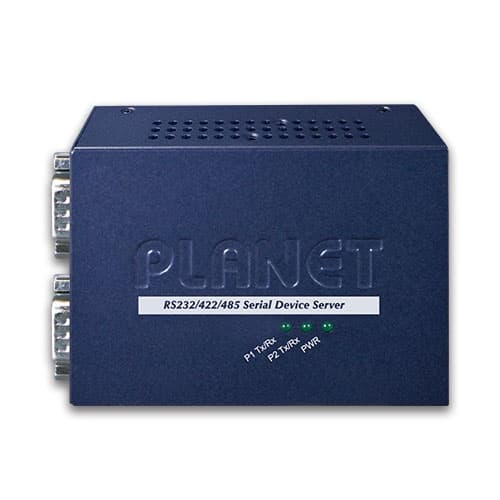

ICS-120 — 2-Port RS232/RS422/RS485 Serial Device Server

Descripción

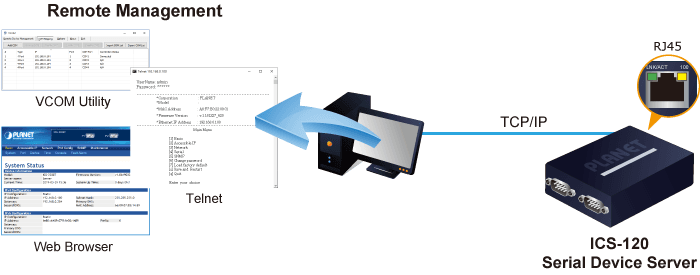

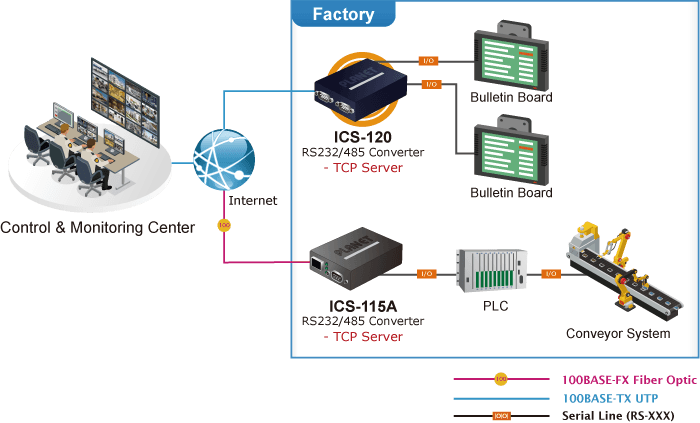

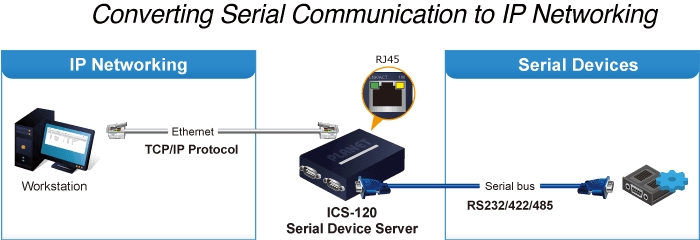

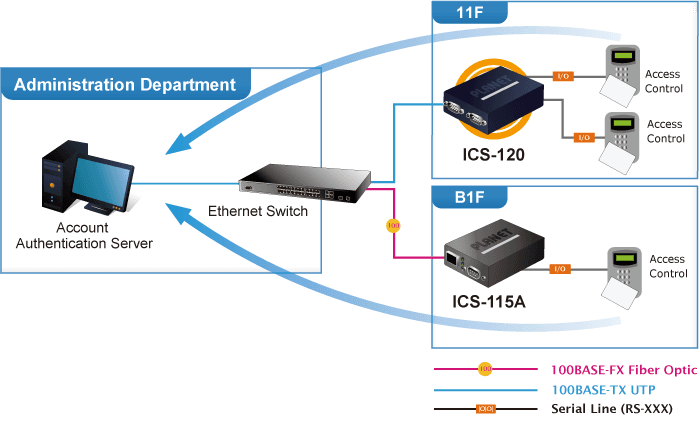

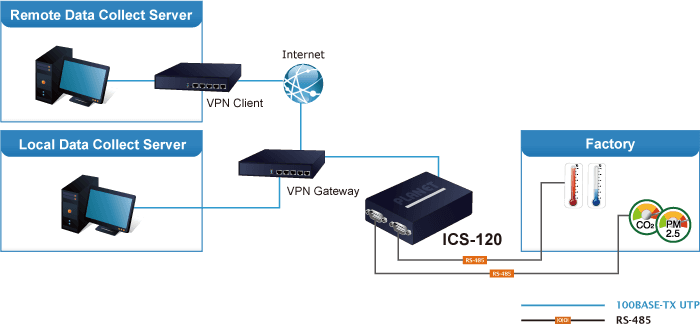

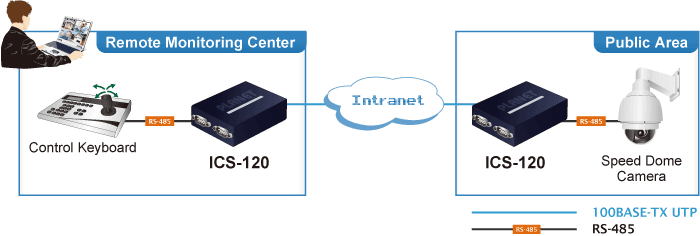

Cost-effective Solution for RS232/422/485 Serial-to-Ethernet Application PLANET ICS-120 Serial Device Server is specially designed to convert two serial RS232/RS422/RS485 communication interfaces into Fast Ethernet networking to extend the network distance efficiently and inexpensively. There is one 10/100BASE-TX RJ45 port in the ICS-120, making connected serial equipment become IP-based, and able to also connect to a TCP/IP networking immediately. And its operating temperature ranging from -10 to 60 degrees C is designed for all your network requirements. The ICS-120 is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system. Remote Management As the ICS-120 provides easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently via its Web, telnet, and VCOM management interfaces. It supports both application and serial operation modes for alarm or IP address connection, which saves the administrator’s time in detecting and locating network problems without visual inspection of the cabling and devices. Multiple connection options are available for a large networking environment as well. Applications Access Control System – Traditional System Application Most of the enterprises and government use access control plate and Mifare or RFID to authorize entrance identity. Traditionally, the access control machines use RS232 or RS485 serial interface with their cables connecting to login server. By applying the ICS-120 Serial Device Server, the access control machine is able to extend the network over longer distances via Ethernet interfaces. In addition, the ICS-120 can be linked to an xDSL router to get the internet access capability so that the access control can be set and monitored over the internet. Process Control To monitor, configure and manage the robotic conveyer including other production machines, PLC (programmable logical control) is required to drive the above manufacturing process. The ICS-120 can be set to the TCP server mode and connected to the PLC. Thus, the administrator can configure and set command settings through Fast Ethernet intranet to remotely control the PLC, without having to stand by the I/O machine. RTU Data Collect – UDP Mode Connect with RTU (remote terminal unit) to collect and monitor the data of waves, signal and power utilization. The ICS-120 can be used to set up UDP mode and send data over Fast Ethernet to local server or over Internet to remote server automatically. Surveillance Motion Control – Pair Connection Mode Using pair connection mode via the fiber optic patch cord, the ICS-120 can extend the distance of the deployed devices via RS232, RS422 and RS485 interfaces, making the remote management of these devices from the monitoring center easier and efficient. Key Features Serial Interface Two DB9 interfaces that support RS232, 2-wire RS485, 4-wire RS485 and RS422 operation Asynchronous serial data rates up to 921600bps Data mode includes VCOM, RFC2217, TCP server, TCP client, UDP, remote pairing, Modbus converter server / client and serial telnet modes Ethernet Interface 1-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function Management IPv4 and IPv6 dual stack management Remote Management Interfaces - IP-based Web management - Telnet console management - Windows-based VCOM utility supports searching, monitoring and configuration setting IP NTP (Network Time Protocol) Standard TCP/IP interface and versatile operation modes Software Protocol supports ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client Serial Operation mode selected via management interface Pair Connection mode for connecting two serial devices over a network Allows a maximum of 4 hosts to be accessed as TCP client mode Firmware upgrade via HTTP protocol Accessible IP security control to prevent illegal users Event notification - Remote syslog server - SNMP trap DHCP client for IP address assignment PLANET Smart Discovery utility automatically finds the client devices on the netwok Case and Installation Compact size for easy Installation - Standalone -- Wall mountable or DIN-rail mounting (optional accessory) External power adaptor 5V DC, 2A max. Supports 6000 VDC Ethernet ESD protection -10 to 60 degrees C operating temperature Supports extensive LED indicators for network diagnosis Reset button for resetting to factory default

Especificaciones técnicas

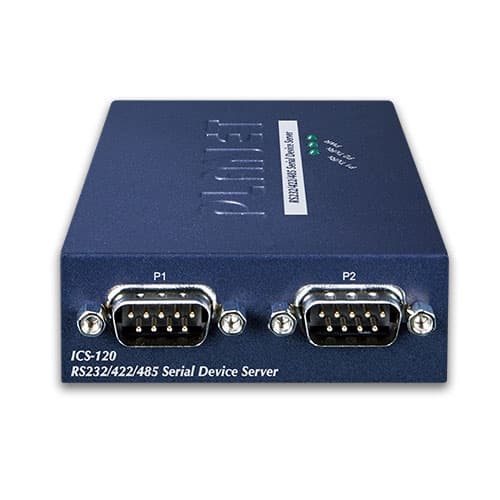

Serial Port

2 x DB9 male

Serial Standards

RS232/RS422/4-wire RS485/2-wire RS485

Baud Rate (Data Rate)

50bps to 921Kbps

Data Bits

5, 6, 7, 8

Stop Bit

1, 1.5, 2

Parity Type

Odd, Even, None, Space, Mark

Flow Control

RTS/CTS and DTR/DSR (RS232 only) XON/XOFF

Signals

RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS422: Tx+, Tx-, Rx+, Rx-, GND 4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND 2-wire RS485: Data A (+), Data B (-), GND

Pin Assignment

Pin RS232 RS422 RS485-4W RS485-2W 1 DCD TxD+ -- 2 RxD TxD- -- 3 TxD RxD- Data- 4 DTR RxD+ Data+ 5 GND GND GND 6 DSR -- -- 7 RTS -- -- 8 CTS -- -- 9 -- -- --

Pin

RS232 | RS422 RS485-4W | RS485-2W

1

DCD | TxD+ | --

2

RxD | TxD- | --

3

TxD | RxD- | Data-

4

DTR | RxD+ | Data+

5

GND | GND | GND

6

DSR | -- | --

7

RTS | -- | --

8

CTS | -- | --

9

-- | -- | --

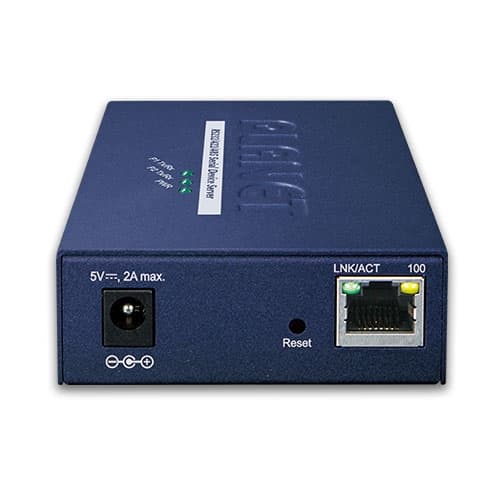

Ethernet Ports

1 x RJ45

Standard

10/100BASE-TX

Distance

100m

ESD Protection

6KV

Dimensions (W x D x H)

94 x 70.3 x 26.2mm

Weight

189g

LED Indicators

System: Link TP Port: Link/ Active Serial Port: Active

Power Requirements

External Power Adaptor 5V DC, 2A max.

Power Consumption

5.5 watts (max.)

Enclosure

Metal

Installation

Standalone, wall-mount , and DIN-rail kit (optional)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Management Interfaces

Web management Telnet Console management Windows-based VCOM Utility management SNMPv1, v2c / SNMP trap UNI-NMS monitoring PLANET Smart Discovery Utility

IP Version

IPv4 and IPv6

Operation Mode

■ TCP server / TCP client ■ UDP client ■ Virtual COM ■ RFC2217 ■ Telnet server ■ Pair connection – Remote (Slave) ■ Pair connection – Local (Master) ■ Modbus converter server / client

Virtual COM Utility Platform Support

Windows-based Only: Windows XP Windows Server 2003 Windows 7 Windows Server 2008 Windows 8 (Must install the latest version of WinPcap) Windows Server 2012 (Must install the latest version of WinPcap) Windows 10

Fault Alarm

Record: System log / SNMP trap

Time

NTP

Security

Accessible IP (white list)

SNMP

SNMP v1 and v2c

Regulatory Compliance

FCC Part 15 Class A, CE Certification Class A

Standards

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 854 Telnet RFC 958 NTP RFC 1908 SNMPv2c RFC 2068 HTTP RFC 4443 ICMPv6 EIA/TIA RS232/422/485

Regulatory Approval

RoHS

Operating Temperature

-10 ~ 60 degrees C

Storage Temperature

-10 ~ 70 degrees C

Humidity

5 ~ 95% (non-condensing)
