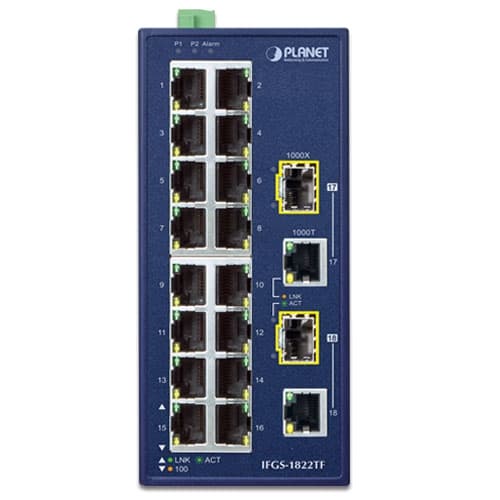

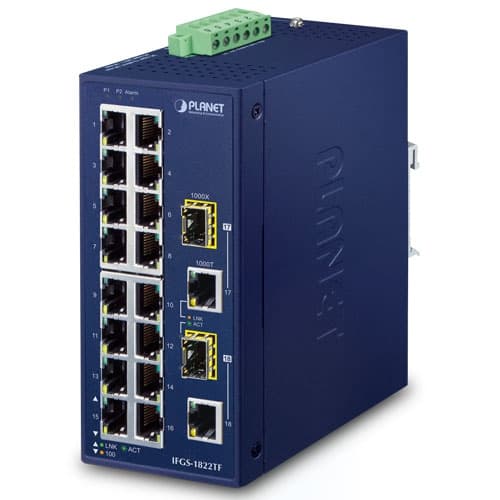

IFGS-1822TF — Industrial 16-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch

Descripción

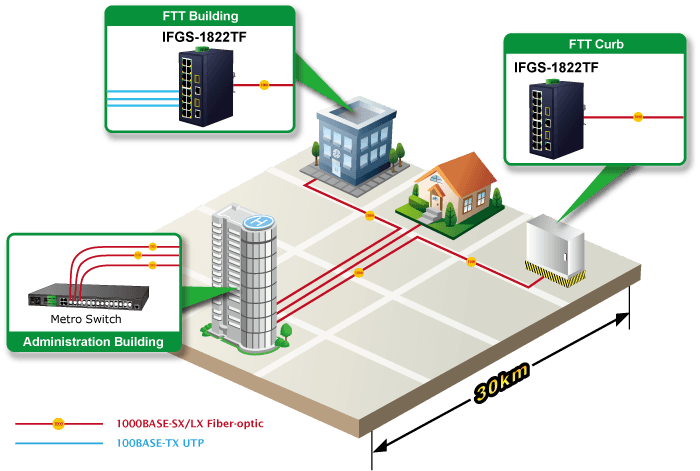

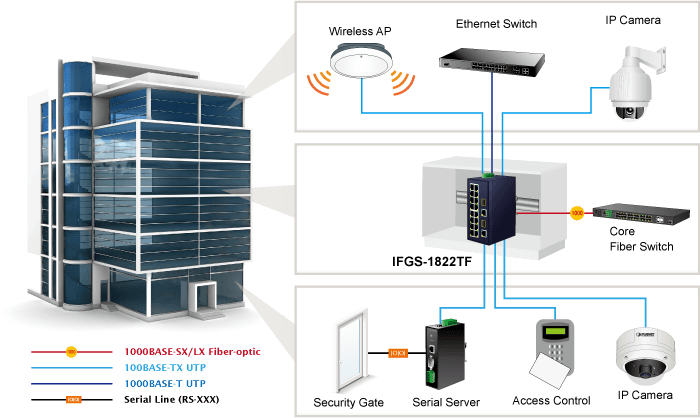

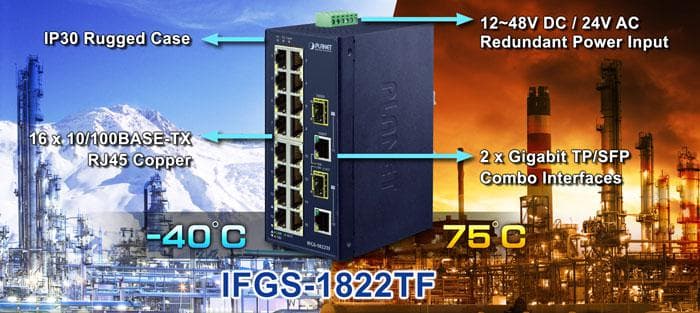

Robust Features for Industrial Ethernet Networks with Plug and Play Configuration Designed for heavy industrial demanding environments, PLANET’s IFGS-1822TF comes with high-density 16 10/100BASE-TX ports, 2 additional Gigabit copper/SFP combo interfaces and r edundant power system . Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy. With the IP30-rated rugged but compact-sized case, it can operate stably under the temperature range from -40 to 75 degrees C and can be installed in any difficult environment without space limitation. Two Gigabit Uplink Ports The IFGS-1822TF provides two extra Gigabit TP/SFP combo interfaces that enable the network administrators to increase their network bandwidth to relieve traffic congestion when the two 10/100/1000BASE-T uplink ports are used to connect devices, such as NVR, video streaming server, NAS and more. With the combo design, the administrators can easily connect network devices no matter how large the network expansion is. Flexibility and Long-distance Extension Solution Through the two shared Gigabit-speed fiber SFP slots , it can also connect with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters (multi-mode fiber) to 120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the industrial data centers and distributions. Environmentally Hardened Design The IFGS-1822TF possesses an integrated power supply source with a wide range of voltages ( 12 to 48V DC or 24V AC ) for worldwide high availability applications requiring dual or backup power inputs. It also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in the curbside traffic control cabinets. Robust Protection The IFGS-1822TF provides a contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Energy Savings The IFGS-1822TF, integrated with advanced green networking technologies and IEEE 802.3az Energy Efficient Ethernet (EEE) protocol based power saving, is able to provide power savings of up to 50% but maintain high performance efficiently. Link Down power savings The Link Down power savings goes beyond IEEE specifications to automatically lower power consumption　for a given port when it is not linked. With the Link Down power saving technology, the IFGS-1822TF will automatically adjust power usage of the ports that are shut down or not connected to network device. Intelligent power scale based on cable length Intelligent power scale is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the IFGS-1822TF is connected with Ethernet cable shorter than 20m, a device can obtain maximum power savings because the IFGS-1822TF would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy savings. Applications Industrial-grade Switch for Building Automation and Security The IGS-1822TF’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. Suitable for buildings where security is strictly enforced, the IFGS-1822TF, with sixteen Fast Ethernet interfaces, can easily build an IP phone system, IP surveillance system, security control system and wireless AP group in the harsh Industrial environment. FTTX Solutions for MAN Application To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises, the various distances of SFP and Bidi (WDM) transceivers are optional for customers. With two Gigabit-speed SFP slots built in, the deployment distance of the IFGS-1822TF can be extended up to 120 kilometers (single-mode fiber), which provides a high-performance edge service for FTTx solutions. The IFGS-1822TF is the ideal solution for service providers such as ISPs and telecoms to build Metropolitan Area Network (MAN) based on the fiber technology. Key Features Physical Port 16-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function 2-port 10/100/1000BASE-T and 1000BASE-X combo interface Layer 2 Features Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard Supports auto-negotiation and 10/100Mbps half/full duplex mode Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) Complies with IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1p CoS Supports 16K MAC address Automatic address learning and address aging Industrial Case and Installation IP30 metal case DIN-rail and wall-mount designs 12 to 48V DC, redundant power with reverse polarity protection 24V AC power input Supports 6000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature Free fall, shock-proof and vibration-proof for industries

Especificaciones técnicas

Fast Ethernet Copper Ports

16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports

Gigabit Ethernet Copper Ports

Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Port-17 and Port-18)

SFP Slots

Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-17 and Port-18)

ESD Protection

6KV DC

Enclosure

IP30 metal case

Installation

DIN-rail kit and wall-mount kit

Connector

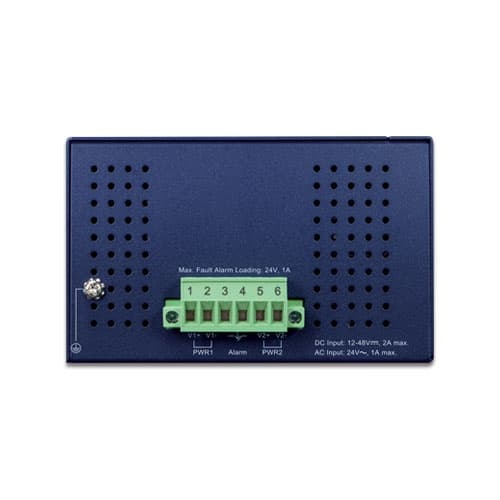

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC

Dimensions (W x D x H)

66 x 107 x 152 mm

Weight

870g

Power Requirements

Dual 12~48V DC or one 24V AC

Power Consumption

Max. 6.3 watts/21.4BTU (Ethernet full loading)

Switch Architecture

Store-and-Forward

Switch Fabric

7.2Gbps (non-blocking)

Throughput (packet per second)

5.36Mpps@ 64 bytes

Address Table

16K entries, automatic source address learning and aging

Shared Data Buffer

4Mbits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Standards Compliance

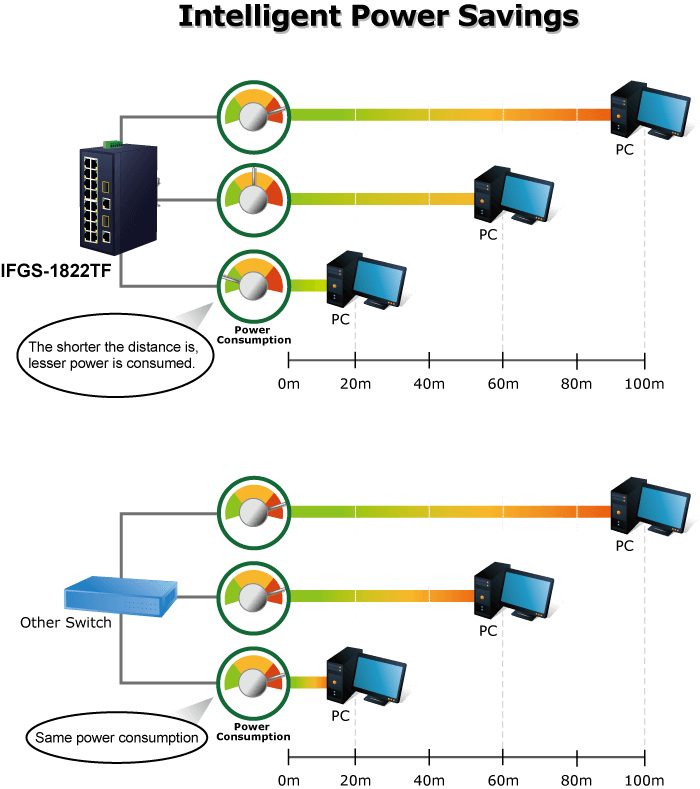

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.3az Energy Efficient Ethernet (EEE)

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
