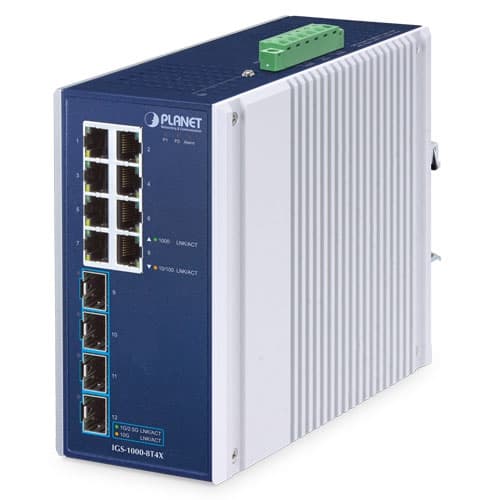

IGS-1000-8T4X — Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch

Descripción

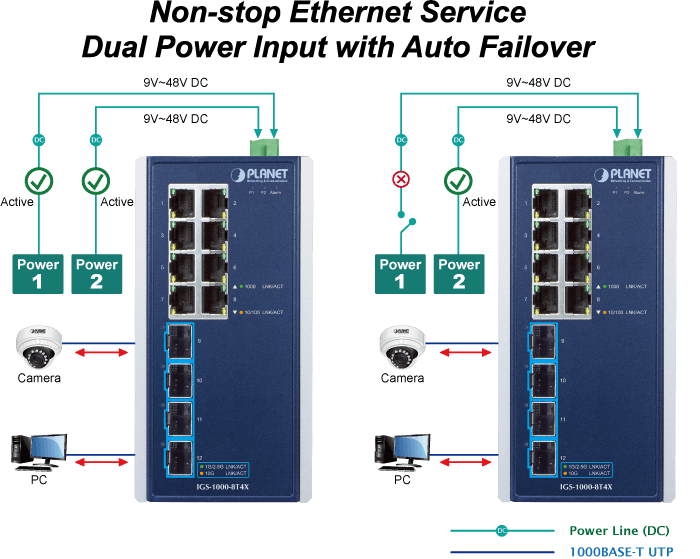

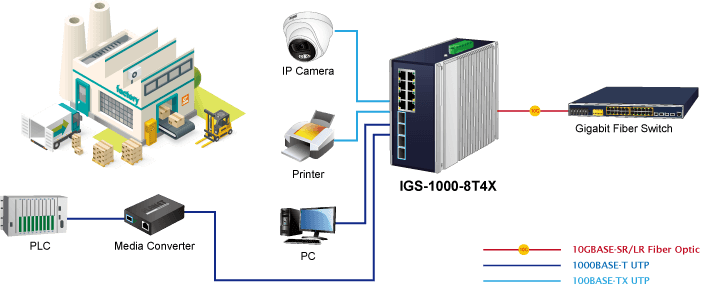

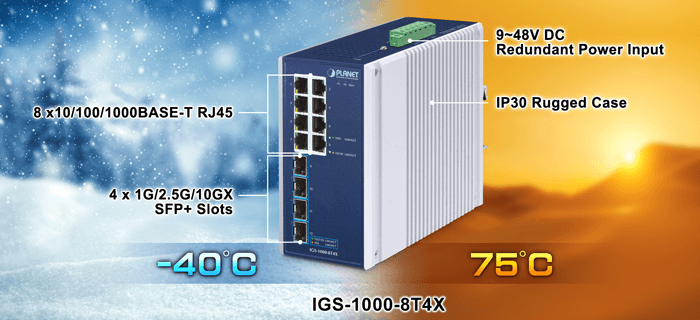

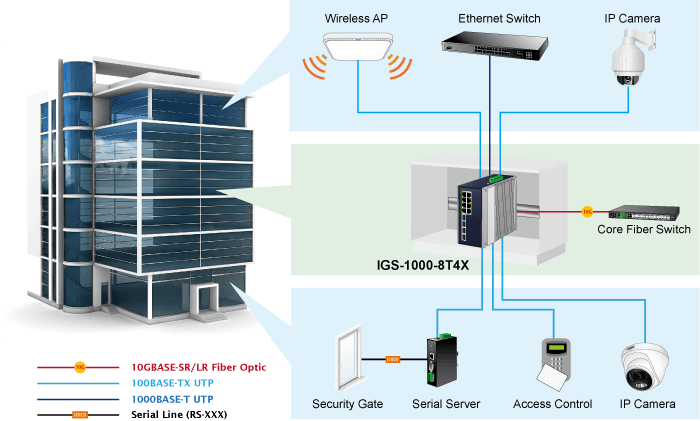

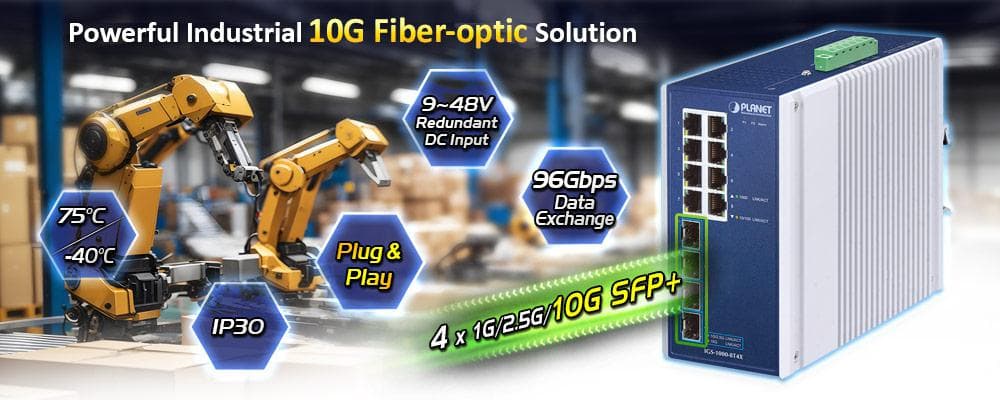

Reliable Industrial Ethernet Networks with 10G Fiber and Plug and Play Configuration Featuring Plug and Play and 10G SFP+ uplink ports, PLANET IGS-1000-8T4X Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch is perfect for heavy industrial environments. It features 8 10/100/1000BASE-T ports and 4 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports that provide long-distance, high-speed and stable data transmission to a remote core network. The IGS-1000-8T4X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy. 10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking Featuring a 10Gbps uplink, the IGS-1000-8T4X is suitable for connecting to an industrial backbone or high-capacity servers. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 96Gbps. The 10G fiber port serves as a backbone for high-bandwidth applications, such as video streaming, cloud computing, and virtualization, ensuring seamless and swift data transmission. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements. 10G Fiber-optic Linking Capability Enables Extension of Network Deployment The SFP+ slot of the IGS-1000-8T4X is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions Optic Mode Connector Type Distance Multi-mode Duplex LC 300m Single mode Duplex LC 2/10/20/40/60/80km Single mode WDM Simplex LC 10/20/40/60/70km Dual Power Input for High Availability Network System The IGS-1000-8T4X features a strong dual power input system with 9~48V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1000-8T4X via power supply 2 alternatively without any loss of operation. Environmentally Hardened Design With the IP30 metal industrial case, the IGS-1000-8T4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C , the IGS-1000-8T4X can be placed in almost any difficult environment. Robust Protection The IGS-1000-8T4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Applications Industrial-grade Switch for Building Automation and Security The IGS-1000-8T4X’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. Suitable for buildings where security is strictly enforced, the IGS-1000-8T4X, with 8 1000BASE-T ports and 4 10GBASE-X SFP+ fiber optic uplink interfaces, can easily build an IP phone system, IP surveillance system, security control system and wireless AP group in the harsh Industrial environment. Designed for Heavy Industries The IGS-1000-8T4X’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data. Key Features Interface 8 10/100/1000BASE-T RJ45 copper ports 4 10GBASE-X SFP+ slots, compatible with 1000BASE-X and 2500BASE-X SFP Industrial Hardened Design IP30 aluminum case DIN-rail and wall-mount designs Fault alarm for power input failure Supports 6KV DC Ethernet ESD protection -40 to 75 degrees C operating temperature 4 real-time PoE power usage indicators 9~48V DC redundant power with reverse polarity protection Layer 2 Switching Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 16K MAC address table size 12K jumbo frame IEEE 802.1Q VLAN transparency Automatic address learning and address aging Supports CSMA/CD protocol

Especificaciones técnicas

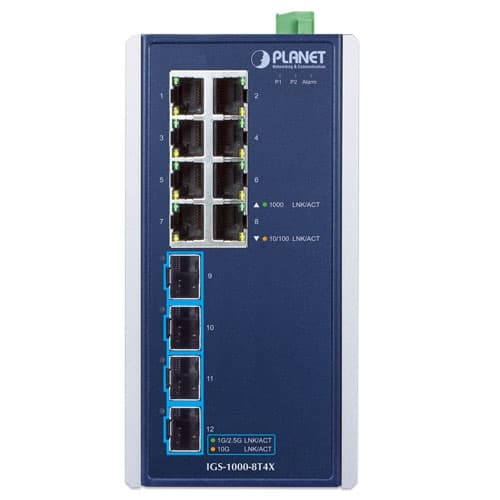

Copper Ports

8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

SFP Slots

4 10GBASE-X SFP+ interfaces(Ports 9 to 12) Backward compatible with 1000BASE-X SFP and 2500BASE-X SFP

Connector

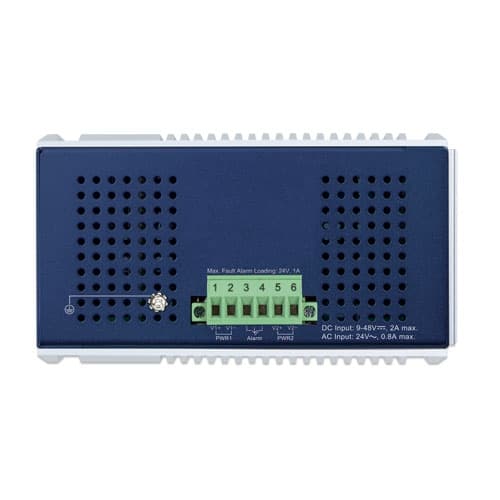

Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2

Power Requirements

9~48V DC, 4A max. / 24V AC Redundant power with reverse polarity protection

Power Consumption

Max. 14.73 watts/50.2BTU

Dimensions (W x D x H)

76 x 135 x 152 mm

Weight

1211g

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount kit

ESD Protection

6KV

LED Indicators

System: P1, P2 ( Green ), Alarm ( Red ) 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 8): 1000Mbps LNK/ACT ( Green ) 10/100Mbps LNK/ACT ( Amber ) 1G/2.5G/10Gbps SFP+ Interfaces (Port 9 to Port 12): 1G/2.5G LNK/ACT ( Green ) 10G LNK/ACT ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

96Gbps

Throughput (packet per second)

71.43Mpps@64bytes

Address Table

16K entries

Buffer Memory

12M bits on-chip buffer memory

Jumbo Frame

12Kbytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service

Temperature

Operating: -40~75 degrees C Storage: -40~75 degrees C

Humidity

Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
