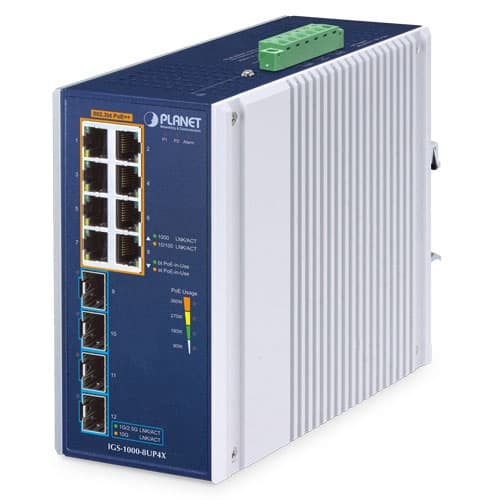

IGS-1000-8UP4X — Industrial 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Ethernet Switch

Descripción

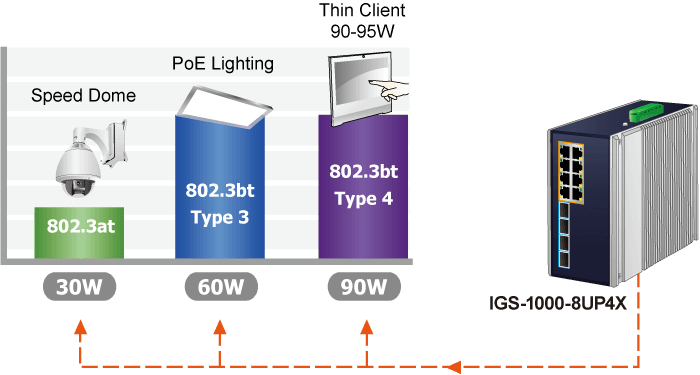

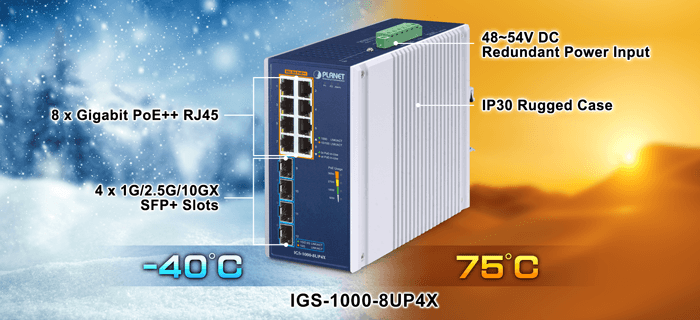

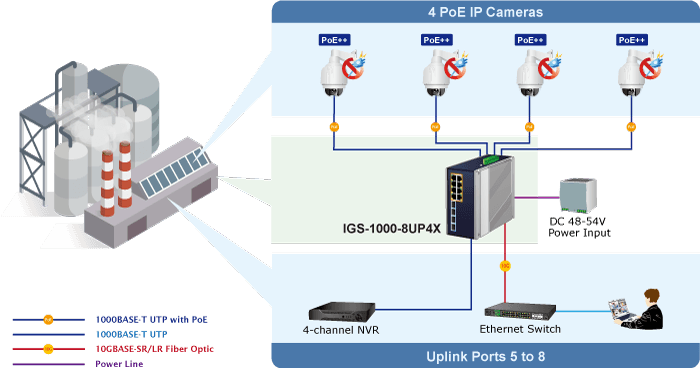

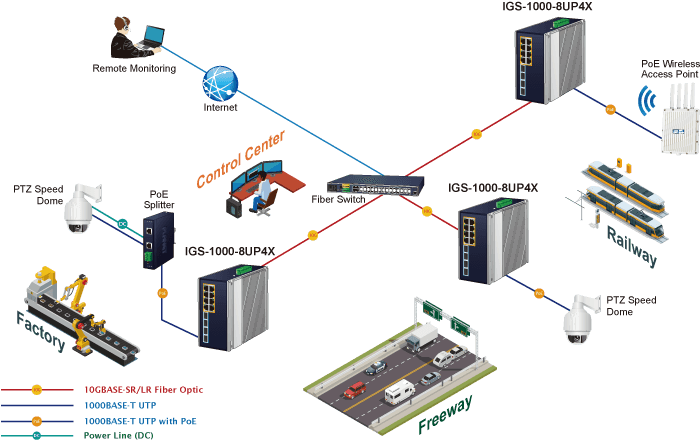

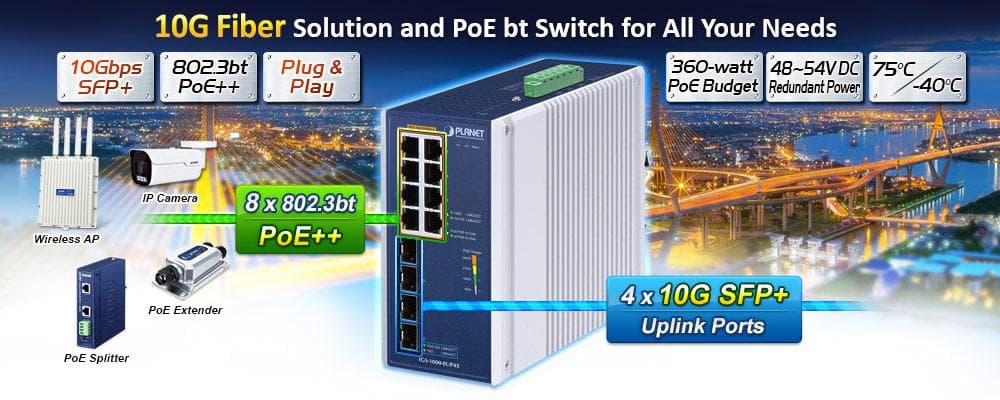

Outstanding 802.3bt PoE++ and 10G Fiber Solution for Hardened Environment Featuring Plug and Play designed and 10G SFP+ uplink ports to be installed in heavy industrial environments, PLANET IGS-1000-8UP4X Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch features eight 10/100/1000BASE-T ports and IEEE 802.3bt PoE++ (Power over Ethernet Plus Plus) injector function to deliver up to 95 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required. Its four 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports provide long distance, high speed and stable data transmission to a remote core network. The IGS-1000-8UP4X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 360 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy. 10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking Featuring a 10Gbps uplink , the IGS-1000-8UP4X whether connecting to an industrial backbone or high-capacity servers, its prowess is unmatched. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 96Gbps . The 10G fiber port serves as a backbone for high-bandwidth applications, such as video streaming, cloud computing, and virtualization, ensuring seamless and swift data transmission. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements. 802.3bt PoE++ 90~95-watt Power over 4-pair UTP Solution As the IGS-1000-8UP4X adopts the IEEE 802.3bt PoE++ standard and UPoE technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability more than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras Thin clients AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks Remote digital signage displays PoE lightings Intelligent LED Indicator for Real-time PoE Usage The IGS-1000-8UP4X helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indicator. On the front panel of the Industrial Gigabit PoE++ Switch, there are four different power usage LED indicators indicating 90W, 180W, 270W, and 360W. Dual Power Input for High Availability Network System The IGS-1000-8UP4X features a strong dual power input system with 48~54V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1000-8UP4X via power supply 2 alternatively without any loss of operation. Environmentally Hardened Design With the IP30 metal industrial case, the IGS-1000-8UP4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C , the IGS-1000-8UP4X can be placed in almost any difficult environment. Robust Protection The IGS-1000-8UP4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Applications Perfect Integration Solution for IP PoE Camera and NVR System The IGS-1000-8UP4X provides eight 10/100/1000BASE-T 802.3bt PoE++ ports which can offer sufficient PoE power to 8 high-power required PoE IP cameras at the same time. In addition, with the Gigabit copper and 10GBASE-X fiber uplink interfaces, the IGS-1000-8UP4X can connect to a core switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-1000-8UP4X facilitates the recorded video files from the 8 PoE++ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-1000-8UP4X undoubtedly brings an ideal secure surveillance system at a lower total cost. Industrial-grade PoE++ Switch for Building Automation and Security Suitable for buildings where security is strictly enforced, the IGS-1000-8UP4X, with eight Gigabit Ethernet 802.3bt PoE++, in-line power interfaces, can easily build a power that can centrally control an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-1000-8UP4X makes the installation of IP cameras or wireless APs easier and more efficient. Key Features Interface 8 10/100/1000BASE-T RJ45 copper ports 4 10GBASE-X SFP+ slots, compatible with 1000BASE-X and 2500BASE-X SFP Power over Ethernet Complies with IEEE 802.3bt PoE++ type 4 PSE Backward compatible with IEEE 802.3at PoE+ Up to 8 ports of IEEE 802.3bt/at devices powered Up to 360-watt PoE budget Supports PoE power up to 95 watts for each PoE port Each port supports 48~54V DC power to PoE powered device Auto detects powered device (PD) Auto detects IEEE 802.3bt equipment and protects devices from being damaged by incorrect installation Circuit protection prevents power interference between ports Remote power feeding up to 100m Industrial Hardened Design IP30 aluminum case DIN-rail and wall-mount designs Fault alarm for power input failure Supports 6KV DC Ethernet ESD protection -40 to 75 degrees C operating temperature 4 real-time PoE power usage indicators 48~54V DC redundant power with reverse polarity protection Layer 2 Switching Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 16K MAC address table size 12K jumbo frame IEEE 802.1Q VLAN transparency Automatic address learning and address aging Supports CSMA/CD protocol

Especificaciones técnicas

Copper Ports

8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

PoE Injector Ports

8 ports with 802.3bt PoE++ injector function (Ports1 to 8)

SFP Slots

4 10GBASE-X SFP+ interfaces(Ports 9 to 12) Backward compatible with 1000BASE-X SFP and 2500BASE-X SFP

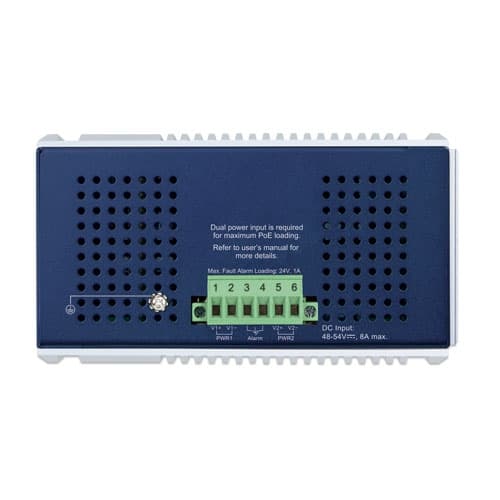

Connector

Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2

Power Requirements

48~54V DC, 8A max. Redundant power with reverse polarity protection function

Power Consumption

Max. 8.69 watts/29.63BTU (System on) Max. 387.2 watts/1320BTU (Ethernet + PoE Full Loading)

Dimensions (W x D x H)

76 x 135 x 152 mm

Weight

1352g

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount kit

ESD Protection

6KV

LED Indicators

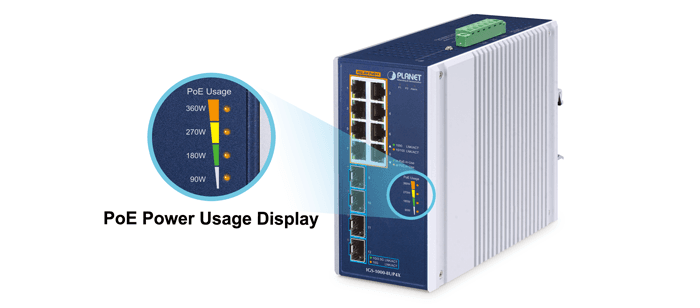

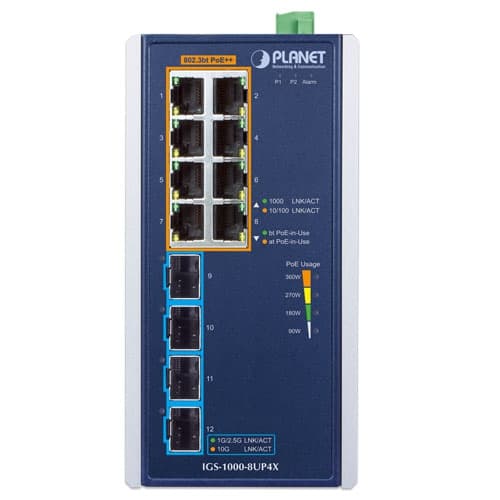

System: P1, P2 ( Green ), Alarm ( Red ) 10/100/1000BASE-T RJ45 Ports (Ports 1 to 8): 1000Mbps LNK/ACT ( Green ) 10/100Mbps LNK/ACT ( Amber ) 802.3bt PoE-in-Use ( Green ) 802.3at PoE-in-Use ( Amber ) 1G/2.5G/10Gbps SFP+ Ports (Ports 9 to 12): 1G/2.5G LNK/ACT ( Green ) 10G LNK/ACT ( Amber ) PoE Usage: 90W, 180W, 270W, 360W ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

96Gbps

Throughput (packet per second)

71.43Mpps@64bytes

Address Table

16K entries

Buffer Memory

12M bits on-chip buffer memory

Jumbo Frame

12Kbytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

PoE Standard

IEEE 802.3bt PoE++ PSE IEEE 802.3at PoE+ PSE

PoE Power Supply Type

802.3bt, End-span + Mid-span

PoE Power Output

Ports 1 to 8: 95 watts max.

Power Pin Assignment

Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Power Budget (max.)

Single power input: 240W maximum Dual power input: 360W maximum

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3bt Power over Ethernet Plus Plus PSE IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service

Temperature

Operating: -40~75 degrees C Storage: -40~75 degrees C

Humidity

Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
