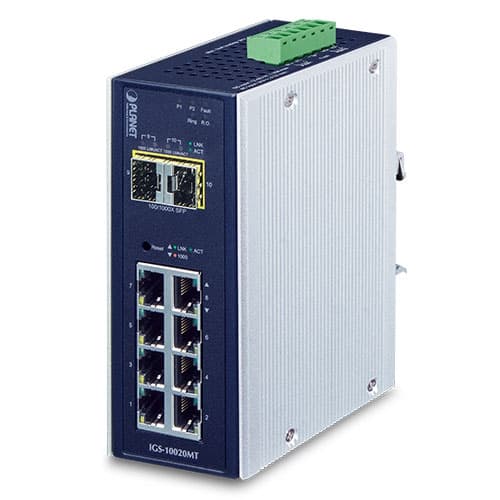

IGS-10020MT — Industrial 8-port 10/100/1000T + 2-port 1G/2.5G SFP Managed Gigabit Switch

Descripción

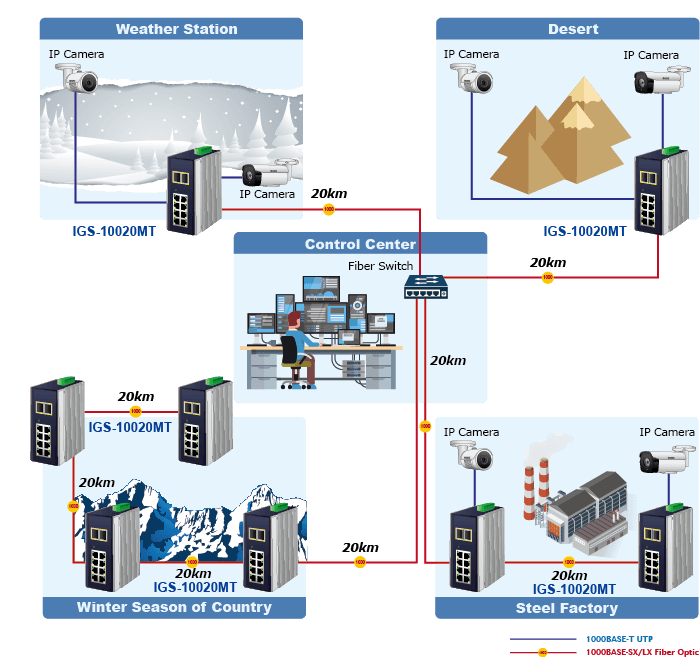

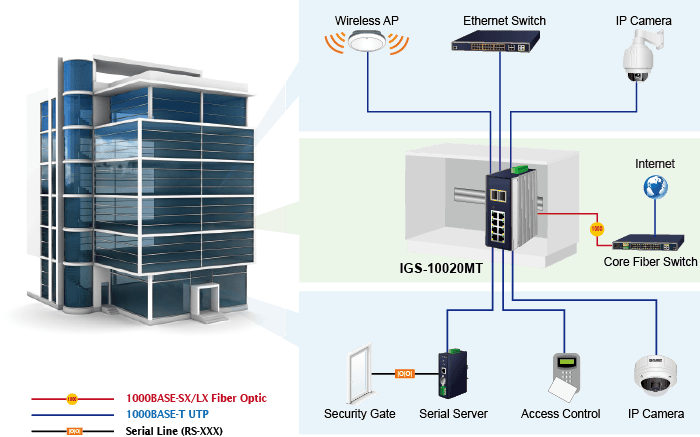

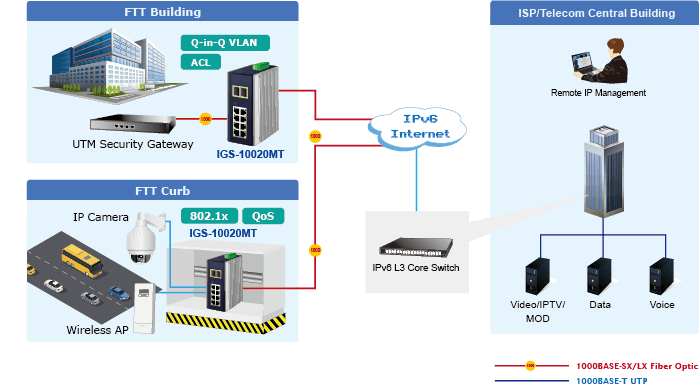

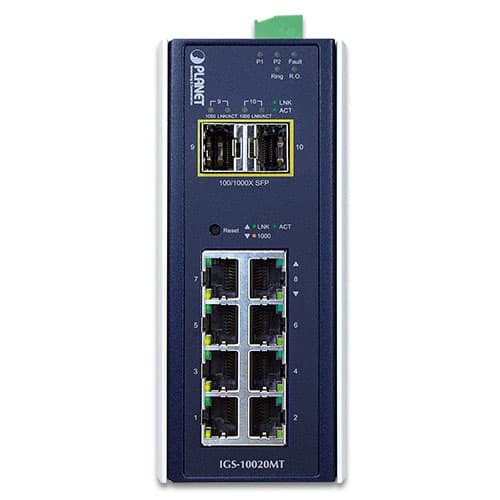

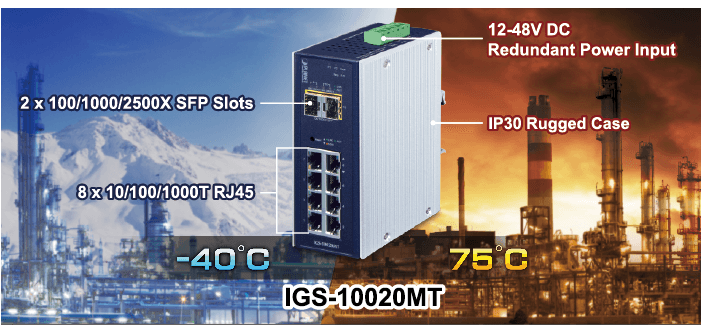

PLANET IGS-10020MT is a fully-managed Gigabit fiber switch usually designed for the industrial network. It features 8 10/100/1000BASE-T copper ports, 2 100/1000/2500BASE-X SFP ports and redundant power system in an IP30 rugged but compact-sized case that can be installed in any difficult environment without space limitation. Within such favorable enclosure, it provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. The IGS-10020MT can operate stably under the temperature range from -40 to 75 degrees C and allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2 100/1000/2500BASE-X SFP fiber slots , it can be flexibly applied to extend the connection distance. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature that virtually needs no effort and cost to have includes the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and TLS protocols are utilized to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. Redundant Ring, Fast Recovery for Surveillance System The IGS-10020MT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as 10ms. SMTP/SNMP Trap Event Alert The IGS-10020MT provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management To help customers stay on top of their businesses, the IGS-10020MT not only provides high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application. Robust Layer 2 Features The IGS-10020MT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-10020MT provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-10020MT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 trunk groups with 8 ports per trunk group, and supports fail-over as well. Efficient Management For efficient management, the IGS-10020MT is equipped with Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-10020MT offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-10020MT can be accessed via Telnet. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session. Powerful Security from Layer 2 to Layer 4 The IGS-10020MT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Flexibility and Extension Solution The additional two mini-GBIC slots built in the IGS-10020MT support triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 10/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism The IGS-10020MT supports SFP- DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. 1588 Time Protocol for Industrial Computing Networks The IGS-10020MT is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Modbus TCP Provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the IGS10020MT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the statuses of the industrial Ethernet switch , ports and communication , thus easily achieving enhanced monitoring and maintenance of the entire factory. Environmentally Hardened Design With IP30 aluminum industrial case protection, the IGS-10020MT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages ( 12 to 48V DC or 24V AC ) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-10020MT can be placed in almost any difficult environment. Applications Industrial Area Manageable Switch for Data Collection and Forwarding The IGS-10020MT offers high performance and high reliability to make sure the continuous industrial operation in harsh environments such as traffic control cabinets, factory floors, and the outdoor places where temperature is extremely low or high. With a non-blocking design and desktop size, the installation of the IGS-10020MT is easy and helpful to build a Gigabit high-bandwidth network quickly. To further expand the current network, the IGS-10020MT provides advanced Web and SNMP management interface to fulfill this kind of demand. With its built-in Web-based management function, the IGS-10020MT offers an easy-to-use, platform-independent management and configuration facility. It supports standard Simple Network Management Protocol (SNMP) that makes the managed switch able to be monitored via any standard-based management software. By adopting the IGS-10020MT which complies with all the requirements of industrial applications, customers may enjoy high reliability, fast recovery capability, and safe Ethernet network operation. Security Building Automation Switch The IGS-10020MT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. FTTx / MAN Edge Switch The IGS-10020MT provides a high-performance edge service for FTTx network solutions, such as FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises. Key Features Physical Port 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports 2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection Industrial Case and Installation IP30 aluminum case protection DIN-rail or wall-mount design Redundant power design - 12 to 48V DC, redundant power with polarity reverse protect function - AC 24V power adapter acceptable Supports 6000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature Industrial Protocol Modbus TCP for real-time monitoring in SCADA system IEEE 1588v2 PTP (Precision Time Protocol) transparent clock Layer 2 Features High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm Control support - Broadcast, Multicast and Unknown Unicast Supports VLAN - IEEE 802.1Q tagged VLAN - Up to 255 VLANs groups, out of 4095 VLAN IDs - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) - Private VLAN Edge (PVE) - Protocol-based VLAN - MAC-based VLAN - Voice VLAN - GVRP (GARP VLAN Registration Protocol) Supports Spanning Tree Protocol - IEEE 802.1D Spanning Tree Protocol (STP) - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN - BPDU Guard Supports Link Aggregation - 802.3ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (static trunk) - Maximum 5 trunk groups, up to 10 ports per trunk group - Up to 26Gbps bandwidth (duplex mode) Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Link Layer Discovery Protocol (LLDP) Layer 3 IP Routing Features Supports maximum 32 static routes and route summarization Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification - IEEE 802.1p CoS - IP TOS/DSCP/IP precedence - IP TCP/UDP port number - Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Multicast Supports IPv4 IGMP Snooping v1, v2 and v3 Supports IPv6 MLD Snooping v1 and v2 Querier mode support IPv4 IGMP Snooping port filtering IPv6 MLD Snooping port filtering MVR (Multicast VLAN Registration) Security Authentication - IEEE 802.1x Port-based/MAC-based network access authentication - Built-in RADIUS client to cooperate with the RADIUS servers - TACACS+ login users access authentication - RADIUS/TACACS+ users access authentication Access Control List - IP-based Access Control List (ACL) - MAC-based Access Control List Source MAC/IP address binding DHCP snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces - Telnet Command Line Interface - Web switch management - SNMP v1 and v2c switch management - SSH/TLS and SNMP v3 secure access SNMP Management - Four RMON groups (history, statistics, alarms, and events) - SNMP trap for interface Link Up and Link Down notification IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance - Firmware upload/download via HTTP/TFTP - Reset button for system reboot or reset to factory default - Dual Images DHCP Relay and DHCP Option 82 DHCP Server User Privilege levels control Network Time Protocol (NTP) SFP- DDM (Digital Diagnostic Monitor) Network Diagnositc - ICMPv6/ICMPv4 Remote Ping - Cable diagnostic technology provides the mechanism to detect and report potential cabling issues PLANET Smart Discovery Utility for deployment management

Especificaciones técnicas

Copper Ports

8 10/ 100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

2 100/1000/2500BASE-X mini-GBIC SFP ports (Port-9 and Port-10)

Switch Architecture

Store-and-Forward

Switch Fabric

26Gbps / non-blocking

Throughput (packet per second)

14.8Mpps

Address Table

8K entries, automatic source address learning and ageing

Shared Data Buffer

512 kilobytes

Flow Control

IEEE 802.3x pause frame for full duplex. Back pressure for half duplex

Jumbo Frame

9Kbytes

Reset Button

< 5 sec: System reboot > 5 sec: Factory Default

ESD Protection

6KV DC

Enclosure

IP30 aluminum metal case

Installation

DIN-rail kit and wall-mount kit

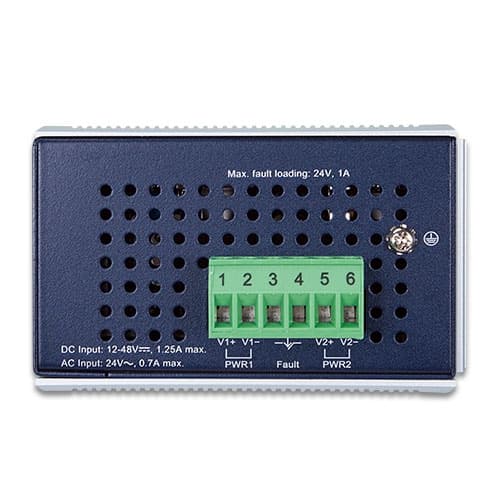

Connector

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V

LED Indicator

System: Power 1 ( Green ) Power 2 ( Green ) Fault Alarm ( Green ) Ring ( Green ) R.O. ( Green ) Per 10/100/1000T RJ-45 Ports: LNK/ACT ( Green ) 1000 ( Orange ) Per 100/1000/2500BASE-X SFP Interface: 1G/2.5G LNK/ACT ( Green ) 100 LNK/ACT ( Orange )

Dimensions (W x D x H)

56 x 87.8 x 135 mm

Weight

720g

Power Requirements

Dual 12~48V DC 24V AC

Power Consumption

10 watts / 34BTU (full loading)

Basic Management Interfaces

Web Browser, Remote Telnet, SNMP v1, v2c

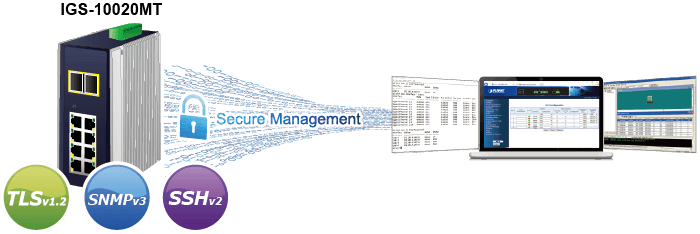

Secure Management Interface

SSHv2, TLSv1.2, SNMPv3

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, and trunk status.

Port Mirroring

TX/RX/Both Many to 1 monitor

VLAN

802.1Q tagged VLAN ,up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP / static trunk Support 5 trunk groups with 10 ports per trunk

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet

IGMP Snooping

IGMP (v1/v2/V3) Snooping, up to 255 multicast groups IGMP Querier mode support

MLD Snooping

MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support

Access Control List

IP-based ACL / MAC-based ACL Up to 123 entries

Bandwidth Control

Per port bandwidth control Ingress: Kbps: 100 to 3276700 kbps Mbps: 1 to 3276 Mbps fps: 100 to 3276700 fps kfbs: 1 to 3276 kfps Egress: Kbps: 100 to 3281943 kbps Mbps: 1 to 3281 Mbps

SNMP MIBs

RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Groups 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing IPv6 software static routing

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Standards Compliance

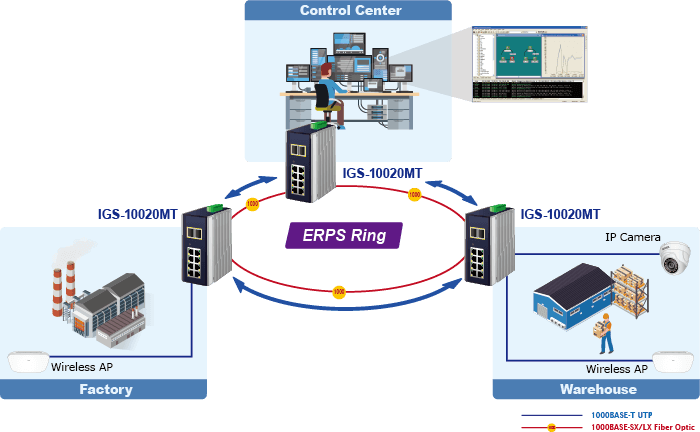

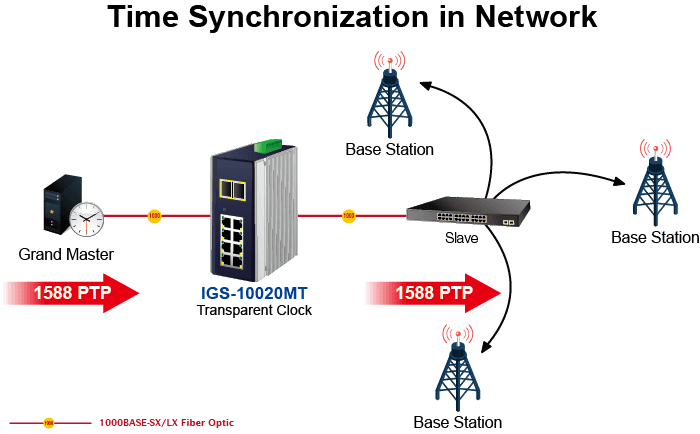

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3bz 2.5GBASE-X IEEE 802.3x flow control and back pressure IEEE 802.3az Energy-Efficient Ethernet IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management(CFM) IEEE 1588 PTPv2 RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2 ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring

Operating

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
