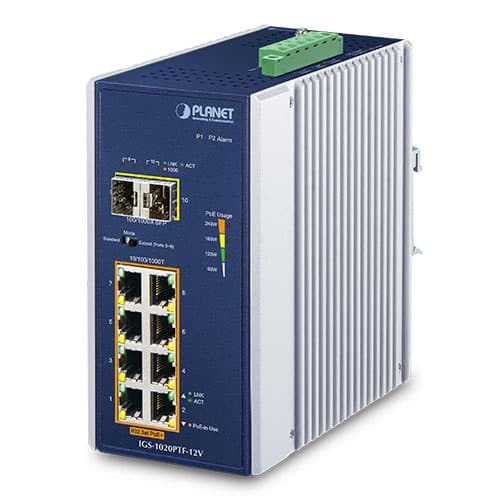

IGS-1020PTF-12V — Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch w/ 12V Booster

Descripción

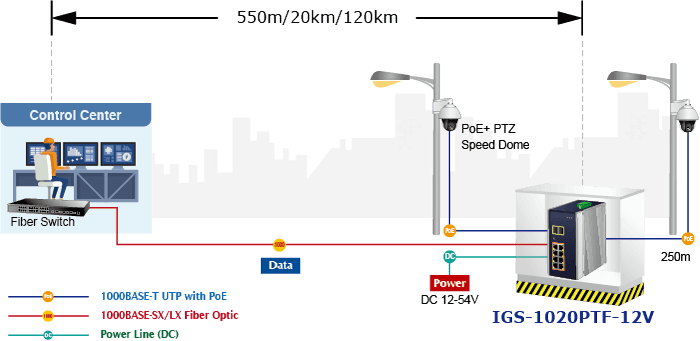

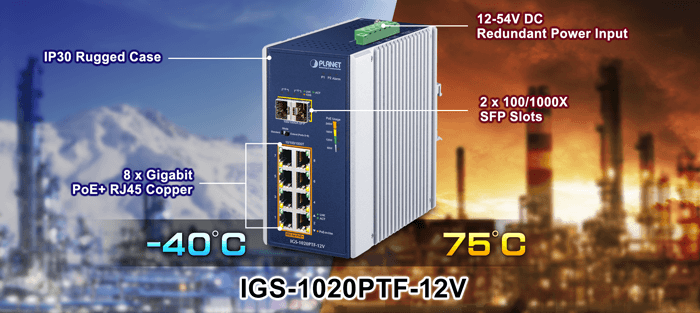

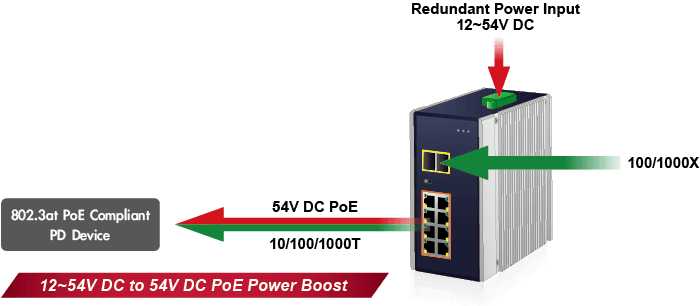

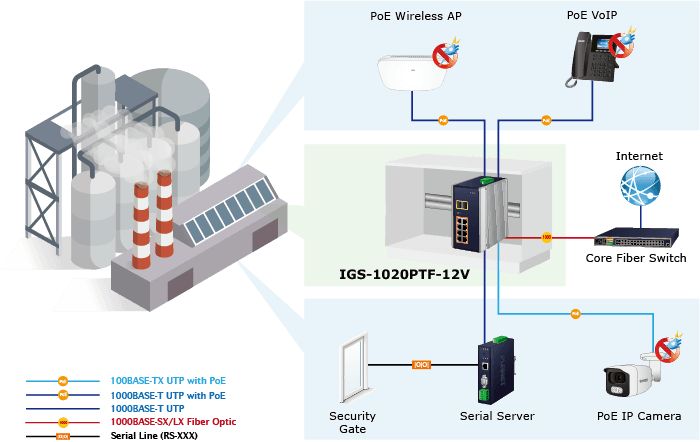

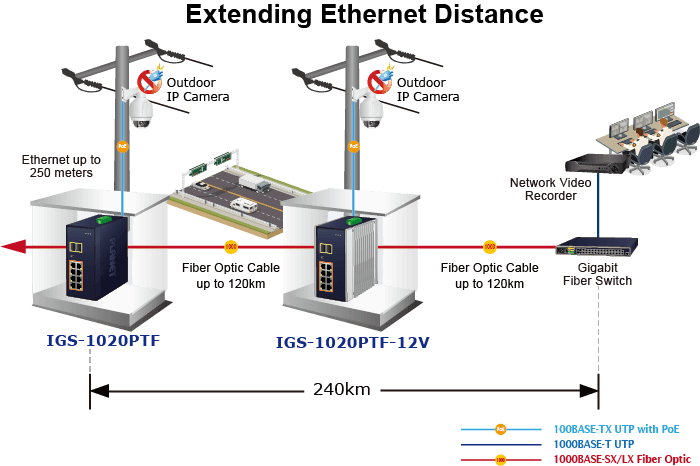

Cost-effective Full PoE+ Power and Gigabit Extension Solution Ideal for Hardened Environment Featuring Plug and Play designed to be installed in heavy industrial demanding environments, PLANET IGS-1020PTF-12V is an Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two 100/1000BASE-X fiber optic interfaces for uplink connection. The IGS-1020PTF-12V is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 aluminum housing. Convenient and Reliable Power System To facilitate the 802.3at PoE+ usage with the commonly-used 12~54V DC power input for transportation and industrial-level applications, the IGS-1020PTF-12V adopts 12~54V DC to 54V DC power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs. 802.3at PoE+ Power and Ethernet Data Transmission Extension The IGS-1020PTF-12V has a built-in solid DIP switch providing “ Standard ” and “ Extend ” operation modes. The IGS-1020PTF-12V operates as a normal IEEE 802.3at PoE+ Switch in the “ Standard ” operation mode. In the “ Extend ” operation mode, the IGS-1020PTF-12V operates on a per-port basis at 10Mbps full duplex operation and can support 20~25-watt PoE power output over a distance of up to 250 meters , overcoming the 100-meter limit on Ethernet UTP cable. Fiber Optic Link Capability for Flexible Distance Extension The additional two mini-GBIC slots built in the IGS-1020PTF-12V supports SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance. Environmentally-hardened Design With the IP30 aluminum industrial case, the IGS-1020PTF-12V provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from - 40 to 75 degrees C , the IGS-1020PTF-12V can be placed in almost any difficult environment. Robust Protection The IGS-1020PTF-12V provides contact discharge of ±6KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Intelligent LED Indicator for Real-time PoE Usage The IGS-1020PTF-12V helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “ PoE Power Usage ”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 60W, 120W, 180W and 240W of PoE power usage. Flexible and Easy Installation with Limited Space The IGS-1020PTF-12V is designed to be installed in different environments, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail mounting, thereby making its usability more flexible and easier in any space-limited location. Applications Industrial-grade PoE+ Switch for Building Automation and Security Suitable for buildings where security is strictly enforced, the IGS-1020PTF-12V, with eight Gigabit Ethernet 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-1020PTF-12V makes the installation of IP cameras or wireless APs easier and more efficient. Perfect Integration Solution for IP PoE Camera and NVR System The IGS-1020PTF-12V provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1000BASE-X SFP interfaces, the IGS-1020PTF-12V can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-1020PTF-12V facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-1020PTF-12V undoubtedly brings an ideal secure surveillance system at a lower total cost. Key Features Physical Port Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3af/at PoE+ Injector (Ports 1 to 8) Two 100/1000BASE-X SFP slots for SFP transceiver type auto detection (Ports 9 to 10) Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 8 ports of IEEE 802.3af/802.3at devices powered 240-watt PoE budget Supports PoE power up to 30 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters Industrial Case and Installation IP30 aluminum case DIN-rail and wall-mount designs 12~54V redundant power with reverse polarity protection Supports 6KV DC Ethernet ESD protection -40 to 75 degrees C operating temperature Switching Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 8K MAC address table size 20Gbps switch fabric 9K jumbo frame Hardware-based DIP switch for “ Standard ” and “ Extend ” mode selection; the “ Extend ” mode features 30-watt PoE transmission distance of 250m at speed of 10Mbps Automatic address learning and address aging

Especificaciones técnicas

Copper Ports

8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

PoE Injector Ports

8 ports with 802.3at PoE+ injector function (Ports 1 to 8)

SFP Slots

2 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10) Compatible with 100BASE-FX SFP

Connector

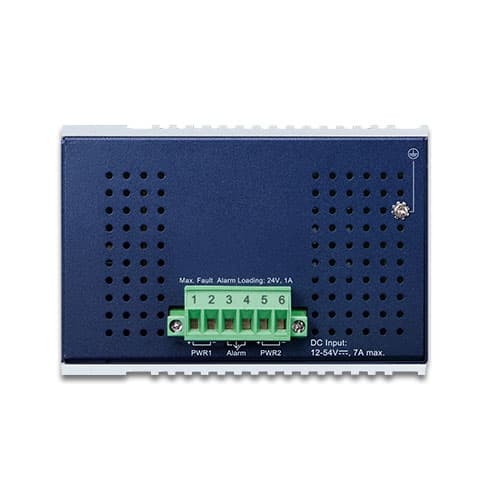

Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

DIP Switch

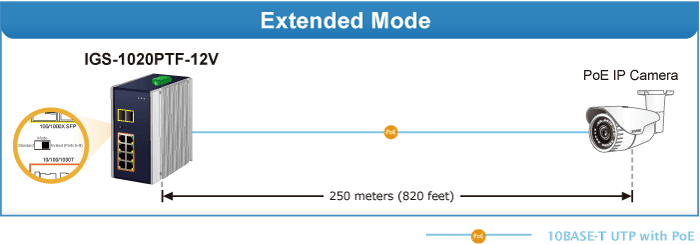

Standard/Extend mode (Extend mode for Ports 5 to 8 only)

Power Requirements

12~54V DC, 7A (max.)

Power Consumption

Max. 5.6 watts/19BTU@54V DC input (System) Max. 8.4 watts/29BTU@54V DC input (Ethernet Full Loading) Max. 265.1 watts/904BTU@54V DC input (Ethernet + PoE Full Loading)

Dimensions (W x D x H)

76.8 x 107.3 x 152mm

Weight

1133g

Enclosure

IP30 aluminum case

Installation

DIN-rail/ wall-mount

ESD Protection

6KV

LED Indicators

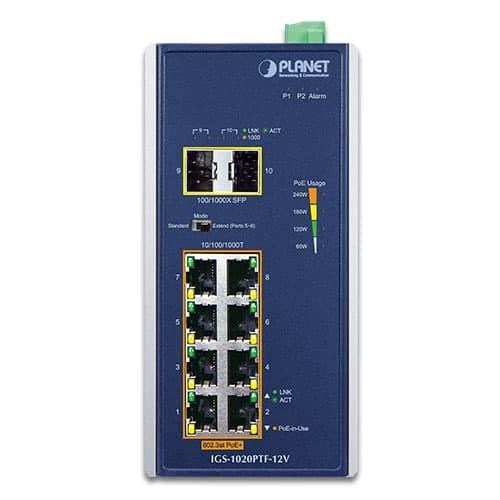

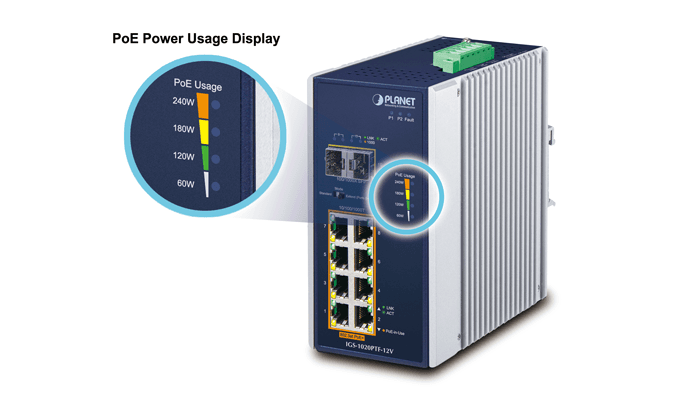

3 x LED for System and Power: Green : DC Power 1 Green : DC Power 2 Red : Power Fault Alarm 8 x LED for PoE Copper Port (Ports 1 to 8): Green : LNK/ACT (10/100/1000Mbps) Amber : PoE-in-Use 2 x LED for 100/1000X Fiber Port (Ports 9 to 10): Green : LNK/ACT (100/1000Mbps) Amber : 1000Mbps 4 x LED for PoE Usage Amber : 60W, 120W, 180W and 240W

Switch Architecture

Store-and-Forward

Switch Fabric

20Gbps

Throughput (packet per second)

14.8Mpps@64bytes

Address Table

8K entries

Buffer Memory

4M bits on-chip buffer memory

Jumbo Frame

9Kbytes

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type

End-span

Power Pin Assignment

1/2 (+), 3/6 (-)

PoE Power Output

Per port 54V DC, Max. 30 watts

PoE Power Budget (max.)

240W maximum @54V DC 120W maximum@24V DC 60W maximum@12V DC

Max. Number of Class 3 PDs@25W

8

Regulatory Compliance

FCC Part 15 Class A, CE, UL

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet

Temperature

Operating: -40~75 degrees C Storage: -40~85 degrees C

Humidity

Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)
