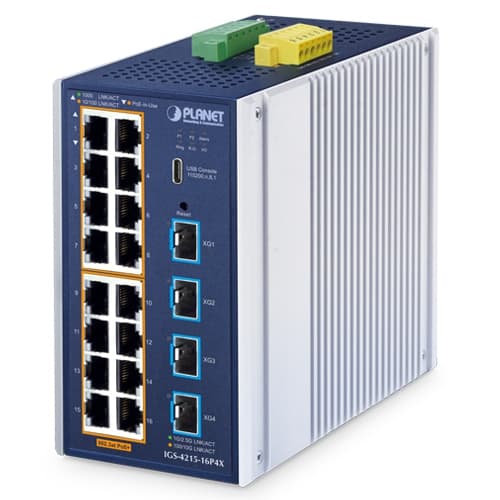

IGS-4215-16P4X — Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Managed Ethernet Switch

Descripción

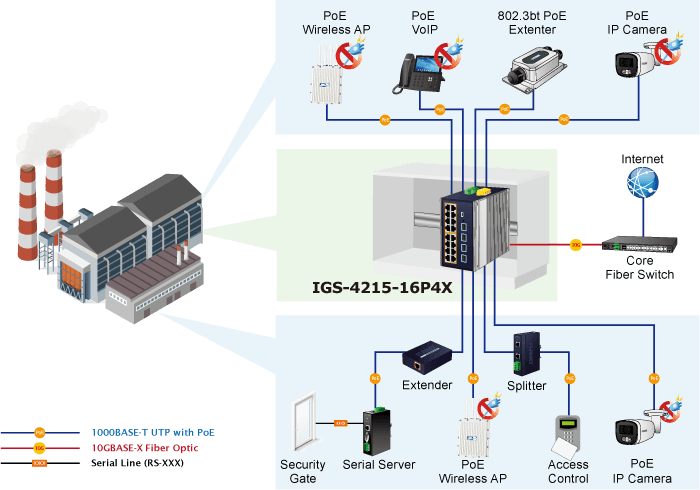

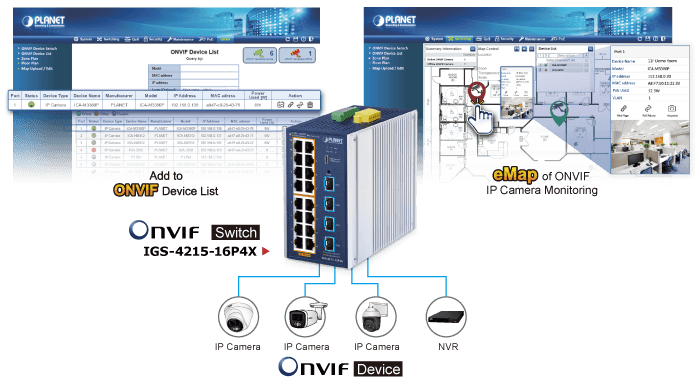

High-Performance L2+ PoE+ Solution with Static Routing The IGS-4215-16P4X is PLANET's Industrial-grade, DIN-rail L2+ Managed Gigabit PoE+ Switch, upgraded with L2+ static routing to enhance inter-VLAN communication and network efficiency. It offers 16 10/100/1000BASE-T ports with 802.3at PoE+ (up to 36W per port) and 4 10GBASE-X SFP+ fiber slots for high-speed uplinks. With a total PoE power budget of 360 watts (achievable only with dual power inputs), it supports diverse PoE applications, including IP cameras and wireless access points. Operating in extreme temperatures from -40 to 75°C , the IGS-4215-16P4X features advanced PoE management, IPv6/IPv4 dual stack support, and a rugged IP30 aluminum enclosure . Its USB Type-C console port ensures simple management, making it a reliable choice for demanding industrial environments. Cybersecurity Network Solution to Minimize Security Risks The IGS-4215-16P4X supports SSHv2 and TLSv1.3 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , Dynamic ARP Inspection Protection, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. Modbus TCP Provides Flexible Network Connectivity for Factory Automation The IGS-4215-16P4X supports the Modbus TCP protocol, allowing for easy integration with SCADA systems, HMI systems, and other data acquisition systems in factory floors. This enables administrators to remotely monitor the industrial Ethernet switch's operating information , port information , communication status, and DI/DO status, thereby enhancing monitoring and maintenance of the entire factory. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-4215-16P4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. Reliable Power and High-speed Data with IEEE 802.3at PoE+ Support The IGS-4215-16P4X is designed to meet the needs of networks with smaller to medium PoE power demands , complying with the IEEE 802.3at PoE+ standard. It delivers a total power capacity of 360 watts across its 16 PoE+ ports , with each port supporting up to 36 watts of power. This makes it ideal for powering a range of medium-power PoE-compliant devices (PDs) over standard Cat5e/6 Ethernet cabling. The IGS-4215-16P4X is better suited for applications with multiple devices that require moderate power. It’s an excellent choice for: PoE IP cameras Wireless access points (APs) IP phones and VoIP systems Digital signage displays Industrial IoT devices ONVIF Support Allows Effective and Centralized Control Over IP-based Security Products The IGS-4215-16P4X switch offers ONVIF support as part of its versatile feature set for seamless integration with IP surveillance cameras. Through the switch's web GUI, users can easily search for and display all ONVIF-compliant devices on their LAN. Users can also upload floor plans to the switch and place IP surveillance cameras on the plan for more intuitive planning and faster inspection in the future. Additionally, the web GUI provides real-time surveillance information, online/offline status, and the ability to remotely reboot cameras. Intelligent Powered Device Alive Check The IGS-4215-16P4X can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-16P4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden. Scheduled Power Recycling The IGS-4215-16P4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Savings Under the global trend of energy savings and contributing to environmental protection, the IGS-4215-16P4X can effectively control the power supply besides its capability of giving high watts power. The “ PoE schedule ” function helps you enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours. 802.3at PoE+ Power and Ethernet Data Transmission Distance Extension In the "Extend" operation mode, the IGS-4215-16P4X operates on a per-port basis with a 10Mbps duplex configuration. It can deliver 15-watt PoE power output over a distance of up to 250 meters , exceeding the standard 100-meter Ethernet UTP cable limit. This extended range allows PoE power to be supplied over longer distances without the need for additional cabling or electrical outlets, significantly reducing installation costs while maintaining network reliability. Effective Alarm Alert for Better Protection The IGS-4215-16P4X incorporates a Fault Alarm feature that promptly notifies users of any issues with the switches. This valuable feature eliminates the need for users to spend time locating the problem, resulting in significant time and human resource savings. Digital Input and Digital Output for External Alarm The IGS-4215-16P4X supports Digital Input and Digital Output through a terminal block located on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-4215-16P4X port shows “link down”, “link up” or “power failure”. Environmentally Hardened Design With the IP30 aluminum industrial case, the IGS-4215-16P4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 °C, the IGS-4215-16P4X can be placed in almost any difficult environment. Robust Protection The IGS-4215-16P4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management The IGS-4215-16P4X switch delivers high-performance transmission and advanced Layer 2 and Layer 4 functionalities, along with Layer 3 IPv4 and IPv6 static routing. This capability enables efficient routing between different VLANs and IP addresses, offering a secure, flexible, and straightforward networking solution for diverse applications. Robust Layer 2 Features The IGS-4215-16P4X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP) , loop and BPDU guard , IGMP snooping , and MLD snooping . With dynamic port link aggregation, the switch enables the creation of a high-speed trunk. For instance, it can combine four 10G ports, creating a resilient 40Gbps connection with fail-over support. Additionally, the inclusion of Link Layer Discovery Protocol (LLDP) enhances Layer 2 functionality by providing essential information about neighboring devices within the local broadcast domain. Efficient Traffic Control The IGS-4215-16P4X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking . It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Enhancing Network Security PLANET IGS-4215-16P4X offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Ensuring Network Integrity The IGS-4215-16P4X also provides DHCP Snooping , IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Its accuracy, consistency, and reliability of data can be transmitted across a network. Moreover, it ensures that information remains unaltered during transmission and that the network itself is secure from unauthorized access or attacks. User-friendly and Secure Management For efficient management, the IGS-4215-16P4X is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-4215-16P4X offers an easy-to-use, platform-independent management and configuration facility. For text-based command line management, it can be accessed via Telnet, SSH and the console port. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Moreover, the IGS-4215-16P4X offers secure remote management by supporting SSHv2, TLSv1.3 and SNMPv3 connections which encrypt the packet content at each session. Flexible Long-distance Extension Solution The emergence of 10G Ethernet marks a significant advancement in Ethernet technology. The IGS-4215-16P4X is a powerful networking device that offers four 10G SFP+ slots capable of supporting three different speeds. These slots can operate at 10GBASE-SR/LR or 100M/1G/2.5GBASE-SX/LX backwards , providing administrators with flexibility in choosing the most suitable SFP/SFP+ transceiver based on the required transmission distance and speed. With ample bandwidth and robust processing capacity, the IGS-4215-16P4X provides an efficient solution for administrators seeking to enhance their network infrastructure. Intelligent SFP Diagnosis Mechanism The IGS-4215-16P4X supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and CloudViewerPro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the IGS-4215-16P4X, from remote locations. Tailored for deployment in both enterprises and industries where the IGS-4215-16P4X is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. With UNI-NMS or the CloudViewerPro app, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight. Applications Industrial-grade PoE+ Switch for Building Automation and Security Ideal for buildings with strict security requirements, the IGS-4215-16P4X , with its 16 802.3at PoE+ ports , is well-suited for creating a centrally managed power and network system for IP phone systems, IP surveillance, and wireless AP groups in industrial environments. For instance, up to 16 PoE IP cameras or wireless APs can be installed to meet surveillance needs or establish a wireless roaming network in industrial areas. By eliminating power socket limitations, the IGS-4215-16P4X simplifies the installation of IP cameras and wireless APs, enhancing efficiency and flexibility. Perfect Integration Solution for IP PoE Camera and NVR System The IGS-4215-16P4X features 16 10/100/1000BASE-T 802.3at PoE+ ports , providing ample power for up to 16 PoE IP cameras simultaneously. Additionally, its four 10GBASE-X SFP+ interfaces allow for seamless connection to a core fiber switch, enabling video streams to be sent to an NVR and monitoring center. With its high-performance switch architecture, the IGS-4215-16P4X ensures that recorded video files from all connected cameras are efficiently stored in the NVR system. Furthermore, the NVR system can be managed and monitored locally over the LAN or remotely via the Internet. The IGS-4215-16P4X delivers a reliable and cost-effective solution for secure surveillance systems. Key Features Physical Port 16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports PoE Functionality: 16 ports with IEEE 802.3at PoE+ injector function 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100M/1G/2.5GBASE-X SFP One USB Type C console interface for basic management and setup Power over Ethernet Powers up to 16 ports of IEEE 802.3at PoE+ devices PoE budget Dual power input: 360W Single power input: 240W Supports PoE power up to 36 watts for each PoE+ port Auto detects powered devices (PDs) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters in standard mode and 250m in extended mode PoE management Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation PD classification detection Intelligent PoE features Temperature threshold control PoE extension PD alive check PoE schedule Industrial Protocol Modbus TCP for real-time monitoring in the SCADA system Industrial Case and Installation IP30 aluminum case DIN-rail and wall-mount designs IGS-4215-16P4X : 48~54V DC (redundant power with reverse polarity protection) Supports 6KVDC Ethernet ESD protection -40 to 75 °C operating temperature Digital Input and Digital Output 2 digital input (DI) 2 digital output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via SNMP trap Switching Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 32K MAC address table size 12K jumbo frame Automatic address learning and address aging Layer 3 IP Routing Features Supports maximum 32 static routes and route summarization Routing interface provides per VLAN routing mode Layer 2 Features Supports VLAN IEEE 802.1Q tagged VLAN Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support Protocol VLAN Voice VLAN Private VLAN (Protected port) Management VLAN GVRP Supports Spanning Tree Protocol STP (Spanning Tree Protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (Multiple Spanning Tree Protocol) STP BPDU Guard, BPDU Filtering and BPDU Forwarding Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 8 trunk groups, up to 8 ports per trunk group Supports port mirror (many-to-1) Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Link Layer Discovery Protocol (LLDP) Quality of Service Ingress/Egress Rate Limit per port bandwidth control Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies Multicast Supports IPv4 IGMP snooping v2, v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering Security Storm Control support Broadcast / Multicast / Unknown Unicast Authentication Built-in RADIUS client to cooperate with the RADIUS servers DHCP Option 82 RADIUS/TACACS+ authentication Access Control List IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE MAC Security Static MAC MAC filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks DoS attack prevention Management IPv4 and IPv6 dual stack management Switch Management Interface Web switch management Console/Telnet Command Line Interface SNMP v1 and v2c switch management SSHv2, TLSv1.3 and SNMPv3 secure access SNMP Management SNMP trap for interface Link Up and Link Down notification Four RMON groups (history, statistics, alarms and events) User privilege levels control Built-in Trivial File Transfer Protocol (TFTP) client Static and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Configuration upload/download through HTTP/TFTP Dual images Hardware reset button for system reboot or reset to factory default SNTP Network Time Protocol Network Diagnostic Cable diagnostics ICMPv6/ICMPv4 Remote Ping SFP-DDM (Digital Diagnostic Monitor) Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED Event message logging to remote syslog server PLANET Smart Discovery Utility for deployment management PLANET NMS system, NMSViewerPro, and CloudViewer/CloudViewerPro for deployment management

Especificaciones técnicas

Copper Ports

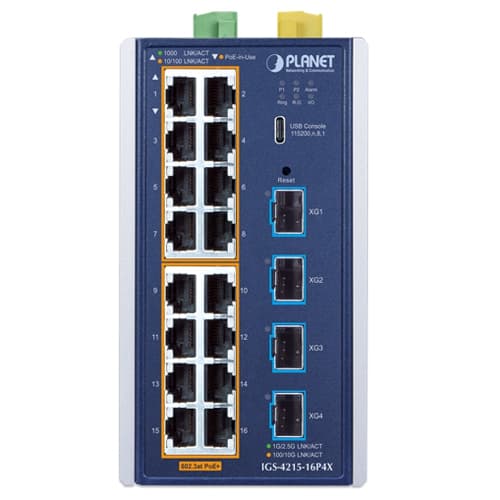

16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 16)

PoE Injector Port

16 ports with 802.3at PoE+ injector function (Ports 1 to 16)

SFP+ Ports

4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4) Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX SFP transceivers

Console

1 x USB Type C to RS232 serial port (115200,8, N, 1)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Connector

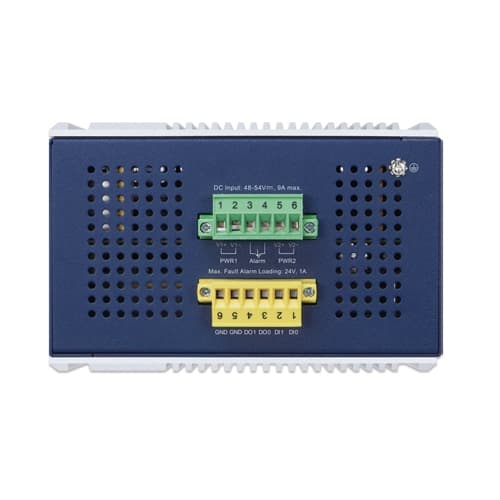

Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

Alarm

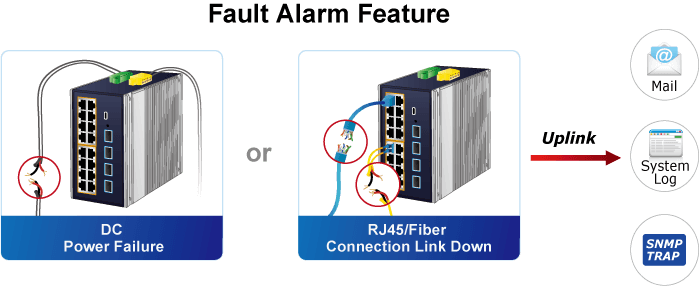

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC

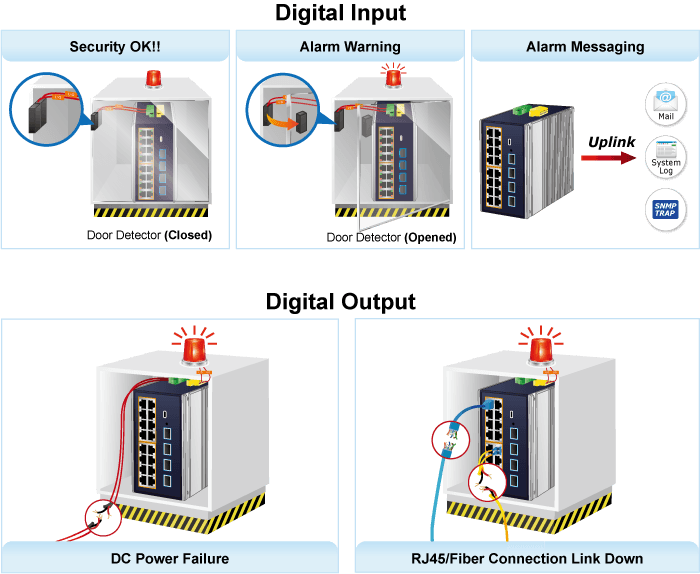

Digital input (DI)

2 digital input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max.

Digital output (DO)

2 digital output (DO): Open collector to 24V DC, 100mA max.

Power Requirements

48~54V DC, 9A (max.)

Power Consumption/ Dissipation

DC (system on) Max. 9.1 watts / 31.06BTU DC (Full loading) Max. 402 watts/1,372.1BTU

Dimensions (W x D x H)

86 x 135 x 152 mm

Weight

1,754g

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount ear

ESD Protection

Contact Discharge 6KV DC Air Discharge 8KV DC

LED

System: Power 1 ( Green ) Power 2 ( Green ) Alarm ( Red ) Ring ( Green ) R.O.( Green ) I/O ( Red ) Per 10/100/1000T RJ45 PoE+ Port: Up 1000 LNK/ACT ( Green ) 10/100 LNK/ACT ( Amber ) Down PoE-in-Use ( Amber ) Per 10G SFP Interface: 1G/2.5G LNK/ACT ( Green ) 100/10G LNK/ACT ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

112Gbps/non-blocking

Switch Throughput@64 bytes

83.33Mpps @64 bytes

MAC Address Table

32K entries

Shared Data Buffer

12Mbits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

12 Kbytes

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type

End-span

Power Pin Assignment

802.3at PoE: End-span: 1/2(+), 3/6(-)

PoE Power Output

IEEE 802.3af Standard Per port 48V~51V DC, max. 15.4 watts IEEE 802.3at Standard Per port 51V~54V DC, max. 36 watts

PoE Power Budget

Single power input: 240W maximum (depending on power input) Dual power input: 360W maximum (depending on power input) ※Dual power input must be the same as DC voltage, like dual 54V.

Max. Number of Class 2 PDs (~6.5 watts)

16

Max. Number of Class 3 PDs (~13 watts)

16

Max. Number of Class 4 PDs (~25.5 watts)

12

PoE Management

PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension

Enhanced PoE Mode

Standard/Legacy/Force

Active PoE Device Live Detection

Yes

PoE Power Recycling

Yes, daily or predefined schedule

PoE Schedule

4 schedule profiles

PoE Extend Mode

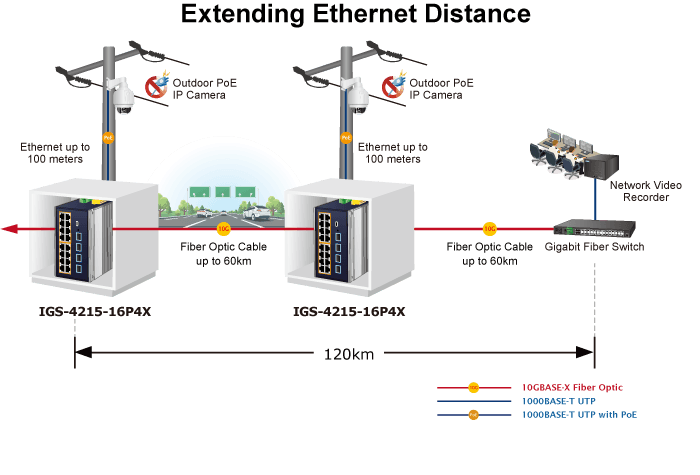

Yes, max. up to 250 meters

Port Mirroring

TX/RX/Both Many-to-1 monitor Up to 4 sessions

VLAN

802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP snooping v2, v3 IGMP Querier Up to 256 multicast groups

MLD Snooping

IPv6 MLD snooping v2, v3, up to 256 multicast groups

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE

QoS

8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control

Ring

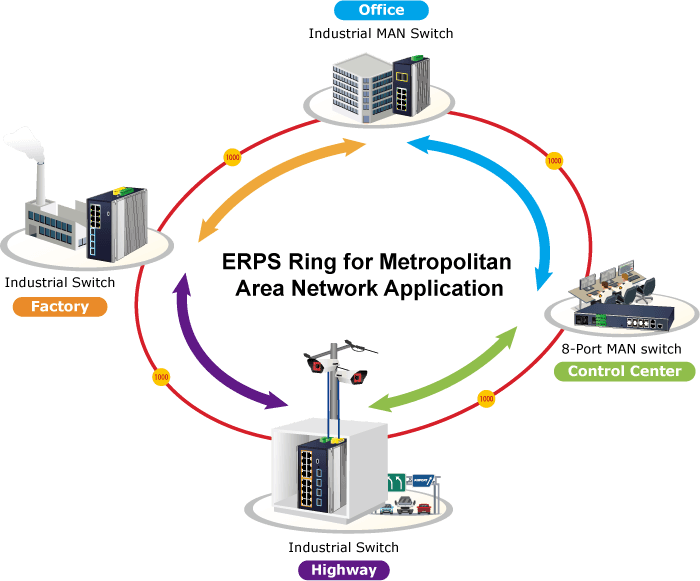

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms

IP Interfaces

Max. 64 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4/IPv6 hardware static routing

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries

Port Security

Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding MAC filtering Static MAC address, max. 256 static MAC entries

Enhanced Security

DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard

Basic Management Interfaces

USB to RS232 Console Web browser Telnet SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.3, SNMPv3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer/CloudViewerPro

Event Management

Remote/Local Syslog System log

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
