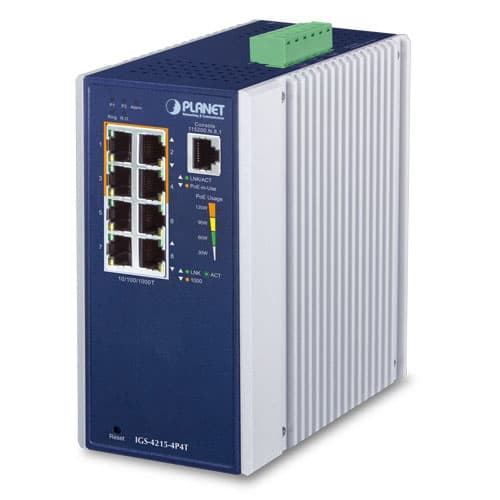

IGS-4215-4P4T — Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T Managed Switch

Descripción

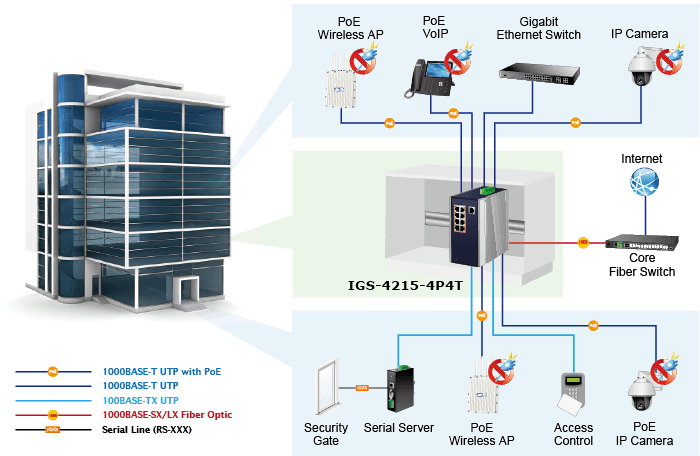

Cost-optimized Full PoE+ Power Solution Ideal for Hardened Environment Designed to be installed in heavy industrial demanding environments, the IGS-4215-4P4T is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 4 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, 4 additional Gigabit copper ports . The IGS-4215-4P4T is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 144 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Cybersecurity Network Solution to Minimize Security Risks The IGS-4215-4P4T supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , dynamic ARP Inspection Protection , 802.1x port-based network access control, RADIUS and T ACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-4215-4P4T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. Built-in Unique PoE Functions for Powered Devices Management As the industrial PoE+ managed switch for surveillance, wireless and VoIP networks, the IGS-4215-4P4T features special PoE management functions: PD alive check Scheduled power recycling PoE schedule PoE usage monitoring PoE extension Intelligent Powered Device Alive Check The IGS-4215-4P4T can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-4P4T will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden. Scheduled Power Recycling The IGS-4215-4P4T allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Savings Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-4P4T can effectively control the power supply besides its capability of giving high watts power. The “ PoE schedule ” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours. Intelligent LED Indicator for Real-time PoE Usage Monitoring Via the power usage chart in the web management interface, the IGS-4215-4P4T enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the IGS-4215-4P4T helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “ PoE Power Usage ”, the front panel of the IGS-4215-4P4T has four amber LEDs indicating four different PoE power usages, namely 30W, 60W, 90W, and 120W. 802.3at PoE+ Power and Ethernet Data Transmission Distance Extension In the “ Extend ” operation mode, the IGS-4215-4P4T operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-4215-4P4T provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. Environmentally Hardened Design With the IP30 aluminum industrial case, the IGS-4215-4P4T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-4P4T can be placed in almost any difficult environment. Robust Protection The IGS-4215-4P4T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the IGS-4215-4P4T helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Robust Layer 2 Features The IGS-4215-4P4T can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN , Multiple Spanning Tree Protocol (MSTP) , loop and BPDU guard , IGMP snooping , and MLD snooping . Via the link aggregation, the IGS-4215-4P4T allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic Control The IGS-4215-4P4T is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Powerful Security PLANET IGS-4215-4P4T offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. User-friendly and Secure Management For efficient management, the IGS-4215-4P4T is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-4215-4P4T offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Moreover, the IGS-4215-4P4T offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session. Applications ITU-T G.8032 ERPS Makes Data Transmission Uninterrupted The IGS-4215-4P4T features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the IGS-4215-4P4T can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The IGS-4215-4P4T can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled. Industrial-grade PoE+ Switch for Building Automation and Security Suitable for buildings where security is strictly to be enforced, the IGS-4215-4P4T, with 4 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-4215-4P4T makes the installation of IP cameras or wireless APs easier and more efficient. Key Features Physical Port Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Ports 1 to 8) Four ports with IEEE 802.3at/af PoE+ Injector function (Ports 1 to 4) One RJ45 console interface for basic management and setup Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE Backward compatible with IEEE 802.3af Power over Ethernet Up to 4 ports of IEEE 802.3af/802.3at devices powered 144-watt PoE budget Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters in standard mode and 250m in extend mode PoE management Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation PD classification detection Intelligent PoE features PD alive check PoE schedule Industrial Case and Installation IP30 aluminum case DIN rail and wall-mount design 48~54V DC, redundant power with reverse polarity protection Supports 6000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature Switching Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 8K MAC address table size 10K jumbo frame Automatic address learning and address aging Layer 2 Features Supports VLAN IEEE 802.1Q tagged VLAN Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support Protocol VLAN Voice VLAN Private VLAN (Protected port) Management VLAN GVRP Supports Spanning Tree Protocol STP (Spanning Tree Protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (Multiple Spanning Tree Protocol) STP BPDU Guard, BPDU Filtering and BPDU Forwarding Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Supports 4 groups with 8 ports per trunk Provides port mirror (many-to-1) Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Link Layer Discovery Protocol (LLDP) Quality of Service Ingress/Egress Rate Limit per port bandwidth control Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies Multicast Supports IPv4 IGMP snooping v2, v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering Security Storm Control support Broadcast/ unknown multicast/unknown unicast Authentication IEEE 802.1X port-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers DHCP Option 82 RADIUS/TACACS+ authentication Access Control List IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE MAC Security Static MAC MAC filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks DoS attack prevention Management IPv4 and IPv6 dual stack management Switch Management Interface Web switch management Console/Telnet Command Line Interface SNMP v1 and v2c switch management SSHv2, TLSv1.2 and SNMP v3 secure access SNMP Management SNMP trap for interface Link Up and Link Down notification Four RMON groups (history, statistics, alarms and events) User privilege levels control Built-in Trivial File Transfer Protocol (TFTP) client Static and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Configuration upload/download through HTTP/TFTP Dual images Hardware reset button for system reboot or reset to factory default SNTP Network Time Protocol Network Diagnostic Cable diagnostics ICMPv6/ICMPv4 Remote Ping Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED Event message logging to remote syslog server PLANET Smart Discovery Utility for deployment management PLANET NMS system and CloudViewer for deployment management

Especificaciones técnicas

Copper Ports

Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)

PoE Injector Port

Four ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 4)

Console

1 x RS232-to-RJ45 serial port (115200,8, N, 1)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Connector

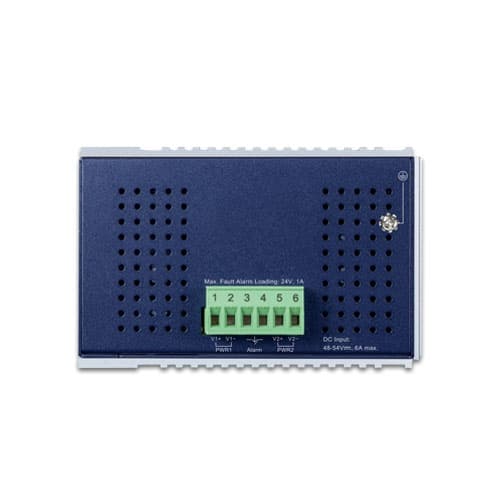

Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC

Power Requirements

48~54V DC, 6A (max.) (>51V DC for PoE+ output recommended)

Power Consumption/ Dissipation

Max.4.32 watts/14.73BTU (system on) Max. 151 watts/514.91BTU (Full loading)

Dimensions (W x D x H)

76.8 x 107.3 x 152 mm

Weight

1000g

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount ear

ESD Protection

Contact Discharge 6KV DC Air Discharge 8KV DC

LED

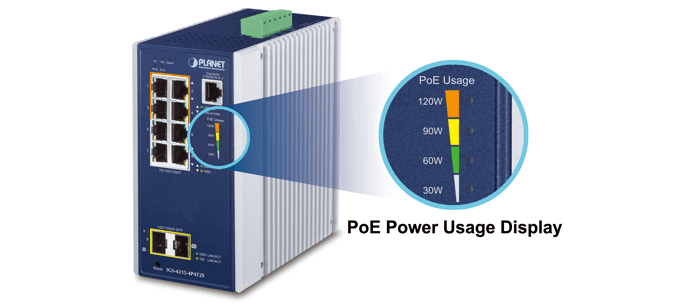

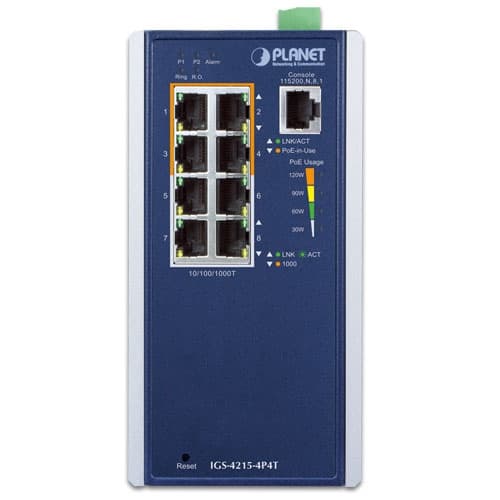

System: Power 1 ( Green ) Power 2 ( Green ) Fault Alarm ( Red ) Ring ( Green ) R.O.( Green ) Per 10/100/1000T RJ45 PoE+ Ports (Port 1~Port 4) LNK/ACT ( Green ) PoE-in-Use ( Amber ) Per 10/100/1000T RJ45Ports (Port 5~Port 8) LNK/ACT ( Green ) 1000 LNK ( Amber ) PoE Usage: 30W, 60W, 90W, 120W ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

16Gbps/non-blocking

Switch Throughput@64 bytes

11.9Mpps @64 bytes

MAC Address Table

8K entries

Shared Data Buffer

4.1 megabits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

10 Kbytes

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type

End-span

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Output

IEEE 802.3af Standard Per port 48V~51V DC, max. 15.4 watts IEEE 802.3at Standard Per port 51V~54V DC, max. 36 watts

PoE Power Budget

Maximum 144W (depending on power input)

Max. Number of Class 2 PDs

4

Max. Number of Class 3 PDs

4

Max. Number of Class 4 PDs

4

PoE Management

PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension

Enhanced PoE Mode

Standard/Legacy/Force

Active PoE Device Live Detection

Yes

PoE Power Recycling

Yes, daily or predefined schedule

PoE Schedule

4 schedule profiles

PoE Extend Mode

Yes, max. up to 250 meters

Port Mirroring

TX/RX/Both Many-to-1 monitor Up to 4 sessions

VLAN

802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP and static trunk Supports 4 groups with 8 ports per trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups

MLD Snooping

IPv6 MLD snooping v2, v3, up to 256 multicast groups

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE

QoS

8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries

Port Security

IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries

Enhanced Security

DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard

Basic Management Interfaces

RS232 to RJ45 Console Web browser Telnet SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer

Event Management

Remote/Local Syslog System log

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU G.8032 ERPS Ring

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
