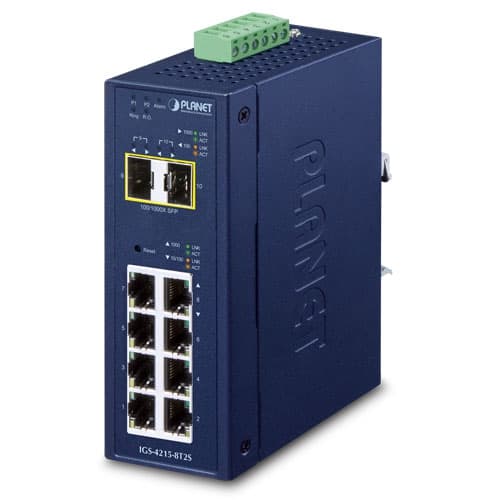

IGS-4215-8T2S — Industrial L2/L4 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

Descripción

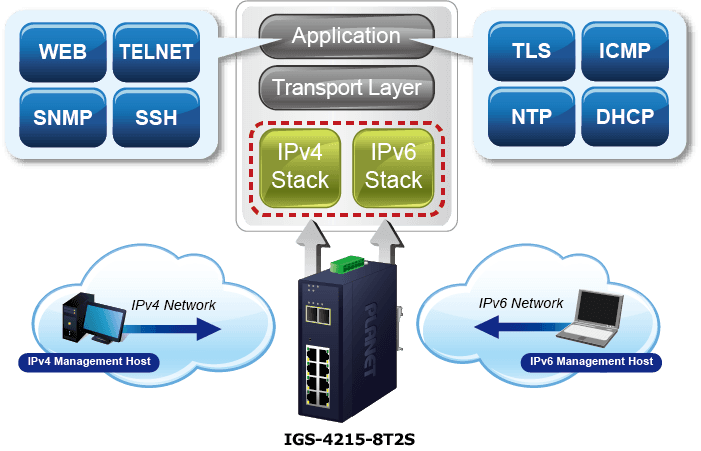

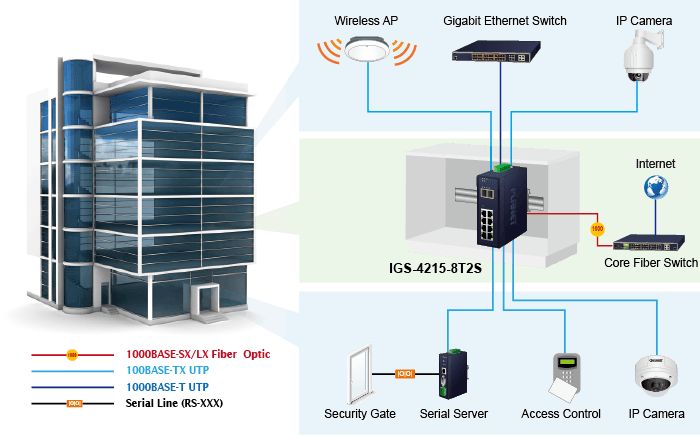

Robustly Designed for Critical Business Applications Designed to be installed in heavy industrial demanding environments, the IGS-4215-8T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit Switch family to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports , and 2 extra 100/1000BASE-X SFP fiber ports for data and video uplink. The IGS-4215-8T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Environmentally Hardened Design With the IP30 industrial case, the IGS-4215-8T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-8T2S can be placed in almost any difficult environment. Robust Protection The IGS-4215-8T2S provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Redundant Ring, Fast Recovery for Surveillance System The IGS-4215-8T2S supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as < 450ms. Robust Layer 2 Features The IGS-4215-8T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP) , loop and BPDU guard , IGMP snooping , and MLD snooping . Via the link aggregation, the IGS-4215-8T2S allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the IGS-4215-8T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Efficient Traffic Control The IGS-4215-8T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control , per port bandwidth control , 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. User-friendly and Secure Management For efficient management, the IGS-4215-8T2S is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-4215-8T2S offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and SSHv2 protocol. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. . Powerful Security from Layer 2 to Layer 4 PLANET IGS-4215-8T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port Security function allows limiting the number of network devices on a given port. Advanced Network Security The IGS-4215-8T2S also provides DHCP Snooping , IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Flexibility and Long-distance Extension Solution The two additional SFP slots built in the IGS-4215-8T2S support 100BASE-FX /1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism The IGS-4215-8T2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Applications Industrial-grade Switch for Building Automation and Security Suitable for buildings where security is strictly to be enforced, the IGS-4215-8T2S, with eight high-speed Gigabit Ethernet interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. Model that Withstands Harsh Operation and Extends Distance The IGS-4215-8T2S is made to withstand any harsh operation in such environments as traffic control cabinets, factory floors, and indoor and outdoor locations where temperatures are extremely high or low. With a non-blocking design and compact size, the installation of the IGS-4215-8T2S is easy and helpful to build a Gigabit high-bandwidth switched network quickly. Key Features Physical Port 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function 2-port 100/1000BASE-X SFP transceiver type auto detection Industrial Case and Installation Dual power input, redundant power with reverse polarity protection DC 9 to 48V input or AC 24V input Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience IP30 metal case DIN-rail and wall-mount designs Supports ESD 6KV DC Ethernet protection Supports -40 to 75 degrees C operating temperature Free fall, shock-proof and vibration-proof for industries Switching Features Store-and-Forward mode with wire-speed filtering and forwarding rates IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 8K MAC address table size 9K jumbo frame Automatic address learning and address aging Supports CSMA/CD protocol Layer 2 Features Supports VLAN IEEE 802.1Q tagged VLAN Up to 256 VLAN groups, out of 4096 VLAN IDs Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support Private VLAN (Protected port) Protocol-based VLAN MAC-based VLAN Voice VLAN GVRP (GARP VLAN Registration Protocol) Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Up to 5 trunk groups Up to 10 ports per trunk group with 20Gbps bandwidth Provides port mirror (many-to-1) IPv6 MAC/VLAN/Multicast Address Table Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Link Layer Discovery Protocol (LLDP) Quality of Service Ingress/Egress Rate Limit per port bandwidth control Supports 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS IP TOS/DSCP/IP precedence of IPv4/IPv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Multicast Supports IPv4 IGMP snooping v1, v2, v3 Supports IPv6 MLD snooping v1, v2 Querier mode support IGMP snooping port filtering MLD snooping port filtering Security Storm Control support Broadcast/Multicast/Unicast Authentication IEEE 802.1X port-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers DHCP Relay and DHCP Option 82 RADIUS/TACACS+ users access authentication Access Control List IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE MAC Security Static MAC MAC filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interface IPv4/IPv6 Web switch management Console and telnet Command Line Interface SNMP v1, v2c, v3 SSHv2, TLSv1.2 secure access IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client Static and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Hardware reset button for system reboot or reset to factory default Dual images User Privilege levels control Network Time Protocol (NTP) Link Layer Discovery Protocol (LLDP) and LLDP-MED Syslog remote alarm SNMP Management SNMP trap for interface link up and link down notification Four RMON groups (history, statistics, alarms and events) PLANET Smart Discovery Utility for deployment management PLANET UNI-NMS (Universal Network Management) and Smart Discovery Utility for deployment management Network diagnostic SFP-DDM (Digital Diagnostic Monitor) Cable diagnostic technology provides the mechanism to detect and report potential cabling issues ICMPv6 / ICMPv4 remote pin

Especificaciones técnicas

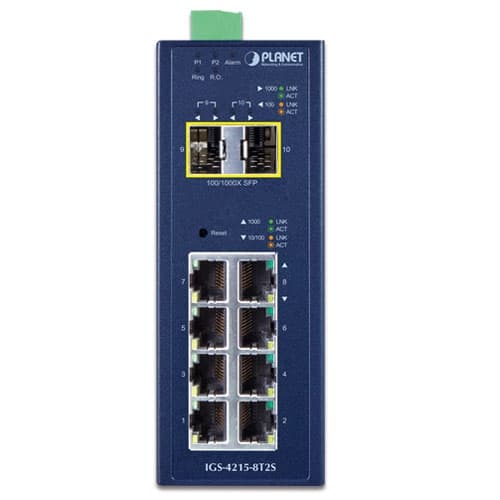

Copper Ports

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

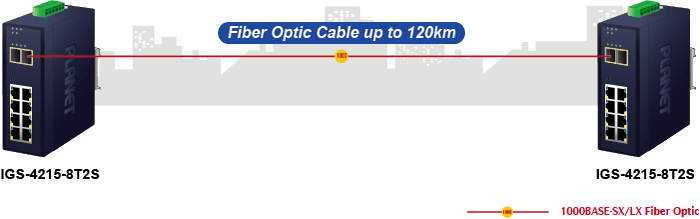

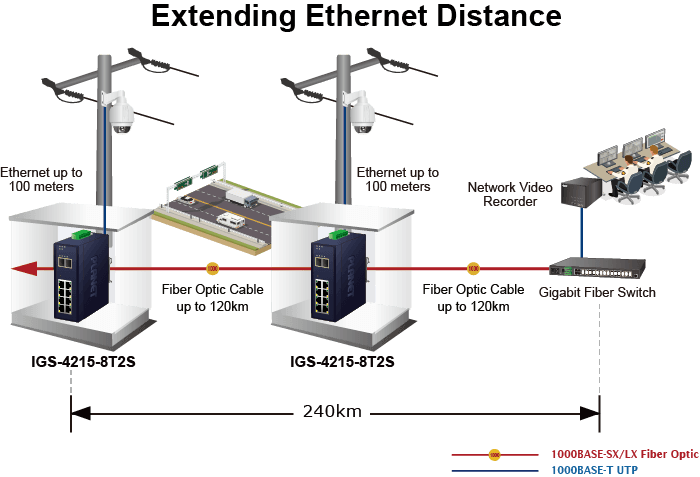

Gigabit SFP Slots

2 100/1000BASE-SX/LX/BX SFP interfaces

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Connector

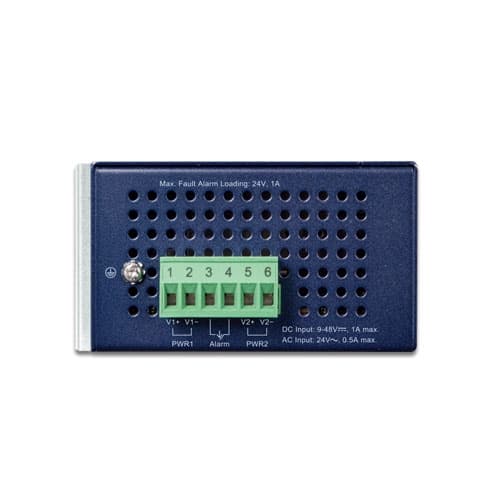

Removable 6-pin terminal block for power input Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC

Power Requirements

Dual 9~48V DC 24V AC

Power Consumption

DC input: Max. 1.98 watts/6.7BTU (System on) Max. 6.93 watts/23.6BTU (Full loading) AC input: Max. 1.4 watts/4.7BTU (System on) Max. 5.7 watts/19.4BTU (Full loading)

Enclosure

IP30 metal case

Dimensions (W x D x H)

50 x 87.8 x 135 mm

Weight

510g

Installation

DIN-rail kit and wall-mount ear

ESD Protection

6KV DC

LED

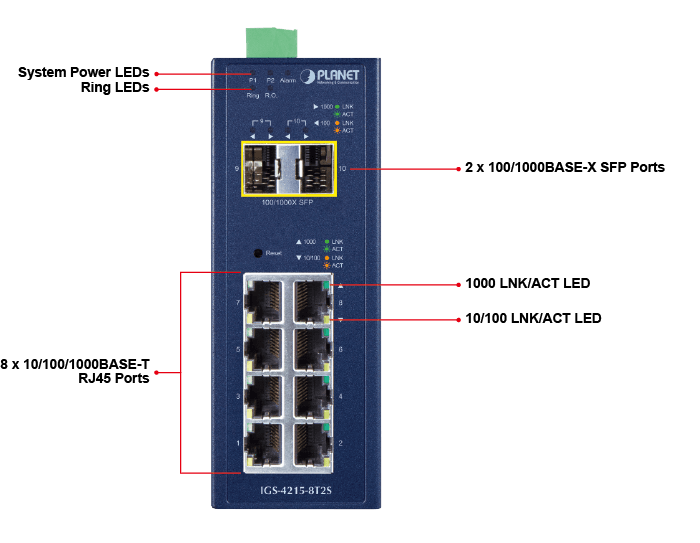

System: Green: Power 1 Green: Power 2 Red: Alarm Green: Ring Green: R.O. Per 10/100/1000T RJ45 Ports: Green: 1000 LNK/ACT Amber: 10/100 LNK/ACT Per 100/1000X SFP Ports: Green: 1000 LNK/ACT Amber: 100 LNK/ACT

Switch Architecture

Store-and-Forward

Switch Fabric

20G/bps (non-blocking)

Switch Throughput@64 bytes

14.8@ 64 bytes

MAC Address Table

8K entries

Shared Data Buffer

4.1Mbits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

9K

Port Mirroring

TX/RX/Both Many-to-1 monitor Up to 4 sessions

VLAN

802.1Q tag-based VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP and static trunk Cisco ether-channel (Static Trunk) Up to 5 trunk groups Up to 10 ports per trunk group with 20Gbps bandwidth

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP snooping v1, v2, v3 IGMP querier IGMP Snooping port filtering Up to 256 multicast groups

MLD Snooping

IPv6 MLD snooping v1, v2 Up to 256 multicast groups

QoS

Ingress/Egress Rate Limit per port bandwidth control 8-level priority for switching Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Typical network application DSCP remarking

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE

Security

IP-MAC port binding MAC filtering Static MAC address DHCP Relay and DHCP Option 82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Storm control support Broadcast / Multicast / Unicast

AAA

Built-in RADIUS client to cooperate with RADIUS server

Network Access Control

IEEE 802.1X port-based authentication RADIUS/TACACS+ user access authentication

Basic Management Interfaces

Telnet Web browser SNMP v1, v2c

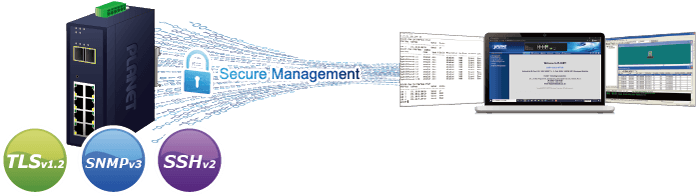

Secure Management Interfaces

SSHv2, TLS v1.1/v1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET UNI-NMS (Universal Network Management) PLANET CloudViewer app

Event Management

Remote Syslog System log

SNMP MIBs

RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
