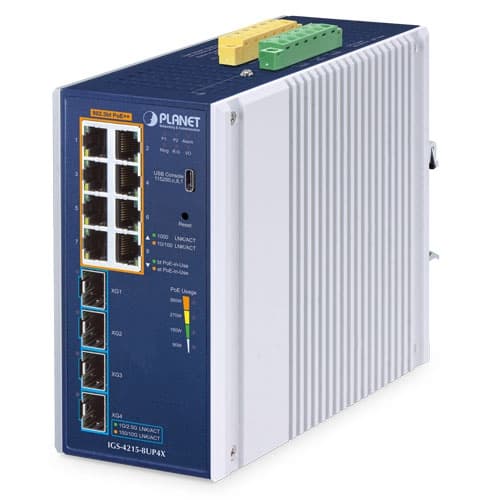

IGS-4215-8UP4X — Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch

Descripción

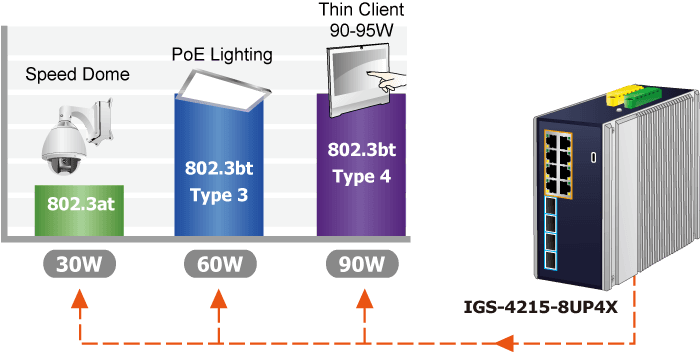

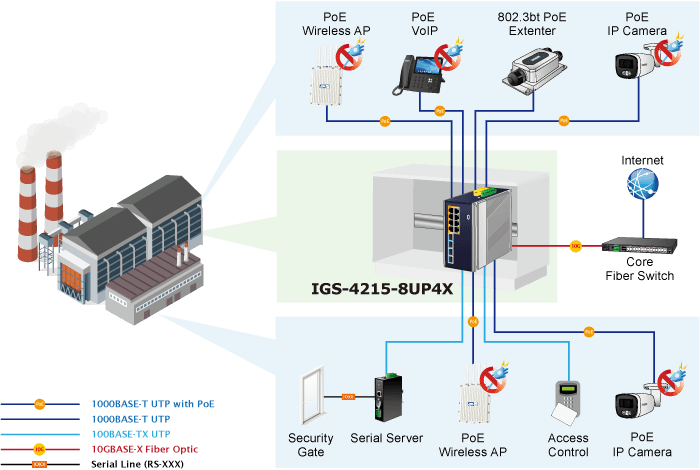

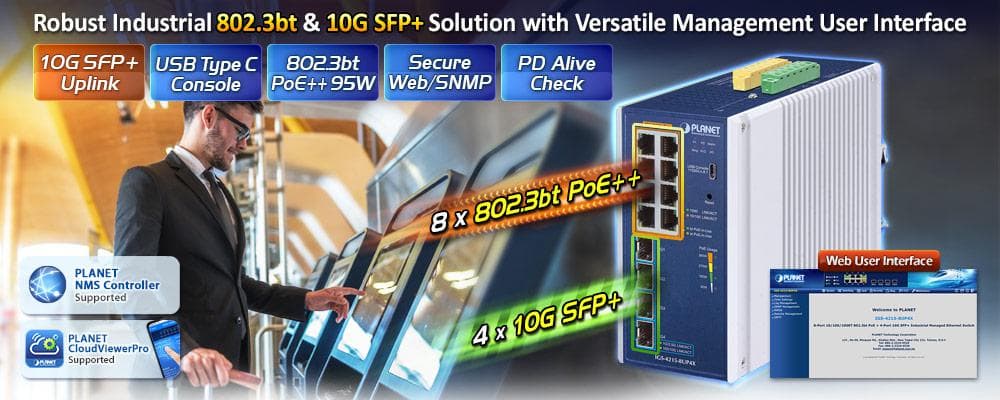

Robust Full PoE++ Power Solution Tailored for Harsh Environments The IGS-4215-8UP4X is PLANET's latest Industrial-grade, DIN-rail L2+ Managed Gigabit PoE++ Switch, designed for heavy industrial environments. It features intelligent PoE functions, IPv6/IPv4 dual-stack management, a built-in L2+/L4 Gigabit switching engine, and Layer 3 static routing, enabling efficient inter-VLAN communication while maintaining cost-effectiveness. Featuring 8 10/100/1000BASE-T ports supporting 95-watt 802.3bt PoE++ and 4 10GBASE-X SFP+ fiber slots, the IGS-4215-8UP4X ensures unwavering, stable performance. Its power budget of 360 watts accommodates diverse PoE applications, and it operates in temperatures from -40 to 75°C, showcasing adaptability. Enhancing versatility, the switch includes a USB Type-C console port for seamless management and resides in a rugged IP30 aluminum casing, guaranteeing durability and reliability in challenging industrial environments. Cybersecurity Network Solution to Minimize Security Risks The IGS-4215-8UP4X supports SSHv2 and TLSv1.3 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping , IP Source Guard , dynamic ARP Inspection Protection, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. Modbus TCP Provides Flexible Network Connectivity for Factory Automation The IGS-4215 10G Din-rail series supports the Modbus TCP protocol, allowing for easy integration with SCADA systems, HMI systems, and other data acquisition systems in factory floors. This enables administrators to remotely monitor the industrial Ethernet switch's operating information, port information, communication status, and DI/DO status, thereby enhancing monitoring and maintenance of the entire factory. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-4215-8UP4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. High Power and Full-speed Data Delivered over 4-pair UTP Cabling The IGS-4215-8UP4X meets the standards of IEEE 802.bt PoE++ technology and has a total power capacity of 360 watts. This allows it to supply up to 95 watts of power to each remote PoE-compliant powered device (PD) using all four pairs of standard Cat5e/6 Ethernet cabling, ensuring high power and full-speed data delivery. Compared to the conventional 802.3at PoE+, it offers triple power capacity, making it the perfect solution for higher power consuming PDs, including: PoE PTZ speed dome cameras Network devices Thin clients AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks Remote digital signage displays PoE lightings Intelligent Powered Device Alive Check The IGS-4215-8UP4X can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-8UP4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden. Scheduled Power Recycling The IGS-4215-8UP4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Savings Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-8UP4X can effectively control the power supply besides its capability of giving high watts power. The “ PoE schedule ” function helps you enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours. 802.3bt PoE++ Power and Ethernet Data Transmission Distance Extension In " Extended " operation mode, the IGS-4215-8UP4X functions on a per-port basis with a 10Mbps duplex operation. Remarkably, it can deliver a 40-watt PoE power output over a distance of up to 250 meters, surpassing the standard 100m limit on Ethernet UTP cables. This innovative feature offers a solution for extending the reach of PoE power, effectively eliminating the need for additional Ethernet cable installations and resulting in cost savings Effective Alarm Alert for Better Protection The IGS-4215-8UP4X incorporates a Fault Alarm feature that promptly notifies users of any issues with the switches. This valuable feature eliminates the need for users to spend time locating the problem, resulting in significant time and human resource savings. Digital Input and Digital Output for External Alarm The IGS-4215-8UP4X supports Digital Input and Digital Output through a terminal block located on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-4215-8UP4X port shows link down, link up or power failure. Environmentally Hardened Design With the IP30 aluminum industrial case, the IGS-4215-8UP4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 °C, the IGS-4215-8UP4X can be placed in almost any difficult environment. Robust Protection The IGS-4215-8UP4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management The IGS-4215 10G Din-rail switch delivers high-performance transmission and advanced Layer 2 and Layer 4 functionalities, along with Layer 3 IPv4 and IPv6 static routing. This capability enables efficient routing between different VLANs and IP addresses, offering a secure, flexible, and straightforward networking solution for diverse applications. Robust Layer 2 Features The IGS-4215-8UP4X can be programmed for advanced switch management functions such as dynamic port link aggregation , 8 02.1Q VLAN , Q-in-Q VLAN , Multiple Spanning Tree Protocol (MSTP) , loop and BPDU guard , IGMP snooping , and MLD snooping . With dynamic port link aggregation, the switch enables the creation of a high-speed trunk. For instance, it can combine four 10G ports, creating a resilient 40Gbps connection with fail-over support. Additionally, the inclusion of Link Layer Discovery Protocol (LLDP) enhances Layer 2 functionality by providing essential information about neighboring devices within the local broadcast domain. Efficient Traffic Control The IGS-4215-8UP4X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control , per port bandwidth control , 802.1p/CoS/IP DSCP QoS priority and remarking . It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Enhancing Network Security PLANET IGS-4215-8UP4X offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Ensuring Network Integrity The IGS-4215-8UP4X also provides DHCP Snooping , IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. User-friendly and Secure Management For efficient management, the IGS-4215-8UP4X is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-4215-8UP4X offers an easy-to-use, platform-independent management and configuration facility. For text-based command line management, it can be accessed via Telnet, SSH and the console port. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Moreover, the IGS-4215-8UP4X offers secure remote management by supporting SSHv2 , TLSv1.3 and SNMP v3 connections which encrypt the packet content at each session. Flexible Long-distance Extension Solution The emergence of 10G Ethernet marks a significant advancement in Ethernet technology. The IGS-4215-8UP4X is a powerful networking device that offers four 10G SFP+ slots capable of supporting three different speeds. These slots can operate at 10GBASE-SR/LR or 1G/2.5GBASE-SX/LX backwards , providing administrators with flexibility in choosing the most suitable SFP/SFP+ transceiver based on the required transmission distance and speed. With ample bandwidth and robust processing capacity, the IGS-4215-8UP4X provides an efficient solution for administrators seeking to enhance their network infrastructure. Intelligent SFP Diagnosis Mechanism The IGS-4215-8UP4X supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and CloudViewerPro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the IGS-4215 series, from remote locations. Tailored for deployment in both enterprises and industries where the IGS-4215 series is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. With UNI-NMS or the CloudViewerPro app, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight. Applications Industrial-grade PoE+ Switch for Building Automation and Security Suitable for buildings where security is strictly to be enforced, the IGS-4215-8UP4X, with eight 802.3bt PoE++, in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-4215-8UP4X makes the installation of IP cameras or wireless APs easier and more efficient. Perfect Integration Solution for IP PoE Camera and NVR System The IGS-4215-8UP4X provides 8 10/100/1000BASE-T 802.3bt PoE++ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the four 10GBASE-X SFP interfaces, the IGS-4215-8UP4X can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-4215-8UP4X facilitates the recorded video files from the 8 IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-4215-8UP4X undoubtedly brings an ideal secure surveillance system at a lower total cost Key Features Physical Port 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3bt PoE++ injector function 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100M/1G/2.5GBASE-X SFP One USB Type C console interface for basic management and setup Industrial Protocol Modbus TCP for real-time monitoring in the SCADA system Power over Ethernet Compliance with IEEE 802.3bt Type-4 PoE++ standard Backward compatible with IEEE 802.3af/at Power over Ethernet Powers up to 8 ports of IEEE 802.3bt PoE++ devices PoE budget Dual power input: 360W Single power input: 240W Supports PoE power up to 95 watts for each PoE port Auto detects powered devices (PDs) Circuit protection prevents power interference between ports Remote power feeding up to 100 meters in standard mode and 250m in extended mode PoE management Total PoE power budget control Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limitation PD classification detection Intelligent PoE features Temperature threshold control PoE extension PD alive check PoE schedule Industrial Case and Installation IP30 aluminum case DIN-rail and wall-mount designs 48~54V DC, redundant power with reverse polarity protection Supports 6KV DC Ethernet ESD protection -40 to 75 °C operating temperature Digital Input and Digital Output 2 digital input (DI) 2 digital output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via SNMP trap Switching Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation 16K MAC address table size 12K jumbo frame Automatic address learning and address aging Layer 2 Features Supports VLAN IEEE 802.1Q tagged VLAN Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support Protocol VLAN Voice VLAN Private VLAN (Protected port) Management VLAN GVRP Supports Spanning Tree Protocol STP (Spanning Tree Protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (Multiple Spanning Tree Protocol) STP BPDU Guard, BPDU Filtering and BPDU Forwarding Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 8 trunk groups, up to 8 ports per trunk group Supports port mirror (many-to-1) Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Link Layer Discovery Protocol (LLDP) Quality of Service Ingress/Egress Rate Limit per port bandwidth control Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies Multicast Supports IPv4 IGMP snooping v2, v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering Security Storm Control support Broadcast / Multicast / Unknown Unicast Authentication Built-in RADIUS client to cooperate with the RADIUS servers DHCP Option 82 RADIUS/TACACS+ authentication Access Control List IPv4/IPv6 IP-based ACL IPv4/IPv6 IP-based ACE MAC-based ACL MAC-based ACE MAC Security Static MAC MAC filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks DoS attack prevention Management IPv4 and IPv6 dual stack management Switch Management Interface Web switch management Console/Telnet Command Line Interface SNMP v1 and v2c switch management SSHv2, TLSv1.3 and SNMP v3 secure access SNMP Management SNMP trap for interface Link Up and Link Down notification Four RMON groups (history, statistics, alarms and events) User privilege levels control Built-in Trivial File Transfer Protocol (TFTP) client Static and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Configuration upload/download through HTTP/TFTP Dual images Hardware reset button for system reboot or reset to factory default SNTP Network Time Protocol Network Diagnostic Cable diagnostics ICMPv6/ICMPv4 Remote Ping SFP-DDM (Digital Diagnostic Monitor) Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED Event message logging to remote syslog server PLANET Smart Discovery Utility for deployment management PLANET NMS system and CloudViewer/CloudViewerPro for deployment management

Especificaciones técnicas

Copper Ports

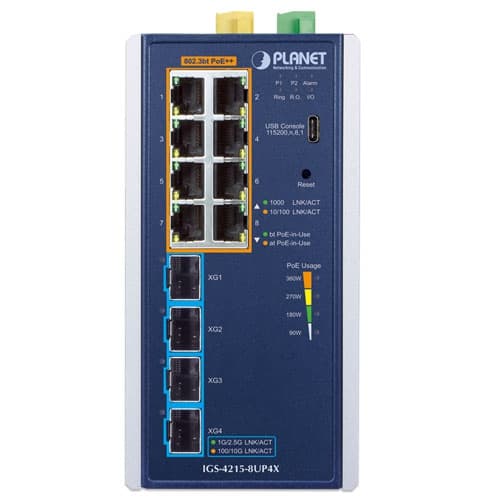

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)

PoE Injector Port

8 ports with 802.3bt PoE++ injector function (Ports 1 to 8)

SFP+ Ports

4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4) Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX SFP transceivers

Console

1 x USB Type C to RS232 serial port (115200,8, N, 1)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Connector

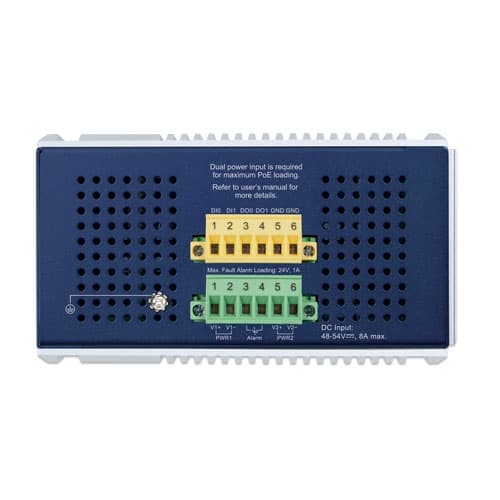

Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC

DI, DO

2 digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max. 2 digital output (DO) Open collector to 24V DC, 100mA max.

Power Requirements

48~54V DC, 8A (max.)

Power Consumption/ Dissipation

Max. 10.2 watts / 34.8BTU (system on) Max. 398.6 watts/1360.1BTU (Full loading)

Dimensions (W x D x H)

76 x 135 x 152 mm

Weight

1361g

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount ear

ESD Protection

Contact Discharge 6KV DC Air Discharge 8KV DC

LED

System: Power 1 ( Green ) Power 2 ( Green ) Alarm ( Red ) Ring ( Green ) R.O.( Green ) I/O ( Red ) Per 10/100/1000T RJ45 PoE++ Ports: UP：1000 LNK/ACT ( Green ) 10/100 LNK/ACT ( Amber ) Down：802.3bt ( Green ) 802.3at ( Amber ) PoE Usage: 90/180/270/360W ( Amber ) Per 10G SFP Interface: 1G/2.5G LNK/ACT ( Green ) 100/10G LNK/ACT ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

96Gbps/non-blocking

Switch Throughput@64 bytes

71.43Mpps @64 bytes

MAC Address Table

16K entries

Shared Data Buffer

12Mbits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

12 Kbytes

PoE Standard

IEEE 802.3bt PoE++ Type-4

PoE Power Supply Type

End-span Mid-span BT

Power Pin Assignment

802.3bt PoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) 802.3at PoE: End-span: 1/2(-), 3/6(+) 802.3at PoE: Mid-span: 4/5(+), 7/8(-)

PoE Power Output

Per port 48V ~ 54VDC 802.3bt Type-4 mode: maximum 95 watts 802.3bt Type-3 mode: maximum 60 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts Force mode: maximum 95 watts

PoE Power Budget

Single power input: 240W maximum (depending on power input) Dual power input: 360W maximum (depending on power input) ※Dual power input must be the same as DC voltage, like dual 54V.

Max. Number of 90W 802.3bt Type 4 PDs

4

Max. Number of 60W 802.3bt Type 3 PDs

6

Max. Number of 30W 802.3at Type 2 PDs

8

PoE Management

PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension

Enhanced PoE Mode

Standard/Legacy/Force

Active PoE Device Live Detection

Yes

PoE Power Recycling

Yes, daily or predefined schedule

PoE Schedule

4 schedule profiles

PoE Extend Mode

Yes, max. up to 250 meters

Port Mirroring

TX/RX/Both Many-to-1 monitor Up to 4 sessions

VLAN

802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP snooping v2, v3 IGMP querier Up to 256 multicast groups

MLD Snooping

IPv6 MLD snooping v2, v3, up to 256 multicast groups

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE

QoS

8 mapping IDs to 8 level priority queues Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Max. 256 ACL entries

Port Security

Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding MAC filter Static MAC address, max. 256 static MAC entries

Enhanced Security

DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard

Basic Management Interfaces

USB to RS232 Console Web browser Telnet SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.3, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer/CloudViewerPro

Event Management

Remote/Local Syslog System log

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE802.3ae 10Gb/s Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1ab LLDP IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring

Operating Temperature

-40 ~ 75 °C

Storage Temperature

-40 ~ 85 °C

Humidity

5 ~ 95% (non-condensing)
