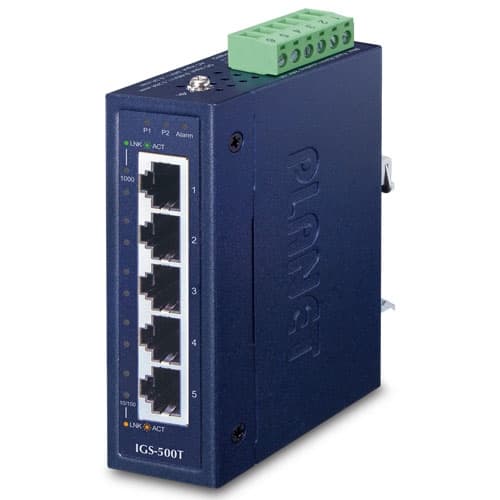

IGS-500T — Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch

Descripción

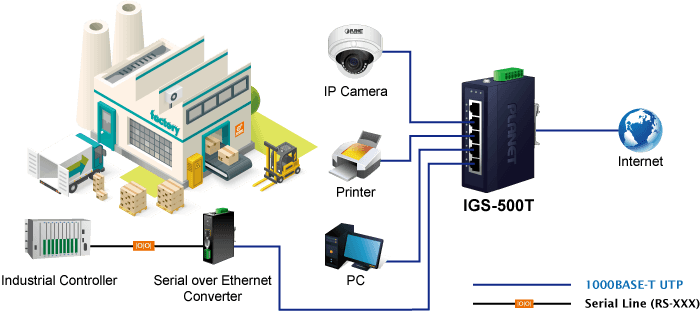

Compact Size for More Practicability and Convenience PLANET IGS-500T Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch , suitable for industrial use, features 5 1000Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system ( 9~48V DC or 24V AC ). The IGS-500T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C. As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGS-500T is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission. Low Power Consumption for Green Networking The IGS-500T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the IGS-500T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently. With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the IGS-500T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active. Dual Power Input for High Availability Network System The IGS-500T features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-500T via power supply 2 alternatively without any loss of operation. High Switch Performance The IGS-500T offers high-performance switch architecture. With the 5 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 2K MAC address table, the IGS-500T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the IGS-500T to provide fast and reliable data transfer. Plug and Play All of the RJ45 copper interfaces in the IGS-500T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables. Flexible and Easy Installation with Limited Space The compact sized IGS-500T is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location. Applications Designed for Heavy Industries The IGS-500T’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data. Key Features Physical Port 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function Layer 2 Features Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth Backplane (switching fabric): 10Gbps Integrated address look-up engine, supporting 2K absolute MAC addresses 9K jumbo packet size Automatic address learning and address aging CSMA/CD Protocol Industrial Case and Installation IP30 metal case DIN-rail and wall-mount designS 9 to 48V DC, redundant power with reverse polarity protection, and connective, removable terminal block for master and slave power; 24V AC power support Supports 6000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature Free fall, shock-proof and vibration-proof for industries

Especificaciones técnicas

Hardware Version

2

Copper Ports

5 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation

Connector

Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

Provides one relay output for power failure Alarm relay current carry ability: 1A@DC 24V

LED

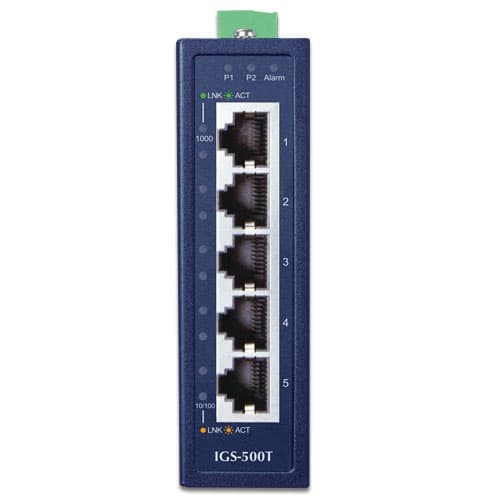

3 x LED for system and power: Green: DC Power 1 Green: DC Power 2 Red: Power Alarm 2 x LED for each copper port: Green: 1000Mbps LNK/ACT Amber: 10/100Mbps LNK/ACT

ESD Protection

6KV

EFT Protection

6KV

Power Requirements

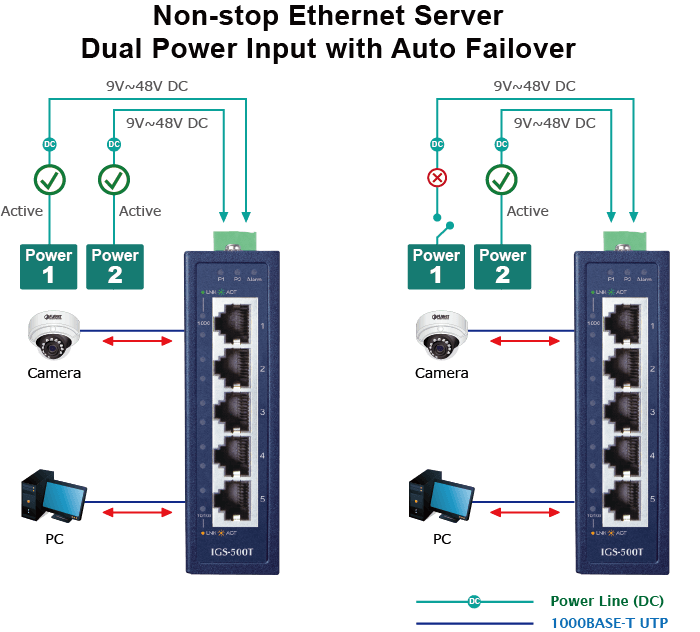

9~48V DC, redundant power with polarity reverse protection function, 24V AC power support

Power Consumption / Dissipation

1.2 watts/4.09BTU

Installation

DIN-rail kit and wall-mount ear

Enclosure

IP30 metal case

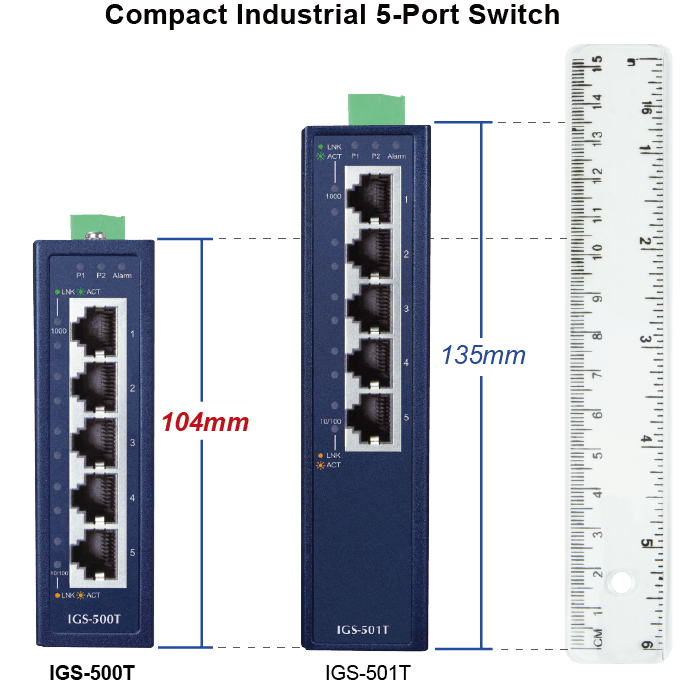

Dimensions (W x D x H)

30 x 70 x 104 mm

Weight

264g

Switch Processing Scheme

Store-and-Forward

Address Table

2K entries

Buffer Memory

4M bits on-chip buffer memory

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Switch Fabric

10Gbps

Throughput (packet per second)

7.4Mpps@64bytes

Jumbo Frame

9K

Network Cables

10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters)

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service

Regulatory Compliance

FCC Part 15 Class A, CE, UL

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Temperature

Operating: -40~75 degrees C Storage: -40~75 degrees C

Humidity

Operating: 5~90%, Storage: 5~90% (non-condensing)
