IGS-5225-16T4S — Industrial L2+ 16-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch

Descripción

PLANET IGS-5225-16T4S, an industrial Layer 2+ managed Gigabit Switch, features 16 10/100/1000Mbps ports and 4 100/1000X SFP ports, and supports static Layer 3 routing in a 1U case. With a total switch fabric of 40Gbps , the IGS-5225-16T4S can handle large amounts of data in a secure topology linking to an industrial backbone or high capacity servers. The IGS-5225-16T4S is capable of providing non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. Furthermore, it adopts user-friendly “ Front Access ” design for easy wiring and maintenance of the IGS-5225-16T4S when placed in the cabinet. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-5225-16T4S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. AC and DC Redundant Power to Ensure Continuous Operation The IGS-5225-16T4S possesses a 100~240V AC power supply and dual 36~60V DC power supply utilized as redundant power supply to ensure its continuous operation. Its redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. Furthermore, with the 36~60V DC power supply implemented, the IGS-5225-16T4S can be applied as the telecom level device and placed in almost any difficult environment. Digital Input and Digital Output for External Alarm The IGS-5225-16T4S helps the network administrators efficiently manage the unexpected network situations by providing Digital Input and Digital Output for external alarm device on the front panel. The Digital Input can be used to detect and log the status of the external devices such as door intrusion detector. The Digital Output could be used to send alarm whenever the IGS-5225-16T4S has port link-down or power failure. Effective Alarm Alert for Better Protection The IGS-5225-16T4S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the IGS-5225-16T4S help the SMBs to step in the IPv6 era with the lowest investment as their network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management The IGS-5225-16T4S offers IPv4/IPv6 VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secured, flexible management and simpler networking application. Robust Layer 2 Features The IGS-5225-16T4S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN , Multiple Spanning Tree protocol (MSTP) , loop and BPDU guard, IGMP snooping , and MLD snooping . Via the link aggregation, the IGS-5225-16T4S allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic Control The IGS-5225-16T4S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast storm control , per port bandwidth control , IP DSCP QoS priority and remarking. They guarantee the best performance for VoIP and video stream transmission, and empower the enterprises to take full advantage of the limited network resources. Powerful Security PLANET IGS-5225-16T4S offer comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. They can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Their protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS and TACACS+ to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port Advanced IP Network Protection The IGS-5225-16T4S also provides DHCP Snooping , IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before. Efficient Management For efficient management, the IGS-5225-16T4S is equipped with web , Telnet and SNMP management interfaces. With the built-in Web-based management interface, the IGS-5225-16T4S offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the switches can be accessed via Telnet and the console port. By supporting the standard SNMP, the switches can be managed via any standard management software Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform. Flexibility and Long-distance Extension Solution The IGS-5225-16T4S provides 4 built-in Gigabit SFP interfaces supporting 100BASE-FX/1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism The IGS-5225-16T4S supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. 1588 Time Protocol for Industrial Computing Networks The IGS-5225-16T4S is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Applications Redundant Ring, Fast Recovery for Critical Network Applications The IGS-5225-16T4S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain, simple Ring network, the recovery time of data link can be as fast as 20ms. Layer 3 VLAN Routing Application With the built-in, robust Layer 3 routing protocols, the IGS-5225-16T4S ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 32 routing entries. The IGS-5225-16T4S, certainly an ideal solution for industries, offers greater security, control and bandwidth conservation, and high-speed uplink. Key Features Physical Port 16-port 10/100/1000BASE-T RJ45 copper 4 100/1000BASE-X mini-GBIC/SFP slots, compatible with 100BASE-FX SFP RJ45 to RS232 DB9 console interface for basic management and setup Hardware Conformance One 100 to 240V AC or dual 36 to 60V DC power input, redundant power with reverse polarity protection Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience 19-inch rack-mountable design IP30 metal case Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature for DC power input -10 to 60 degrees C operating temperature for AC power input Digital Input & Digital Output 2 Digital Input (DI) 2 Digital Output (DO) Integrates sensors into auto alarm system Transfers alarm to IP network via email and SNMP trap Layer 3 IP Routing Features Supports maximum 32 static routes and route summarization Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm control support Broadcast/Multicast/Unknown unicast Supports VLAN IEEE 802.1Q tagged VLAN Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN IP subnet-based VLAN Voice VLAN VLAN Translation GVRP Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 10 trunk groups, with 16 ports for each trunk Up to 32Gbps bandwidth (full duplex mode) Provides port mirror (many-to-1) Port mirroring monitors the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ERPS.(Ethernet Ring Protection Switching) IEEE 1588 and Synchronous Ethernet network timing, transparent clock mode Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Quality of Service Ingress shaper and egress rate limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS ToS/DSCP/IP precedence of IPv4/IPv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Traffic-policing on the switch port DSCP remarking Multicast Supports IGMP snooping v1, v2 and v3 Supports MLD snooping v1 and v2 Querier mode support IGMP snooping port filtering MLD snooping port filtering MVR (Multicast VLAN Registration) Security Authentication IEEE 802.1x port-based/MAC-based network access authentication IEEE 802.1x authentication with guest VLAN Built-in RADIUS client to cooperate with the RADIUS servers RADIUS/TACACS+ users access authentication Access Control List IP-based Access Control List (ACL) MAC-based Access Control List (ACL) Source MAC/IP address binding DHCP Snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces Console/Telnet command line interface Web switch management SNMP v1 and v2c switch management SSHv2, TLSv1.2 and SNMP v3 secure access IPv6 address/NTP management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Reset button for system reboot or reset to factory default Dual images DHCP Server DHCP relay and option 82 User privilege levels control NTP (Network Time Protocol) Link Layer Discovery Protocol (LLDP) and LLDP-MED Network diagnostic SFP-DDM (Digital Diagnostic Monitor) Cable diagnostic technology provides the mechanism to detect and report potential cabling issues ICMPv6/ICMPv4 remote ping SMTP/Syslog remote alarm Four RMON groups (history, statistics, alarms and events) SNMP trap for interface link up and link down notification System Log PLANET Smart Discovery Utility for deployment management PLANET NMS system and CloudViewer for deployment management

Especificaciones técnicas

Hardware Version

2

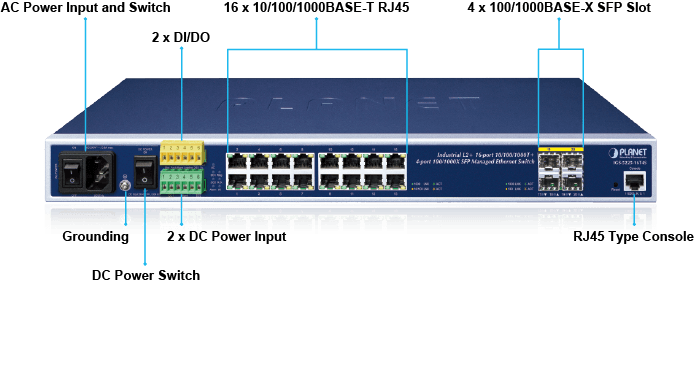

Copper Ports

16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

4 100/1000BASE-X SFP interfaces, Compatible with 100BASE-FX SFP transceiver

Console

1 x RS232-to-RJ45 serial port (115200, 8, N, 1)

SDRAM

128Mbytes

Flash Memory

64Mbytes

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Connector

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

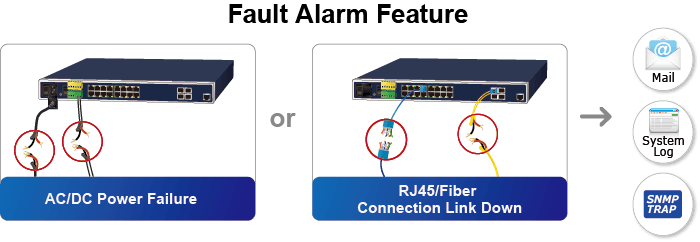

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC

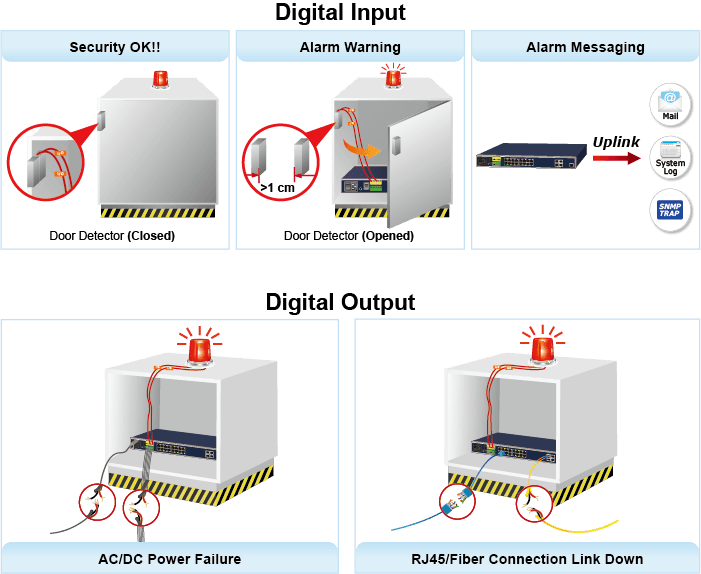

DI/DO

2 Digital Input (DI): Level 0: -24~2.1V Level 1: 2.1~24V Max. input current: 10mA 2 Digital Output (DO): Open collector to 24VDC, 100mA

Dimensions (W x D x H)

444 x 200 x 44.2 mm, 1U height

Weight

2672g

Power Consumption

Max. 15.2 watts/51.8 BTU

Power Requirements – AC

AC 100~240V, 50/60Hz 0.4A

Power Requirements – DC

DC 36~60V, 0.6A

EFT Protection

6KV DC

ESD Protection

6KV DC

LED

System: AC ( Green ), DC1 ( Green ), DC2 ( Green ), Alarm ( Red ) Ring ( Green ), R.O. ( Green ), DI/DO ( Red ) 10/100/1000T RJ45 Interfaces (Port 1 to Port 16): 1000Mbps LNK/ACT ( Green ) 10/100Mbps LNK/ACT ( Amber ) 100/1000Mbps SFP Combo Interfaces (Port 17 to Port 20): 1000Mbps LNK/ACT ( Green ) 100Mbps LNK/ACT ( Amber )

Switch Architecture

Store-and-Forward

Switch Fabric

40Gbps/non-blocking

Throughput

29.76Mpps@64Bytes

Address Table

8K entries, automatic source address learning and aging

Shared Data Buffer

4M bits

Flow Control

IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex

Jumbo Frame

9K bytes

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX/RX/Both Many-to-1 monitor

VLAN

802.1Q tagged based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN registration) Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk 10 trunk groups with 16 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IGMP Snooping

IGMP (v1/v2/v3) snooping IGMP querier mode support Up to 255 multicast groups

MLD Snooping

MLD (v1/v2) snooping MLD querier mode support Up to 255 multicast groups

Bandwidth Control

Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching: Port number 802.1p priority 802.1Q VLAN tag DSCP/ToS field in IP packet

Ring

Supports ERPS, and complies with ITU-T G.8032 Supports major ring and sub-ring Recovery time < 10ms @ 3 units Recovery time < 50ms @ 16 units

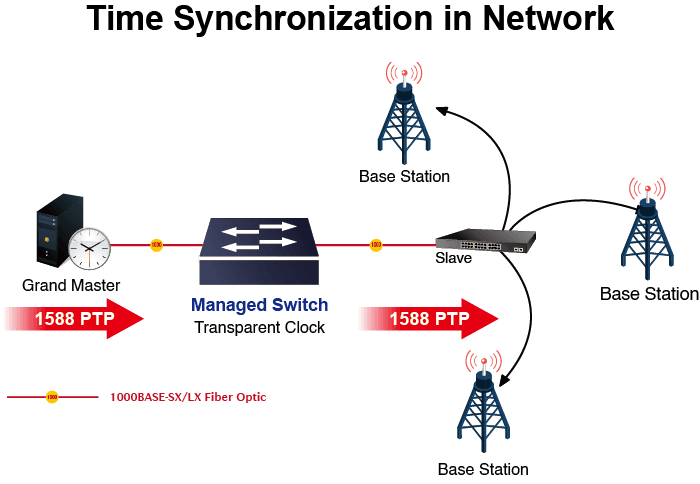

Synchronization

IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE Up to 256 entries

Port Security

IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding MAC filter Static MAC address

Enhanced Security

DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard

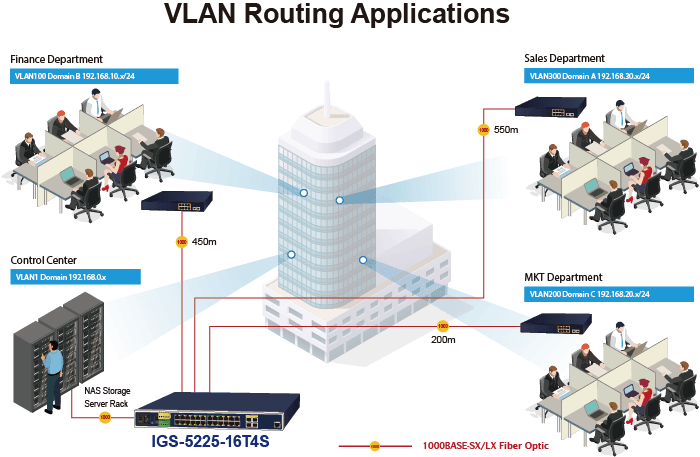

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing IPv6 software static routing

Basic Management Interfaces

Console/Telnet/Web browser/SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer

Event Management

Remote/Local Syslog System log

SNMP MIBs

RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP

Regulatory Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 1588v2 RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring

Operating

Temperature:－10 ~ 60 degrees C for AC power input - 40 ~ 75 degrees C for DC power input Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
