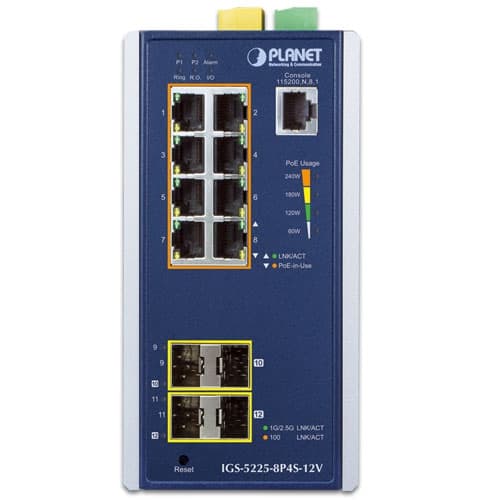

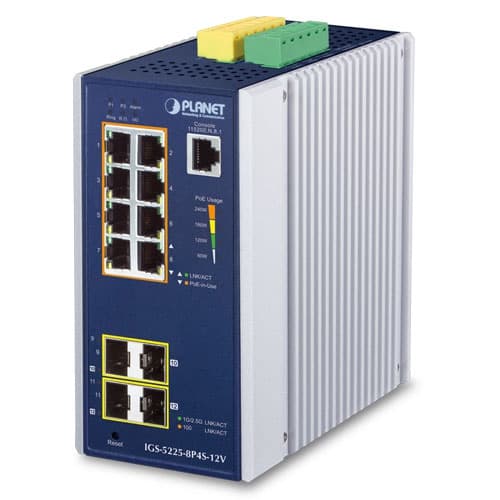

IGS-5225-8P4S-12V — Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1G SFP + 2-Port 100/1G/2.5G SFP Managed Ethernet Switch w/ 12V Booster

Descripción

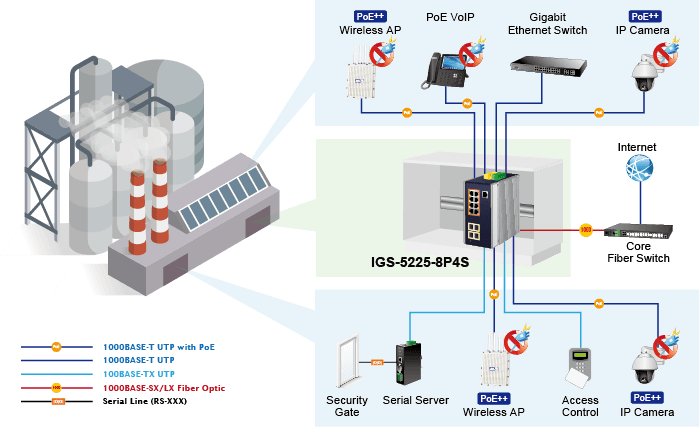

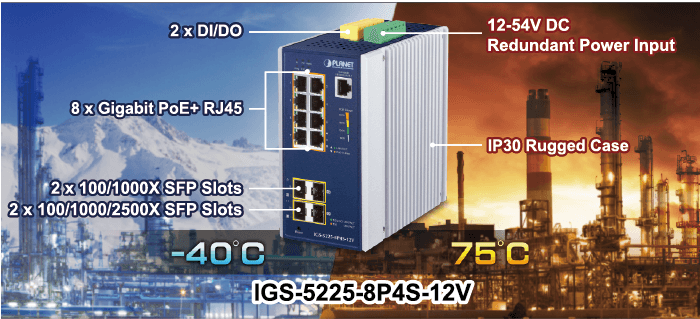

Advanced Manageable PoE Solution for Hardened Environment PLANET IGS-5225-8P4S-12V PoE L2+Industrial Managed PoE+ Switch, featuring 8 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, two 100/1G BASE-X SFP ports and two 100/1000/ 2500 BASE-X SFP ports in an IP30 rugged metal case, can be installed in any difficult environment. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions , Layer 3 static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. The IGS-5225-8P4S-12V adopts DC 12~ 54V power boosts technology to solve power source issue but does not require special power supplies. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C . Convenient and Reliable Power System To facilitate the 802.3at PoE usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the IGS-5225-8P4S-12V adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-5225-8P4S-12V supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms. High Power PoE for Security and Public Service Applications As the whole system comes with a total 240-watt PoE budget, the IGS-5225-8P4S-12V is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11n/ac/ax) wireless LAN access points, PTZ (pan, tilt, zoom) speed dome network cameras and other PoE network devices. Intelligent Alive Check for Powered Device The IGS-5225-8P4S-12V can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-8P4S-12V will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden. PoE Schedule for Energy Savings Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-8P4S-12V can effectively control the power supply besides its capability of giving high watts power. The built-in “ PoE schedule ” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. Scheduled Power Recycling The IGS-5225-8P4S-12V allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow. SMTP/SNMP Trap Event Alert The IGS-5225-8P4S-12V provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Effective Alarm Alert for Better Protection The IGS-5225-8P4S-12V supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource. Digital Input and Digital Output for External Alarm The IGS-5225-8P4S-12V supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-8P4S-12V port shows link down, link up or power failure. Convenient and Smart ONVIF Devices with Detection Feature PLANET has developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-8P4S-12V GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI. Robust Layer 2 Features The IGS-5225-8P4S-12V can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-8P4S-12V provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the IGS-5225-8P4S-12V allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 10 trunk groups with 4 ports per trunk group, and supports fail-over as well. Network with Cyber security Helps Minimize Security Risks The IGS-5225-8P4S-12V comes with enhanced cyber security to fend off cyber threats and cyber attacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cyber security feature of the IGS-5225-8P4S-12V protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort. Efficient Management For efficient management, the IGS-5225-8P4S-12V is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-5225-8P4S-12V offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. Powerful Security from Layer 2 to Layer 4 The IGS-5225-8P4S-12V offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Advanced IP Network Protection The IGS-5225-8P4S-12V also provides DHCP Snooping , IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Modbus TCP Provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the IGS-5225-8P4S-12V can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s o perating information , port information and communication status , thus easily achieving enhanced monitoring and maintenance of the entire factory. 1588 Time Protocol for Industrial Computing Networks The IGS-5225-8P4S-12V is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Flexibility and Extension Solution The SFP ports built in the IGS-5225-8P4S-12V support multi-speed, 100BASE-FX , 1000BASE-SX/LX and 2500BASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 300 meters to 2km (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism The IGS-5225-8P4S-12V supports SFP- DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Applications Industrial Area Department/Workgroup PoE Switch Providing up to 8 PoE+, in-line power interfaces, the IGS-5225-8P4S-12V can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-5225-8P4S-12V makes the installation of IP cameras or wireless AP easier and more efficient. Perfect Integration Solution for IP PoE Camera and NVR System The IGS-5225-8P4S-12V provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1G BASE-X SFP and two 100/1000/2500BASE-X SFP interfaces, the IGS-5225-8P4S-12V can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-5225-8P4S-12V facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-5225-8P4S-12V undoubtedly brings an ideal secure surveillance system at a lower total cost. Key Features Physical Port 8 10/100/1000BASE-T Gigabit Ethernet RJ45 port switch IEEE 802.3at PoE+ Injector 2 100/1000BASE-X SFP ports for SFP type auto detection 2 100/1000/2500BASE-X SFP ports for SFP type auto detection One RJ45 console interface for basic management and setup Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE Up to 8 IEEE 802.3af/802.3at devices powered Supports PoE power up to 36 watts for each PoE port Auto detects powered device (PD) Circuit protection prevents power interference between ports Remote power feeding up to 100m PoE management features PoE admin-mode control PoE management mode selection PoE legacy mode selection PoE budget setup option Per port PoE function enable/disable PoE port power feeding priority Per PoE port power limit PoE port status monitoring PD classification detection Sequence port PoE PoE extend mode control to support power feeding up to a distance of up to 160 meters Intelligent PoE features Temperature threshold control PoE usage threshold control PoE schedule PD alive check LLDP PoE Neighbors Industrial Protocol Mod bus TCP for real-time monitoring in the SCADA system IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode Industrial Case and Installation IP30 aluminum case DIN-rail or wall-mount design 12~54V DC, redundant power with reverse polarity protection Supports 6KV DC Ethernet ESD protection -40 to 75 degrees C operating temperature Digital Input and Digital Output 2 digital input (DI) 2 digital output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via email and SNMP trap Layer 3 IP Routing Features Supports maximum 32 static routes and route summarization Routing interface provides per VLAN routing mode Layer 2 Features Storm Control support Broadcast / Multicast / Unicast Supports VLAN IEEE 802.1Q tagged VLAN Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad) Private VLAN Edge (PVE) Port Isolation MAC-based VLAN IP Subnet-based VLAN Protocol-based VLAN VLAN Translation Voice VLAN GVRP Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Filtering/BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 6trunk groups with 4 ports per trunk group Up to 8Gbps bandwidth (duplex mode) Provide sport mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Link Layer Discovery Protocol (LLDP) IEEE 802.3ah OAM Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS IP TOS/DSCP/IP precedence IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Multicast SupportsIPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD snooping v1 and v2 Querier mode support IPv4 IGMP snooping port filtering IPv6 MLD snooping port filtering MVR (Multicast VLAN Registration) Security Authentication IEEE 802.1x port-based/MAC-based network access authentication Built-in RADIUS client to co-operate with the RADIUS servers TACACS+ login users access authentication RADIUS / TACACS+ users access authentication Guest VLAN assigns clients to a restricted VLAN with limited services Access Control List IP-based Access Control List (ACL) MAC-based Access Control List Source MAC/IP address binding DHCP Snooping to filter un-trusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces Web switch management Console and Telnet Command Line Interface SNMP v1 and v2c switch management SSHv2, TLSv1.2 and SNMPv3 secure access SNMP Management Four RMON groups (history, statistics, alarms, and events) SNMP trap for interface Link Up and Link Down notification IPv6 IP Address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP Reset button for system reboot or reset to factory default Dual Images DHCP Relay and DHCP Option82 DHCP Server User Privilege levels control NTP (Network Time Protocol) UPnP Network Diagnostic ICMPv6/ICMPv4 Remote Ping Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues SFP-DDM (Digital Diagnostic Monitor) SMTP, Syslog and SNMP trap remote alarm Local system Log PLANET NMS System and Smart Discovery Utility for deployment management Provides ONVIF for co-operating with PLANET video IP surveillances

Especificaciones técnicas

Copper Ports

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP Fiber Ports

2 100/1000BASE-X SFP interfaces (Port 9 and Port 10) 2 100/1000/2500BASE-X SFP interfaces (Port 11 and Port 12)

PoE Injector Ports

8 ports with 802.3at/af PoE injector function (Ports 1 to 8)

Console

1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

RAM

128MBytes

Flash Memory

64MBytes

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

ESD Protection

6KV DC

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount kit

Connector

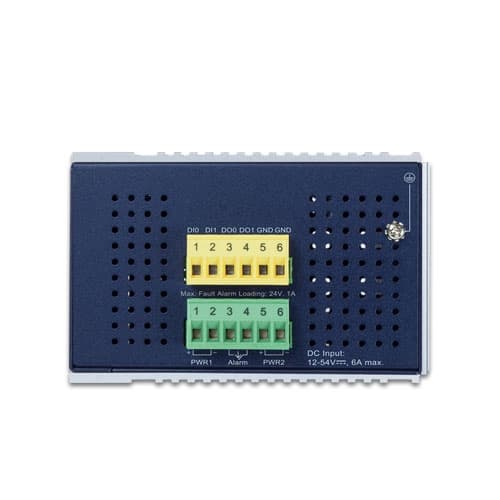

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

Alarm

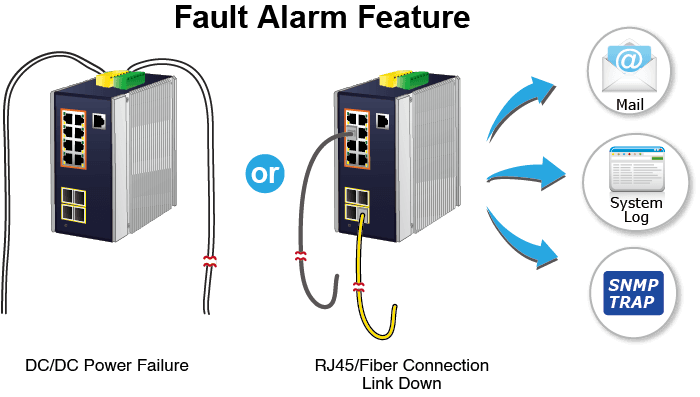

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC

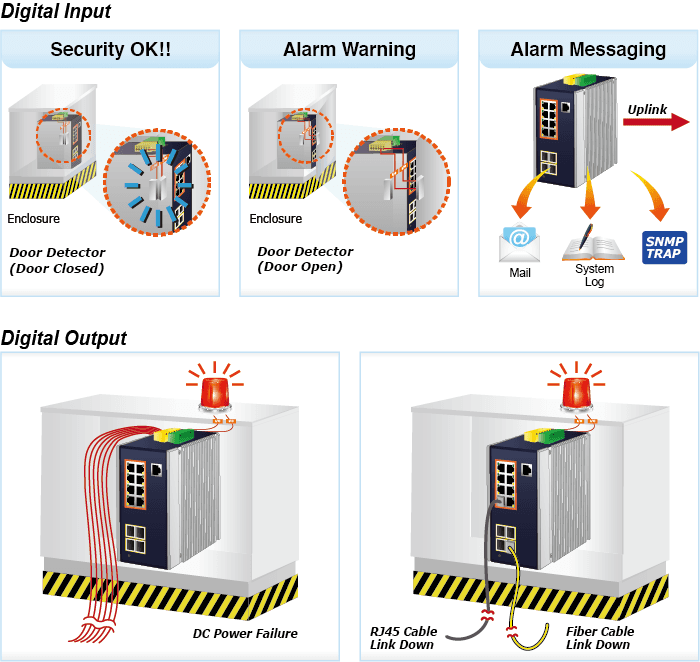

Digital Input

2 digital input (DI) Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24V DC, 10mA max.

Digital Output

2 digital output(DO) Open collector to 24VDC, 100mA max.

Dimensions (W x D x H)

76.8 x 107.3 x 152mm

Weight

1128g

Power Requirements

Dual 12~54V DC

Power Consumption

Max. 7.28 watts/22.11BTU (Power on without any connection) Max.249 watts/849.09BTU (Full loading with PoE function)

LED Indicator

System: Power 1 ( Green ) Power 2 ( Green ) Fault Alarm ( Red ) Ring ( Green ) Ring Owner ( Green ) DIDO ( Red ) Per 10/100/1000T RJ45 PoE+ Ports: PoE-in-Use ( Amber ) LNK/ACT ( Green ) Per 10/100/1000T RJ45Ports: 1000 LNK/ACT ( Green ) 100 LNK/ACT ( Amber ) Per SFP Interface: 100 LNK/ACT ( Amber ) 1G/2.5G LNK/ACT ( Green )

Switch Architecture

Store-and-Forward

Switch Fabric

30Gbps/non-blocking

Throughput (packet per second)

22.32Mpps@ 64 bytes packet

Address Table

8K entries, automatic source address learning and aging

Shared Data Buffer

4Mbits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

9Kbytes

PoE Standard

IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with 802.3af Power over Ethernet

PoE Power Supply Type

End-span

PoE Power Output

IEEE 802.3at Standard Per port 52V~54V DC, max. 36 watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

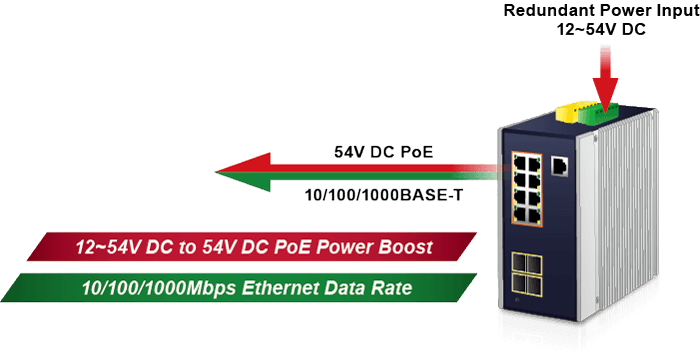

60W maximum (DC 12V power input) 120W maximum (DC 24V power input) 240W maximum (DC 48V ~ 54V power input)

Max. Number of Class 2 PDs

8

Max. Number of Class 3 PDs

8

Max. Number of Class 4 PDs

8

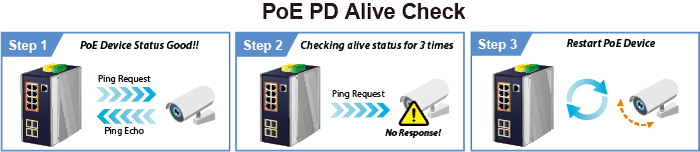

Active PoE device alive detection

Yes

PoE Power Recycling

Yes, daily or predeinded schedule

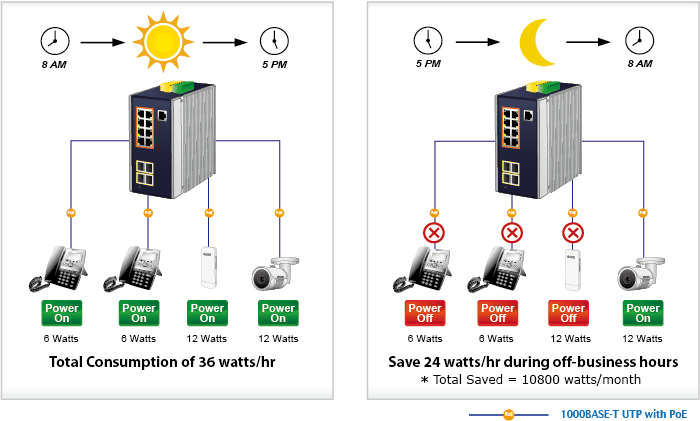

PoE Schedule

4 schedule profiles

PoE Extend Mode

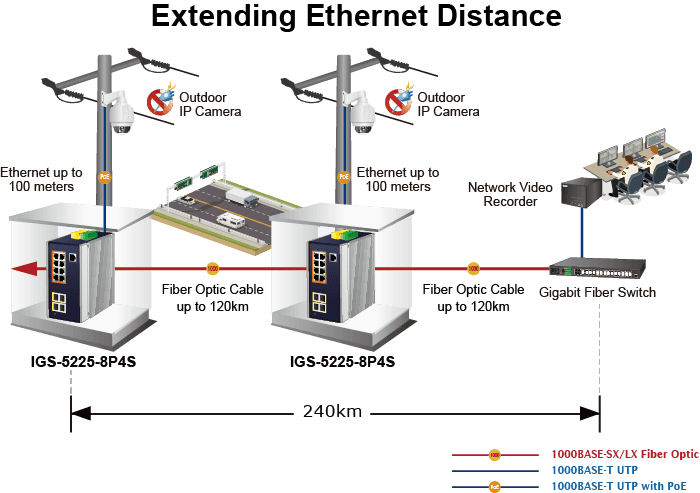

Yes, max. 160 to 200 meters

PoE System Management

System PoE Admin control Total PoE power budget control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm

PoE Port Management

Port Enable/Disable/Schedule Port Priority

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing IPv6 software static routing

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Power saving mode control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status

Port Mirroring

TX / RX / Both Many-to-1 monitor

VLAN

IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN VLAN Translation Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk Supports 6 trunk groups with 4 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Up to 255 multicast groups

MLD Snooping

IPv6 MLD (v1/v2/v3) snooping IPv6 MLD querier mode support Up to 255 multicast groups

Bandwidth Control

Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps

RING

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms

Synchronization

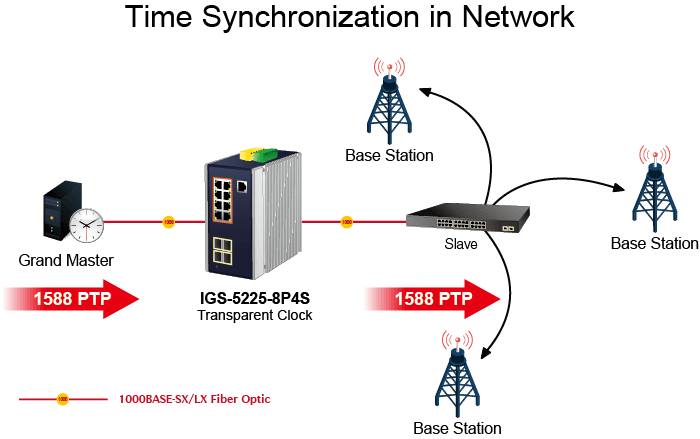

IEEE 1588v2 PTP(Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet

Access Control List

IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 256 entries

Security

Port Security IP source guard Dynamic ARP inspection Command line authority control based on user level

AAA

RADIUS client TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication

Basic Management Interfaces

Console;Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSHv2, TLSv1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote syslog System log LLDP protocol NTP PLANET Smart Discovery Utility

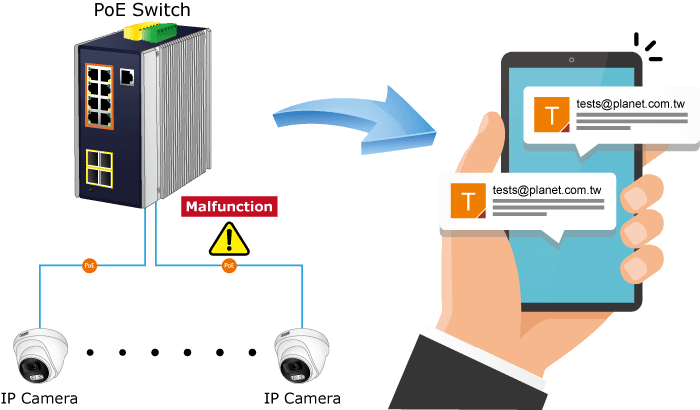

Event Management

Remote syslog Local system log SMTP

ONVIF

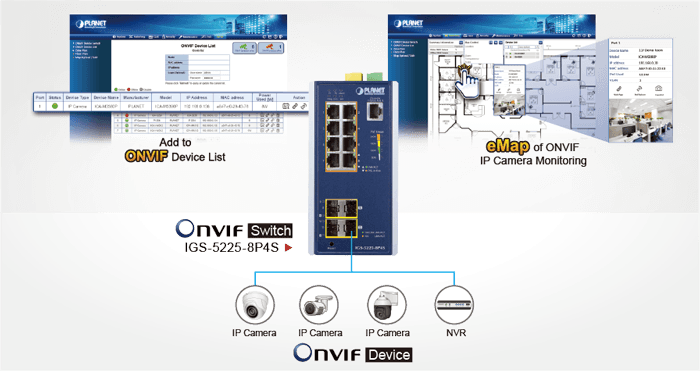

ONVIF device discovery ONVIF device monitoring Floor Map

SNMP MIBs

RFC1213 MIB-II RFC 2863 IF-MIB RFC1643 Ethernet MIB RFC2863 Interface MIB RFC2665 Ether-Like MIB RFC2737 Entity MIB RFC2819 RMON MIB (Groups 1, 2, 3 and 9) RFC2618 RADIUS Client MIB RFC3411SNMP-Frameworks-MIB IEEE802.1X PAE LLDP MAU-MIB Power over Ethernet MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Standards Compliance

IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/100BASE-FX IEEE802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE802.3x flow control and back pressure IEEE802.3ad port trunk with LACP IEEE802.1D Spanning Tree Protocol IEEE802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE802.1p Class of Service IEEE802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3ah OAM IEEE 1588 PTPv2 RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU-T G.8032 ERPS Ring

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
