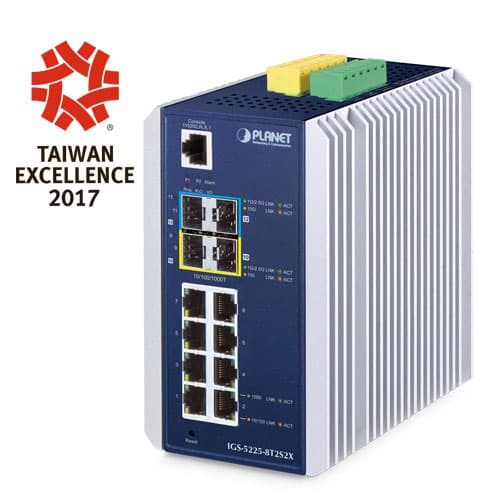

IGS-5225-8T2S2X — Industrial L3 8-Port 10/100/1000T + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch

Descripción

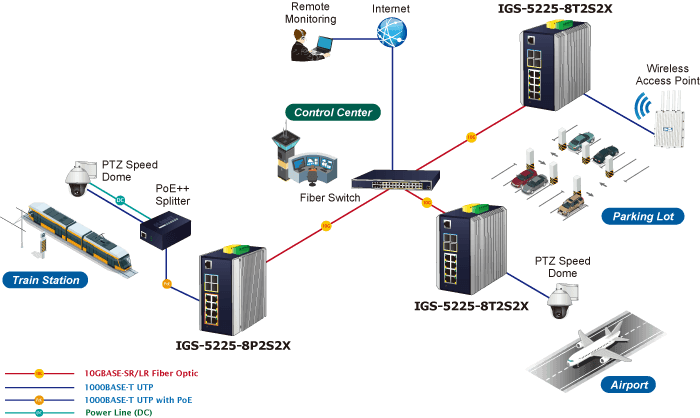

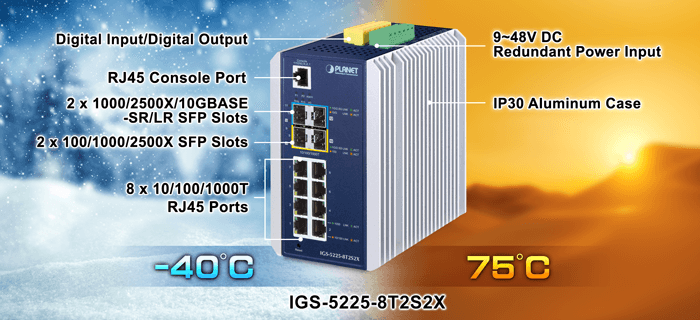

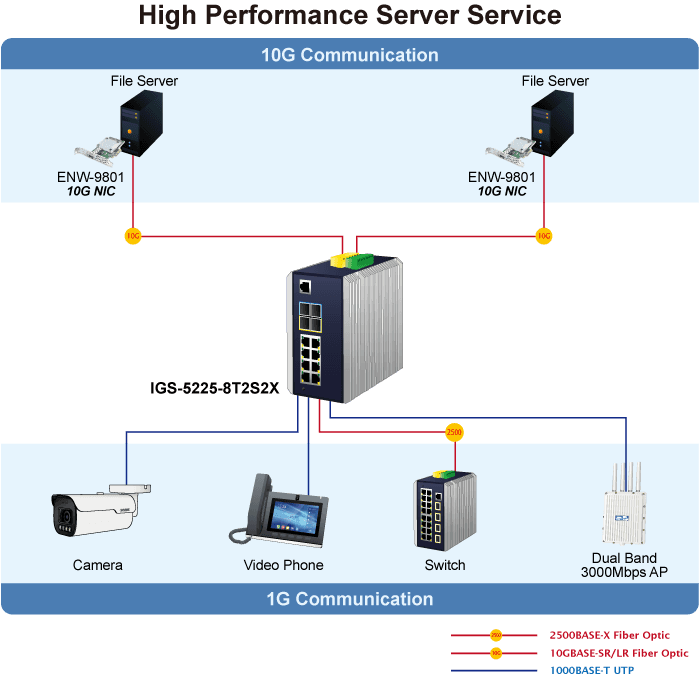

Advanced Layer 3 Manageable Solution for Hardened Environment PLANET IGS-5225-8T2S2X is an industrial Layer 3 managed Gigabit Switch that features 8 10/100/1000Mbps copper ports, 2 additional 1G/2.5G SFP ports and 2 10G SFP+ ports, and supports static Layer 3 routing in a rugged IP30 aluminum case for stable operation in heavy industrial demanding environments. With 10Gbps uplink, the IGS-5225-8T2S2X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-8T2S2X can be placed in almost any difficult environment. The IGS-5225-8T2S2X also allows either DIN-rail or wall mounting for efficient use of cabinet space. Cybersecurity Network Solution to Minimize Security Risks The cybersecurity features that virtually need no effort and cost to have include the protection of the switch management and the enhanced security of the mission-critical network. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-5225-8T2S2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. The IGS-5225-8T2S2X also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network is interrupted accidentally, the fault recovery time could be as fast as 10ms to quickly bring the network back to normal operation. Layer 3 Network Routing Support The IGS-5225-8T2S2X allows administrators to boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually or automatically through the Routing Information Protocol (RIP) or Open Shortest Path First (OSPF) settings. The RIP uses hop count as a routing metric and prevents routing loops by setting a limit on the number of hops allowed in a path from source to destination. The OSPF is an interior dynamic routing protocol for autonomous systems based on link state. The protocol creates a database of link states by exchanging link states among Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database. IPv6/IPv4 Dual Stack Management Supporting both IPv6 and IPv4 protocols, the IGS-5225-8T2S2X helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. SMTP/SNMP Trap Event Alert The IGS-5225-8T2S2X provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Effective Alarm Alert for Better Protection The IGS-5225-8T2S2X supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource. Digital Input and Digital Output for External Alarm The IGS-5225-8T2S2X supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-8T2S2X port shows link down, link up or power failure. Robust Layer 2 to Layer 4 Features The IGS-5225-8T2S2X can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-8T2S2X provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the IGS-5225-8T2S2X allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 3 trunk groups with 6 ports per trunk group, and supports fail-over as well. Efficient Secure Management For efficient management, the IGS-5225-8T2S2X is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-5225-8T2S2X offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the RJ45 console port. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Powerful Security The IGS-5225-8T2S2X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Remote Management Solution PLANET's Universal Network Management System (UNI-NMS) and NMSViewerPro/CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or NMSViewerPro/CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform. Flexibility and Extension Solution The additional total four mini-GBIC slots built in the IGS-5225-8T2S2X, two SFP slots support triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) and other two SFP slots supports 1G/2.5G/10GBASE-SR/LR fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 300 meters to 2km (multi-mode fiber) and to 10/20/30/40/60/70/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Intelligent SFP Diagnosis Mechanism The IGS-5225-8T2S2X supports SFP- DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Modbus TCP Provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the IGS-5225-8T2S2X can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information , port information and communication status , thus easily achieving enhanced monitoring and maintenance of the entire factory. 1588 Time Protocol for Industrial Computing Networks The IGS-5225-8T2S2X is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Applications Excellent 10Gbps High Bandwidth Solution to Core Network The IGS-5225-8T2S2X performs 66Gbps non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the two built-in SFP+ ports, the IGS-5225-8T2S2X provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features. FTTx/MAN Edge Switch By means of improving the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the IGS-5225-8T2S2X offers up to 10Gbps data exchange speed via Optical Fiber interface and the transmission distance can be extended to 120km. The IGS-5225-8T2S2X is the ideal solution for service providers such as ISPs and telecoms to build Metropolitan Area Network (MAN) based on the fiber technology. Key Features Physical Port 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports 2 100/1000/2500BASE-X SFP slots for SFP type auto detection 2 10GBASE-SR/LR SFP+ slots , backward compatible with 1G/2.5GBASE-X SFP One RJ45 console interface for basic management and setup Industrial Protocol Modbus TCP for real-time monitoring in a SCADA system IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode Industrial Case and Installation IP30 aluminum case DIN-rail and wall-mount designs Redundant power 9~48V DC, redundant power with reverse polarity protection 24V AC power input acceptable Supports 6000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature Digital Input and Digital Output 2 Digital Input (DI) 2 Digital Output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via email and SNMP trap Layer 3 IP Routing Features IPv4 dynamic routing protocol supports RIPv1/v2 and OSPFv2 IPv6 dynamic routing protocol supports OSPFv3 IPv4/IPv6 hardware static routing Routing interface provides per VLAN routing mode Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm Control support Broadcast/Multicast/Unicast Supports VLAN IEEE 802.1Q tagged VLAN Up to 4K VLANs groups, out of 4095 VLAN IDs Supports provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) Private VLAN Edge (PVE) Port Isolation MAC-based VLAN Protocol-based VLAN Voice VLAN VLAN Translation GVRP (GARP VLAN Registration Protocol) Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 6 trunk groups with 12 ports per trunk group Up to 24Gbps bandwidth (duplex mode) Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports G.8032 ERPS (Ethernet Ring Protection Switching) Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Link Layer Discovery Protocol (LLDP) and LLDP-MED Link OAM Quality of Service Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS IP TOS/DSCP/IP precedence IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing policies on the switch port DSCP remarking Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD snooping v1 and v2 Querier mode support IPv4 IGMP snooping port filtering IPv6 MLD snooping port filtering Multicast VLAN Registration (MVR) support Security Authentication IEEE 802.1x Port-based and MAC-based network access authentication IEEE 802.1x authentication with guest VLAN Guest VLAN assigns clients to a restricted VLAN with limited services. Built-in RADIUS client to co-operate with the RADIUS servers TACACS+ login users access authentication RADIUS/TACACS+ users access authentication Access Control List IP-based Access Control List (ACL) MAC-based Access Control List Source MAC/IP address binding DHCP Snooping to filter un-trusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces Console/Telnet Command Line Interface Web switch management SNMP v1, v2c, and v3 switch management SSHv2 and TLSv1.2 secure access SNMP Management Four RMON groups (history, statistics, alarms and events) SNMP trap for interface Link up and Link down notification IPv6 IP Address/NTP/DNS management BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP Configuration upload/download through HTTP Reset button for system reboot or reset to factory default Dual Images DHCP Functions DHCP Relay DHCP Option82 DHCP Server Mode support User Privilege levels control NTP (Network Time Protocol) Network Diagnostic ICMPv6/ICMPv4 Remote Ping Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues SMTP/Syslog remote alarm System Log SFP- DDM (Digital Diagnostic Monitor) PLANET Smart Discovery Utility for deployment management PLANET NMS system and NMSViewerPro/CloudViewerPro for deployment management

Especificaciones técnicas

Version

4

Copper Ports

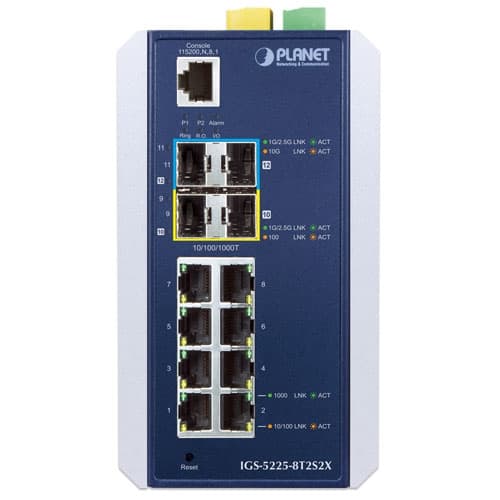

8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

SFP Slots

2 100/1000/2500BASE-X SFP ports (Port 9 and Port 10)

SFP+ Slots

2 10GbBASE-SR/LR SFP+ interfaces (Port 11 and Port 12) Compatible with 1G/2.5GBASE-X SFP transceiver

Console

1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Connector

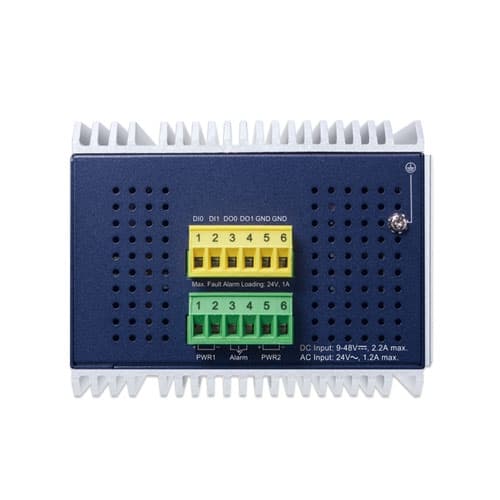

6-contact barrier terminal block for power input Contact 1/2 for Power 1, Contact 3/4 for fault alarm, Contact 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 0 & 1, Pin 3/4 for DO 0 & 1, Pin 5/6 for GND

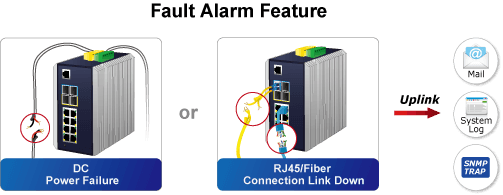

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC

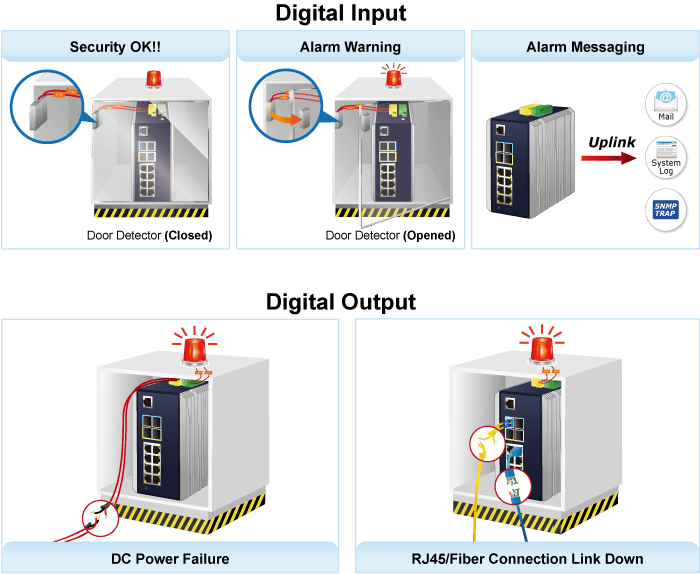

Digital Input (DI)

2 digital input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input load to 24VDC, 10mA max.

Digital Output (DO)

2 digital output (DO): Open collector to 24V DC, 100mA max.

SDRAM

512Mbytes

Flash Memory

64Mbytes

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount kit

Dimensions (W x D x H)

86 x 107 x 152 mm

Weight

1377g

Power Requirements

Dual 9~48V DC 24V AC

Power Consumption

Max. 17.1 watts/58.3BTU (Power on without any connection) Max. 24.8 watts/84.6BTU (Full loading )

ESD Protection

6KV DC

EFT Protection

6KV DC

LED Indicator

System: Power 1 ( Green ) Power 2 ( Green ) Fault Alarm ( Red ) Ring ( Green ) R.O. (Ring Owner) ( Green ) I/O ( Red ) 10/100/1000T RJ45 Ports (Port 1 to port 8): 1000 LNK/ACT x 1 ( Green ) 10/100 LNK/ACT x 1 ( Amber ) 100/1000/2500BASE-X SFP Interfaces (Port 9 to port 10): 1G/2.5G LNK/ACT ( Green ) 100 LNK/ACT ( Amber ) 10GBASE-X SFP+ Interfaces (Port 11 to port 12): 10G LNK/ACT ( Amber ) 1G/2.5G LNK/ACT ( Green )

Switch Architecture

Store-and-Forward

Switch Fabric

66Gbps/non-blocking

Throughput (packet per second)

49.1Mpps@ 64Bytes packet

Address Table

32K entries, automatic source address learning and aging

Shared Data Buffer

32Mbits

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

Jumbo Frame

10Kbytes

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 128 routing entries Max. 4K H/W routing table entries

Routing Protocols

IPv4 RIPv1/v2 IPv4 OSPFv2 IPv4 hardware static routing IPv6 OSPFv3 IPv6 hardware static routing

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status

Port Mirroring

TX/RX/both Many-to-1 monitor RMirror – Remote Switched Port Analyzer (Cisco RSPAN) Supports up to 5 sessions

VLAN

IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP (GARP VLAN Registration Protocol) Up to 4K VLAN groups, out of 4095 VLAN IDs

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol BPDU Guard

Link Aggregation

IEEE 802.3ad LACP/static trunk Supports 6 trunk groups with 12 ports per trunk group

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support IPv4 IGMP Snooping port filtering Up to 255 multicast groups

MLD Snooping

IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Up to 255 multicast groups

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports major ring and sub-ring

Synchronization

IEEE 1588v2 PTP (Precision Time Protocol) Peer-to-peer transparent clock End-to-end transparent clock

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet

Bandwidth Control

Per port bandwidth control Ingress: 100Kb~3276Mbps Egress: 100Kb~3281Mbps

Storm Control

Unicast/Multicast/Broadcast

Access Control List

IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries

Security

Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries

AAA

RADIUS client TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication

Basic Management Interfaces

Console; Telnet; Web browser; SNMP v1, v2c

Secure Management Interfaces

SSHv2,TLSv1.2, SNMP v3

System Management

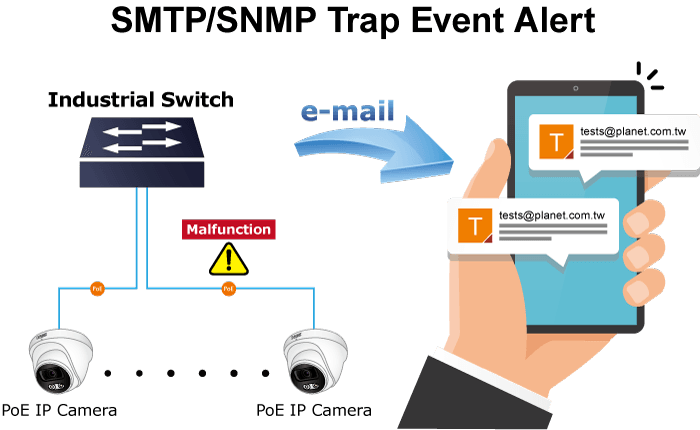

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET NMS system PLANET NMSViewerPro/CloudViewerPro

Event Management

Remote syslog System log SMTP

SNMP MIBs

RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3bz 2.5GBASE-X IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3az Energy-Efficient Ethernet IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management(CFM) IEEE 1588 PTPv2 RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 2068 HTTP RFC 1058 RIP v1 RFC 2453 RIP v2 RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 RFC 2328 OSPF v2 RFC 2740 OSPF v3 ITU G.8032 ERPS Ring ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
