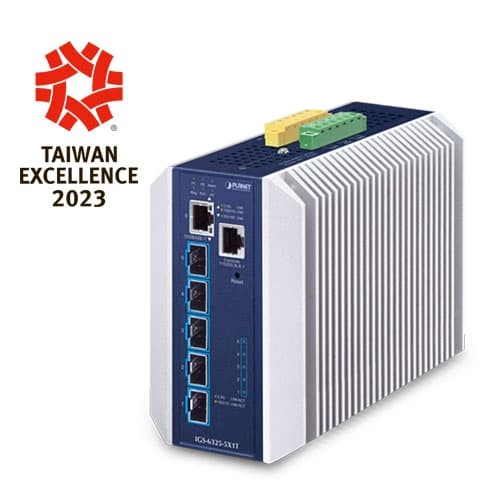

IGS-6325-5X1T — Industrial Layer 3 5-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T Managed Ethernet Switch

Descripción

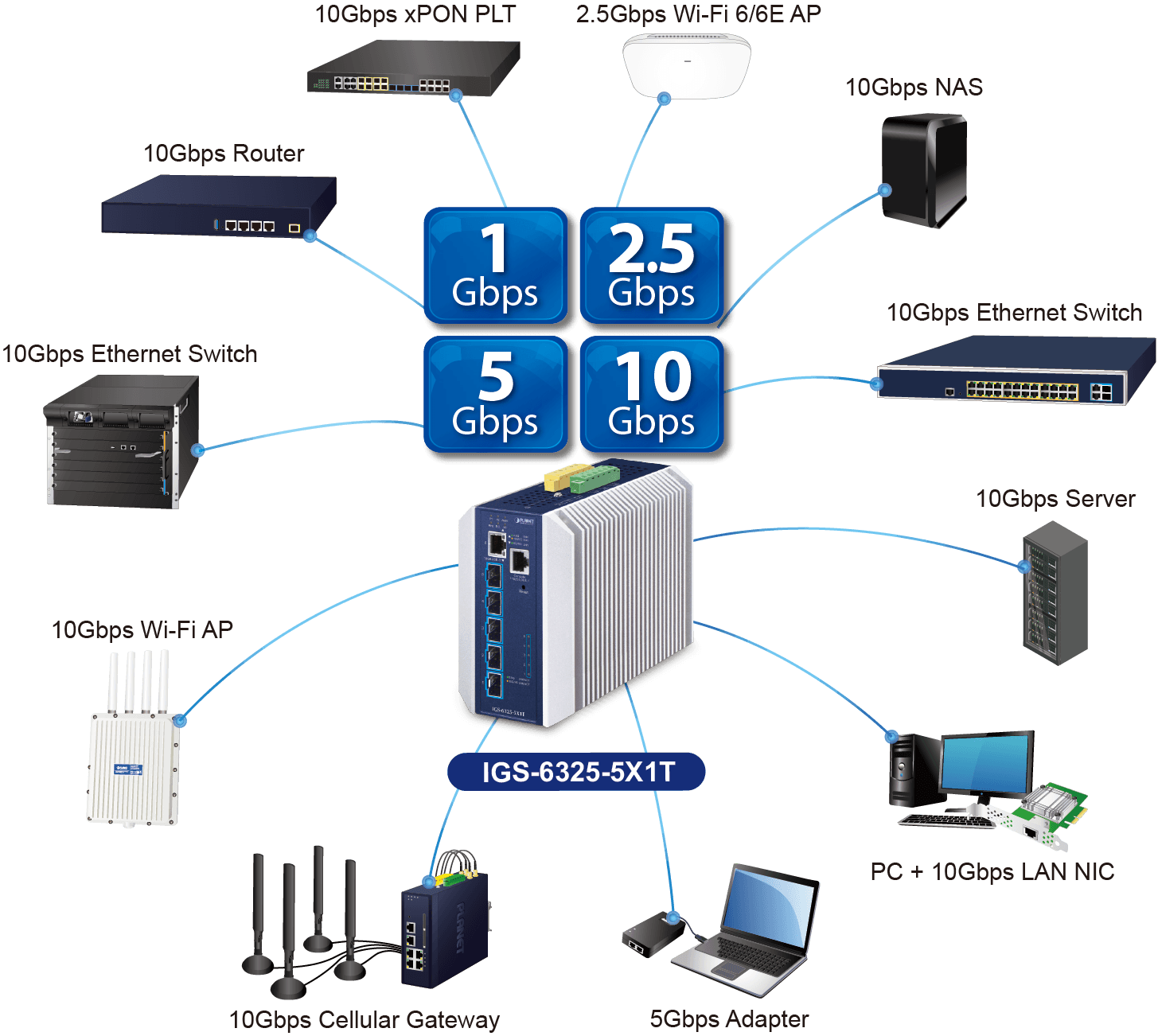

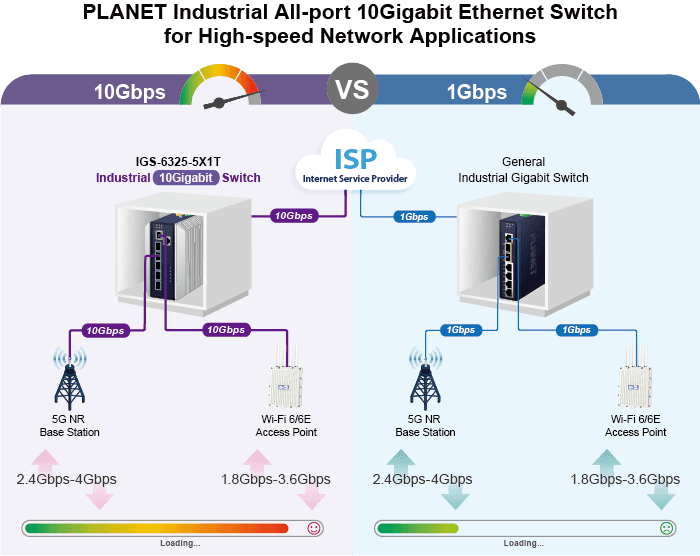

10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking PLANET IGS-6325-5X1T is a brand-new all-port 10Gbps Industrial-grade Layer 3 Managed Ethernet Switch which features 5 10GBASE-SR/LR SFP+ ports, 1 10GBASE-T copper port and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy industrial environments. With 10Gbps fiber or copper interfaces, the IGS-6325-5X1T can handle extremely large amounts of data in a secure topology linking to an industrial backbone, 5G NR base station or Wi-Fi6/6E wireless AP. The IGS-6325-5X1T is capable of providing non-blocking switch fabric and wire-speed throughput as high as 120Gbps in the temperature range from -40 to 75 degrees C . It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. 10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Diversified Bandwidth Applications The IGS-6325-5X1T has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, and 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling, meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy. The fiber-optic 10GBASE-X SFP+ interfaces support triple speeds, 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325-5X1T provides broad bandwidth and powerful processing capacity. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-6325-5X1T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple ring network, the recovery time of data link can be as fast as 10ms. Layer 3 Routing Support The IGS-6325-5X1T enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database. Robust Layer 2 Features The IGS-6325-5X1T can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-6325-5X1T allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well. Cybersecurity Network Solution to Minimize Security Risks The IGS-6325-5X1T comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data over a long-distance fiber optic cable to customer's critical equipment in a business network, the cybersecurity feature of the IGS-6325-5X1T protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort. Modbus TCP Provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the IGS-6325-5X1T can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information , communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory. 1588 Time Protocol for Industrial Computing Networks The IGS-6325-5X1T is ideal for telecom and carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. SMTP/SNMP Trap Event Alert The IGS-6325-5X1T provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. Effective Alarm Alert for Better Protection The IGS-6325-5X1T supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time to find where the problem is. It will help to save time and human resource. Digital Input and Digital Output for External Alarm The IGS-6325-5X1T supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the I IGS-6325-5X1T’s port shows link down, link up or power failure. IPv6/IPv4 Dual Stack Supporting both IPv6 and IPv4 protocols, the IGS-6325-5X1T helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up. Efficient Management For efficient management, the IGS-6325-5X1T is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-6325-5X1T offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet and the console port. For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management. Powerful Network Security The IGS-6325-5X1T offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. Advanced IP Network Protection The IGS-6325-5X1T also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Excellent Traffic Control The IGS-6325-5X1T is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers’ applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission. Intelligent SFP Diagnosis Mechanism The IGS-6325-5X1T supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage. Applications High Availability Mesh Networking Solution for Big Data System To improve the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the IGS-6325-5X1T offers up to 120Gbps data exchange speed via Optical Fiber interface and the transmission distance can be extended to 120km. The IGS-6325-5X1T features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-6325 DIN-rail series is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm. Layer 3 VLAN Routing With the built-in, robust Layer 3 routing protocols, the IGS-6325-5X1T ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 128 routing entries. The IGS-6325-5X1T, certainly an ideal solution for industries, offers greater security, control and bandwidth conservation, and high-speed uplink. Key Features Physical Port 1 100/1G/2.5G/5G/10GBASE-T RJ45 copper port 5 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-X SFP One RJ45-to-RS232 console interface for basic management and setup Industrial Hardened Design Dual power input, redundant power with reverse polarity protection DC 9 to 48V input or AC 24V input Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience DIN-rail and wall-mountable designs IP30 aluminum case Supports 6000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature Digital Input and Digital Output 2 digital input (DI) 2 digital output (DO) Integrates sensors into auto alarm system Transfers alarm to IP network via email and SNMP trap Layer 3 IP Routing Features IPv4 dynamic routing protocol supports RIPv2 and OSPFv2 and IPv6 OSPFv3 IPv6 dynamic routing protocol supports OSPFv3 IPv4/IPv6 hardware static routing Routing interface provides per VLAN routing mode Layer 2 Features High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Storm control support Broadcast/Multicast/Unknown unicast Supports VLAN IEEE 802.1Q tagged VLAN Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad) Private VLAN Edge (PVE) Protocol-based VLAN MAC-based VLAN Voice VLAN GVRP (GARP VLAN Registration Protocol) Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 3 trunk groups, with 6 ports for each trunk Provides port mirror (many-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Link Layer Discovery Protocol (LLDP) Compatible with Cisco uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices Supports G.8032 ERPS (Ethernet Ring Protection Switching) IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode Quality of Service Ingress shaper and egress rate limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS ToS/DSCP/IP Precedence of IPv4/Ipv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing on the switch port DSCP remarking Voice VLAN Multicast Supports IPv4 IGMP snooping v1, v2 and v3 Supports IPv6 MLD snooping v1 and v2 Querier mode support IPv4 IGMP snooping port filtering IPv6 MLD snooping port filtering MVR (Multicast VLAN Registration) Security Authentication IEEE 802.1x port-based/MAC-based network access authentication IEEE 802.1x authentication with guest VLAN Built-in RADIUS client to cooperate with the RADIUS servers RADIUS/TACACS+ users access authentication Guest VLAN assigns clients to a restricted VLAN with limited services Access Control List IP-based Access Control List (ACL) MAC-based Access Control List (ACL) Source MAC/IP address binding DHCP Snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder Management IPv4 and IPv6 dual stack management Switch Management Interfaces Console and Telnet Command Line Interface HTTP web switch management SNMP v1 and v2c switch management SSHv2, TLSv1.2 and SNMPv3 secure access SNMP Management Four RMON groups (history, statistics, alarms, and events) SNMP trap for interface Link Up and Link Down notification IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP Reset button for system reboot or reset to factory default Dual images DHCP Functions: DHCP Relay DHCP Option82 DHCP Server User Privilege levels control Network Time Protocol (NTP) Network Diagnostic SFP-DDM (Digital Diagnostic Monitor) ICMPv6/ICMPv4 remote ping SMTP/Syslog remote alarm System Log PLANET Smart Discovery Utility for deployment management PLANET UNI-NMS (Universal Network Management) and CloudViewer app for deployment management

Especificaciones técnicas

Copper Ports

1 10GBASE-T RJ45 auto negotiation port Supports 10G/5G/2.5G/1G/100Mbps data rate

SFP+ Ports

5 10GBASE-SR/LR SFP+ slots Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers

Console

1 x RJ45-to-RS232 serial port (115200, 8, N, 1)

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

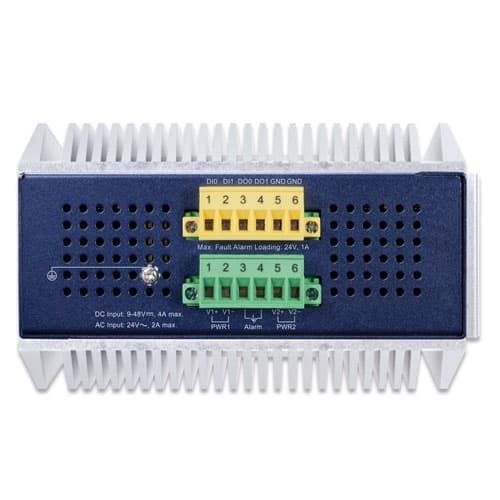

Connector

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

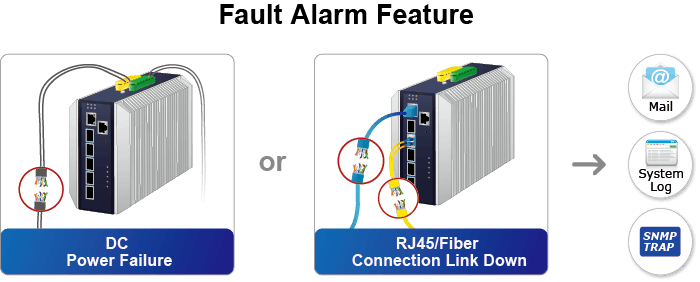

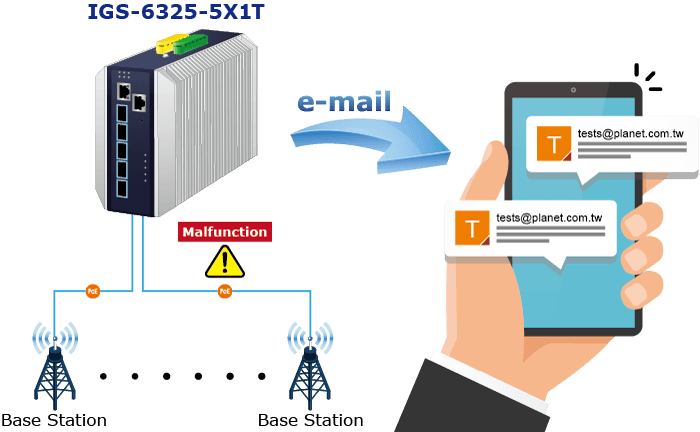

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC

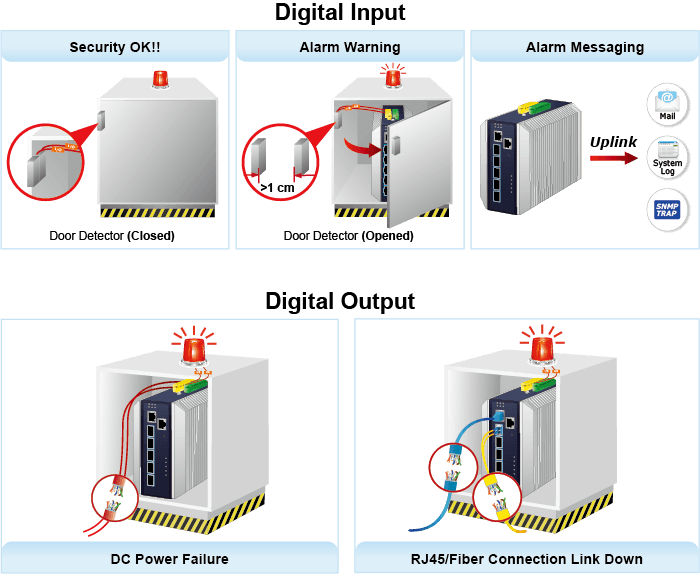

Digital Input (DI)

2 digital input: Level 0: -24~2.1V (±0.1V) Level 1: 2.1~24V (±0.1V) Input load to 24V DC, 10mA max.

Digital Output (DO)

2 digital output: Open collector to 24VDC, 100mA

Enclosure

IP30 aluminum case

Installation

DIN-rail or wall mounting

SDRAM

2048Mbytes

Flash Memory

64Mbytes

Dimensions (W x D x H)

80 x 135 x 135 mm

Weight

1550g

Power Requirements

DC 9~48V, 4A max. AC 24V, 2A max.

Power Consumption

DC input: Max. 14.88 watts/50.8BTU (system on) Max. 22.08 watts/75.3BTU (Full loading) AC 24V input: Max. 15 watts/51.2BTU (system on) Max. 21 watts/71.7BTU (Full loading)

ESD Protection

5KV DC

Surge Protection

6KV DC

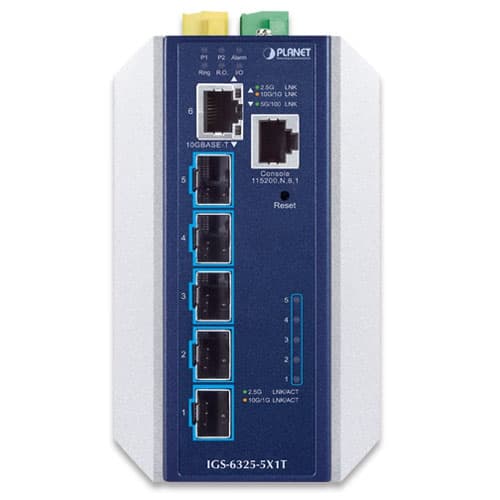

LED Indicators

System: Power 1 ( Green ), Power 2 ( Green ) Fault Alarm ( Red ) Ring ( Green ), Ring Owner ( Green ) DIDO ( Red ) Per 100/1G/2.5G/5G/10GBASE-T RJ45 Port: 100/2.5G/5Gbps LNK ( Green ) 1G/10Gbps LNK ( Amber ) Per 1G/2.5G/10GBASE-X SFP+ Port: 1G/10Gbps LNK/ACT ( Amber ) 2.5Gbps LNK/ACT ( Green )

Switch Architecture

Store-and-Forward

Switch Fabric

120Gbps/non-blocking

Throughput

89.285Mpps@64Bytes

Address Table

32K entries, automatic source address learning and aging

Shared Data Buffer

32Mbits

Jumbo Frame

10K bytes

Flow Control

IEEE 802.3x pause frame for full duplex Back pressure for half duplex

IP Interfaces

Max. 128 VLAN interfaces

Routing Table

Max. 512 static route entries Max. 3072 routing table entries

Routing Protocols

IPv4 RIPv2 IPv4 OSPFv2 IPv6 OSPFv3 IPv4 hardware static routing IPv6 hardware static routing

Port Configuration

Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX/RX/Both Many-to-1 monitor RMirror – Remote Switched Port Analyzer (Cisco RSPAN) Supports up to 5 sessions

VLAN

IEEE 802.1Q tagged VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN registration) GVRP Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP/static trunk 3 trunk groups with 6 ports per trunk group

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol Supports 7 MSTP instances BPDU Guard, BPDU filtering and BPDU transparent Root Guard

IGMP Snooping

IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups

MLD Snooping

IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups

Bandwidth Control

Per port bandwidth control Ingress: 10Kbps~13128Mbps Egress: 10Kbps~13128Mbps

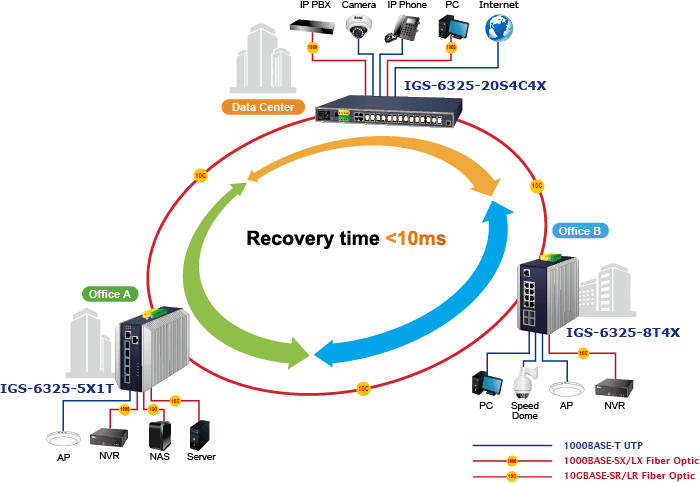

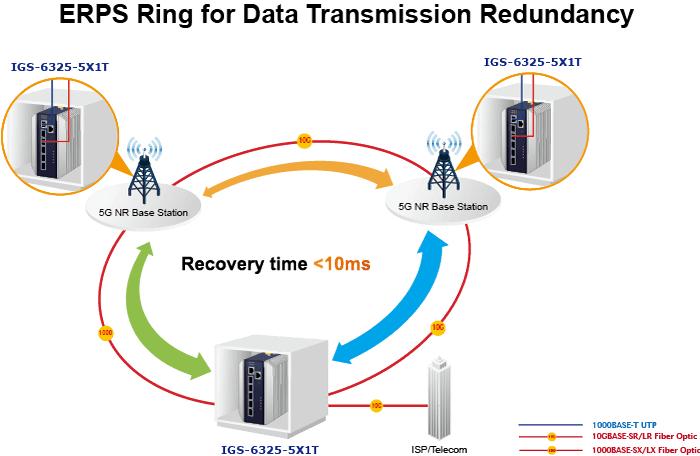

Ring

Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports Major ring and sub-ring

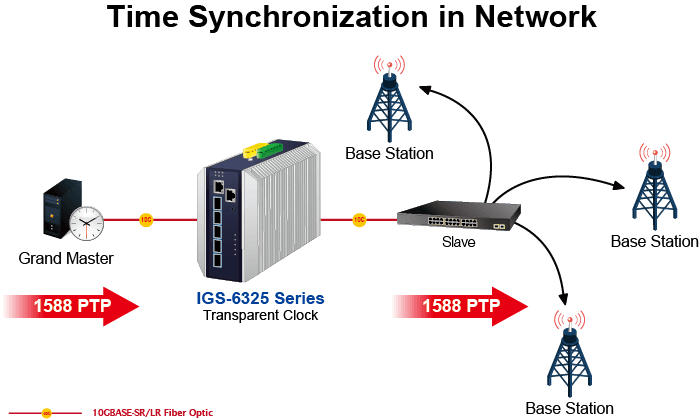

Synchronization

IEEE 1588v2 PTP(Precision Time Protocol) -Peer-to-peer transparent clock -End-to-end transparent clock

QoS

Traffic classification based, strict priority and WRR 8-level priority for switching: -Port number -802.1p priority -802.1Q VLAN tag -DSCP/ToS field in IP packet

Access Control List

IP-based ACL/MAC-based ACL -ACL based on: -MAC Address -IP Address -Ethertype -Protocol Type -VLAN ID -DSCP -802.1p Priority Up to 512 entries

Security

Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries

AAA

RADIUS client TACACS+ client

Network Access Control

IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication

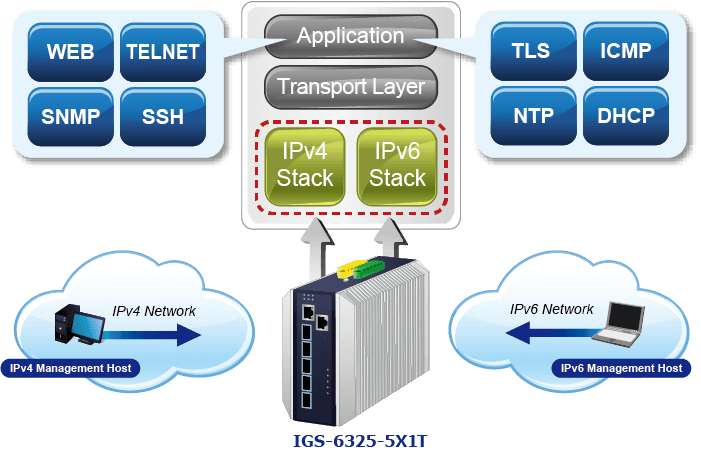

Basic Management Interfaces

Console; Telnet; Web browser; SNMP v1, v2c

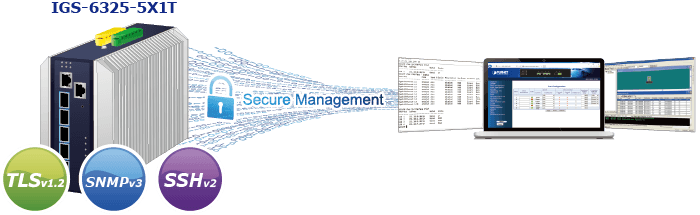

Secure Management Interfaces

SSHv2, TLS v1.2, SNMPv3

System Management

Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app

SNMP MIBs

RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP

Regulatory Compliance

FCC Part 15 Class A CE: EN55032 EN55035

Stability Testing

IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Standards Compliance

IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10GBASE-X IEEE 802.3an 10GBASE-T IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management (CFM) RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 5340 OSPF v3 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring

Operating

-40 ~ 75 degrees C

Storage

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
