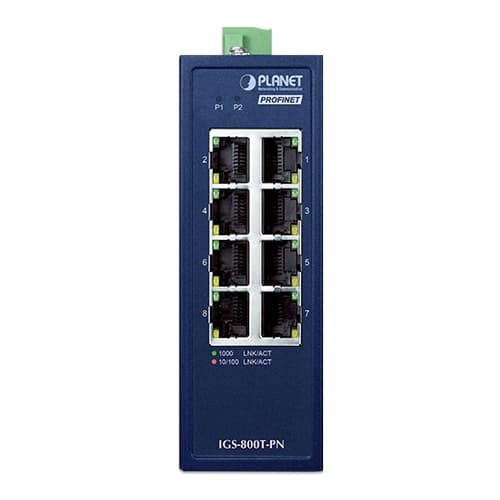

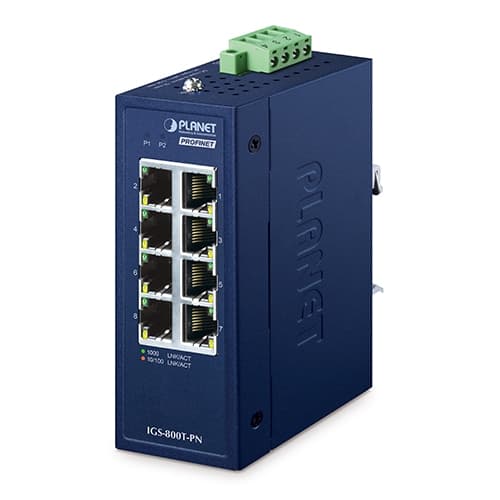

IGS-800T-PN — Compact Industrial 8-Port 10/100/1000T PROFINET Switch

Descripción

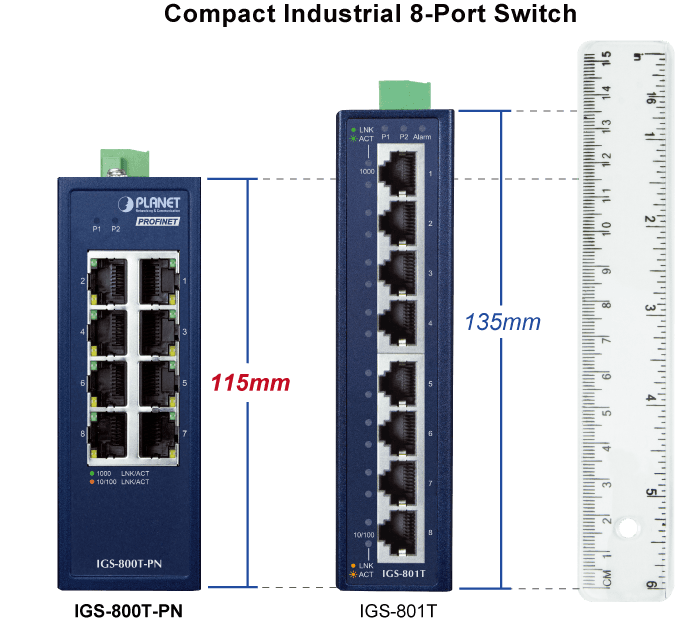

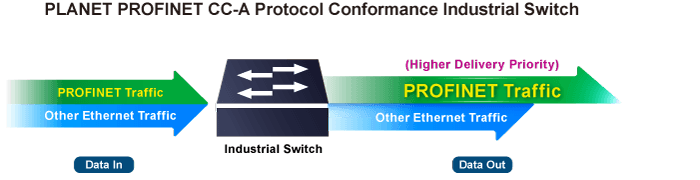

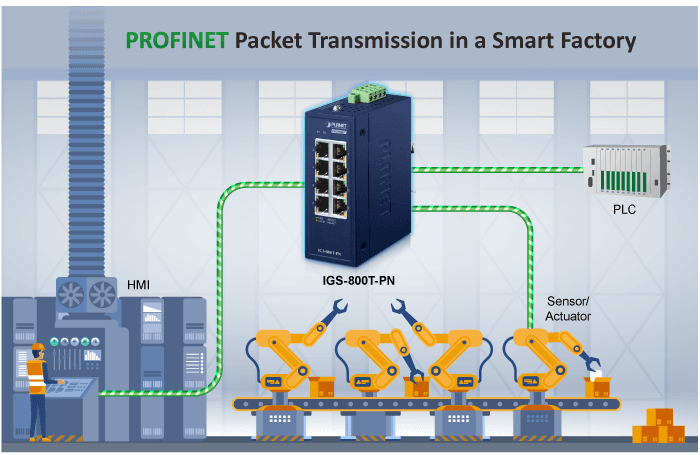

Compact Size for More Practicability and Convenience PLANET IGS-800T-PN Compact Industrial 8-Port 10/100/1000T PROFINET Switch, suitable for industrial use, features 8 1000Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (9~48V DC or 24V AC). The IGS-800T-PN is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C. As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the IGS-800T-PN is designed to simplify industrial network deployment with its Plug and Play feature. Beyond offering stable and reliable fast data and power transmission, it also aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless integration of intelligent systems. This allows the collection and analysis of valuable data, empowering real-time decision-making and enhancing operational efficiency across various industrial applications. PROFINET Traffic with Higher Delivery Priority The IGS-800T-PN is specially designed to support PROFINET Conformance Class A (CC-A), providing industrial users with reliable and real-time Ethernet communication in automation networks, making it ideal for use in factory automation and control applications. It features an enhanced function that recognizes PROFINET traffic and assigns it higher delivery priority. Upon detecting PROFINET packets, the IGS-800T-PN forwards them first before processing other Ethernet traffic. With this capability, the IGS-800T-PN becomes an ideal industrial unmanaged switch for ensuring fast and efficient PROFINET communication. Low Power Consumption for ESG Principles The IGS-800T-PN adopts the advanced green networking technology that meets the Environmental, Social, and Governance (ESG) principles, providing link-on cable length power-saving and link-down power-saving features. These characteristics enable the IGS-800T-PN to maintain extremely low power consumption even under full-load operation, effectively conserving energy while delivering outstanding performance. Compared to the IGS-801T, using the IGS-800T-PN can save over 50% of energy consumption. With Auto Power Savings and the IEEE 802.3az Energy Efficient Ethernet (EEE) protocol, the IGS-800T-PN can automatically detect cable link status and network traffic, adjusting its power consumption accordingly. When the device activity is lower, the switch consumes less power, achieving higher energy efficiency. Dual Power Input for High Availability Network System The IGS-800T-PN features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-800T-PN via power supply 2 alternatively without any loss of operation. High Switch Performance The IGS-800T-PN offers high-performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 4K MAC address table, the IGS-800T-PN can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the IGS-800T-PN to provide fast and reliable data transfer. Plug and Play All of the RJ45 copper interfaces in the IGS-800T-PN support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables. Flexible and Easy Installation with Limited Space The compact sized IGS-800T-PN is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location. Applications Industrial PROFINET Switch Optimized for Automation Networks PLANET IGS-800T-PN is designed for high-reliability communication in industrial automation environments. It intelligently prioritizes PROFINET traffic to ensure time-sensitive control signals are delivered with minimal delay, making it ideal for use between PLCs, HMIs, sensors, and data acquisition systems. Built with PTCP filtering and enhanced QoS handling, it helps maintain communication precision across automated processes. With dual power inputs and plug-and-play installation, the IGS-800T-PN is a robust solution for smart factories and IIoT infrastructures that demand stable and real-time network performance. Key Features Physical Port 8-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function Layer 2 Features Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth Switching fabric: 16Gbps Integrated address look-up engine, supporting 4K absolute MAC addresses Supports jumbo frames up to 9K bytes Automatic MAC address learning and aging Supports CSMA/CD Protocol Compliant with PROFINET Conformance Class A Supports PROFINET PTCP filter for reliable communication on PROFINET network Supports PROFINET Traffic Pass-through with QoS Industrial Case and Installation IP30-rated compact metal enclosure Supports both DIN-rail and wall-mount installation 9~48V DC redundant power input with reverse polarity protection; includes removable terminal block for master and slave power connections Supports 24V AC power input Supports 6000 VDC Ethernet ESD protection Operating temperature range: -40 to 75°C Designed to withstand free fall, shock, and vibration in industrial environments

Especificaciones técnicas

Copper Ports

8 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation

Connector

Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2

ESD Protection

6KV

EFT Protection

6KV

Power Requirements

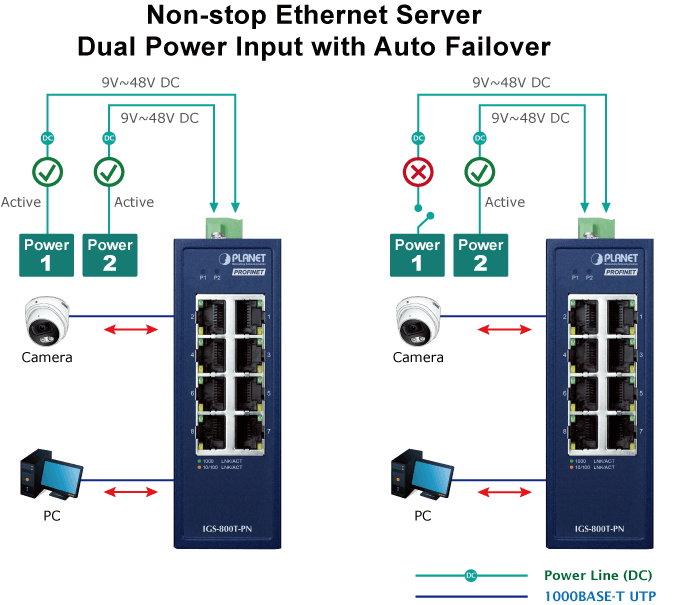

9~48V DC redundant power with polarity reverse protection function, 24V AC power support

Power Consumption / Dissipation

System on: Max. 0.48 watts/1.6BTU Ethernet Full Loading: Max. 2.88 watts/9.8BTU

Installation

DIN-rail kit and wall-mount ear

Enclosure

IP30 metal case

Dimensions (W x D x H)

41 x 70 x 115 mm

Weight

305g

LED

2 x LED for system and power: Green :　DC Power 1 Green :　DC Power 2 2 x LED for each copper port: Green :　1000Mbps LNK/ACT Amber :　10/100Mbps LNK/ACT

Switch Processing Scheme

Store-and-Forward

Address Table

4K entries

Buffer Memory

4M bits on-chip buffer memory

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Switch Fabric

16Gbps

Throughput (packet per second)

11.9Mpps@64bytes

Jumbo Frame

9Kbytes

Network Cables

10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters)

PROFINET Support

Conformance Class A (CC-A), PTCP filter, QoS prioritization

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service PROFINET protocol

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

PROFINET Conformance Class

Conformance-Class A

Temperature

Operating: -40~75 degrees C Storage: -40~75 degrees C

Humidity

Operating: 5~90%, Storage: 5~90% (non-condensing)
