IGS-801M — 8-Port 10/100/1000Mbps Managed Industrial Ethernet Switch

Descripción

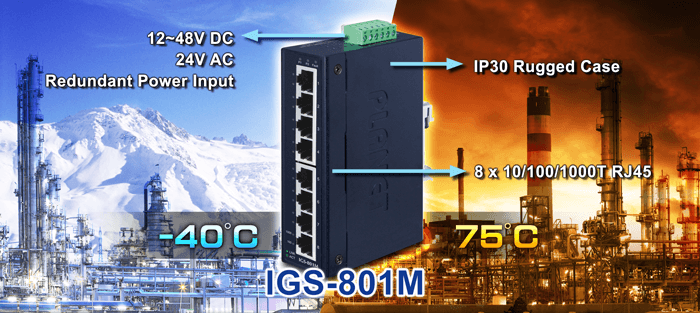

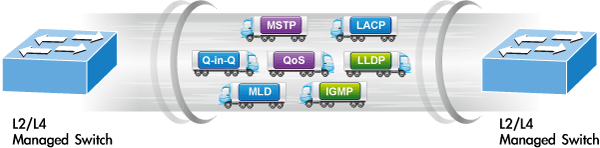

Perfect, Slim-type Managed Switch with More Practicability and Convenience PLANET IGS-801M is an Industrial 8-Port Full Gigabit Managed Ethernet Switch specially designed to transmit reliable but high-speed data in heavy industrial demanding environments. It provides eight 10/100/1000BASE-T copper ports delivered in an IP30 rugged strong case with redundant power system. Besides support for 16Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-801M provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure. Cybersecurity Network Solution to Minimize Security Risks The IGS-801M supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. Redundant Ring, Fast Recovery for Critical Network Applications The IGS-801M supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments. Environmentally Hardened Design With IP30 aluminum industrial case protection, the IGS-801M provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages ( 12 to 48V DC or 24V AC ) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801M can be placed in almost any difficult environment. Robust Layer 2 Features The IGS-801M can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP) , loop and BPDU guard, IGMP snooping , and MLD snooping . Via the link aggregation, the IGS-801M allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain. Efficient Traffic Control The IGS-801M is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast s torm control , per port bandwidth control , IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources. Powerful Security PLANET IGS-801M offers comprehensive IPv4/IPv6 Layer 2 to Lay er 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before. Friendly and Secure Management For efficient management, the IGS-801M is equipped with Command line, Web and SNMP management interfaces. With the built-in Web-based management interface, the IGS-801M offers an easy-to-use, platform-independent management and configuration facility. For text-based management, it can be accessed via Telnet. By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software. Moreover, the IGS-801M offers secure remote management by supporting SSHv2, TLSv1.2 and SNMPv3 connections which encrypt the packet content at each session. Applications ITU-T G.8032 ERPS with PoE IP Office Solution for SMBs/Workgroups The IGS-801M features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability an d uptime. Industrial Area Manageable Switch for Data Collection and Forwarding The IGS-801M offers high performance and high reliability to make sure the continuous industrial operation in harsh environments such as control cabinet of transportation, factory floors, outdoor space, and the places where the temperature is extremely low or high. With a non-blocking design and desktop size, the installation of PLANET IGS-801M 8-port Gigabit Managed Industrial Ethernet Switch is as easy as that of a Fast Ethernet network and it is helpful to build a Gigabit high-bandwidth switched network quickly. To further expand the current network, the IGS-801M provides advanced Web and SNMP management interface to meet this kind of demand. With its built-in web-based management, the IGS-801M offers an easy-to-use, platform-independent management and configuration facility. The IGS-801M supports standard Simple Network Management Protocol (SNMP) that makes the managed switch able to be monitored via any standard-based management software. With the IGS-801M, which complies with all the requirements of industrial applications, customers may enjoy high reliability, recovery capability and safe Ethernet network operation. Key Features Physical Port 8-Port 10/100/1000BASE-T RJ45 copper Industrial Case and Installation IP30 aluminum case DIN-rail or wall-mount design Redundant power design 12 to 48V DC, redundant power with reverse polarity protection AC 24V power adapter acceptable Supports EFT 6000VDC protection for power line Supports 6000VDC Ethernet ESD protection -40 to 75 degrees C operating temperature Layer 2 Features Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Supports VLAN IEEE 802.1Q tagged VLAN Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Protocol VLAN Voice VLAN Private VLAN Management VLAN GVRP Supports Spanning Tree Protocol STP (Spanning Tree Protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (Multiple Spanning Tree Protocol) STP BPDU Guard, BPDU filtering and BPDU forwarding Supports Link Aggregation IEEE 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Provides port mirror (many-to-1) Loop protection to avoid broadcast loops Supports ERPS (Ethernet Ring Protection Switching) Quality of Service Ingress and egress rate limit per port bandwidth control Storm control support Broadcast/Unknown unicast/Unknown multicast Traffic classification IEEE 802.1p CoS TOS/DSCP/IP precedence of IPv4/IPv6 packets Strict priority and Weighted Round Robin (WRR) CoS policies Multicast Supports IPv4 IGMP snooping v2 and v3 Supports IPv6 MLD snooping v1, v2 IGMP querier mode support IGMP snooping port filtering MLD snooping port filtering Security Authentication IEEE 802.1X port-based network access authentication Built-in RADIUS client to co-operate with the RADIUS servers RADIUS/TACACS+ login user access authentication Access control list IPv4/IPv6 IP-based ACL MAC-based ACL MAC security Static MAC MAC filtering Port security for source MAC address entries filtering DHCP snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP source guard prevents IP spoofing attacks DoS attack prevention Management IPv4 and IPv6 dual stack management Switch management interface Web switch management Telnet command line interface SNMP v1 and v2c switch management SSHv2, TLSv1.2 and SNMPv3 secure access User privilege levels control Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System maintenance Firmware upload/download via HTTP/TFTP Configuration upload/download through web interface Dual images Hardware reset button for system reboot or reset to factory default SNTP Network Time Protocol Cable diagnostics Link Layer Discovery Protocol (LLDP) and LLDP-MED SNMP trap for interface link up and link down notification Event message logging to remote Syslog server Four RMON groups (history, statistics, alarms and events) PLANET Smart Discovery Utility for deployment management PLANET NMS system and CloudViewer for deployment management

Especificaciones técnicas

Hardware Version

2

Copper Ports

8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port

Reset Button

< 5 sec: System reboot > 5 sec: Factory default

Connector

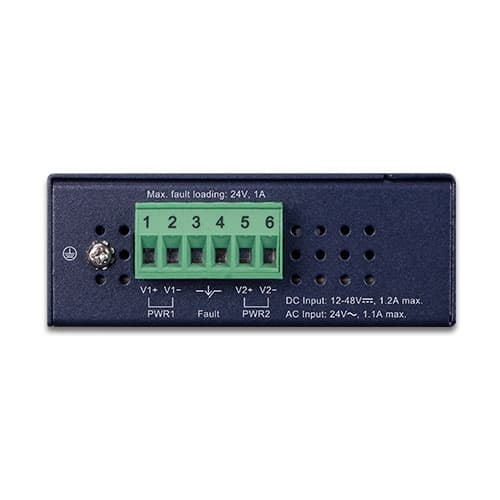

Removable 6-pin terminal block for power input Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V

Dimensions (W x D x H)

135 x 87.8 x 32 mm

Weight

472g

Power Requirements

DC 12 to 48V AC 24V

Power Consumption/ Dissipation

4.5 watts/15BTU (System on) 10 watts/34BTU (Full loading)

ESD Protection

6KV DC

Enclosure

IP30 metal case

Installation

DIN-rail kit and wall-mount kit

LED

System: Power 1, Power 2, Fault Alarm Ports: 10/100 Link/Act 1000 Link/Act

Switch Architecture

Store-and-Forward

Switch Fabric

16Gbps/non-blocking

Switch Throughput@64Bytes

11.9Mpps

Address Table

8K entries

Shared Data Buffer

4.1 megabits

Flow Control

IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex

Jumbo Frame

10K bytes

Port Mirroring

TX/RX/both Many-to-1 monitor

VLAN

802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP

Link Aggregation

IEEE 802.3ad LACP and static trunk Supports 8 trunk groups with 8 ports per trunk

Spanning Tree Protocol

STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol

IGMP Snooping

IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups

MLD Snooping

MLD (v1/v2) snooping, up to 256 multicast groups

QoS

8 mapping ID to 8 level priority queues - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP field in IP packet Traffic classification based, strict priority and WRR

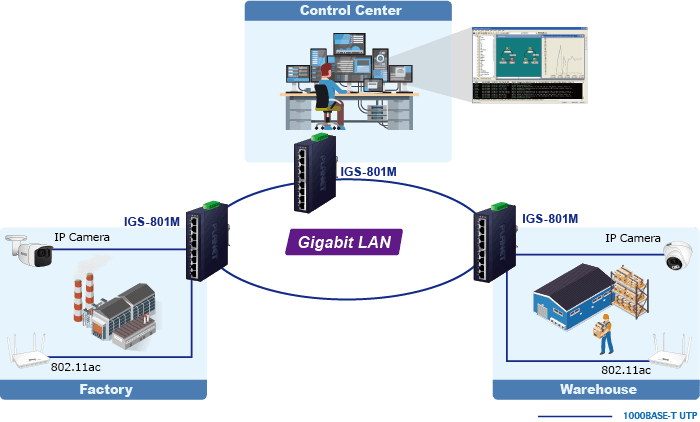

Ring

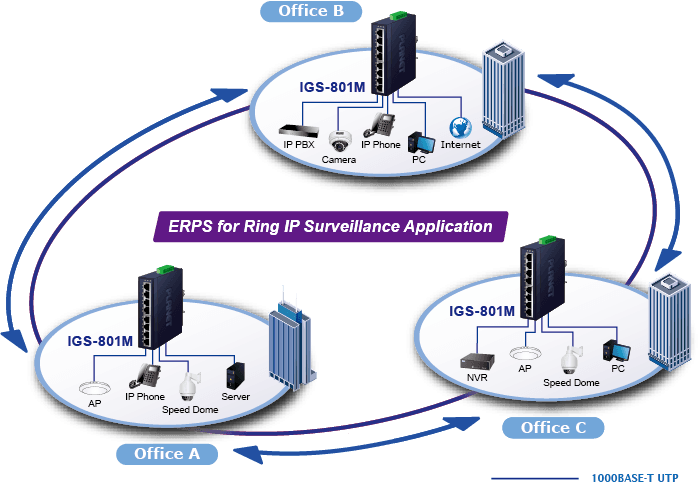

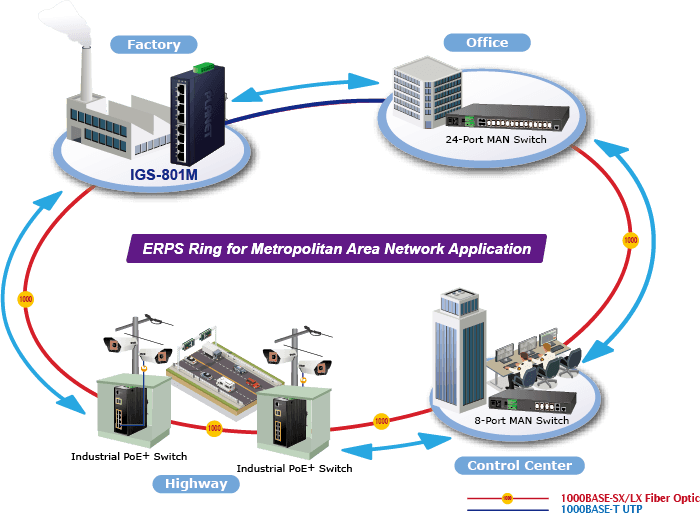

Supports ERPS, and complies with ITU-T G.8032

Access Control List

IPv4/IPv6 IP-based ACL/MAC-based ACL

Port Security

IEEE 802.1X – Port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS/TACACS+ user access authentication

MAC Security

IP-MAC port binding MAC filter Static MAC address

Enhanced Security

DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard

Basic Management Interfaces

Web browser Telnet SNMP v1, v2c

Secure Management Interfaces

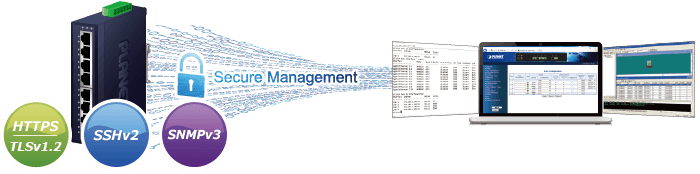

SSHv2, TLS v1.2, SNMP v3

System Management

Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer

Event Management

Remote/Local Syslog System log

SNMP MIBs

RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

Standards Compliance

IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3az Energy Efficient Ethernet (EEE) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring

Operating

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
