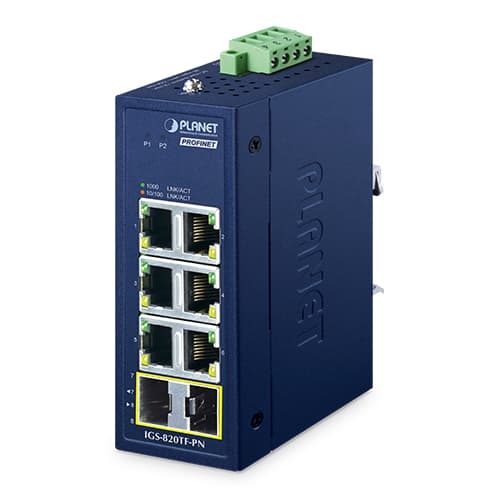

IGS-820TF-PN — Compact Industrial 6-Port 10/100/1000T + 2-Port 100/1000X SFP PROFINET Switch

Descripción

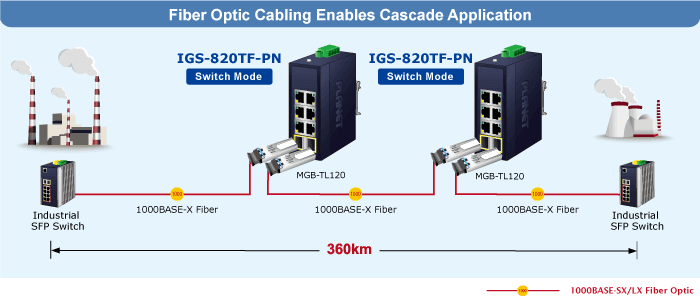

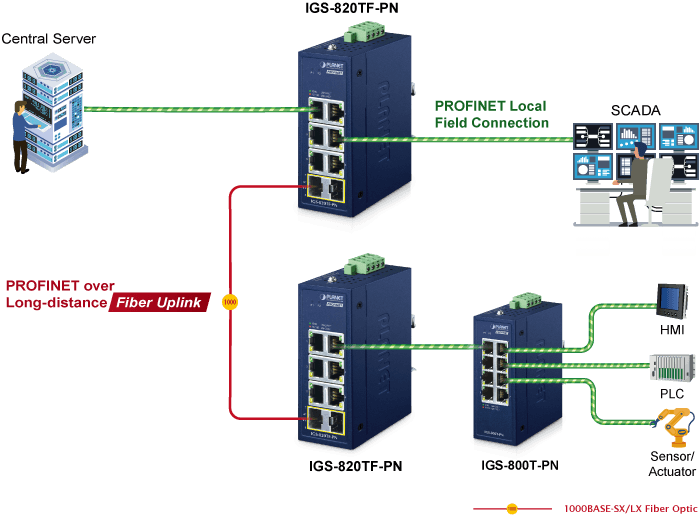

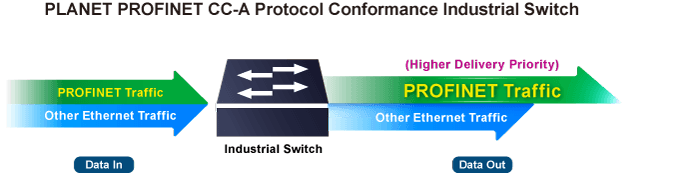

Compact Size for More Practicability and Convenience PLANET IGS-820TF-PN Compact Industrial 6-Port 10/100/1000T and 2-Port 1000X SFP PROFINET Switch is designed for industrial use, featuring 6 auto-negotiation 10/100/1000BASE-T RJ45 ports and 2 1000BASE-X SFP interfaces. It supports backward compatibility with 100BASE-FX transceivers, is housed in an IP30-rated rugged but compact case, and is equipped with a wide-ranging redundant power system ( 9~48V DC or 24V AC ). The IGS-820TF-PN is capable of operating in harsh environments with a temperature range from -40 to 75 degrees C . As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the IGS-820TF-PN simplifies industrial network deployment with its Plug and Play feature. Beyond offering stable and reliable fast data and power transmission, it aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless integration of intelligent systems. This integration facilitates real-time decision-making, operational efficiency, and valuable data analysis across various industrial applications. PROFINET Traffic with Higher Delivery Priority The IGS-820TF-PN is specially designed to support PROFINET Conformance Class A (CC-A), providing industrial users with reliable and real-time Ethernet communication in automation networks, making it ideal for use in factory automation and control applications. It features an enhanced function that recognizes PROFINET traffic and assigns it higher delivery priority. Upon detecting PROFINET packets, the IGS-820TF-PN forwards them first before processing other Ethernet traffic. With this capability, the IGS-820TF-PN becomes an ideal industrial unmanaged switch for ensuring fast and efficient PROFINET communication. Fiber-Optic Link Capability Enables Seamless Extension of Network Deployment The IGS-820TF-PN is equipped with two 1000X SFP Gigabit Ethernet ports that support dual-speed functionality, compatible with both 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. These ports feature auto-detection, allowing administrators to flexibly select the most suitable SFP transceiver based on the required transmission distance or speed. This adaptability ensures efficient network extension, with transmission distances ranging from 550 meters to 2 kilometers using multi-mode fiber, and up to 10/20/30/40/50/60/70/120 kilometers with single-mode or WDM fiber. The fiber-optic uplink capability guarantees high throughput to all connected nodes and extends the network over long distances, making it ideal for uplinking to monitoring centers or aggregation switches or monitoring centers. Whether implementing FTTH (Fiber to the Home), FTTC (Fiber to the Curb), or FTTB (Fiber to the Building) solution, the IGS-820TF-PN simplifies the process for both ISPs and enterprises. Its robust design and secure topology enable it to handle large volumes of data seamlessly, connecting to metro or aggregation switches with ease. Efficient Power Management for Industrial Applications The IGS-820TF-PN incorporates advanced green networking technologies aligned with ESG (Environmental, Social, and Governance) principles. It supports link-on cable length power-saving and link-down energy conservation modes. These mechanisms help the switch optimize power consumption during operation without sacrificing performance. Even under full-load conditions, the IGS-820TF-PN maintains competitive power efficiency for an unmanaged industrial switch with dual SFP uplinks. By adopting IEEE 802.3az Energy Efficient Ethernet (EEE), the device can dynamically adjust power usage based on network traffic and cable link status. This enables lower energy use during periods of reduced activity, making it a reliable and energy-conscious choice for automation networks and smart factory deployments. Dual Power Input for High Availability Network System The IGS-820TF-PN features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) to enhance system reliability and uptime in automation networks. For example, if power supply 1 fails, the hardware failover function is automatically activated to power the IGS-820TF-PN through power supply 2, ensuring uninterrupted operation. High Switch Performance The IGS-820TF-PN delivers high-performance switch architecture, with 6 Gigabit Ethernet ports and 2 SFP interfaces providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps. Its 4K MAC address table supports wire-speed packet transfer without packet loss. The flow control function further ensures fast and reliable data transfer for demanding industrial applications. Plug and Play All RJ45 copper interfaces in the IGS-820TF-PN support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5, or 5e cables. The auto-MDI/MDI-X feature allows seamless connection to any Ethernet device without requiring special straight-through or crossover cables. Additionally, the IGS-820TF-PN includes 2 1000BASE-X SFP interfaces that provide flexible and reliable fiber-optic connectivity for long-distance, high-bandwidth applications. It supports Plug and Play SFP module installation with hot-swap functionality , allowing users to easily add or replace SFP modules without disrupting system operations. These features ensure versatile and uninterrupted network deployment in diverse industrial environments. Flexible and Easy Installation with Limited Space The compact design of the IGS-820TF-PN makes it ideal for narrow environments, such as wall enclosures. It supports both wall mounting and DIN-rail installation, ensuring flexibility and convenience in space-constrained locations. Applications Reliable Industrial Networking for Automation and Monitoring The IGS-820TF-PN is purpose-built for industrial environments that demand real-time data communication, simple deployment, and stable network performance. With its PROFINET traffic prioritization, dual Gigabit SFP uplinks, and compact rugged design, it is ideal for use in: Factory Automation Systems Facilitates seamless communication between PLCs, HMIs, and industrial robots by ensuring time-sensitive control signals are delivered without delay. Process Control in Manufacturing Integrates with sensors and actuators for precise monitoring and fast response in production lines. Smart Transportation Infrastructure Supports reliable Ethernet communication for surveillance, signaling, and control systems in railway stations and tunnels. Energy and Utility Monitoring Connects SCADA terminals, smart meters, and control units in substations, water treatment plants, and renewable energy sites. Warehouse and Logistics Management Ensures stable and efficient communication for automated sorting systems, barcode readers, and tracking equipment. With its plug-and-play setup, redundant power input, and fiber-optic uplink capability, the IGS-820TF-PN delivers dependable network connectivity in space-constrained and mission-critical environments. Key Features Physical Port 6-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function 2-port 100/1000BASE-X SFP Layer 2 Features Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, and IEEE 802.3z Ethernet standards. Supports auto-negotiation for 10/100Mbps half/full duplex and 1000Mbps full duplex modes. Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex). High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth. Switching fabric: 16Gbps Integrated address look-up engine, supporting 4K absolute MAC addresses Supports jumbo frames up tp 9K bytes Automatic MAC address learning and aging Supports CSMA/CD Protocol Compliant with PROFINET Conformance Class A Supports PROFINET PTCP filter for reliable communication on PROFINET network Supports PROFINET Traffic Pass-through with QoS Industrial Case and Installation IP30-rated compact metal enclosure Supports both DIN-rail and wall-mount installation 9~48V DC redundant power input with reverse polarity protection; includes removable terminal block for master and slave power connections Supports 24V AC power input Supports 6000 VDC Ethernet ESD protection Operating temperature range: -40 to 75°C Designed to withstand free fall, shock, and vibration in industrial environments

Especificaciones técnicas

Copper Ports

6 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiation ports (Ports 1 to 6)

SFP Slots

2 x 1000BASE-X SFP interfaces (Ports 7 to 8) Backward compatible with 100BASE-FX transceiver

Connector

Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2

ESD Protection

6KV

EFT Protection

6KV

Power Requirements

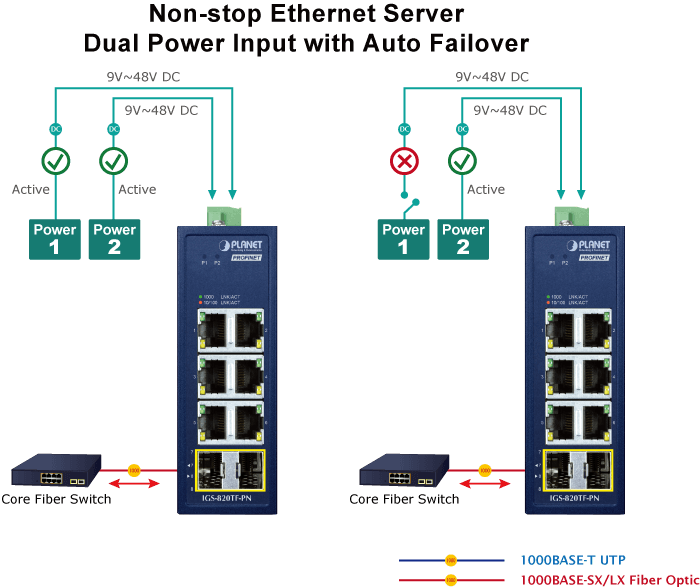

9~48V DC redundant power with polarity reverse protection function, 24V AC power support

Power Consumption / Dissipation

System on: Max. 1.44 watts/4.9BTU Ethernet Full Loading: Max. 4.8 watts/16.4BTU

Installation

DIN-rail kit and wall-mount ear

Enclosure

IP30 metal case

Dimensions (W x D x H)

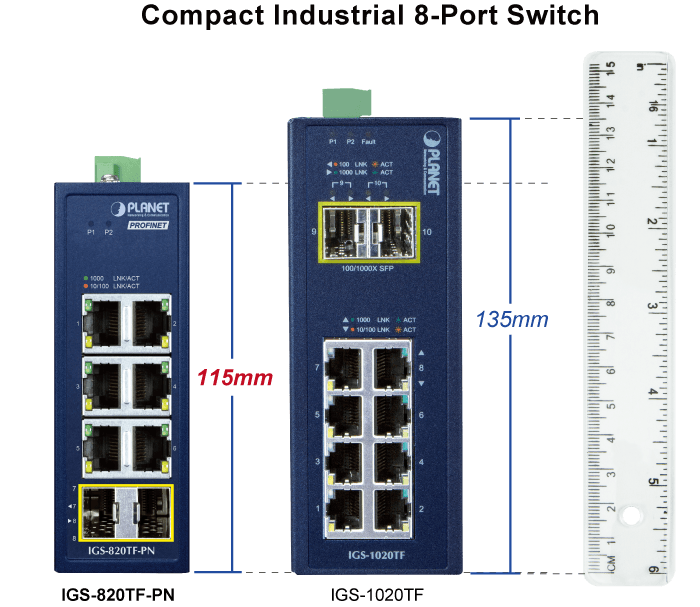

41 x 70 x 115 mm

Weight

345g

LED

2 x LED for system and power: Green : Power 1 Green : Power 2 2 x LED for each port: 10/100/1000T RJ45 Ports: Green : 1000Mbps LNK/ACT Amber :10/100Mbps LNK/ACT 100/1000BASE-X SFP Interfaces: Green : 1000Mbps LNK/ACT Amber : 100Mbps LNK/ACT

Switch Processing Scheme

Store-and-Forward

Address Table

4K entries

Buffer Memory

4M bits on-chip buffer memory

Flow Control

Back pressure for half duplex IEEE 802.3x pause frame for full duplex

Switch Fabric

16Gbps

Throughput (packet per second)

11.9Mpps@64bytes

Jumbo Frame

9Kbytes

Network Cables

10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters)

PROFINET Support

Conformance Class A (CC-A), PTCP filter, QoS prioritization

Standards Compliance

IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service PROFINET protocol

Regulatory Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Temperature

Operating: -40~75 degrees C Storage: -40~75 degrees C

Humidity

Operating: 5~90%, Storage: 5~90% (non-condensing)
